Vibratory Road Rollers: Single Drum vs Double Drum vs Ride-On Roller Guide
Vibratory Rollers for Road Construction: A Complete Buyer's Guide for India
Compaction of road sub-base, granular layers, and asphalt pavement is one of the most critical quality control activities in road construction. Under-compaction leads to premature rutting, surface cracking, and pothole formation — failures that trigger warranty claims and damage a contractor's reputation. Selecting the right vibratory roller for the material being compacted, and the scale of your project, is therefore a fundamental decision.
In India, vibratory rollers are used across National Highway projects, state road works, airport runway bases, parking areas, industrial compound pavements, and logistics park roads. Jamshedji Equip supplies three key types: Single Drum Vibratory Rollers, Double Drum Walk-Behind Rollers, and Ride-On Compactor Rollers.
How Vibratory Rollers Work
Vibratory rollers use an eccentric weight rotating inside the drum. This creates a vertical oscillating force — the drum alternately presses down into the material and lifts away — at frequencies typically between 25–50 Hz. The combination of static weight and dynamic impact force compacts material far more effectively than a static roller of the same weight.
The key parameters that define a roller's compaction effectiveness are:
- Static Linear Load (kN/m): The static weight per unit width of drum. Higher is better for stiff granular layers.
- Centrifugal Force (kN): The peak dynamic impact force generated by the vibrating eccentric weight.
- Frequency (Hz): Higher frequencies are better for thin asphalt layers; lower frequencies suit thick granular sub-bases.
- Amplitude (mm): The peak-to-peak vertical displacement of the drum. Large amplitude for deep compaction, small amplitude for thin asphalt surfacing.
Type 1: Double Drum Walk-Behind Roller
The double drum walk-behind roller (also called a pedestrian roller or twin-drum compactor) has two smooth steel drums at front and rear. The operator walks behind the machine, controlling it via a handlebar. Both drums typically vibrate simultaneously, compacting asphalt or granular material under both drums in a single pass.
Key applications:
- Compacting freshly laid hot-mix asphalt (HMA) on footpaths, driveways, and small road patches
- Compacting granular sub-base on small road sections and compound areas
- Trench reinstatement compaction over utility pipe backfill
- Airport taxiway and apron repair patches
Type 2: Single Drum Vibratory Roller (Self-Propelled)
The single drum vibratory roller has one large vibratory steel drum at the front and pneumatic tyres at the rear. The rear tyres provide traction while the front vibrating drum compacts the material. Available in sizes from 1.5 tonne to 12 tonne, these are the workhorses of Indian road construction sub-base compaction.
Key applications:
- Compacting WMM (Wet Mix Macadam) and GSB (Granular Sub-Base) layers in road construction
- Compacting embankment fill and earthwork layers
- Sub-grade preparation for NH and state highway projects
- Compacting industrial compound and parking area sub-base

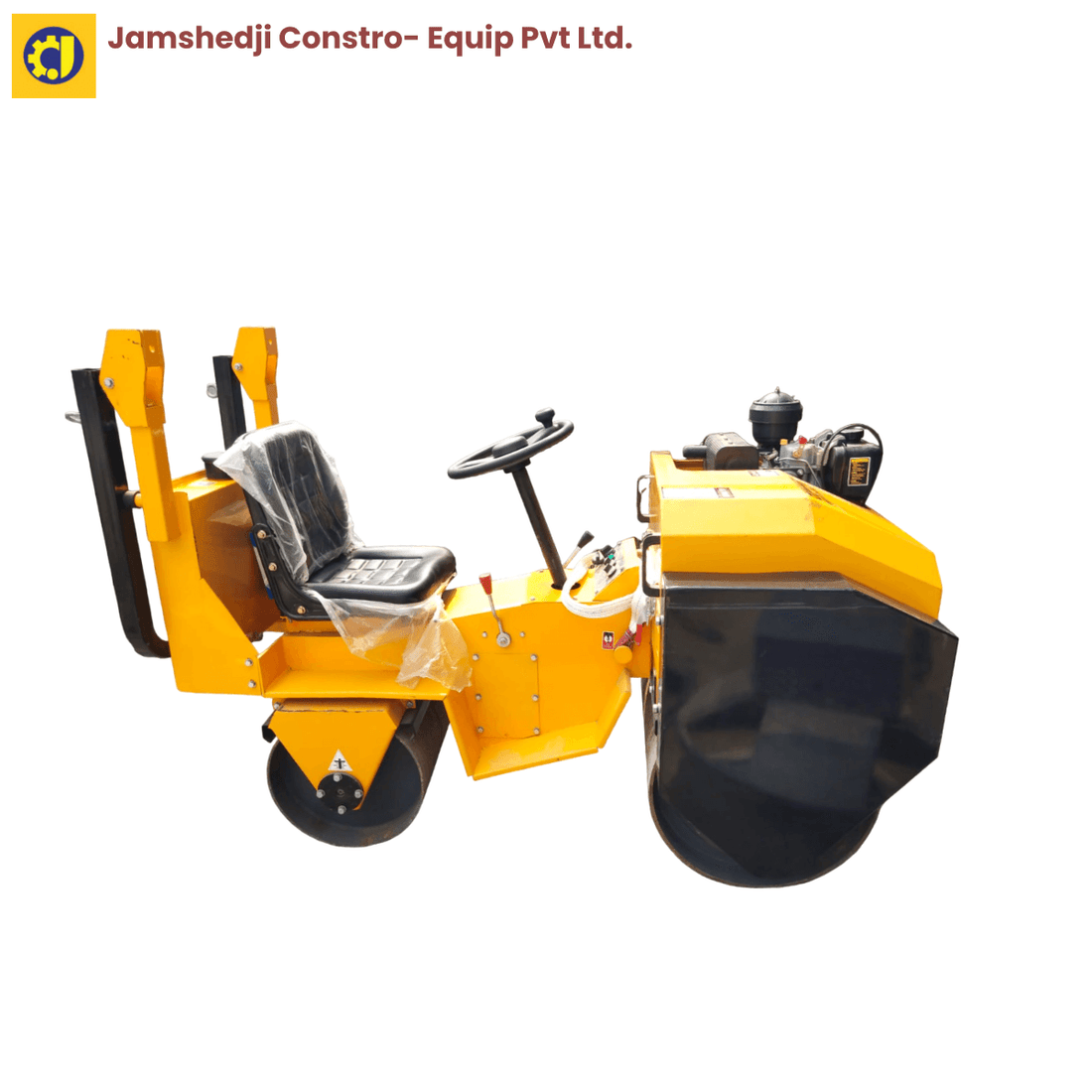

Type 3: Ride-On Roller (Tandem Roller)
The ride-on tandem roller (also called a sit-on roller or static tandem roller) typically has two smooth drums and no vibratory mechanism — using only static weight for compaction. The operator sits on the machine. These are used primarily for asphalt surface course compaction during the finishing stage of road paving.
Comparison of Roller Types
| Parameter | Double Drum Walk-Behind | Single Drum (Self-Propelled) | Ride-On Roller |
|---|---|---|---|
| Operator Position | Walking behind | Seated (cab or ROPS frame) | Seated |
| Best Material | Asphalt, granular, patch | Sub-base, earthwork, WMM | Asphalt surface course |
| Typical Weight | 800 kg – 1,500 kg | 1.5 T – 12 T | 1 T – 3 T |
| Vibration | Yes (both drums) | Yes (front drum) | Static only |
| Project Scale | Small to medium | Medium to large | Small to medium |
Compaction Quality Control Tips
- Number of passes: Typically 4–8 passes per layer, depending on material and layer thickness. Use a nuclear density gauge or sand replacement test to confirm required density (95% Proctor MDD for sub-base).
- Overlap: Always overlap adjacent roller passes by at least one-third of drum width to avoid uncompacted strips.
- Lift thickness: Do not exceed 200–250mm compacted layer thickness for granular materials. Compact in multiple thin lifts rather than one thick lift.
- Water sprinkling: Steel drums of vibratory rollers require continuous water sprinkling during asphalt compaction to prevent asphalt sticking to the drum.
Frequently Asked Questions
What size vibratory roller do I need for a road project in India?
For WMM and GSB compaction on a state highway project, a 3T–8T single drum vibratory roller is standard. For small road patches and compound areas, a double drum walk-behind roller (800kg–1.5T) is sufficient. Contact Jamshedji Equip for a recommendation based on your project specifications.
Can a double drum walk-behind roller compact soil?
Walk-behind rollers are primarily suited to asphalt and granular materials. For cohesive soil compaction in embankments, a larger self-propelled single drum roller or a sheepsfoot drum attachment is more appropriate.
Do you deliver road rollers across India?
Yes. Jamshedji Equip delivers single drum vibratory rollers, double drum walk-behind rollers, and ride-on rollers to road construction project sites all across India, including remote highway alignments. Contact us for logistics support.
