Limit Switch Delixi JLXK1-411 – CDRG45 Threading Machine Spare
Limit Switch Delixi JLXK1-411 – CDRG45 Threading Machine Spare

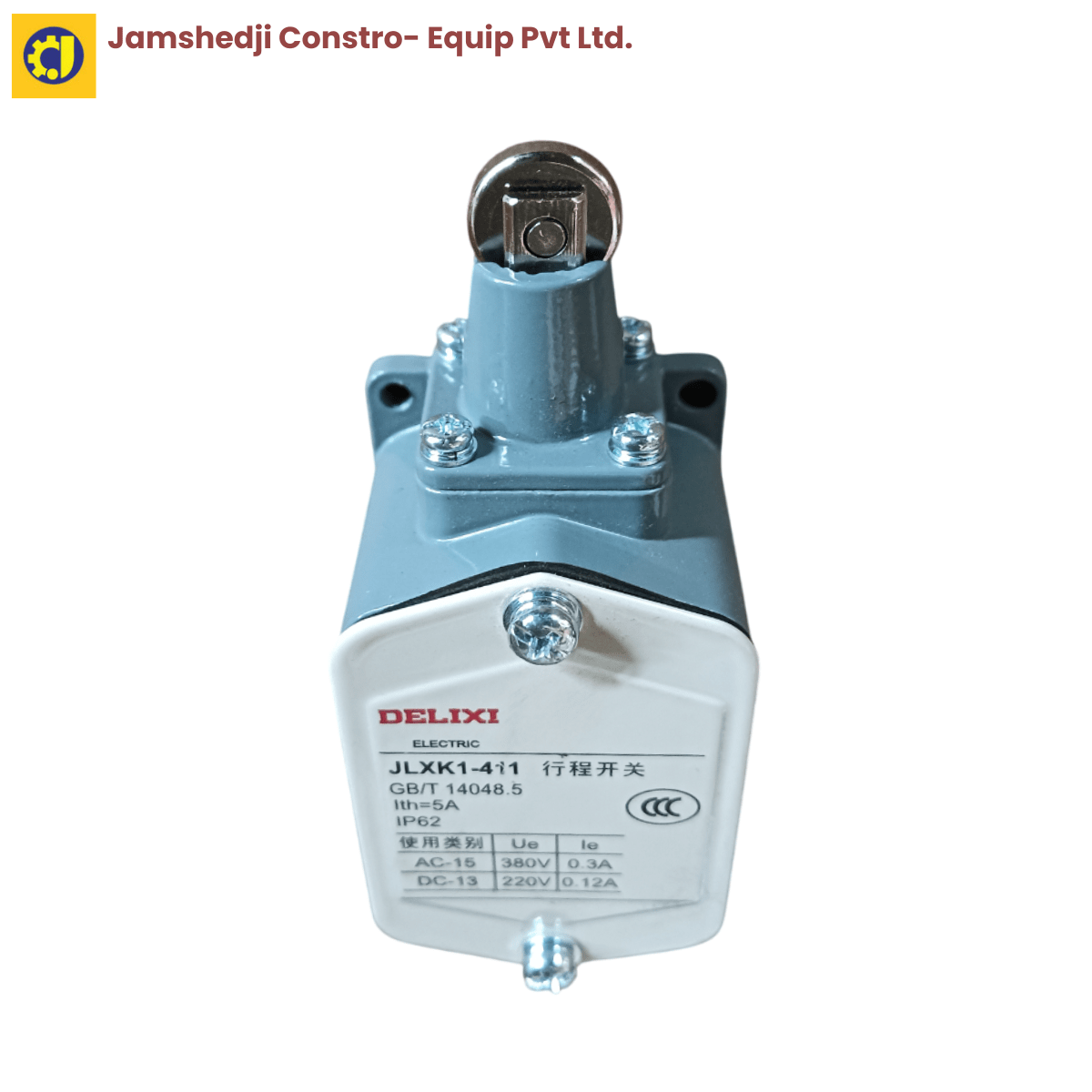

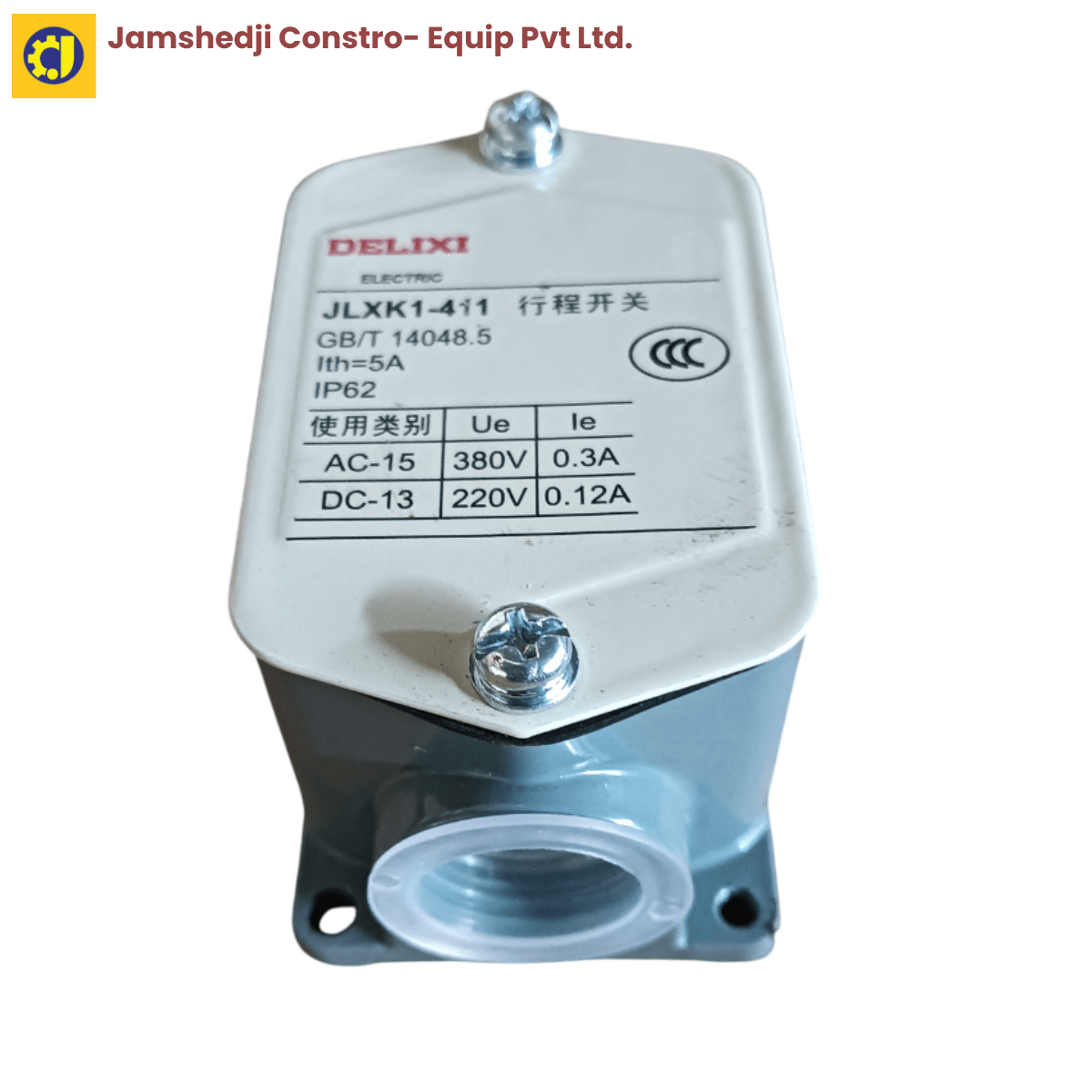

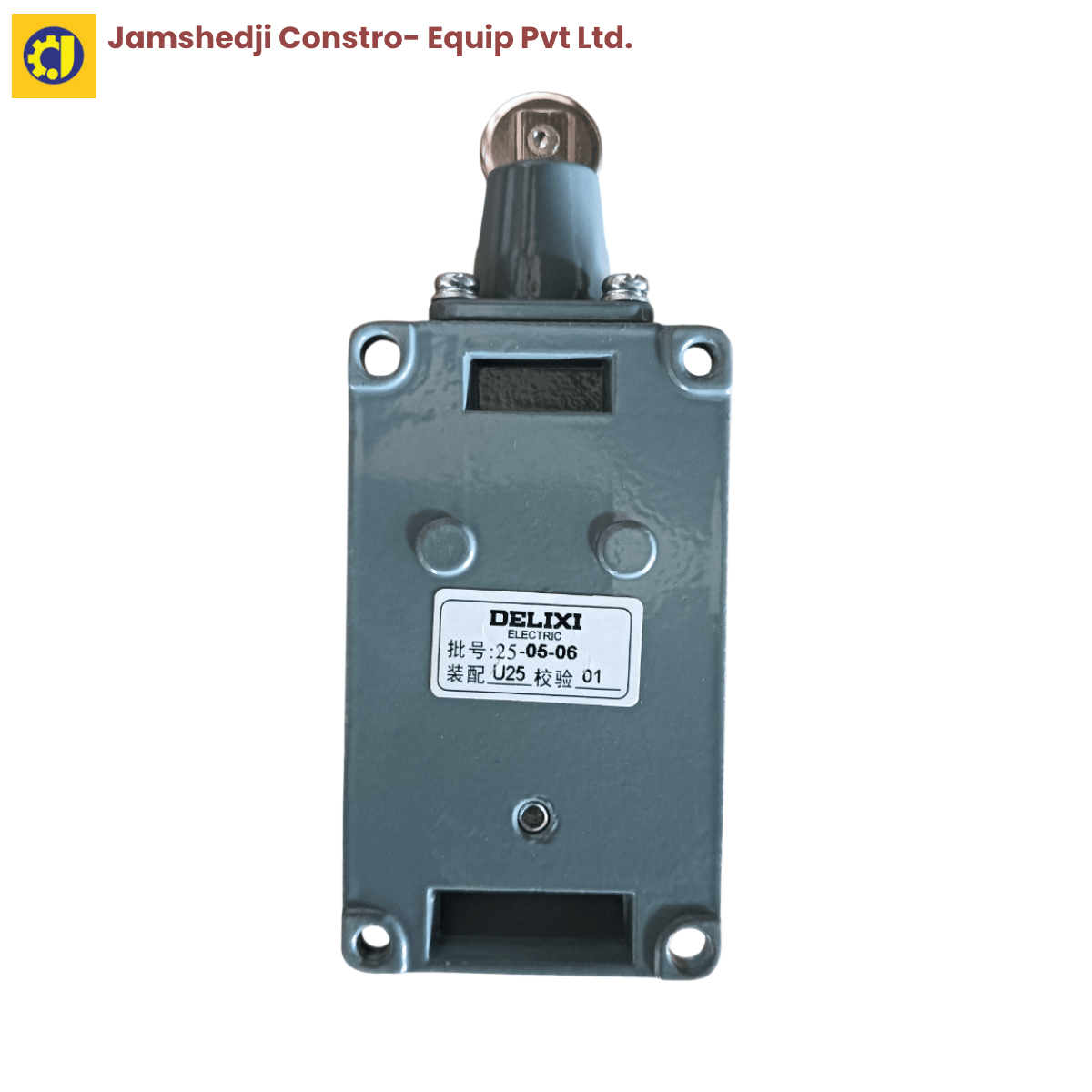

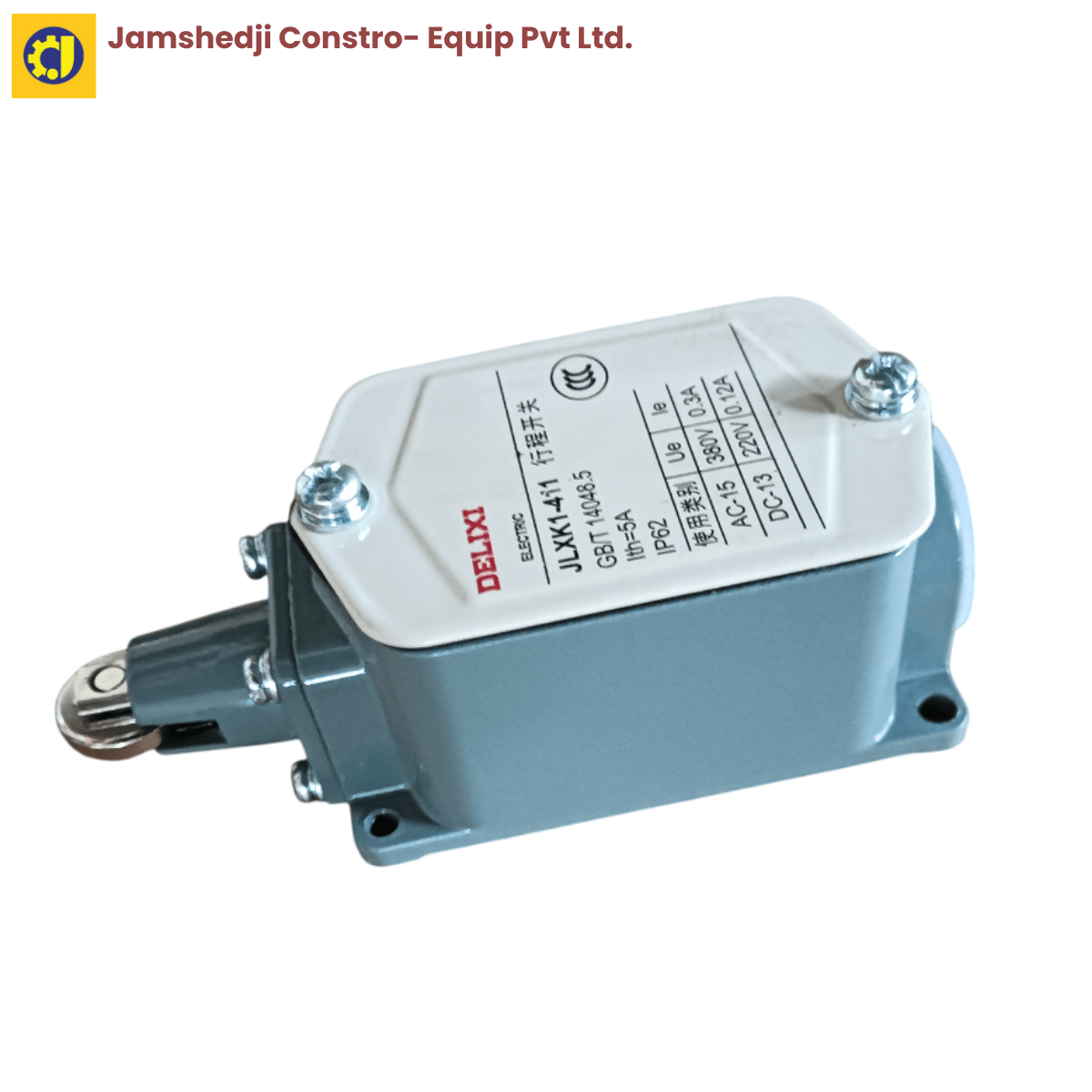

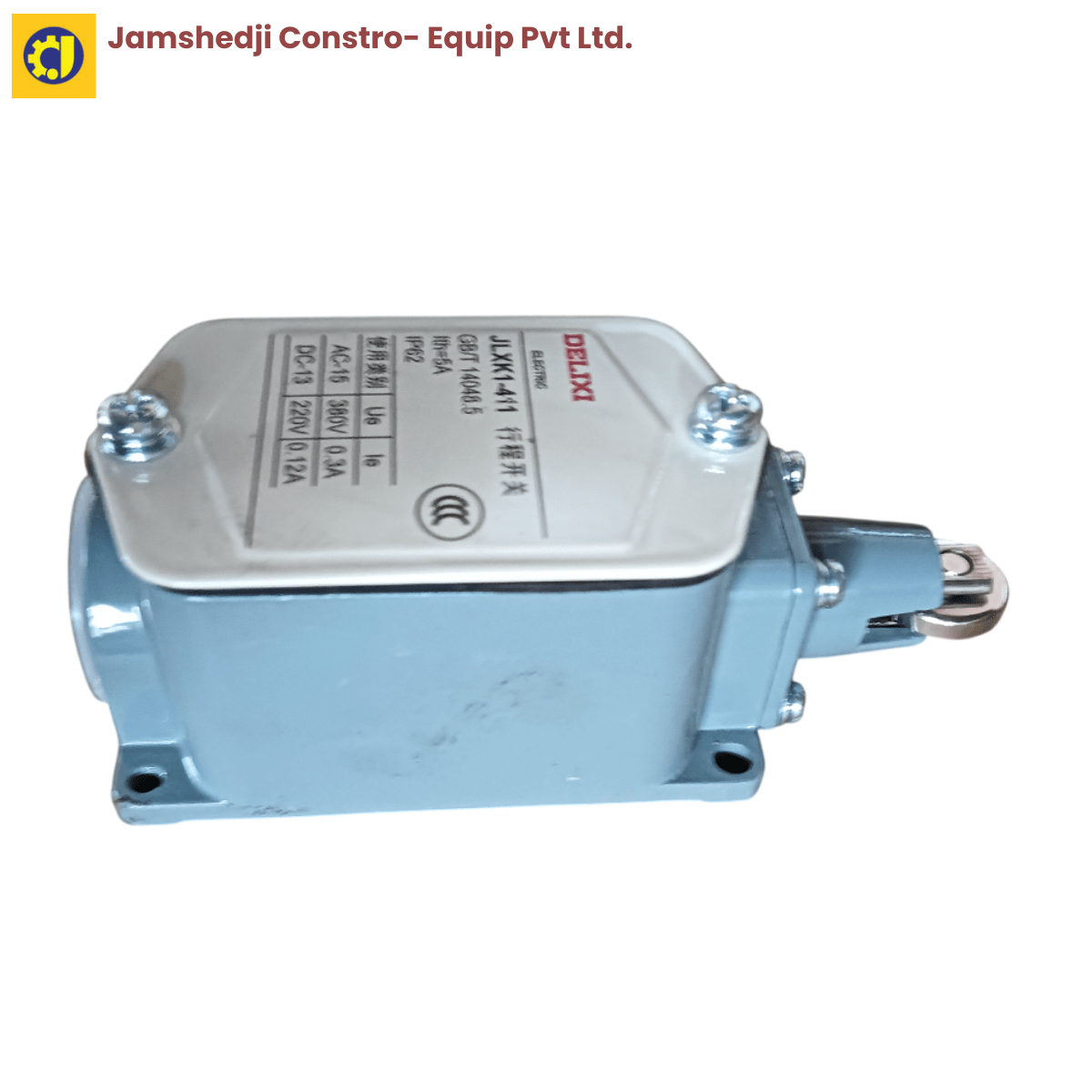

The Delixi JLXK1-411 limit switch is the mechanical position switch fitted to the CDRG45 rebar threading machine, where it detects carriage position and signals the control circuit to stop or reverse at the end of travel. It is the replacement part when threading throw or auto-stop stops working correctly. Rated 380 V AC / 220 V DC, 5 A, IP62.
Fits
On the Jamshedji range this is the limit switch for the CDRG45 bar threading machine. It is a standard Delixi JLXK1-411 industrial mechanical limit switch, so it also serves as a general-purpose replacement in other machinery, conveyors and rolling equipment that use the same switch. If you are matching it to a threading machine, send your machine model or a photo of the old switch on WhatsApp and we will confirm before dispatch.
What it does and when to replace it
A limit switch is a mechanical trip: when a moving part reaches a set position, it presses the switch lever, which opens or closes the control circuit. On the CDRG45 threading machine the switch governs the travel of the threading action — it tells the control gear when the carriage has reached the end of its stroke so the cycle stops or reverses at the right point.
When the switch wears out or its contacts fail, the machine stops registering end-of-travel: the auto-stop becomes unreliable or the cycle behaves erratically. Replace the switch when the machine no longer stops or reverses cleanly at the travel limit. It is a low-cost electrical part, and a spare on the shelf keeps a threading machine from standing idle over a five-rupee contact.
Specifications
| Part | Mechanical limit switch |
| Model | Delixi JLXK1-411 |
| Voltage rating | 380 V AC / 220 V DC |
| Current rating | 5 A |
| IP rating | IP62 |
| Fits (Jamshedji machine) | CDRG45 rebar threading machine |
| Brand | Delixi |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Supplied by Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune
Frequently asked questions
Which machine does this limit switch fit?
It is the limit switch used on the Jamshedji CDRG45 rebar threading machine. As a standard Delixi JLXK1-411, it also works as a general replacement in other machinery using the same switch.
What does the limit switch do on the threading machine?
It detects when the carriage reaches the end of its travel and signals the control circuit to stop or reverse the cycle at the correct point.
How do I know it has failed?
The machine stops registering end-of-travel — the auto-stop becomes unreliable or the cycle behaves erratically. That usually means worn contacts or a failed switch.
What are its electrical ratings?
380 V AC / 220 V DC, 5 A, with an IP62 enclosure for dust and moisture resistance.
What is the price of the Delixi JLXK1-411 limit switch?
Send your machine model on WhatsApp for current pricing and freight.
Need this spare? Send your machine model or a photo of the old switch and we will confirm the correct part and price.
Spares dispatched across India — see the CDRG45 threading machine or browse all TMT bar machines and tools.
