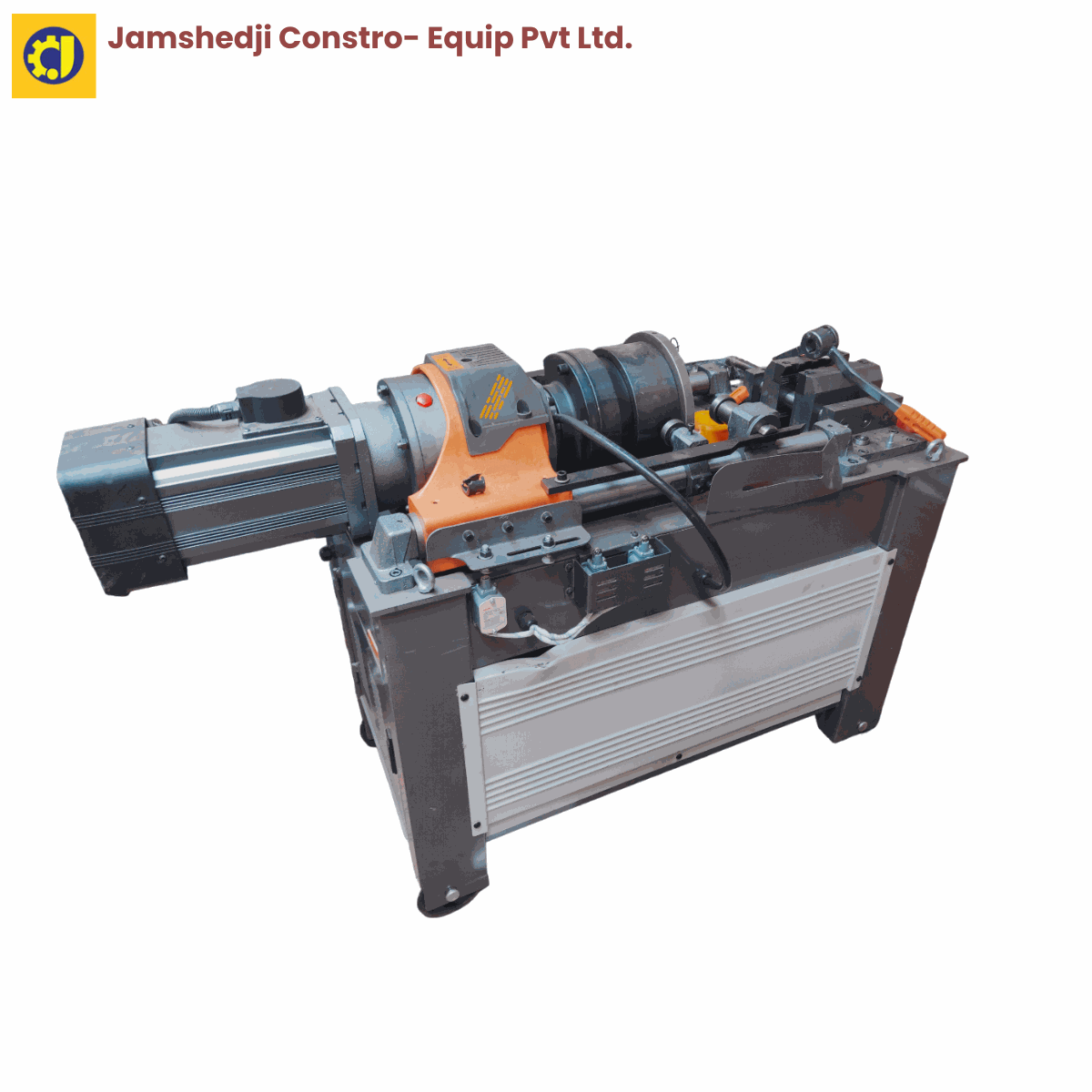

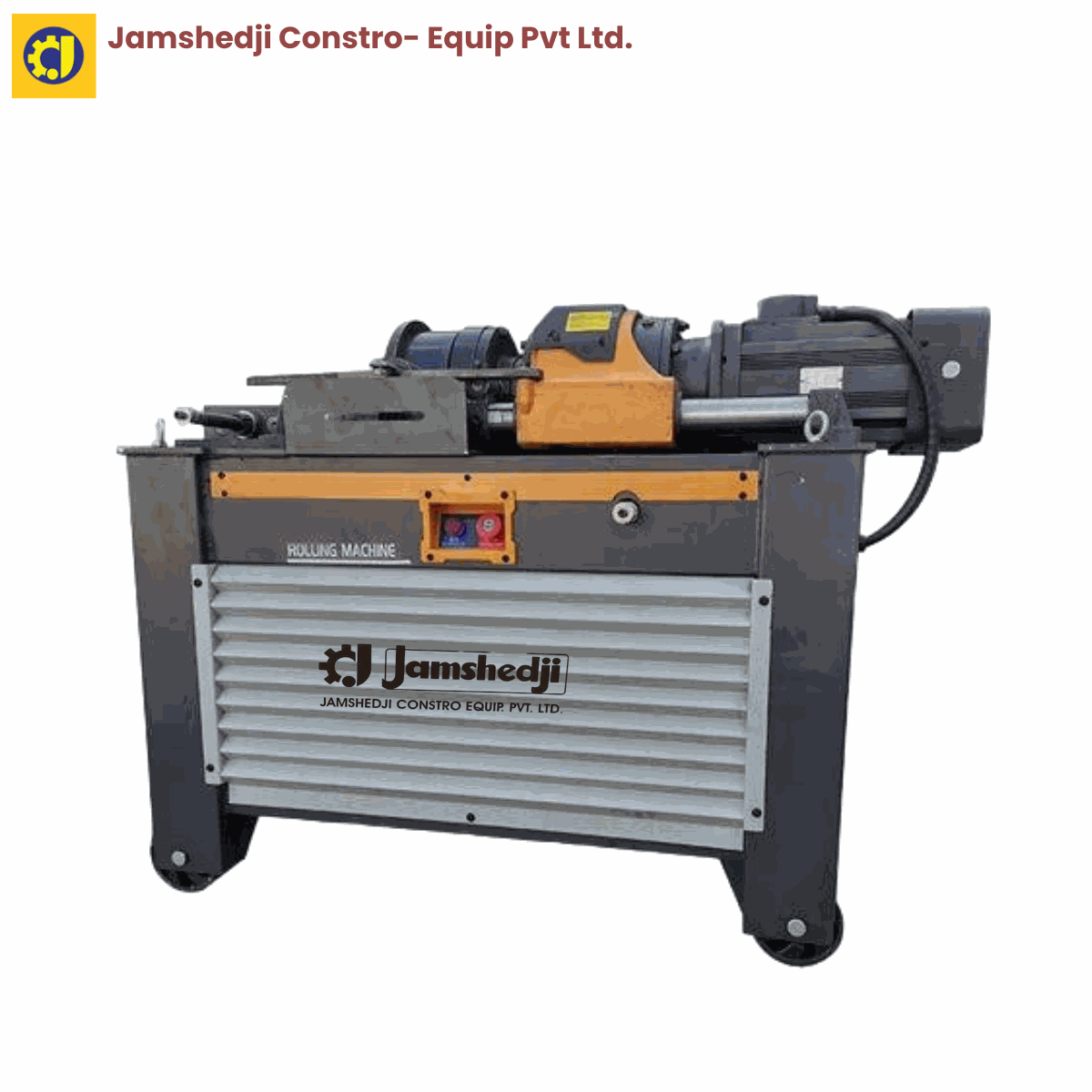

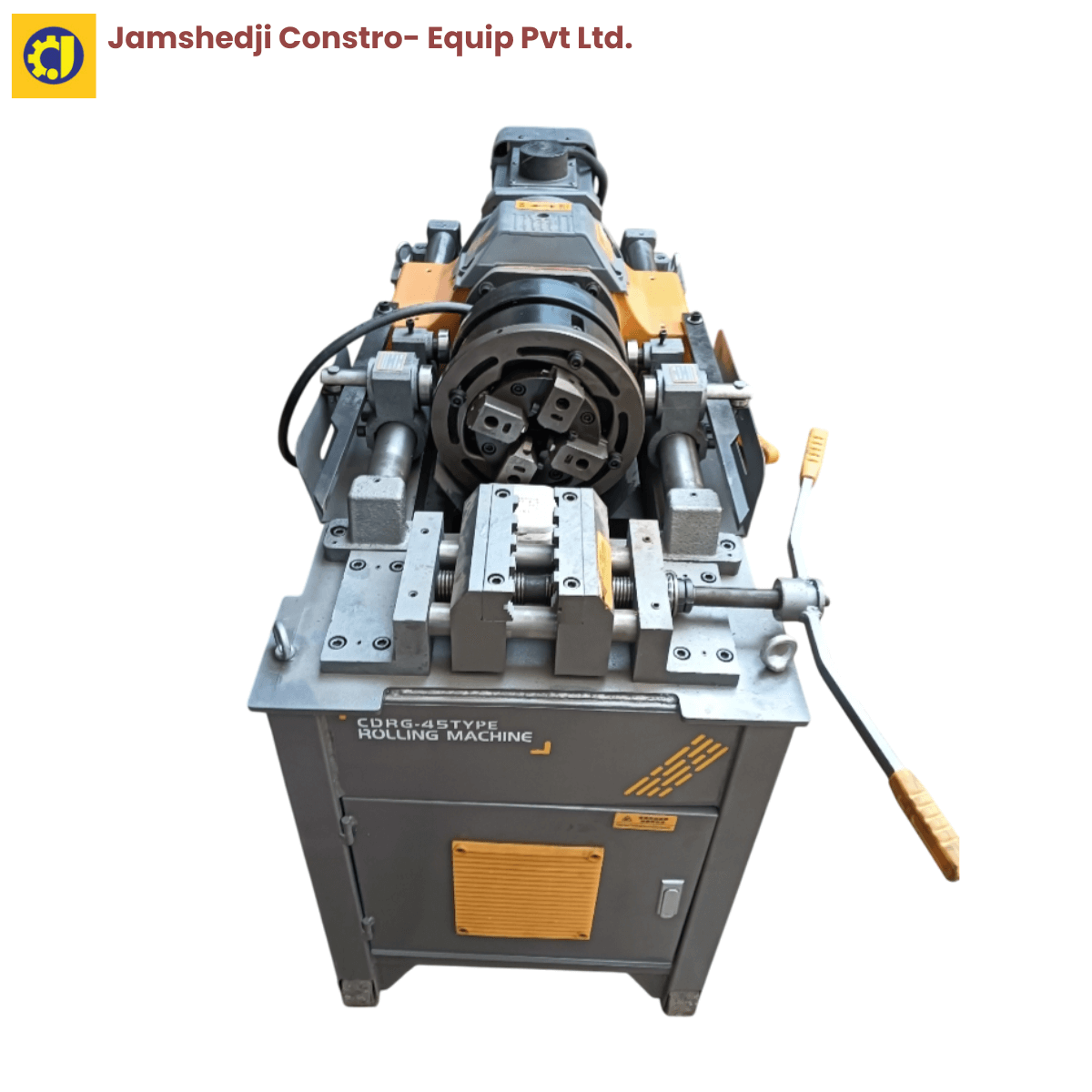

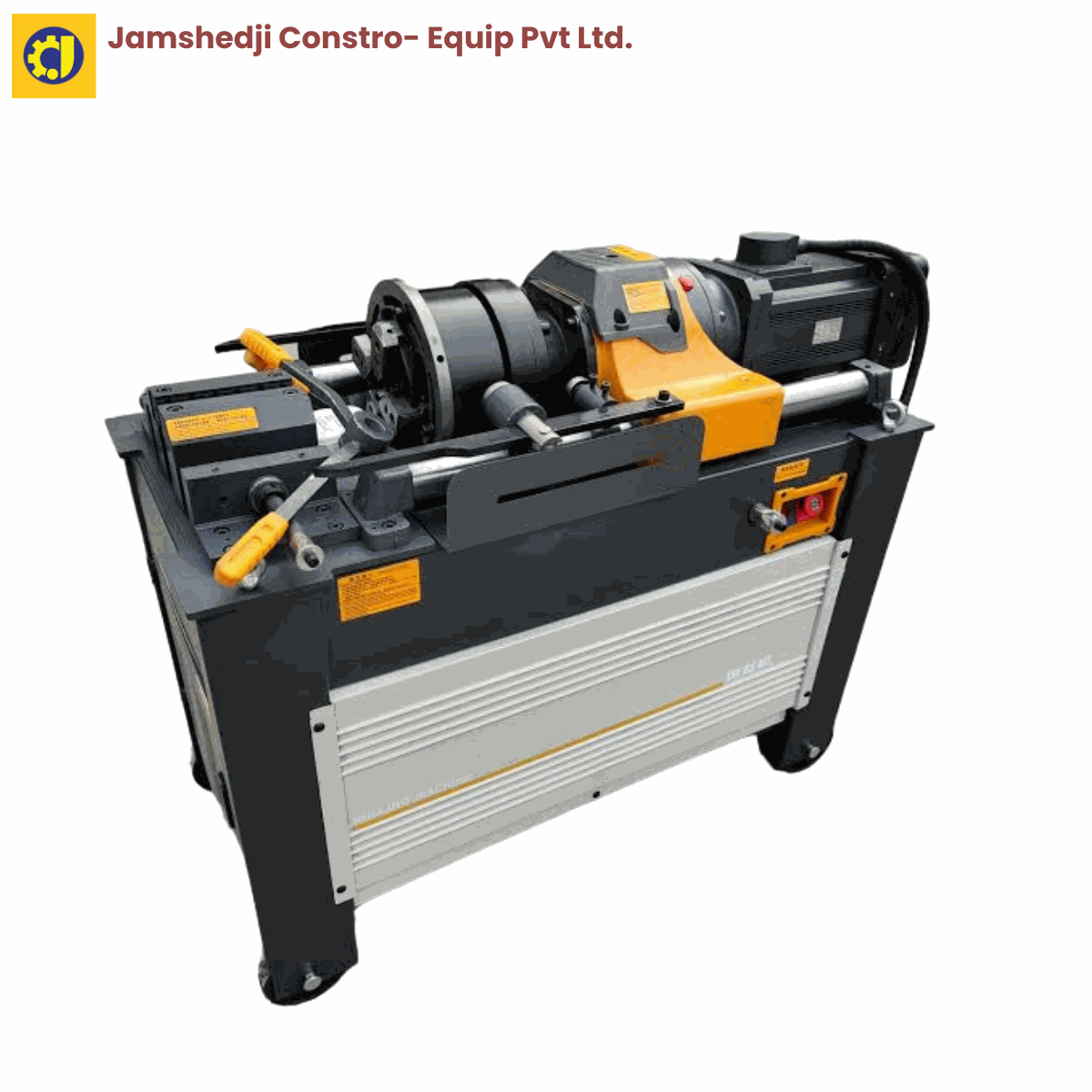

Bar Threading Machine CDRG45 – Rebar Coupler Threading 16 to 40mm

The CDRG45 bar threading machine cuts parallel threads onto TMT rebar from 16 mm to 40 mm so that bars can be joined with mechanical couplers instead of lapped. Built by Jamshedji Constro Equip at MIDC Bhosari, Pune, it runs a 7.5 HP motor through a 1:17 reducer, rolls threads up to 120 mm long, and uses magnet sensor control with a fast-adjusting nose for quick diameter changes. Weight is 480 kg.

Key specifications at a glance

• Rebar diameter: 16–40 mm
• Motor: 7.5 HP
• Thread rolling length: 120 mm
• Reducer ratio: 1:17
• Control: magnet sensor, fast-adjusting nose
• Weight: 480 kg

Why thread rebar instead of lapping it

A lapped splice needs an overlap of 40 to 60 bar diameters. On 32 mm bar that is well over a metre of steel per joint, doing nothing but transferring load — bought, cut, transported and tied into place.

A threaded coupler joins the bars end to end. The steel saved on laps is immediate and measurable, congestion at column and beam junctions drops sharply, and concrete flows properly around a coupled cage where a lapped one is often choked. On tall columns, heavy foundations and bridge piers, coupling is frequently what makes the reinforcement buildable at all.

Once the project is specified for couplers, the threading machine is not optional equipment — every bar end has to be threaded before it can be joined.

Key features

• Threads TMT rebar from 16 mm through 40 mm, covering the full coupled range
• 7.5 HP motor with 1:17 reducer for consistent thread quality under load
• Thread rolling length up to 120 mm
• Magnet sensor control for accurate, repeatable stopping
• Fast-adjusting nose — diameter changes without a long setup
• 480 kg stable base keeps the bar aligned through the cut
• Rollers are field-replaceable and stocked in Pune

Where it is used

High-rise column reinforcement, bridge and flyover piers, metro viaducts, heavy raft and pile-cap foundations, precast connections, and any project where the structural drawings specify mechanical couplers rather than lap splices. Threading is normally set up in the bar fabrication yard alongside the GQ50 bar cutting machine and GW50 bar bending machine, since bar is cut to length before it is threaded.

Full specifications

Rollers, couplers and spares

Threading rollers are the wear item and are matched to bar diameter: 16 / 18 / 20 / 22 mm rollers and 25–32 mm rollers are both stocked in Pune, along with the Delixi JLXK1-411 limit switch. Matching TMT rebar coupler sleeves in 16, 20, 25 and 32 mm are available to complete the joint.

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support, rollers and spares available direct from the Bhosari works
