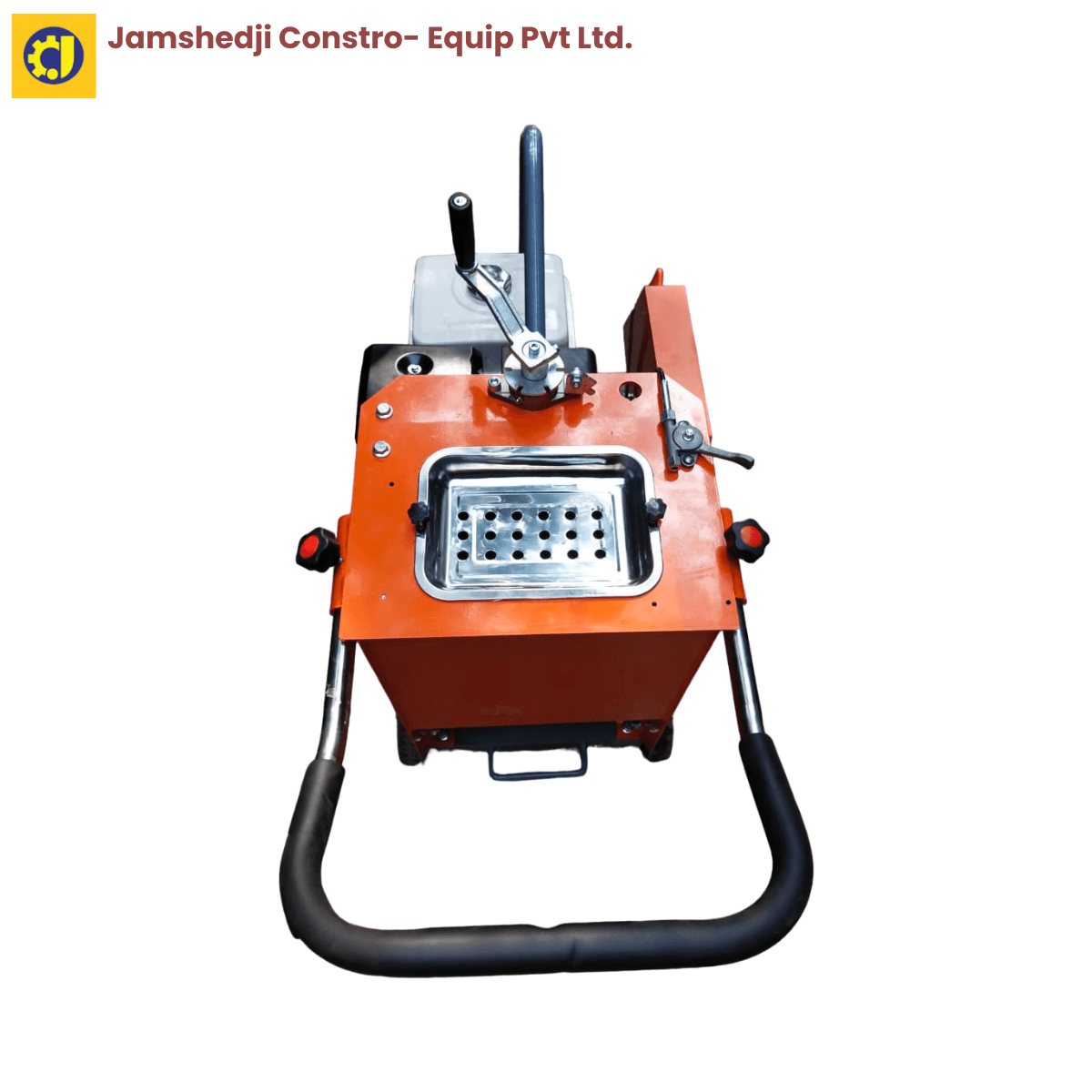

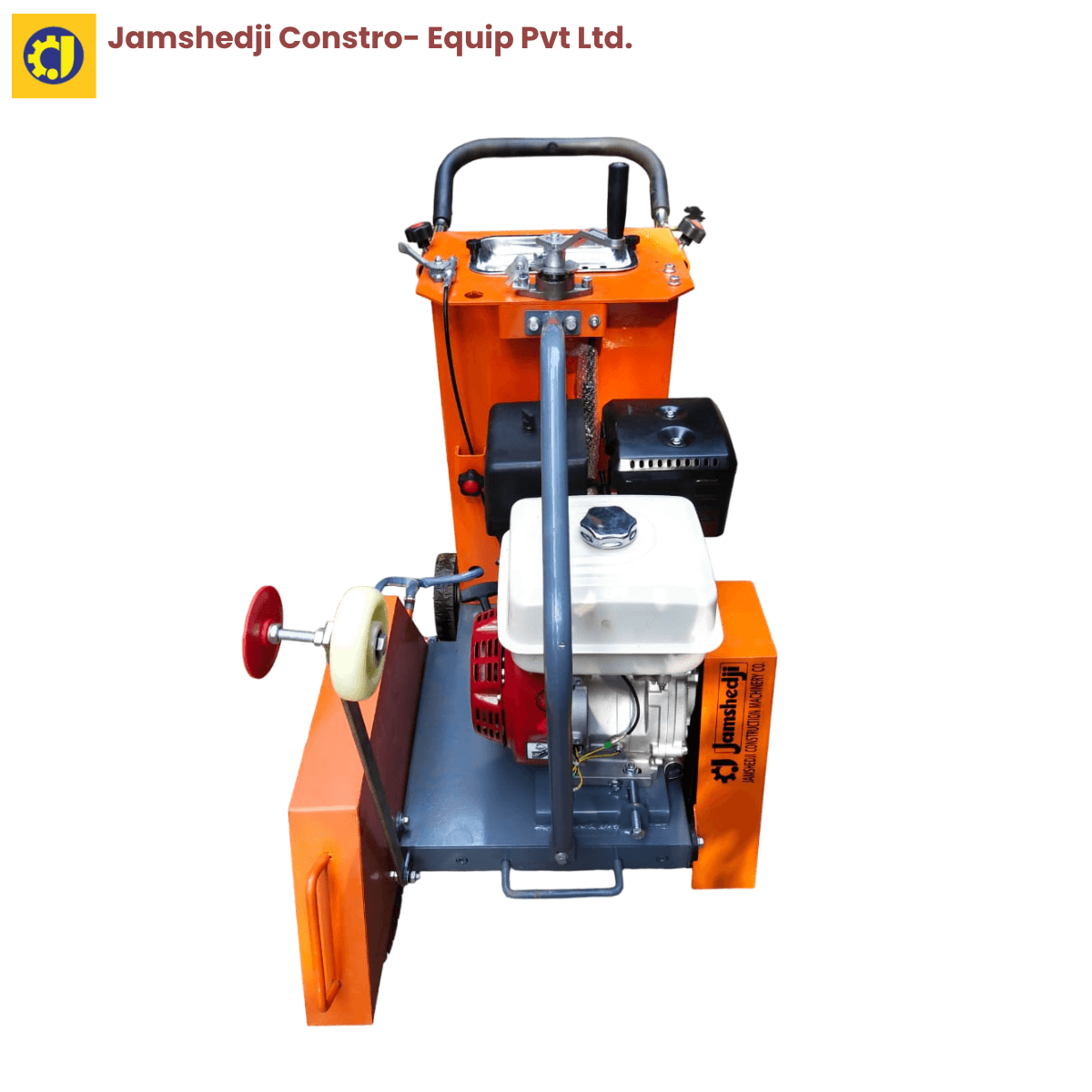

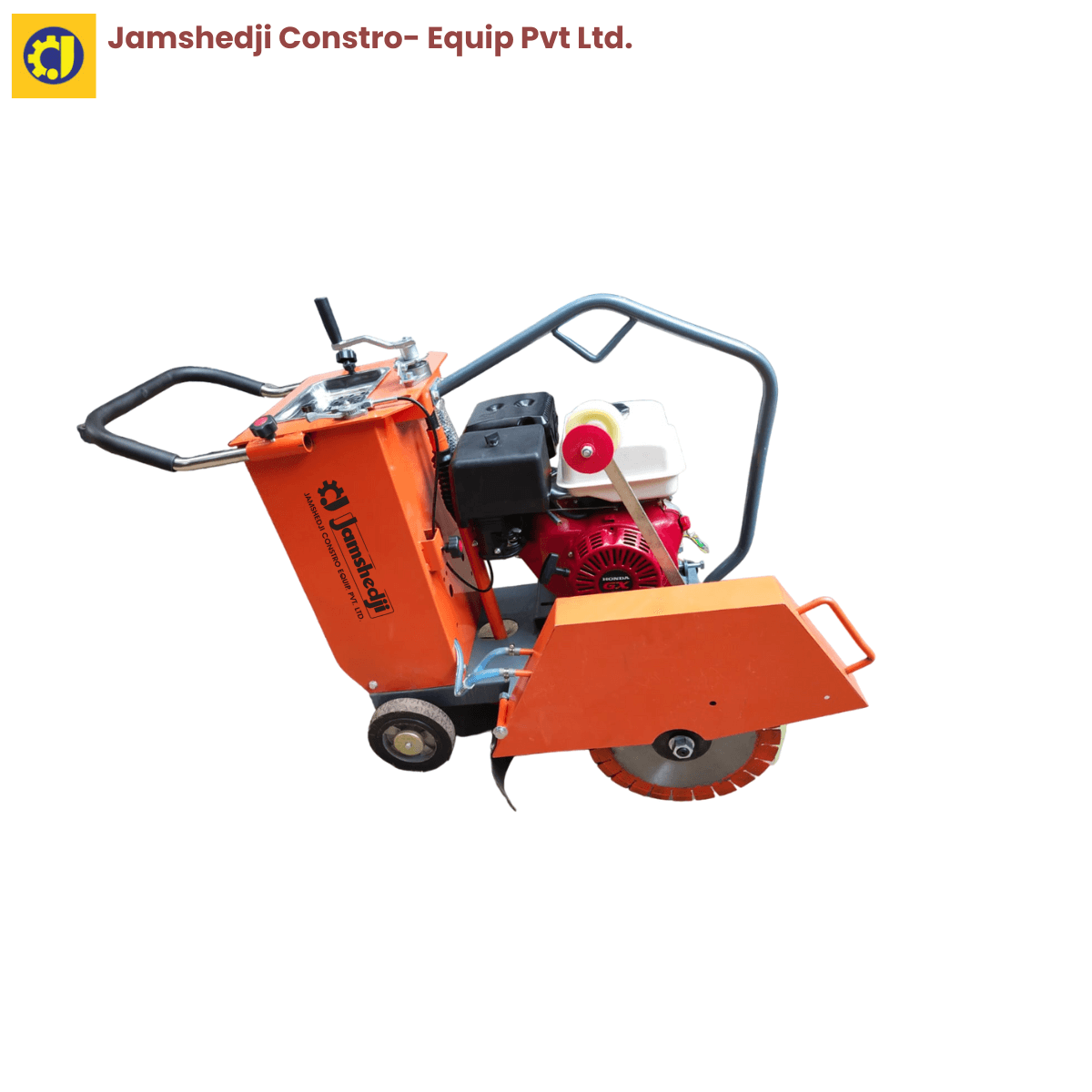

Concrete Groove Cutter Petrol – Honda GX390, 500mm Blade, 180mm Depth

The Jamshedji petrol concrete groove cutter is a walk-behind floor saw powered by an 11.7 HP Honda GX390 engine, taking blades from 350 to 500 mm and cutting to a maximum depth of 180 mm. Because it runs on petrol, it works anywhere — roads, highways, open sites, remote locations and any job with no electrical supply. It cuts expansion joints, control joints, trench lines and repair patches in concrete and asphalt. Weight is 105 kg, with a 35 litre water tank for wet cutting.

Key specifications at a glance

• Engine: Honda GX390 petrol, 11.7 HP
• Blade size: 350–500 mm
• Max cutting depth: 180 mm
• Water tank: 35 litres
• Weight: 105 kg
• Dimensions: 900 × 600 × 1000 mm

Petrol or electric — how to choose

Jamshedji supplies this cutter in two forms, and the blade size is the same on both. The choice is simply about the power supply where you are working.

Take the petrol machine when there is no electricity on site — road and highway work, external paving, open ground, remote locations, and anywhere the machine has to keep moving along a line of cut with no cable behind it. On roadworks in particular a trailing cable is not practical.

Take the electric concrete cutter when the site has a supply. It saves fuel, runs quieter and produces no exhaust, so it also suits enclosed areas and indoor slabs where a petrol engine cannot be run.

Same cut, different power source. Contractors working across both conditions often keep one of each.

Key features

• Honda GX390 11.7 HP engine — service and spares available in every Indian city
• No power supply required, so it works on roads and remote sites
• Blade range 350–500 mm to match the depth of cut required
• Cuts to 180 mm maximum depth in concrete and asphalt
• 35 litre onboard water tank for wet cutting — controls dust and cools the blade
• 105 kg on a stable wheeled frame for straight, controlled cuts
• Suits expansion joints, control joints, trench lines and repair cut-outs

Where it is used

Road and highway construction and repair, expansion and control joints in industrial floors, trench lines for services, cutting out damaged slab sections for patch repair, and asphalt work. On flooring projects it is used alongside surface finishing tools and, where joints are cut into freshly finished floors, after the trowelling work is complete.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support and spares available direct from the Bhosari works
