Electric Concrete Cutter – 10HP 3 Phase, 500mm Blade, 180mm Depth

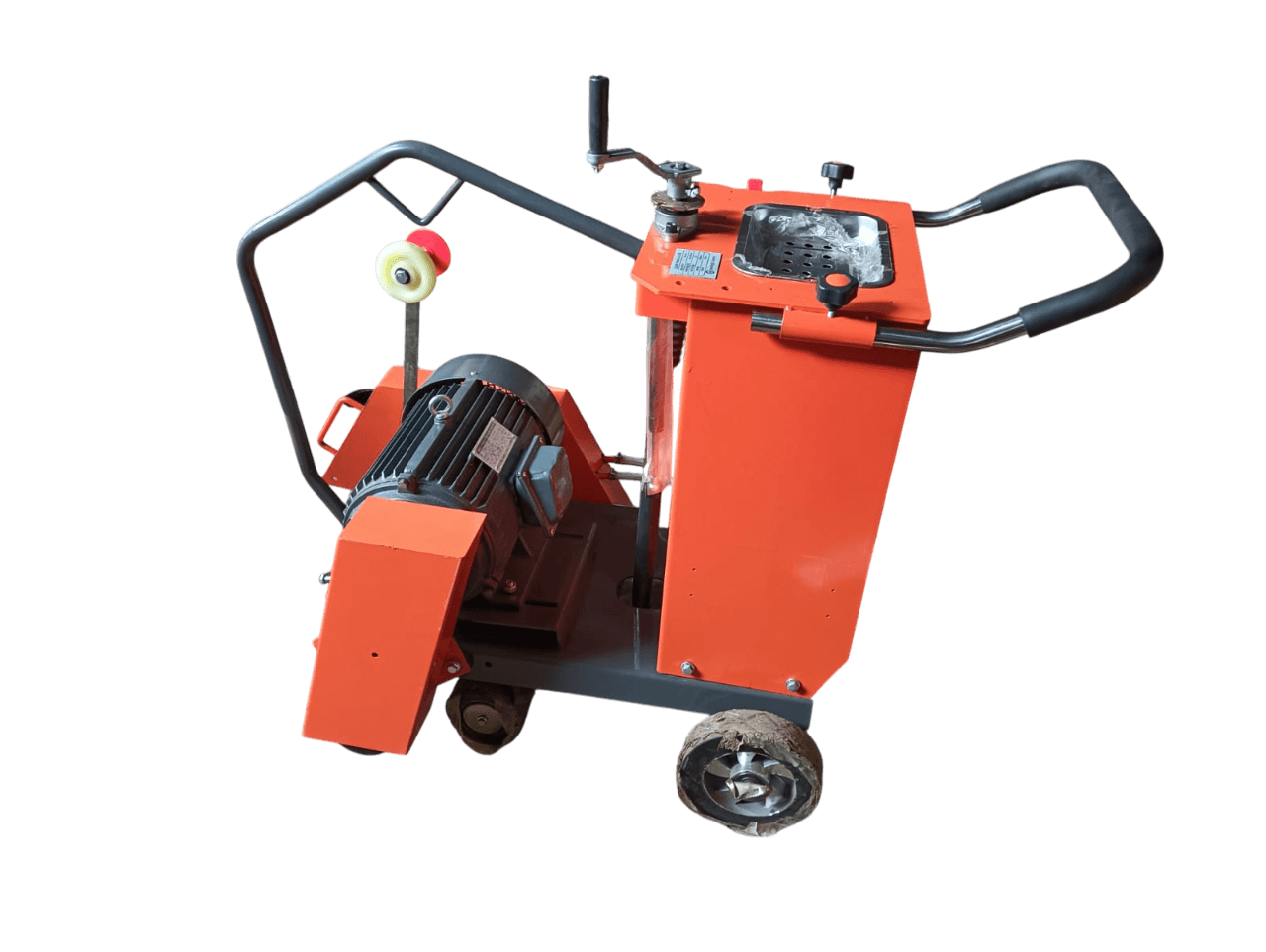

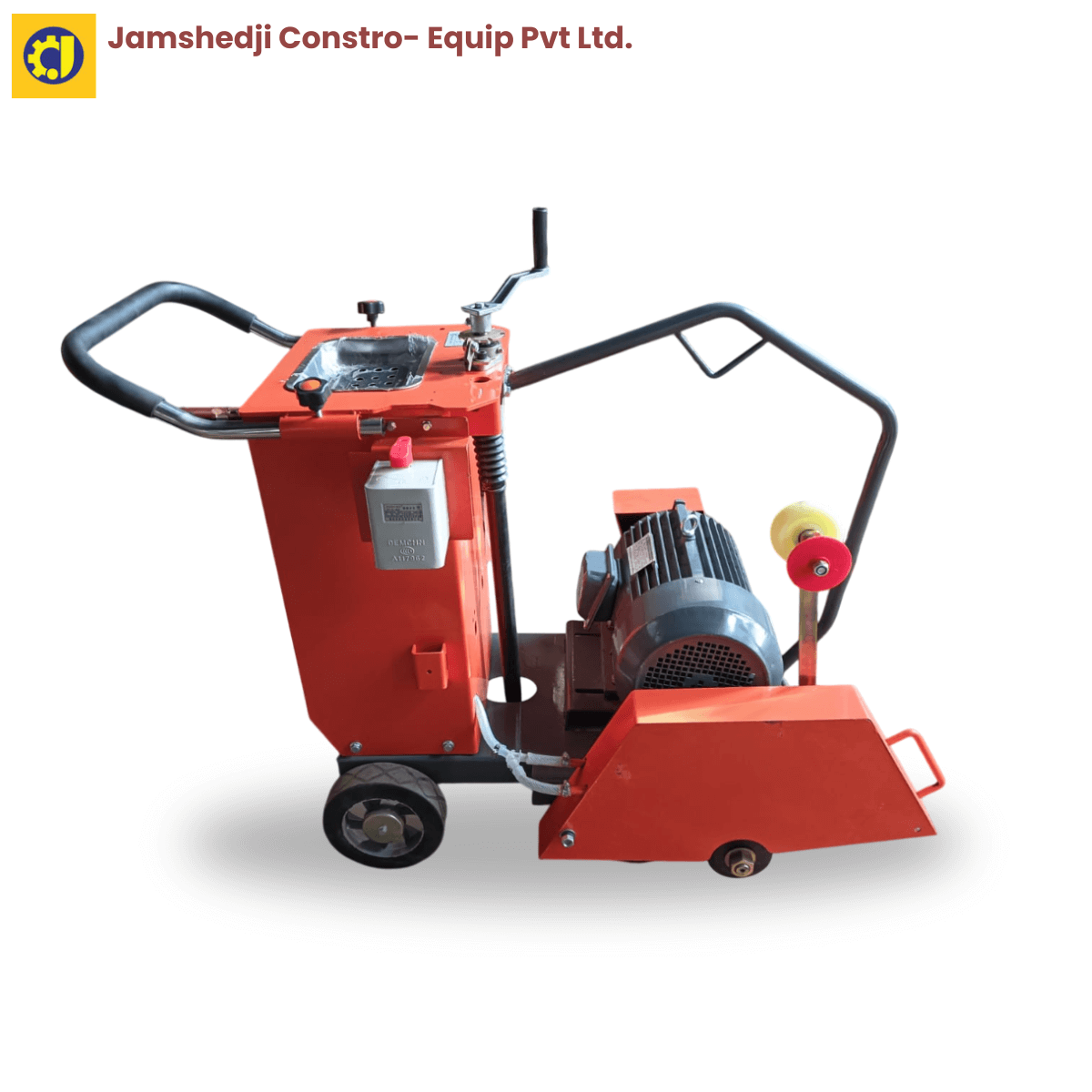

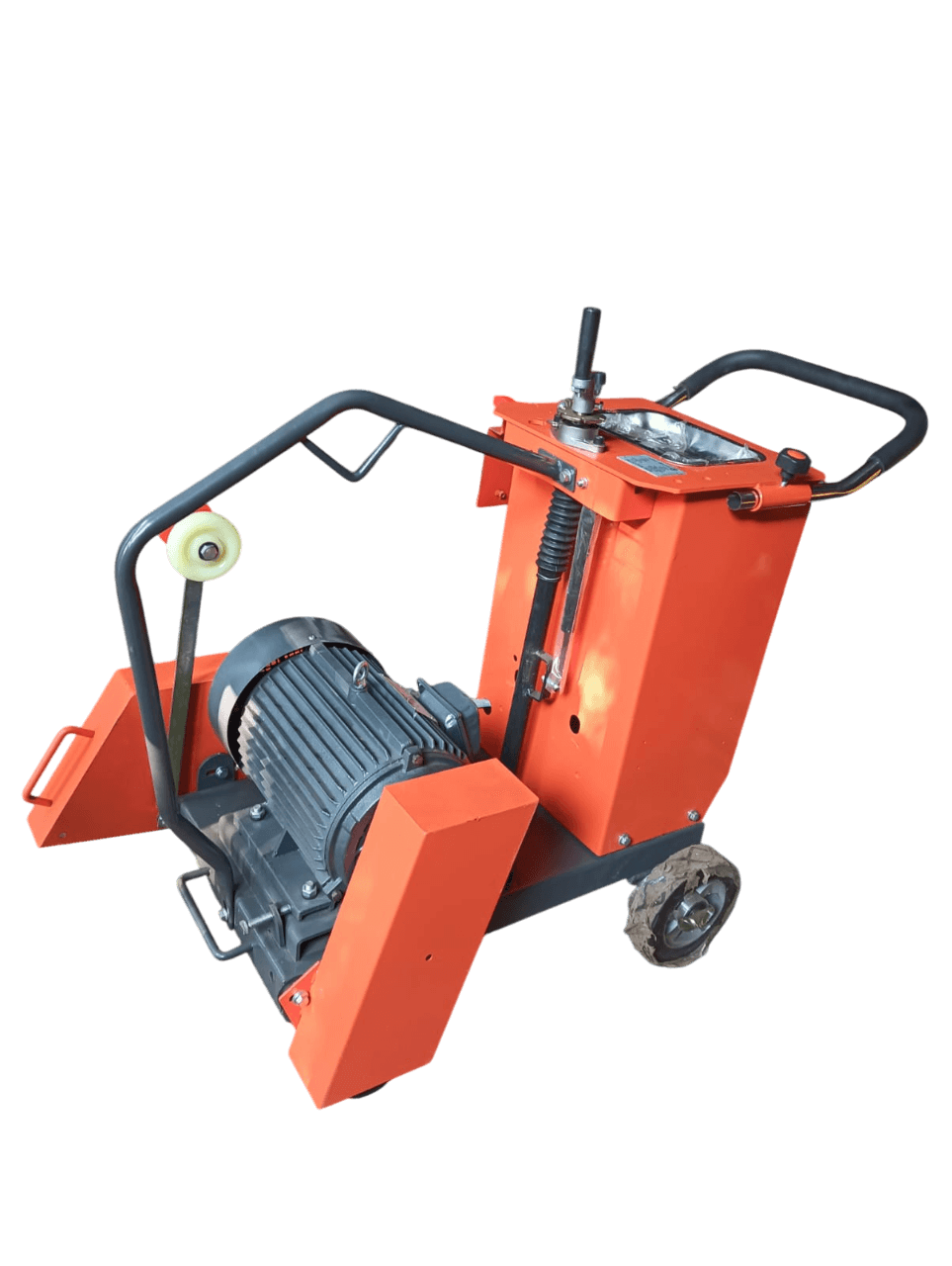

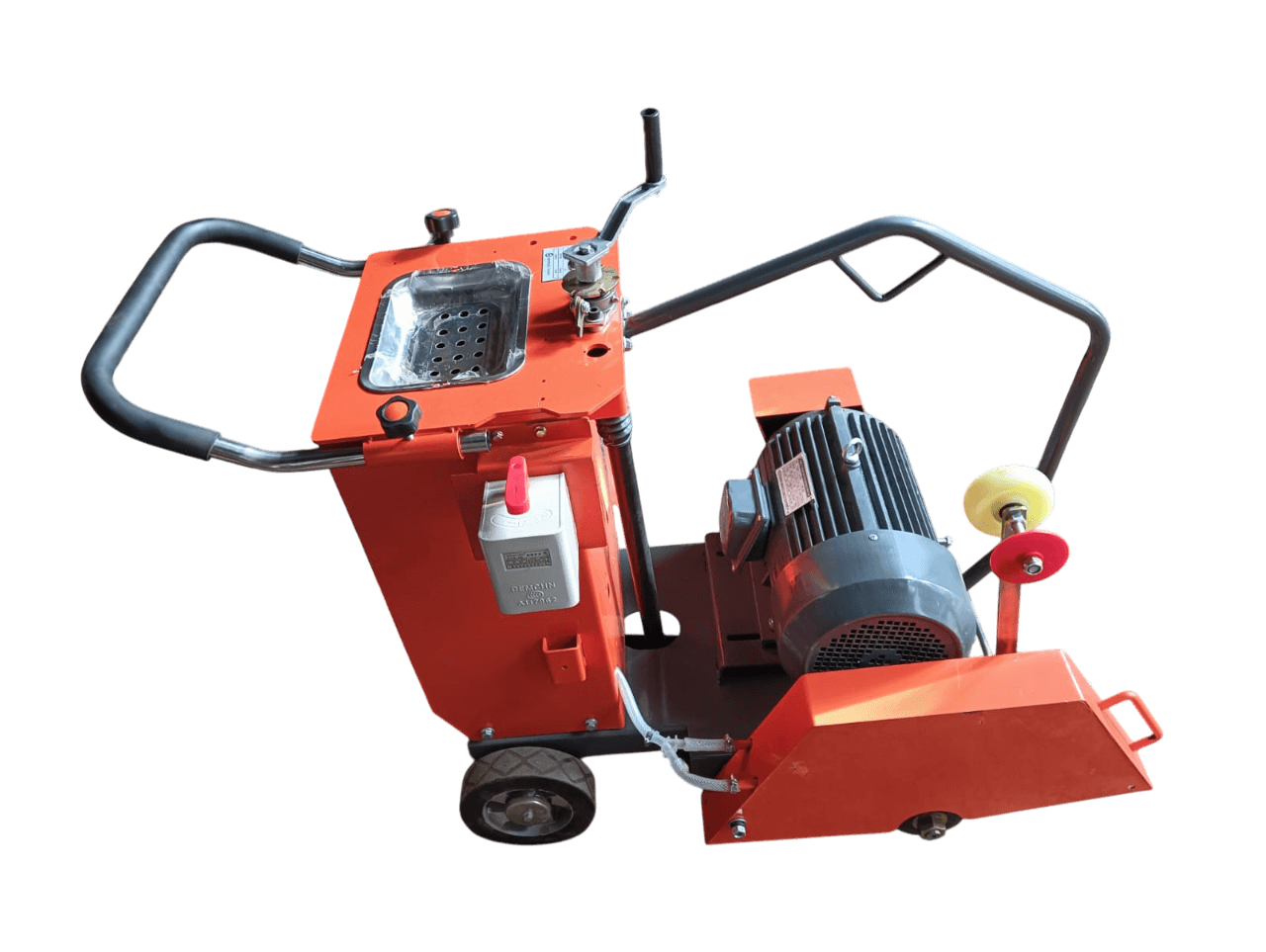

The Jamshedji electric concrete cutter is a walk-behind floor saw driven by a 7.5 kW (10 HP) three-phase motor, taking blades from 350 to 500 mm and cutting to a maximum depth of 180 mm. It cuts expansion joints, control joints, trench lines and repair patches in concrete and asphalt. Being electric it produces no exhaust and runs quieter than a petrol saw, so it can be used inside buildings, basements and enclosed areas. Weight is 125 kg, with a 35 litre water tank for wet cutting.

Key specifications at a glance

• Motor: 7.5 kW (10 HP), three phase
• Blade size: 350–500 mm
• Blade thickness: 3.5–4 mm
• Max cutting depth: 180 mm
• Water tank: 35 litres
• Weight: 125 kg

Electric or petrol — how to choose

Jamshedji supplies this cutter in two forms, and the blade size and cutting depth are the same on both. The choice comes down to the power supply where you are working.

Take this electric machine when the site has a three-phase supply. It costs less to run than petrol, needs no fuel handling on site, runs quieter, and produces no exhaust — which is what makes it the only option for indoor slabs, basements, plant rooms and enclosed areas.

Take the petrol concrete groove cutter for roads, highways, external works and remote locations with no electricity, where a trailing cable is impractical.

Same cut, different power source. Contractors working across both conditions often keep one of each.

Key features

• 7.5 kW (10 HP) three-phase motor for sustained cutting
• No exhaust and lower noise — usable indoors and in enclosed areas
• Blade range 350–500 mm at 3.5–4 mm thickness
• Cuts to 180 mm maximum depth in concrete and asphalt
• 35 litre onboard water tank for wet cutting — cools the blade, controls dust
• 125 kg on a wheeled frame, giving stability for straight, controlled cuts
• Lower running cost than petrol where a supply is available

Where it is used

Expansion and control joints in industrial and warehouse floors, trench lines for services, cutting out damaged slab sections for patch repair, and indoor flooring work where exhaust fumes are unacceptable. On flooring projects, joint cutting follows the trowelling and finishing stage — see the dual speed power trowel and ride on trowel for that part of the work.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support and spares available direct from the Bhosari works
