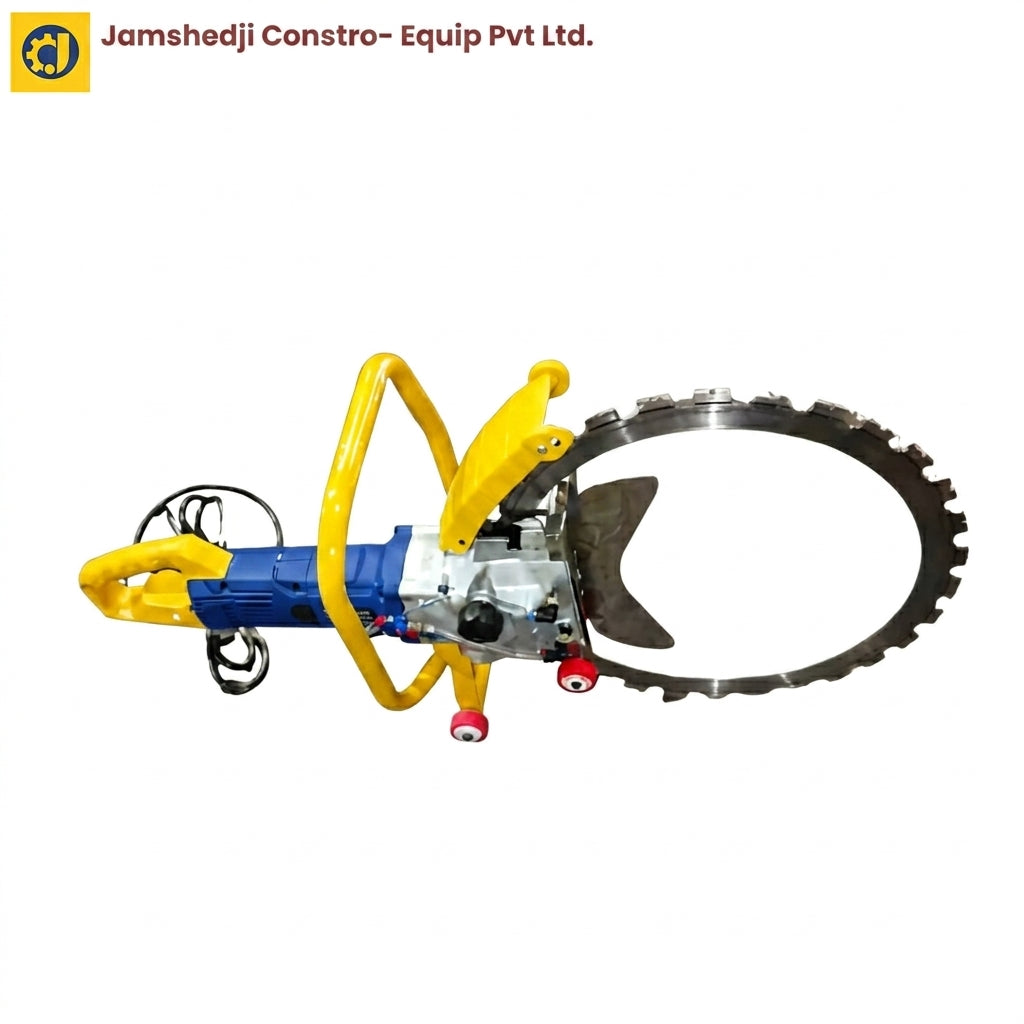

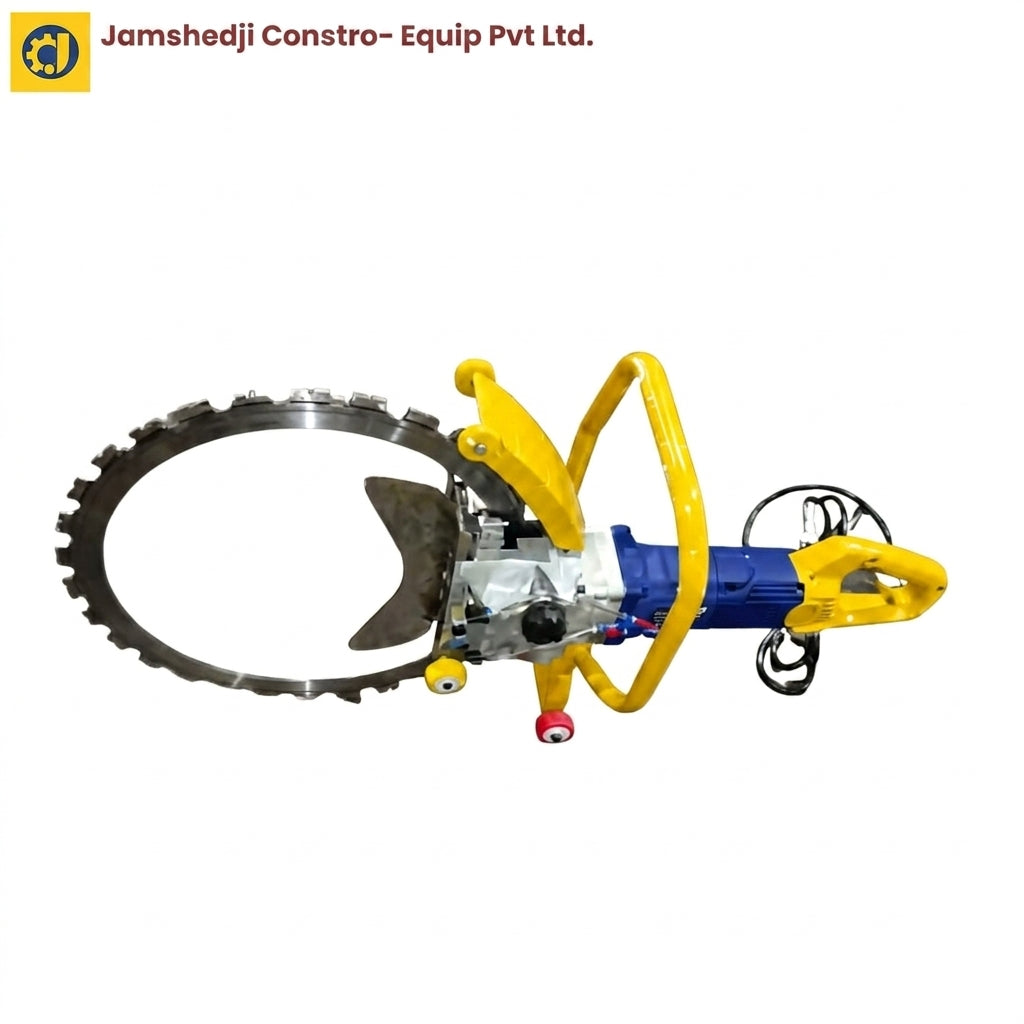

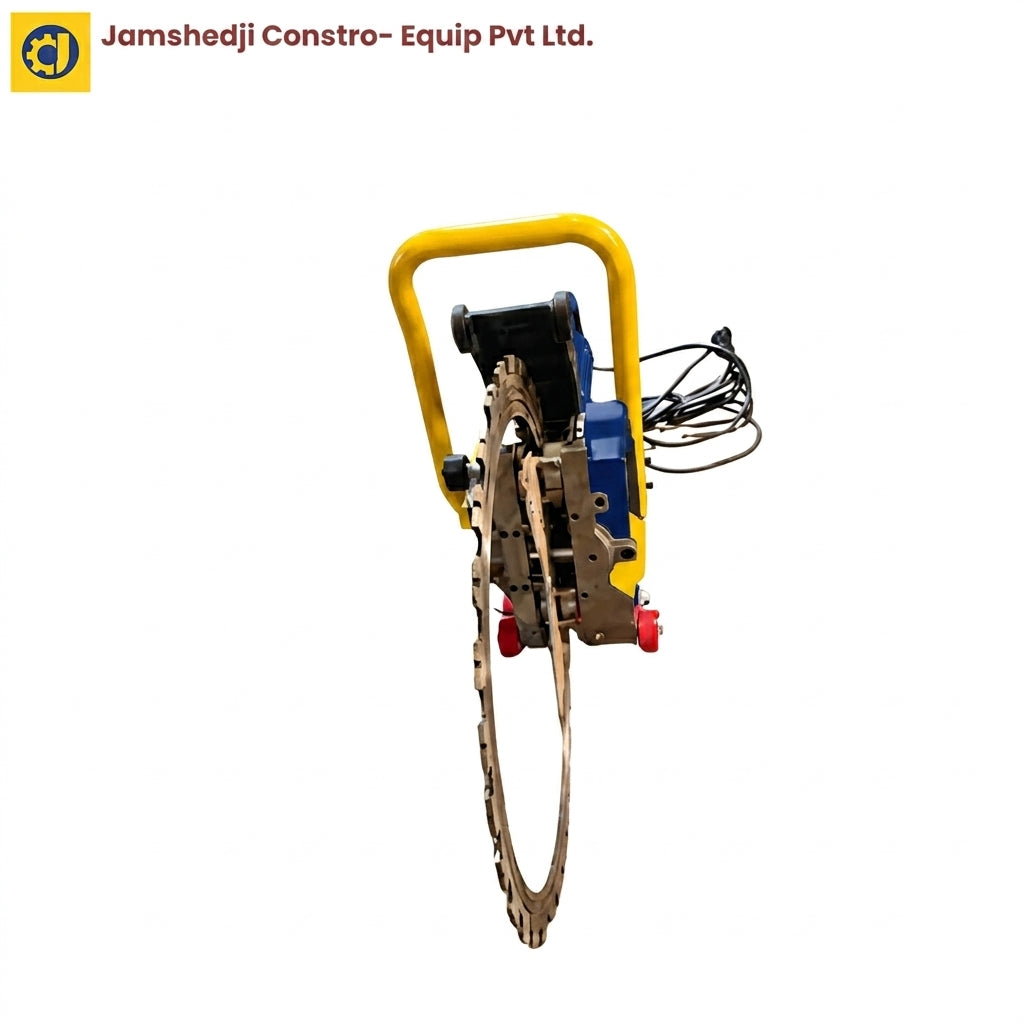

Concrete Ring Saw Machine – 400mm Blade, 300mm Cutting Depth

The Jamshedji concrete ring saw is a hand-held wet cutting saw that takes a 400 mm ring blade and cuts to 300 mm deep — roughly double what a conventional saw achieves on the same blade size. It does this because the blade is driven from its outer rim rather than a central arbor, so there is no hub in the way of the cut. Used by demolition contractors, utility installers and concrete cutting specialists for wall openings, door and window cut-outs and pipe modification. Dry weight 14.5 kg.

Key specifications at a glance

• Blade: 400 mm (16 inch) ring blade
• Maximum cutting depth: 300 mm
• Power: 94cc high-torque 2-stroke petrol engine, or hydraulic motor link
• Cooling: integrated wet cutting spray with valve control
• Drive: friction rim-drive rollers, hardened alloy steel
• Weight: 14.5 kg dry

Why a ring saw cuts deeper

On a conventional circular saw the blade turns on a central arbor. That hub and its guard sit inside the blade circle, so the saw can only sink the blade until the hub reaches the surface — in practice a little under half the blade diameter. A 400 mm blade gives you roughly 145 mm of cut.

A ring saw removes the hub entirely. The blade is a ring, driven by friction rollers pressing on its outer rim, so the centre is open and the blade can sink far further into the material. The same 400 mm blade reaches 300 mm.

That difference decides whether a wall can be cut from one side. At 145 mm you have to cut from both faces and align the two kerfs — awkward, slow, and often impossible where the far side is inaccessible. At 300 mm most block and concrete walls go in one pass from one side.

Key features

• 300 mm depth of cut from a single side on walls, masonry and stoneware pipe
• Minimal over-cutting at door and window corners — preserves structural integrity and saves making good
• Friction rim-drive rollers transfer torque without blade slippage, including in heavily reinforced concrete
• Dual water feed suppresses silica dust and cools the diamond segments for longer blade life
• Petrol engine option for sites with no power, or hydraulic drive where a power pack is available
• 14.5 kg balanced hand-held structure for controlled cutting in awkward positions
• Valve-controlled water feed so the operator sets the flow to the material

Where it is used

Cutting door and window openings in existing walls, service penetrations, removing sections of slab or wall in refurbishment and demolition, utility and drainage installations, and cutting stoneware and concrete pipe.

Ring saw or floor saw

These solve different problems. The ring saw is hand-held and cuts vertically and into walls, at depth, in confined positions. A walk-behind floor saw cuts horizontally into slabs and pavements, running along a line under its own weight.

For horizontal work — expansion joints, control joints, trench lines, road cutting — use the petrol concrete groove cutter or the electric concrete cutter, both of which take 350–500 mm blades to 180 mm depth. Use the ring saw where the cut is vertical, overhead, or deeper than a floor saw will reach.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Diamond ring blade options quoted alongside the machine
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
