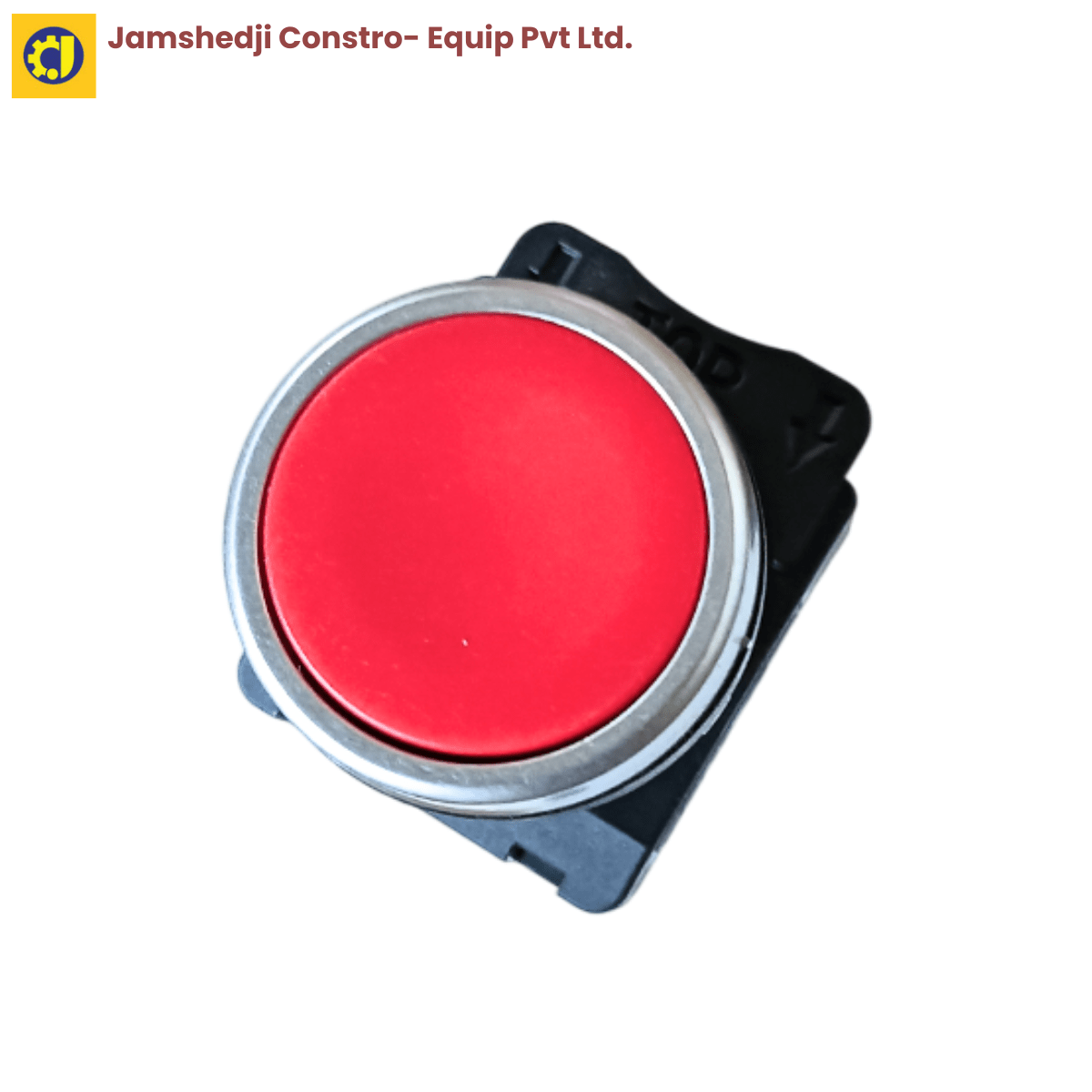

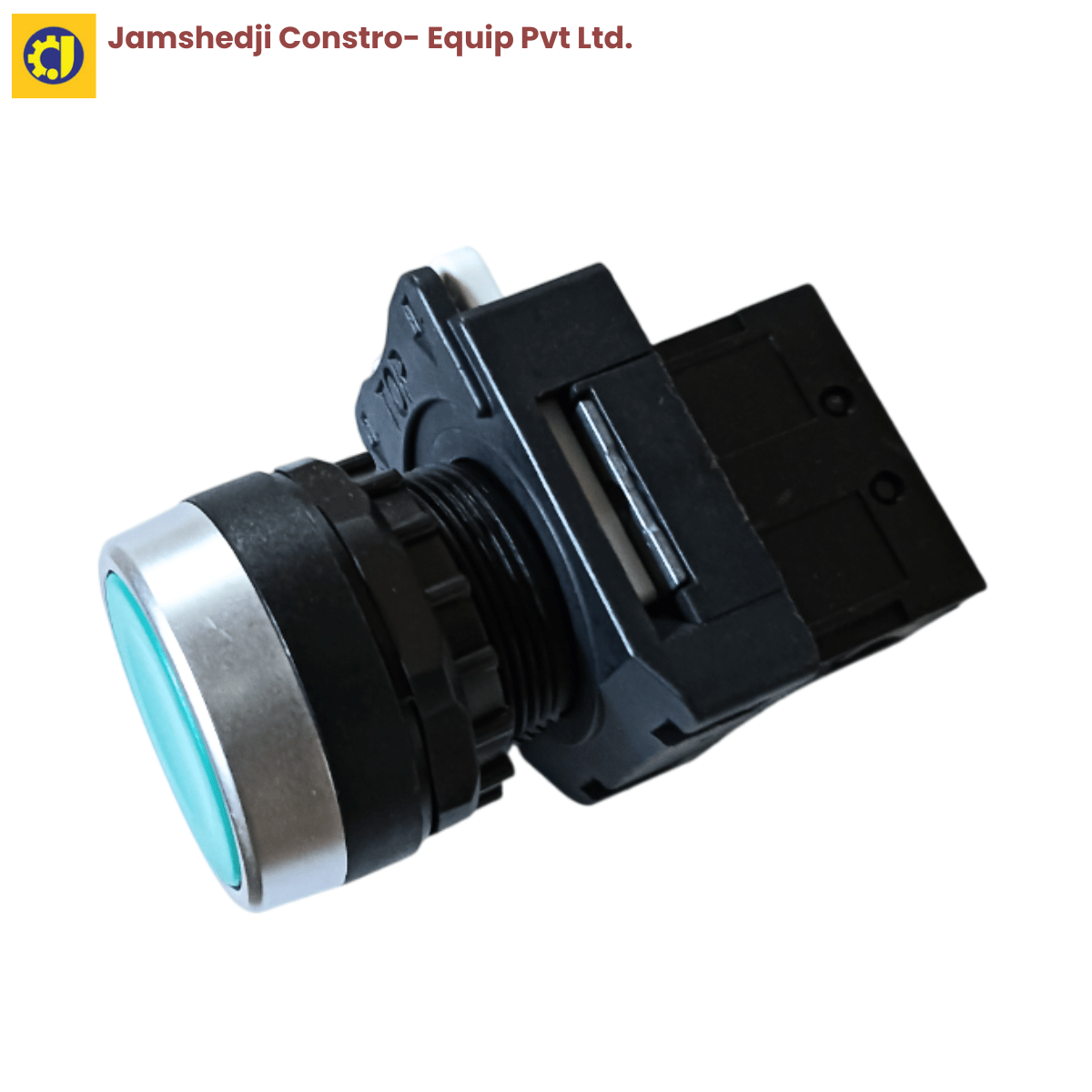

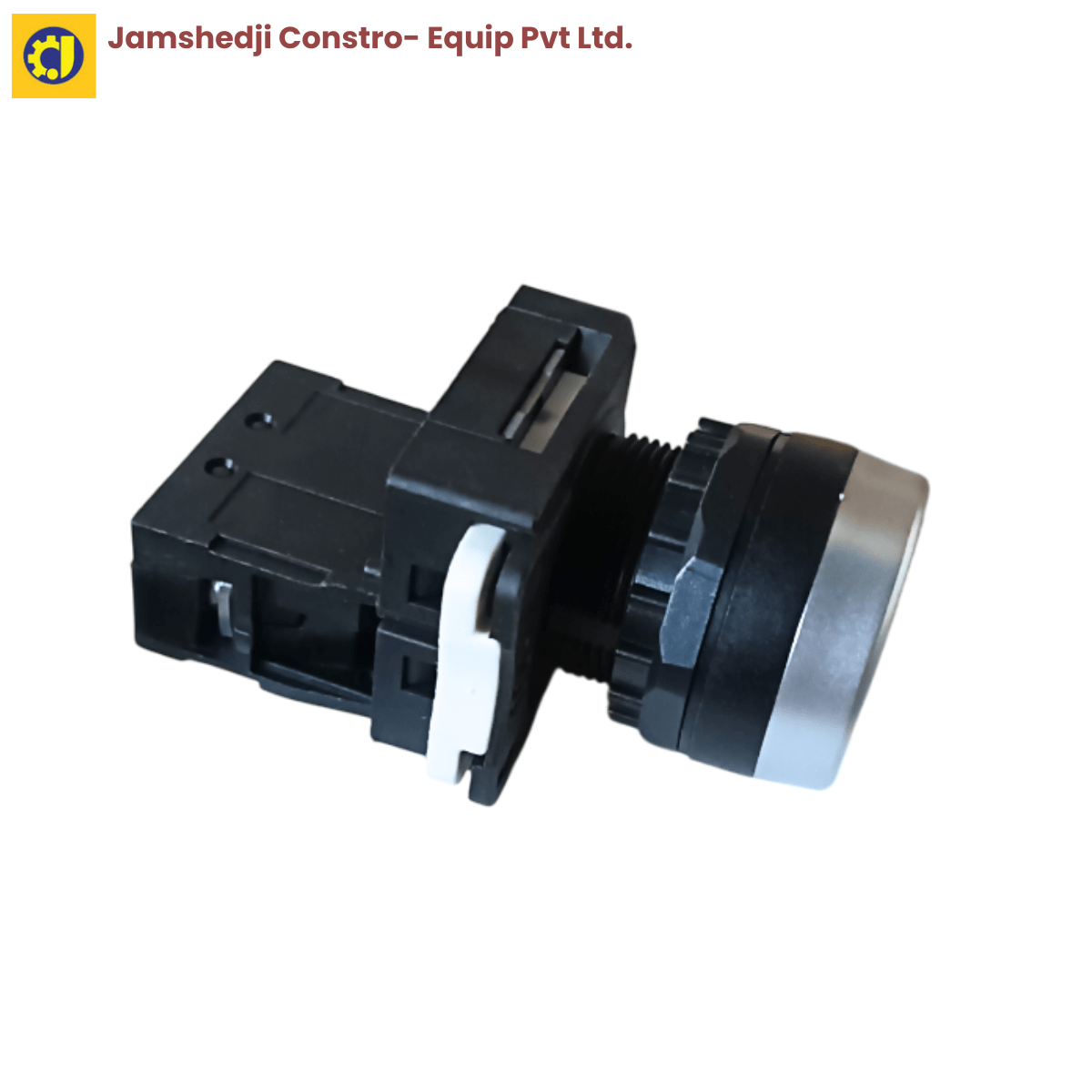

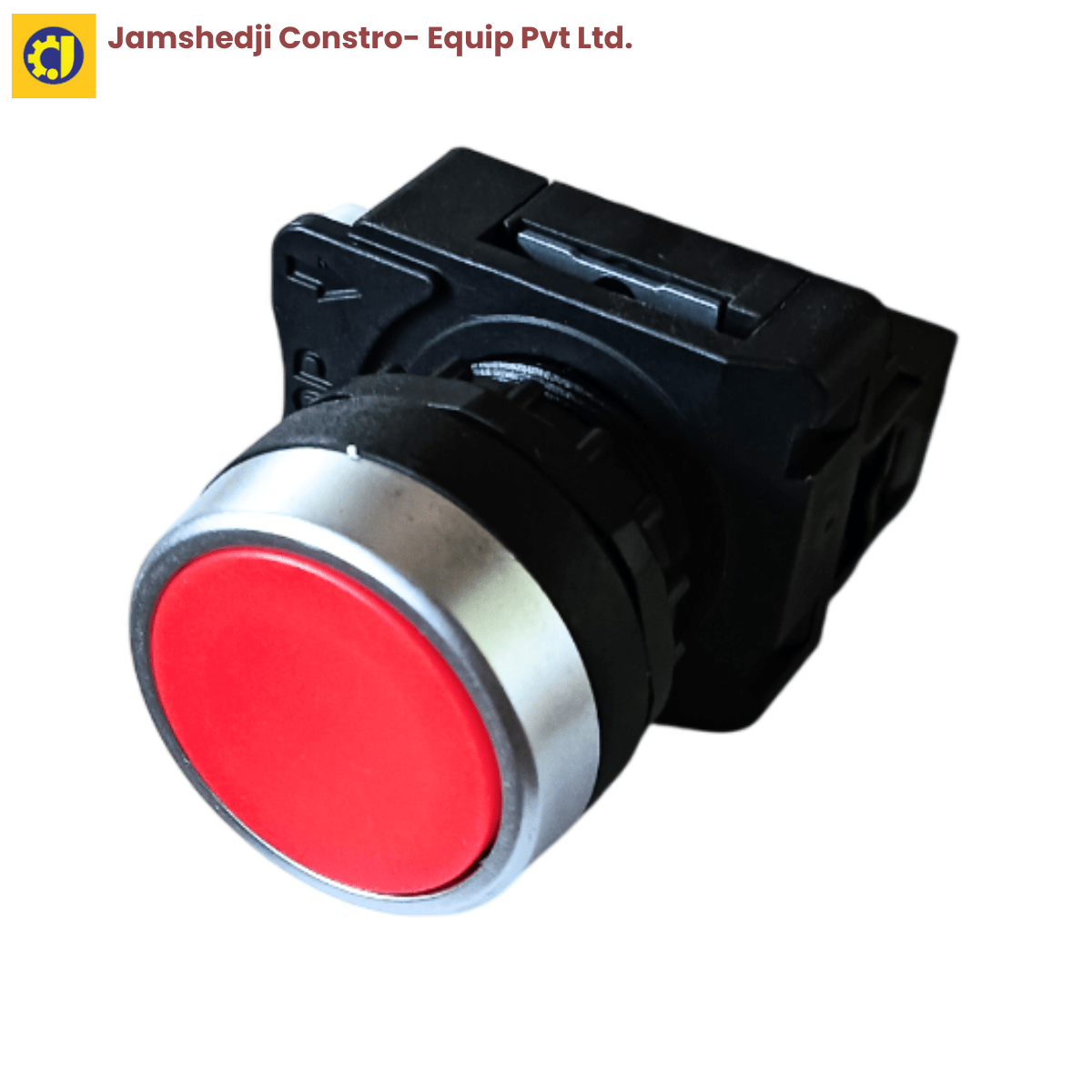

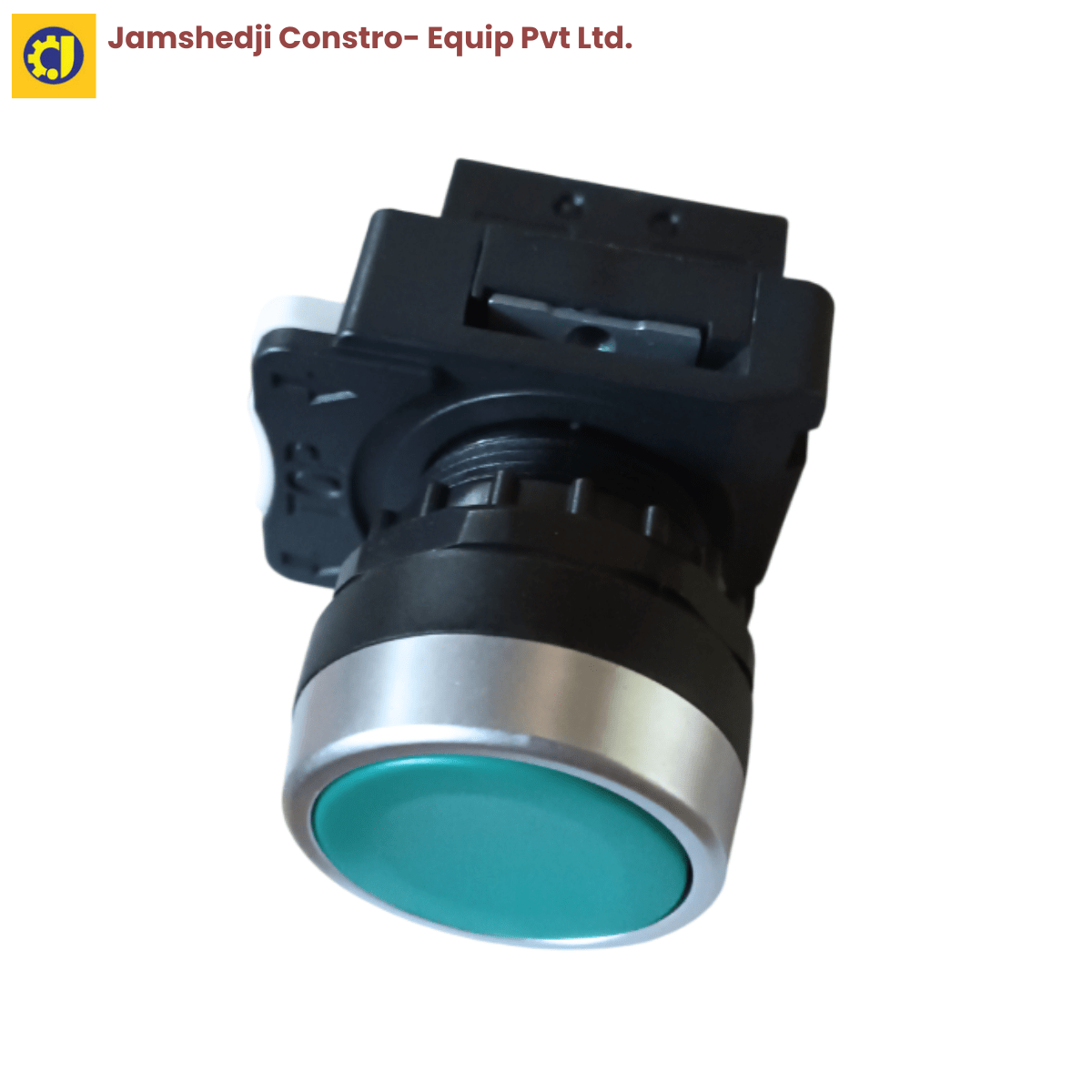

Push Button Switch – Panel Mount Start/Stop, 10A 600V AC

This is a panel-mount push button switch for machine control panels — rated 10 A at 600 V AC, with normally closed contacts, screw terminals and a plug-in connector. It is the start/stop button an operator presses on the panel itself, used when building a new control panel or replacing a worn switch on an existing machine.

Where it is used

This is a standard industrial control component rather than a part specific to one machine. It mounts through a panel cutout and wires in by screw terminal, so it suits control panels on bar bending and cutting machines, threading machines, mixers, hoists and similar three-phase equipment — anywhere a start or stop button is mounted in the enclosure.

Because fitment depends on your panel cutout and circuit rather than a machine model, check the rating and mounting against your existing switch before ordering, and tell us what you are wiring it into if you want us to confirm.

Panel button or handheld remote

These two look similar in a parts list but do different jobs.

• This push button — 10 A / 600 V AC, panel mount. Fixed into the machine's control panel; the operator stands at the machine.
• Mini crane remote control pendant — 5 A / 500 V AC, 2-way with emergency stop, on a cable. Held by the operator away from the machine, for cranes and hoists.

See also the Delixi limit switch, which is a control component of a different kind — actuated by the machine reaching a position rather than by an operator.

Normally open or normally closed

Worth getting right before you order. A normally closed contact carries current at rest and breaks the circuit when pressed — the correct behaviour for a stop button, because a broken wire or failed connection also stops the machine rather than leaving a dead button. A normally open contact does the reverse and completes the circuit when pressed, which is what a start button needs.

A conventional start/stop pair therefore uses one of each: normally open for start, normally closed for stop. This switch is specified as normally closed. If you need a start button or a matched pair, message us with what your panel requires and we will confirm what to send.

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India
• Ask about quantities — control panel components are commonly ordered in sets
