Tamping Rammer Base Plate Housing – RM 80
Tamping Rammer Base Plate Housing – RM 80

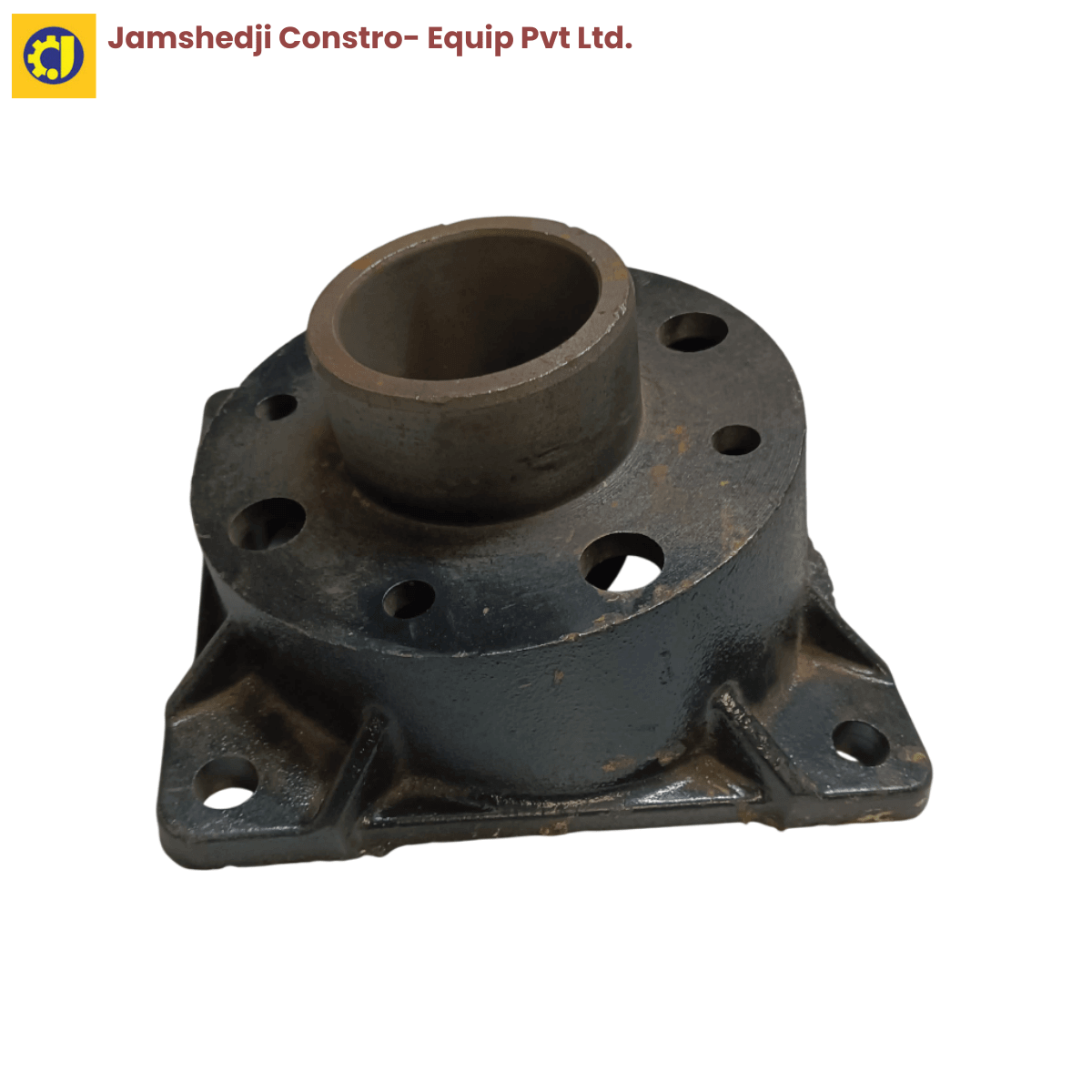

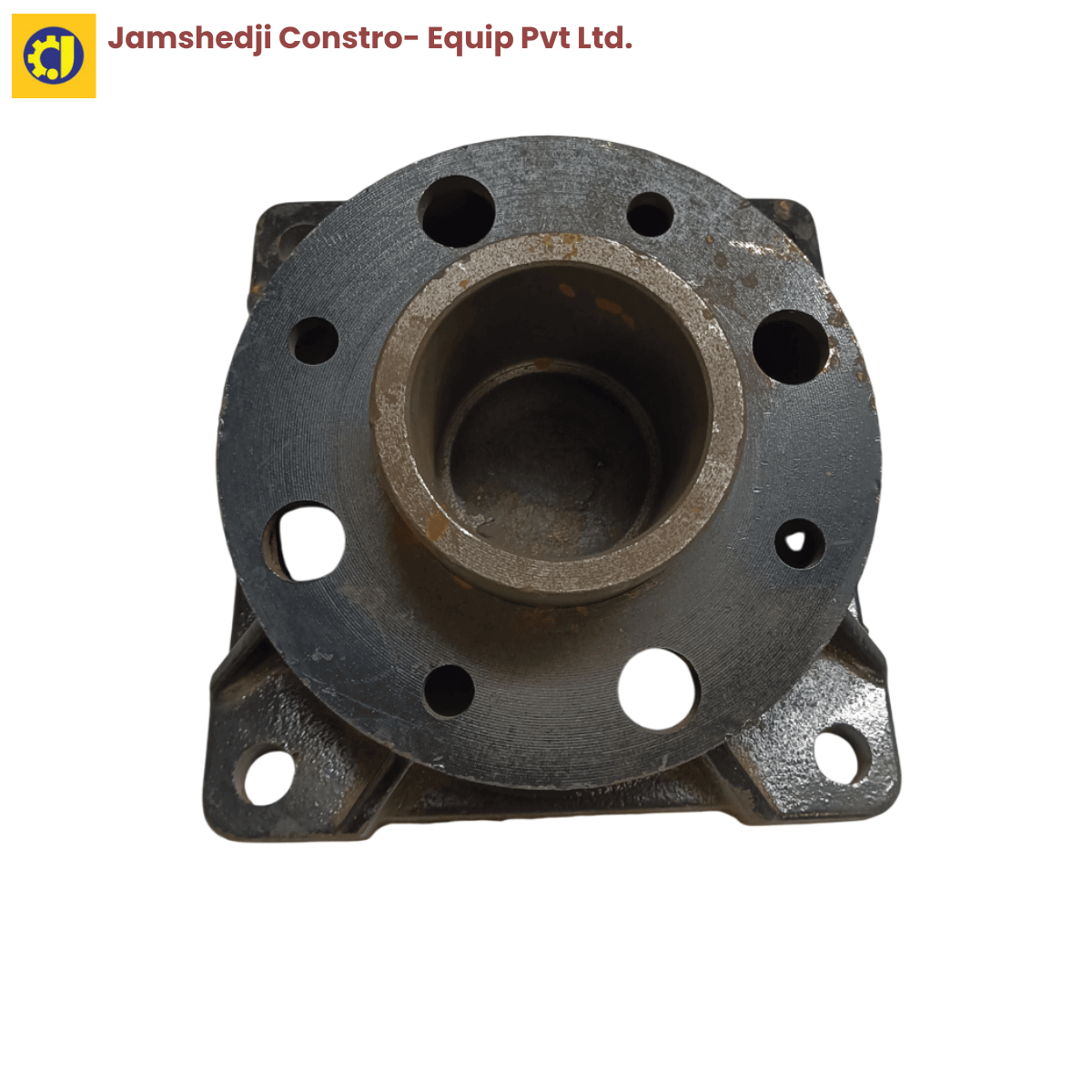

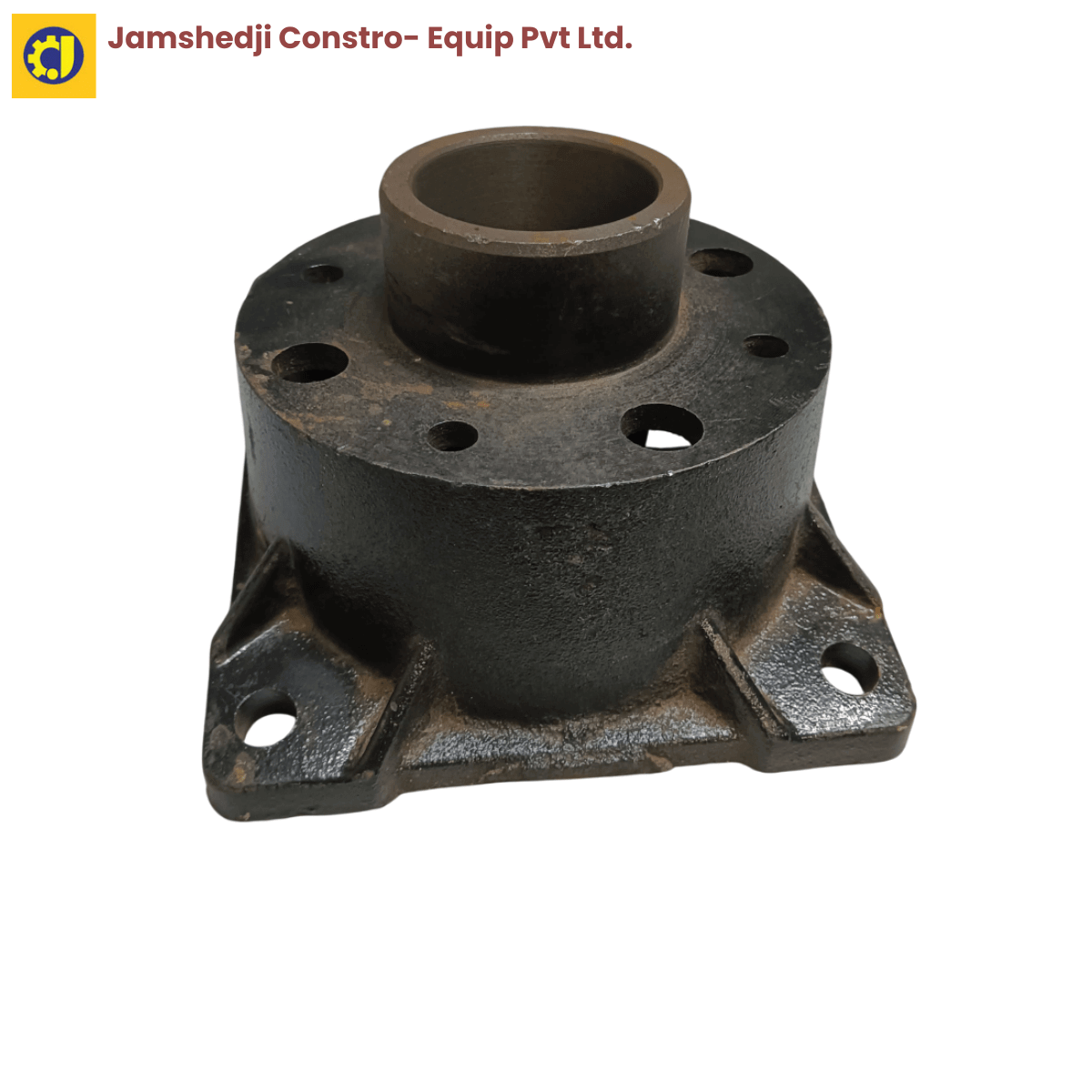

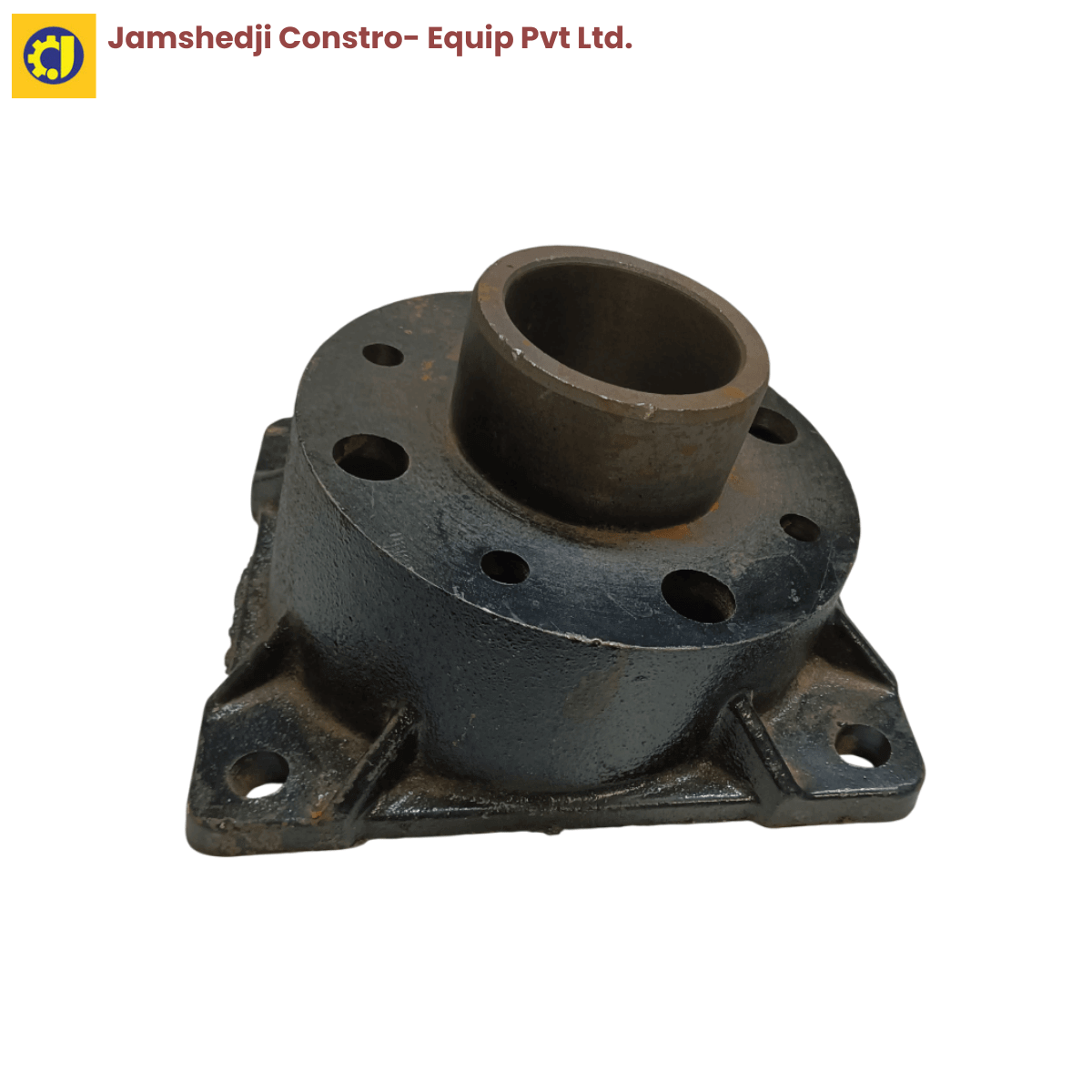

The tamping rammer base plate housing (model RM 80) is the heavy hard-iron casting that holds and secures the base plate to the rammer foot, transferring the machine's impact into the striking plate. It is the structural link between the ramming system and the ground-striking plate — a longer-life part than the plate itself, replaced when it cracks or the mountings wear.
Fits
This housing fits the RM 80 rammer foot used on the Jamshedji Honda GX160 petrol tamping rammer and diesel tamping rammer. Send your machine model or a photo on WhatsApp if you are unsure which part you need.
What it does and when to replace it
The housing is the hard-iron frame the base plate bolts into. It carries the full force of every blow from the ramming shaft down into the striking plate and holds the plate square to the ground, so it takes constant heavy impact even though it does not contact the soil directly.
It lasts longer than the base plate, which is the sacrificial wear face, but it is not permanent — replace it if it cracks, if the mounting points wear so the plate no longer seats tightly, or if it distorts. A loose or cracked housing lets the plate move under impact, which wastes compaction energy and accelerates wear on everything around it. It is often replaced together with the base plate during a foot overhaul.
Specifications
| Part | Base plate housing |
| Model compatibility | RM 80 |
| Material | Heavy-duty hard iron |
| Function | Holds and secures the base plate; transfers impact into the plate |
| Fits | Jamshedji Honda petrol and diesel tamping rammers |
| Brand | Jamshedji |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Genuine spare from Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune — manufacturer of the rammers it fits
Frequently asked questions
Which tamping rammer does this housing fit?
The RM 80 rammer foot, used on the Jamshedji Honda petrol and diesel tamping rammers. Send your machine model on WhatsApp if you are not sure.
What is the difference between the base plate and the housing?
The base plate is the striking face that hits the ground and wears fastest; the housing is the hard-iron frame that holds the plate and carries the impact into it. The plate is replaced often, the housing far less so.
When does the housing need replacing?
If it cracks, distorts, or the mounting points wear so the base plate no longer seats tightly. A loose plate wastes compaction energy and speeds up wear elsewhere.
Is this a genuine part?
Yes, supplied by Jamshedji Constro Equip, the manufacturer of the rammers it fits.
What is the price of a base plate housing?
Send your rammer model on WhatsApp for current pricing and freight.
Need this spare? Send your rammer model or a photo and we will confirm the correct part and price.
