Diesel Tamping Rammer – Koop 5.5HP Jumping Jack, 5T Impact

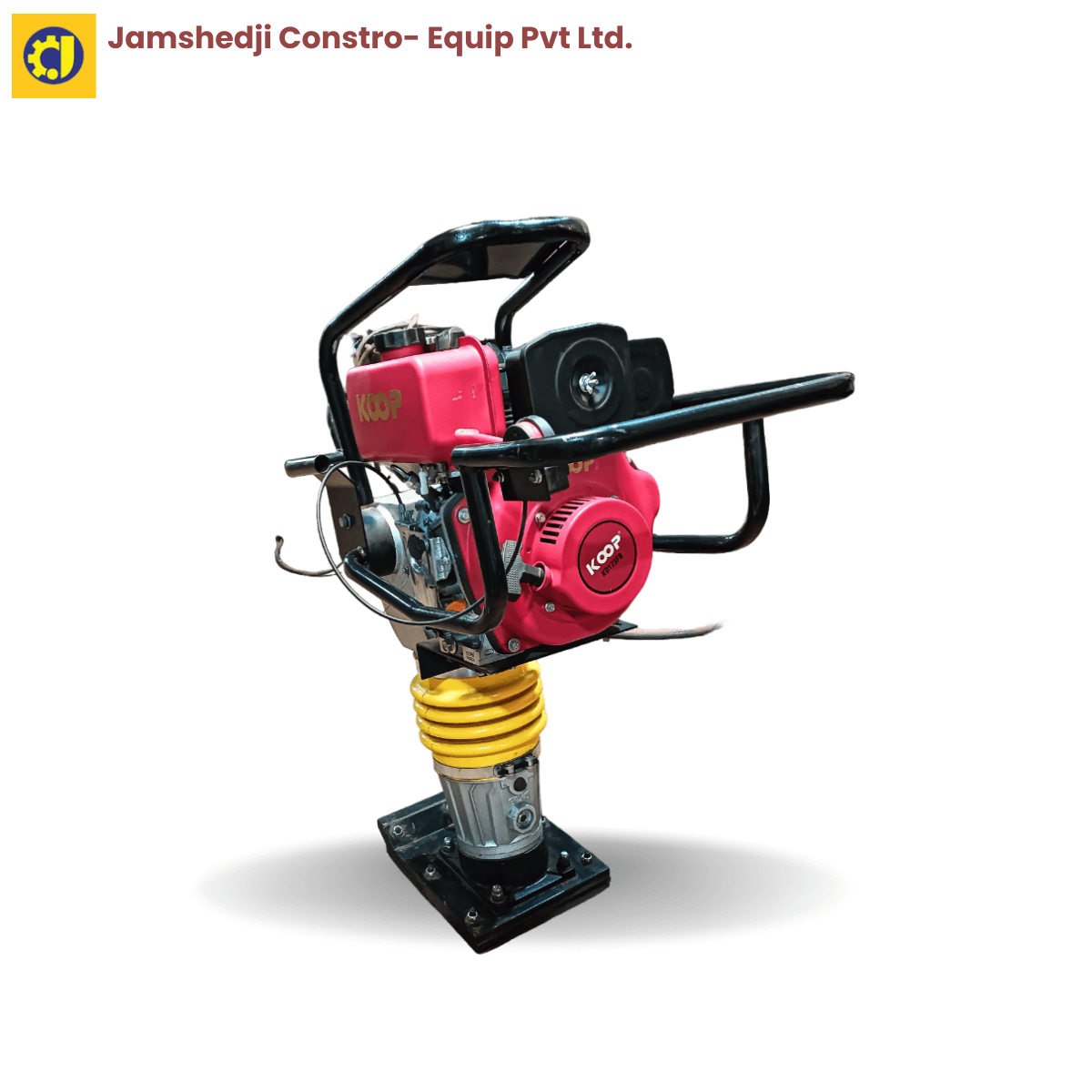

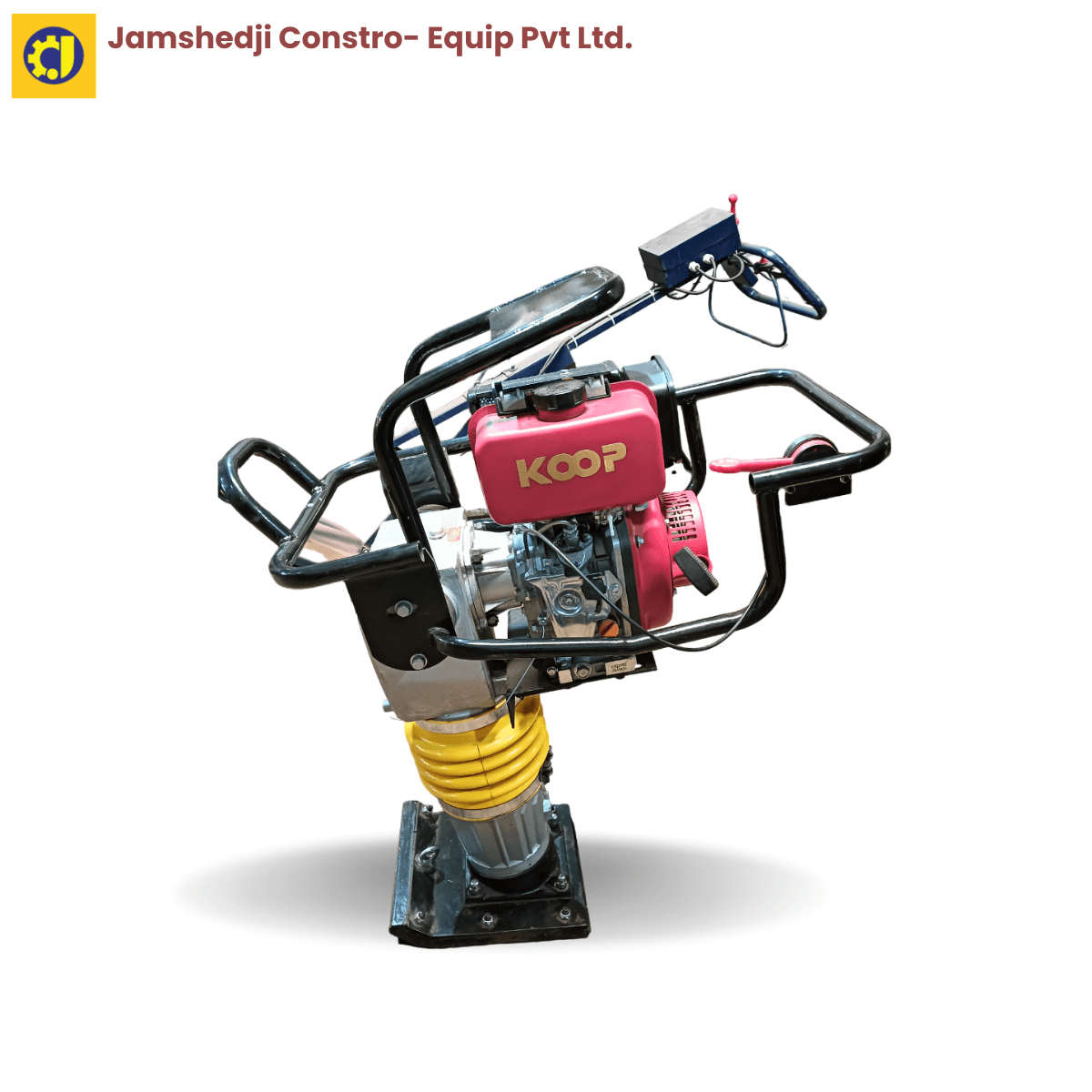

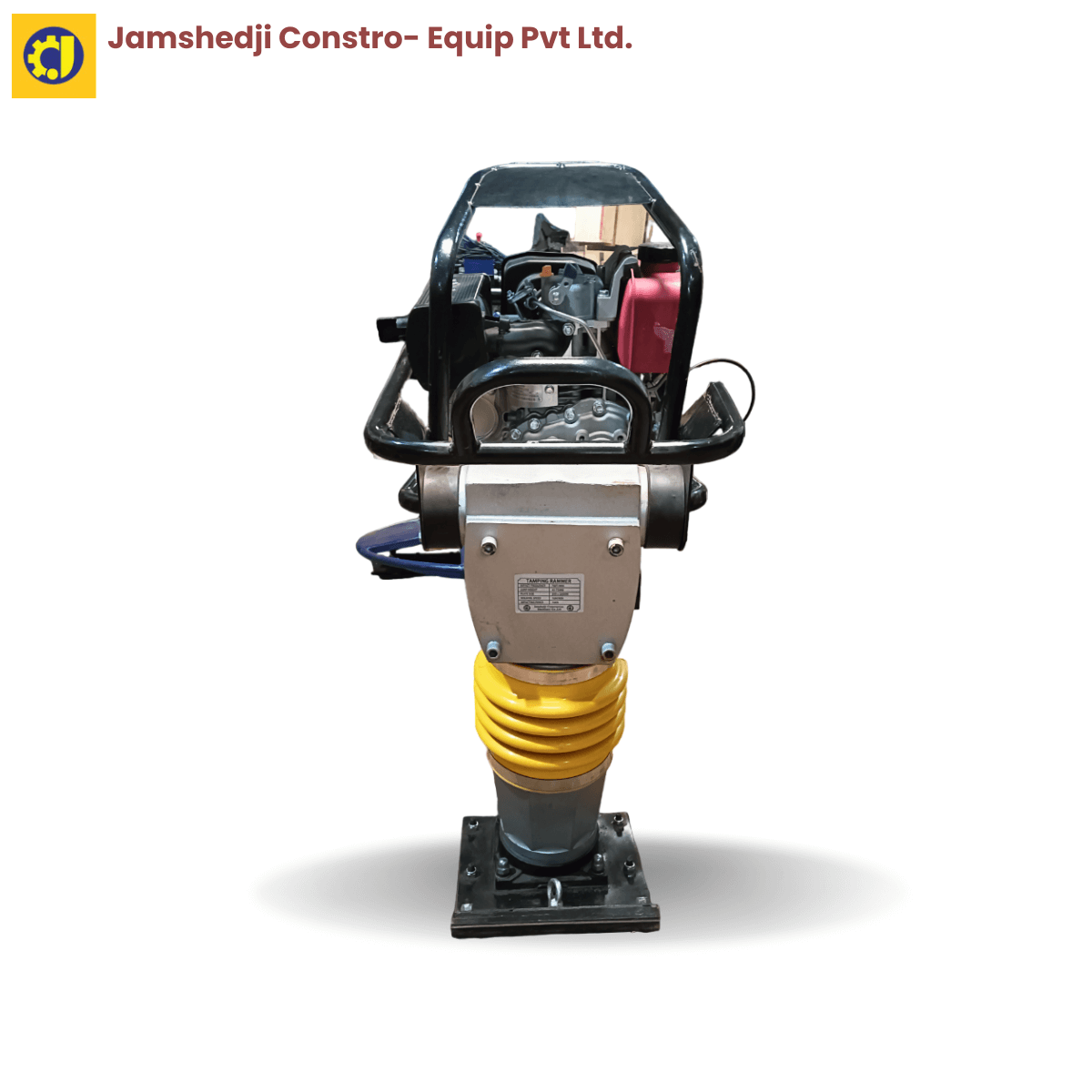

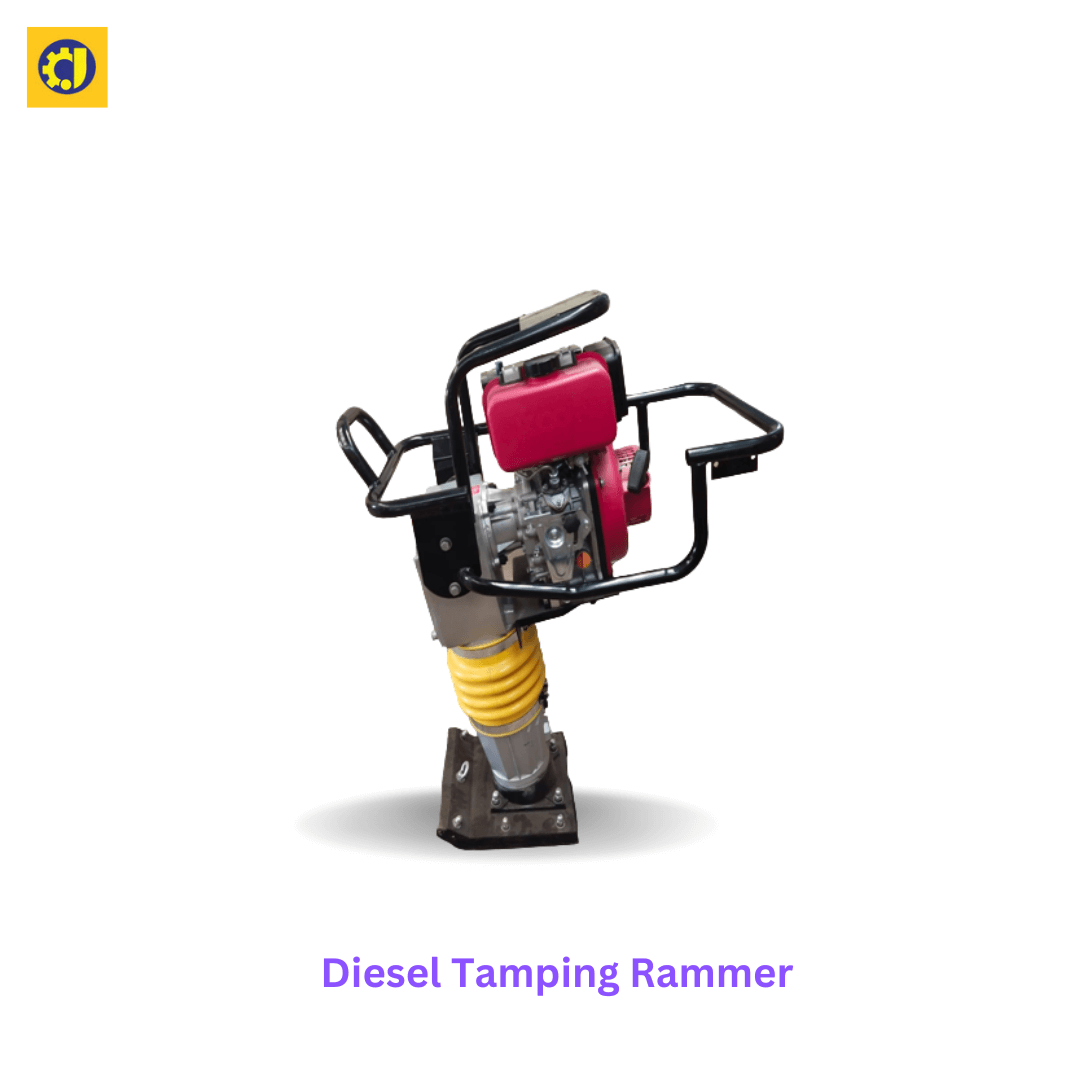

The Jamshedji diesel tamping rammer is a heavy-duty jumping jack soil compactor powered by a 5.5 HP Koop diesel engine, delivering 5 tonnes of impact force at 700 blows per minute and compacting to a depth of 300 mm. Also called a diesel dhumas machine, it is the rammer for sustained earthwork on road projects, large foundations and infrastructure sites where a machine runs all day and diesel is already on site. Weight is 130 kg with a 320 × 280 mm plate.

Key specifications at a glance

• Engine: Koop diesel, 5.5 HP
• Impact force: 5 tonnes
• Impact frequency: 700 blows/min
• Compaction depth: up to 300 mm
• Plate size: 320 × 280 mm, 16 mm thick
• Weight: 130 kg

Why diesel on large earthworks

On a road or infrastructure project the rammer is not lifted in and out of a trench a dozen times a day — it works a formation layer or a long backfill run continuously. Under that duty cycle, two things decide the machine: how hard it hits, and what it costs to run per hour.

Diesel wins on both. Five tonnes of impact drives compaction through heavier fill in fewer passes, and diesel is usually already on site in bulk for the excavators and rollers, so refuelling is one less logistics problem. Diesel engines also tolerate long continuous running better than a small petrol engine does.

Diesel or petrol — how to choose

Jamshedji supplies rammers in both. This diesel machine gives 5 tonnes of impact at 130 kg. The Honda petrol tamping rammer gives 3–3.5 tonnes at 85 kg.

Take diesel for sustained heavy compaction: road formation, large foundations, bulk backfill, infrastructure earthworks. Take petrol where the machine is lifted in and out of trenches repeatedly, carried between locations or worked on upper levels — 45 kg less makes a real difference over a shift. For enclosed areas where exhaust is unacceptable, use the electric tamping rammer.

Key features

• 5.5 HP Koop diesel engine built for long continuous running
• 5 tonne impact force at 700 blows per minute
• Compacts to 300 mm depth in soil, gravel, sand and asphalt
• 320 × 280 mm plate at 16 mm thickness reaches into trenches and against structures
• 40–75 mm jump height and 16 m/min travel for steady progress along a run
• Diesel fuel is usually already on site for the plant fleet
• Wear parts stocked in Pune: bellows, base plates, clutch, rubber pads

Where it is used

Road and highway formation layers, bulk trench backfill on service corridors, large column and raft foundations, embankment and shoulder work, and infrastructure earthworks generally. Where compaction is needed over open area rather than in confined strips, a diesel plate compactor or a single drum vibratory roller covers ground faster.

Full specifications

Spare parts for the tamping rammer

Wear parts are stocked and dispatched from Pune: rubber bellow, base plate, base plate housing, clutch, rubber pads and accelerator cable. The bellow is the routine consumable — keep a spare on site.

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support and spares available direct from the Bhosari works
