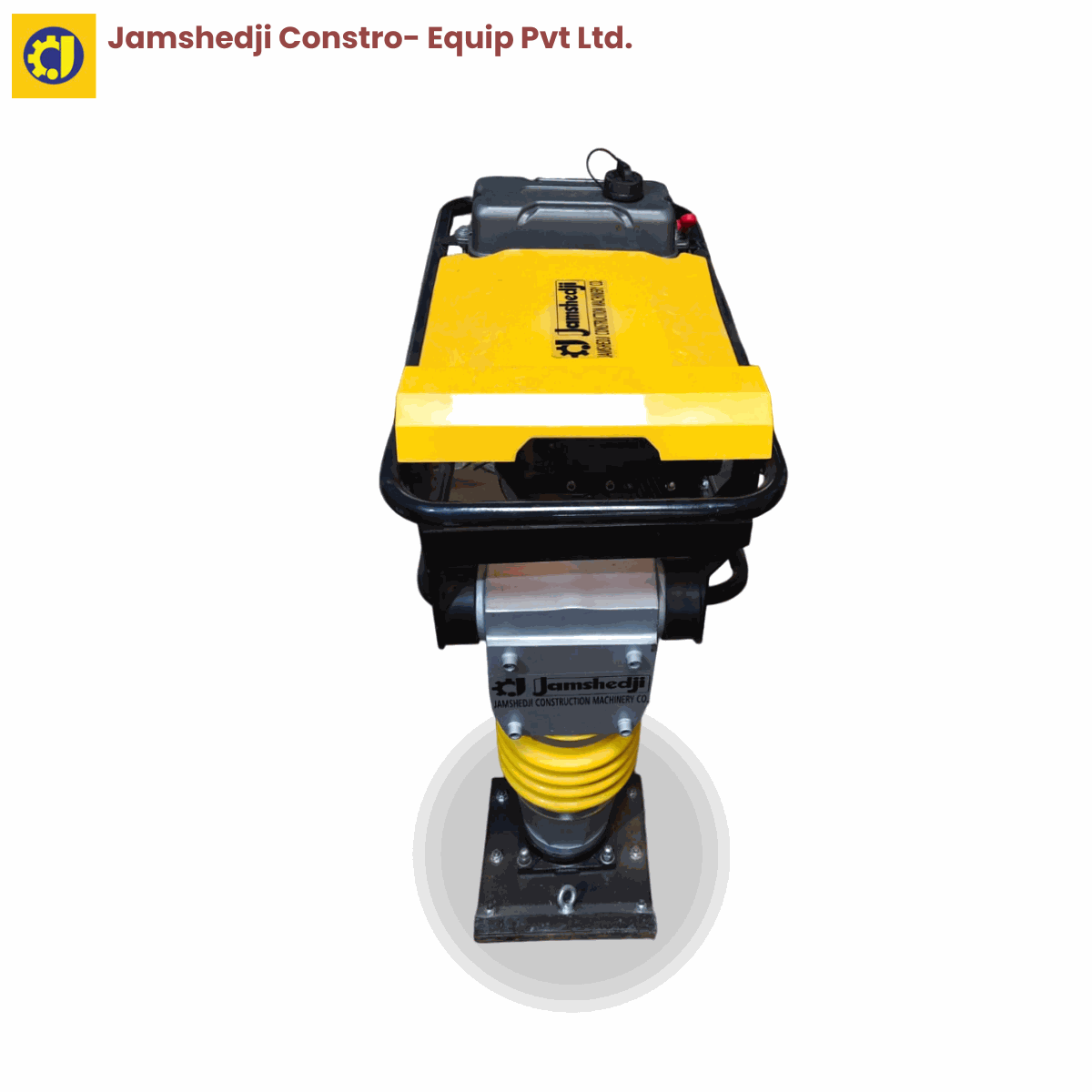

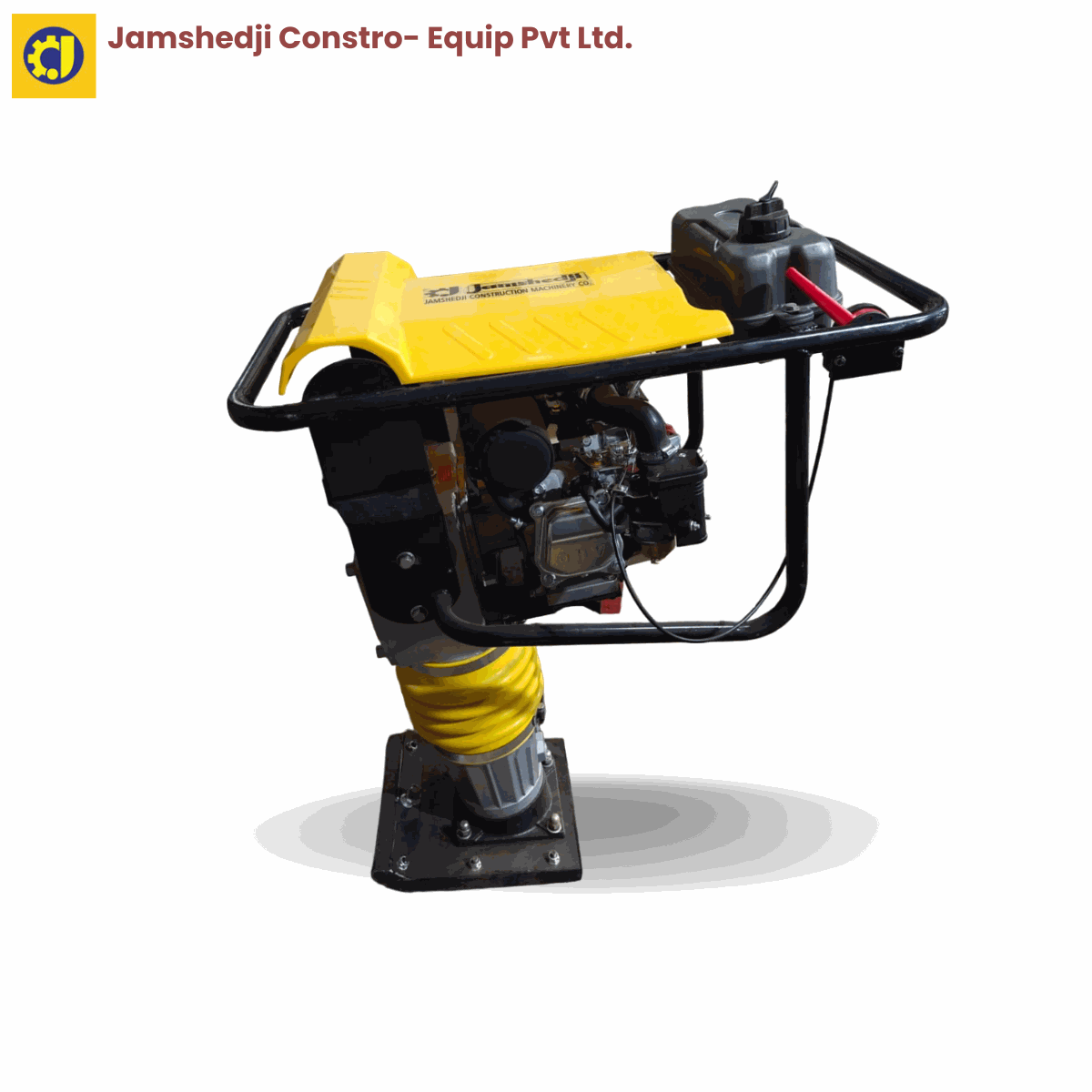

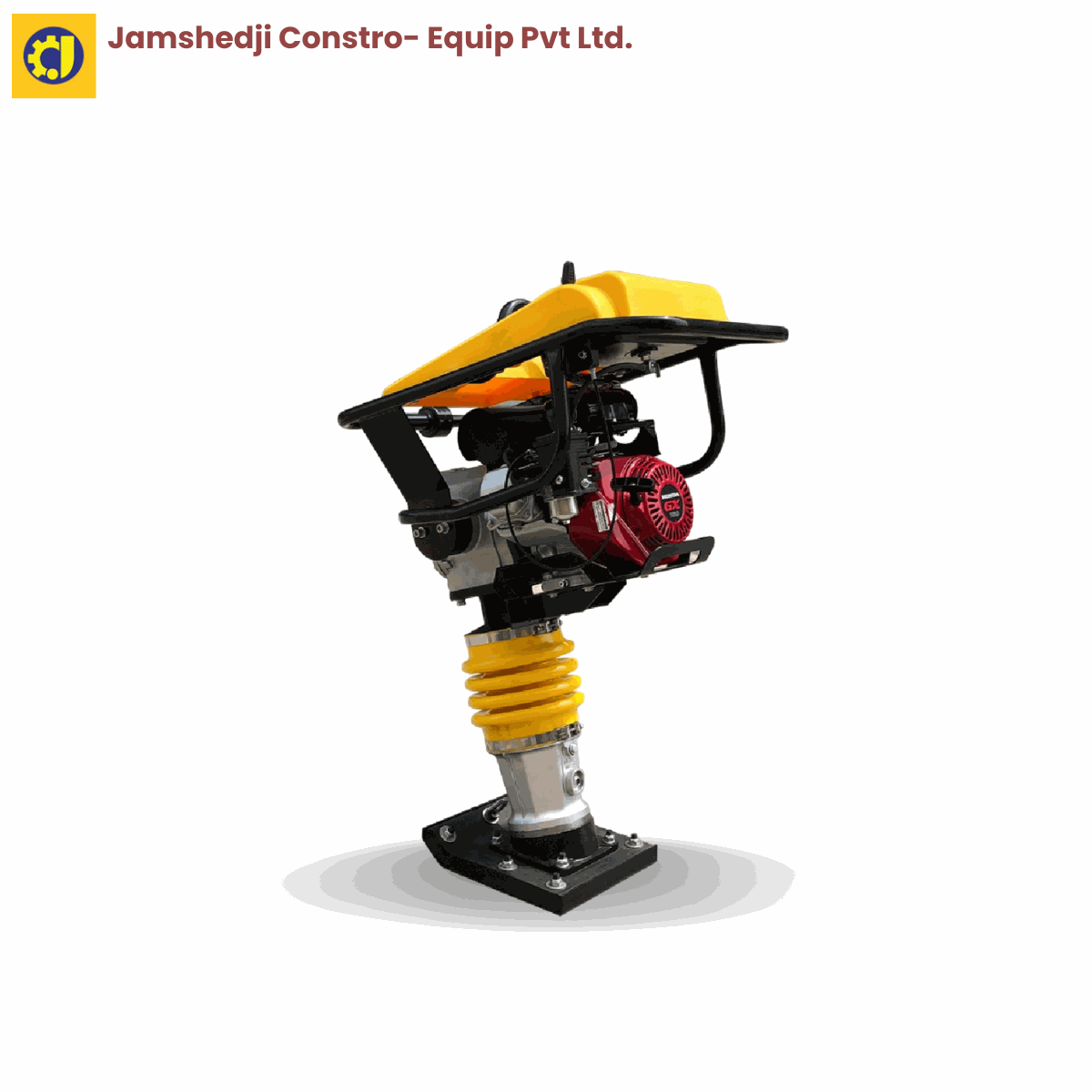

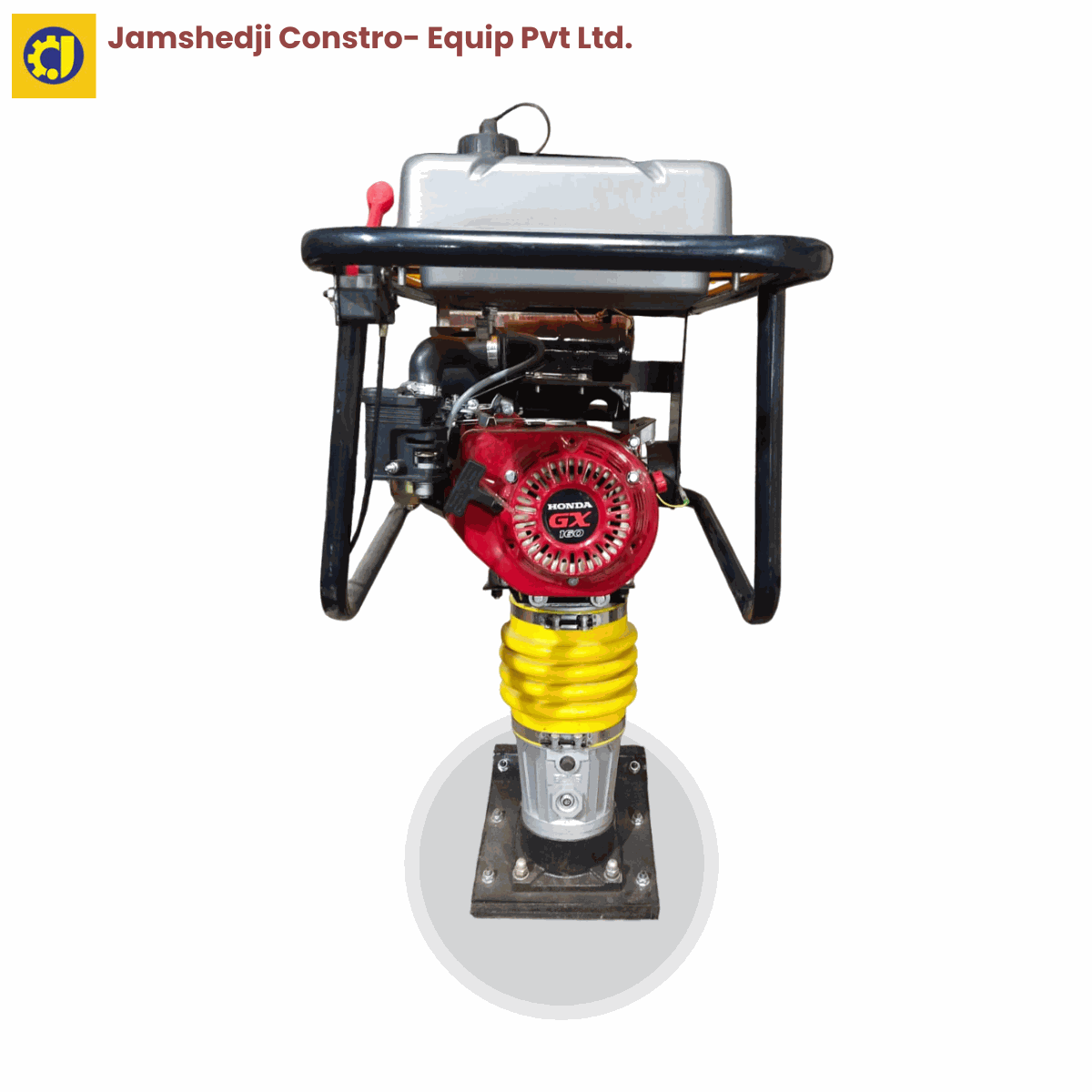

Tamping Rammer Honda GX160 – Petrol Jumping Jack, 3-3.5T Impact

The Jamshedji Honda tamping rammer is a petrol jumping jack soil compactor powered by a 5.5 HP Honda GX160 engine, delivering 3–3.5 tonnes of impact force at 700 blows per minute and compacting to a depth of 300 mm. Also called a dhumas machine or earth rammer, it compacts soil, sand, gravel and asphalt in trenches, foundations, pits, backfill and around structures — the confined places a plate compactor or roller cannot reach. Weight is 85 kg with a 340 × 280 mm plate.

Key specifications at a glance

• Engine: Honda GX160 petrol, 5.5 HP
• Impact force: 3–3.5 tonnes
• Impact frequency: 700 blows/min
• Compaction depth: up to 300 mm
• Plate size: 340 × 280 mm, 16 mm thick
• Weight: 85 kg

Why a rammer rather than a plate compactor

A plate compactor works the surface. A tamping rammer drives energy downward in a narrow column, which is what cohesive soils and clay backfill actually need — and it does it in a 340 mm footprint that fits inside a service trench.

That is why rammers are specified for trench backfill around pipes and cables, column and footing foundations, pits, and the strips alongside walls and kerbs. Compaction to 300 mm depth in those locations is what stops the settlement that later cracks a slab or dips a road patch.

Petrol or diesel — how to choose

Jamshedji supplies rammers in both. This Honda petrol machine gives 3–3.5 tonnes of impact at 85 kg. The diesel tamping rammer gives 5 tonnes at 130 kg.

Take the petrol machine where the rammer has to be lifted in and out of trenches repeatedly, carried between locations, or worked on upper levels — 45 kg less matters when two men are handling it all day. It also starts easily and the Honda GX160 is serviceable in any Indian town.

Take the diesel machine for sustained heavy compaction on large earthworks, where the higher impact force and lower fuel cost per hour outweigh the extra weight. For enclosed areas where exhaust is a problem, use the electric tamping rammer.

Key features

• Honda GX160 5.5 HP engine — service and spares available in every Indian city
• 3–3.5 tonne impact force at 700 blows per minute
• Compacts to 300 mm depth in soil, sand, gravel and asphalt
• 340 × 280 mm plate at 16 mm thickness fits inside service trenches
• 40–75 mm jump height and 16 m/min travel for steady progress along a trench
• 85 kg — manageable for lifting in and out of excavations
• Wear parts stocked in Pune: bellows, base plates, clutch, rubber pads

Full specifications

Spare parts for the tamping rammer

Wear parts are stocked and dispatched from Pune: rubber bellow, base plate, base plate housing, clutch, rubber pads and accelerator cable. The bellow is the routine consumable — keep a spare on site.

Related compaction equipment

For open ground and sub-base work, the plate compactor covers area faster. For roads, car parks and large formation layers, see the double drum walk behind roller and single drum vibratory roller.

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support and spares available direct from the Bhosari works
