Bar Bending Machine GW50 – TMT Rebar Bender 6 to 40mm
Bar Bending Machine GW50 – TMT Rebar Bender 6 to 40mm
Contact us for pricing

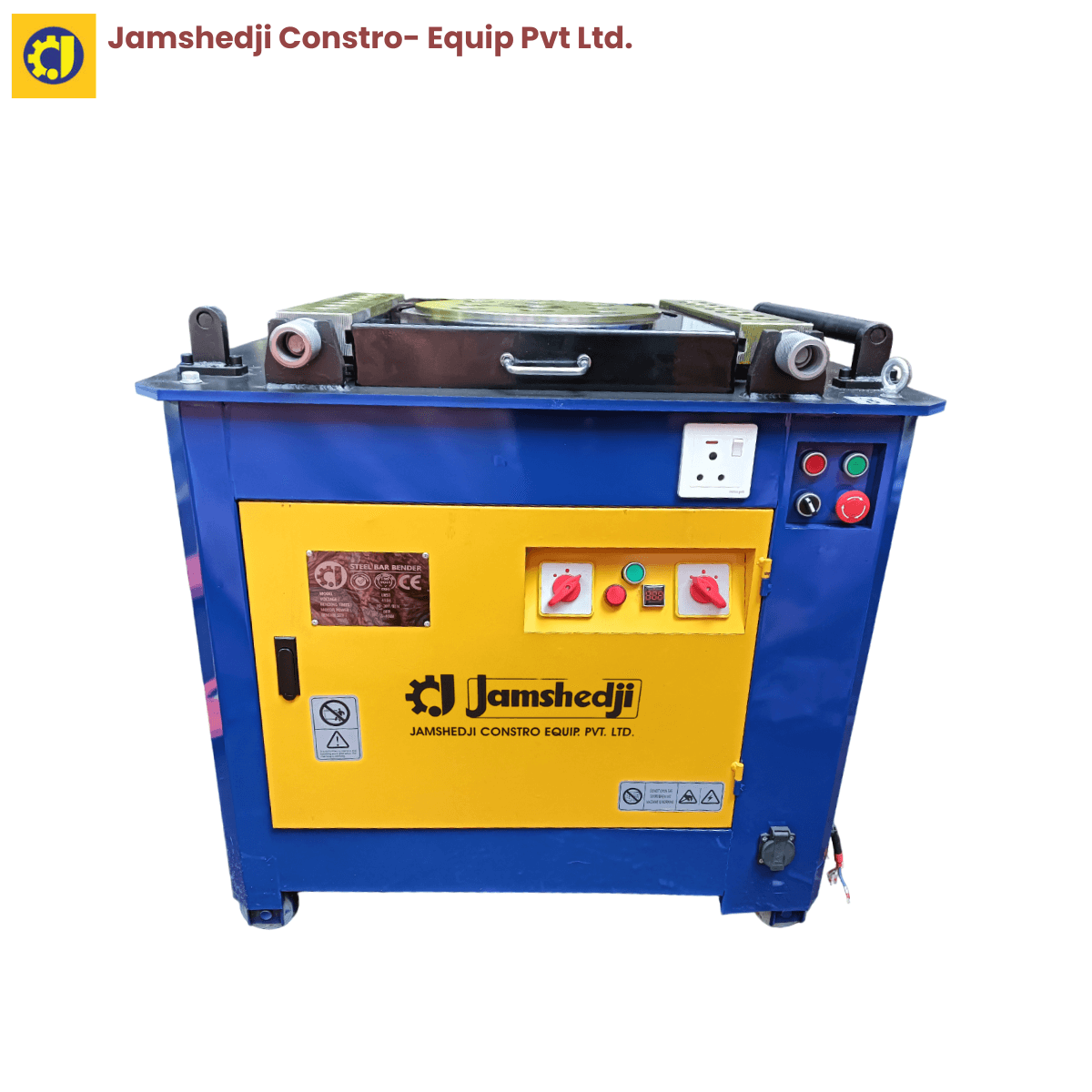

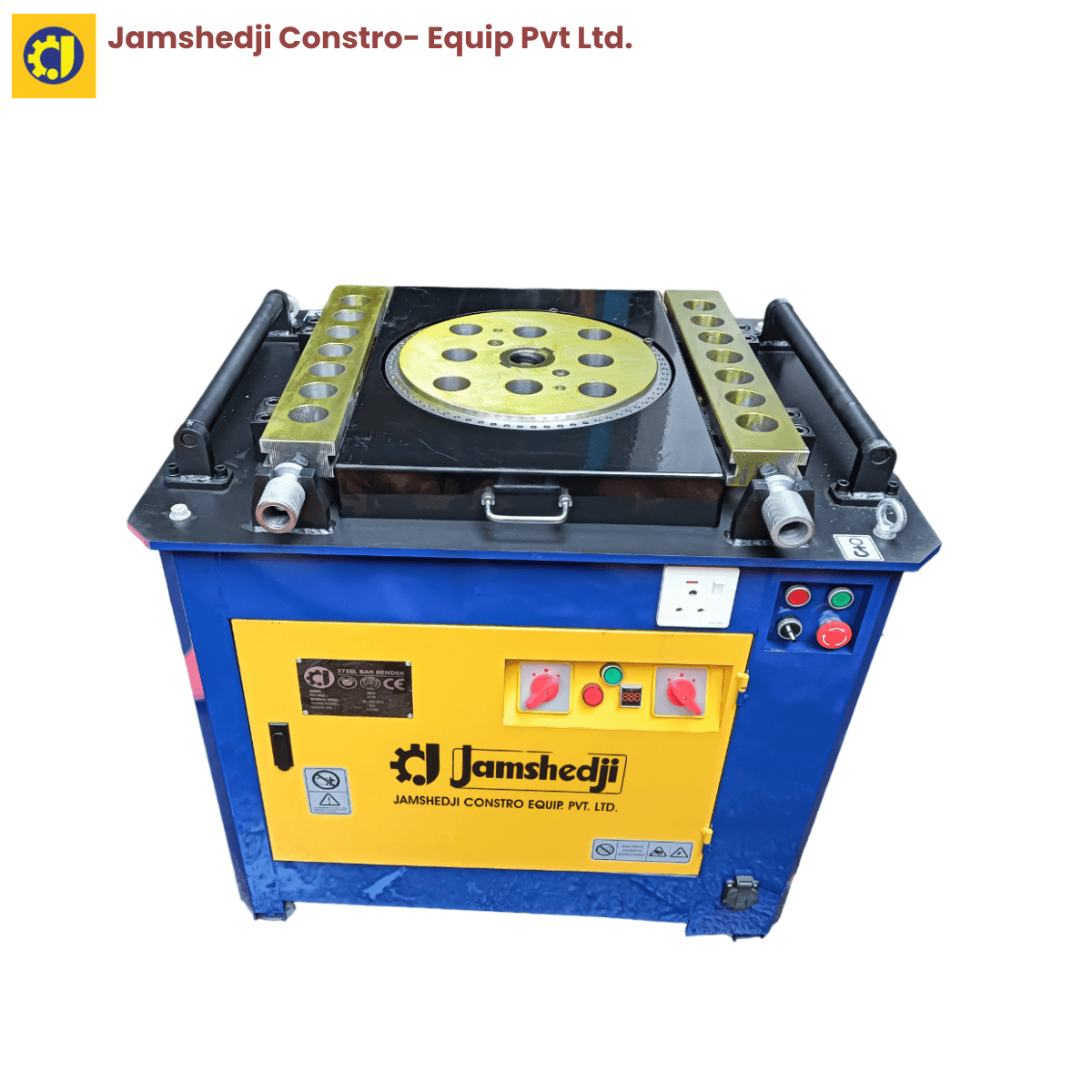

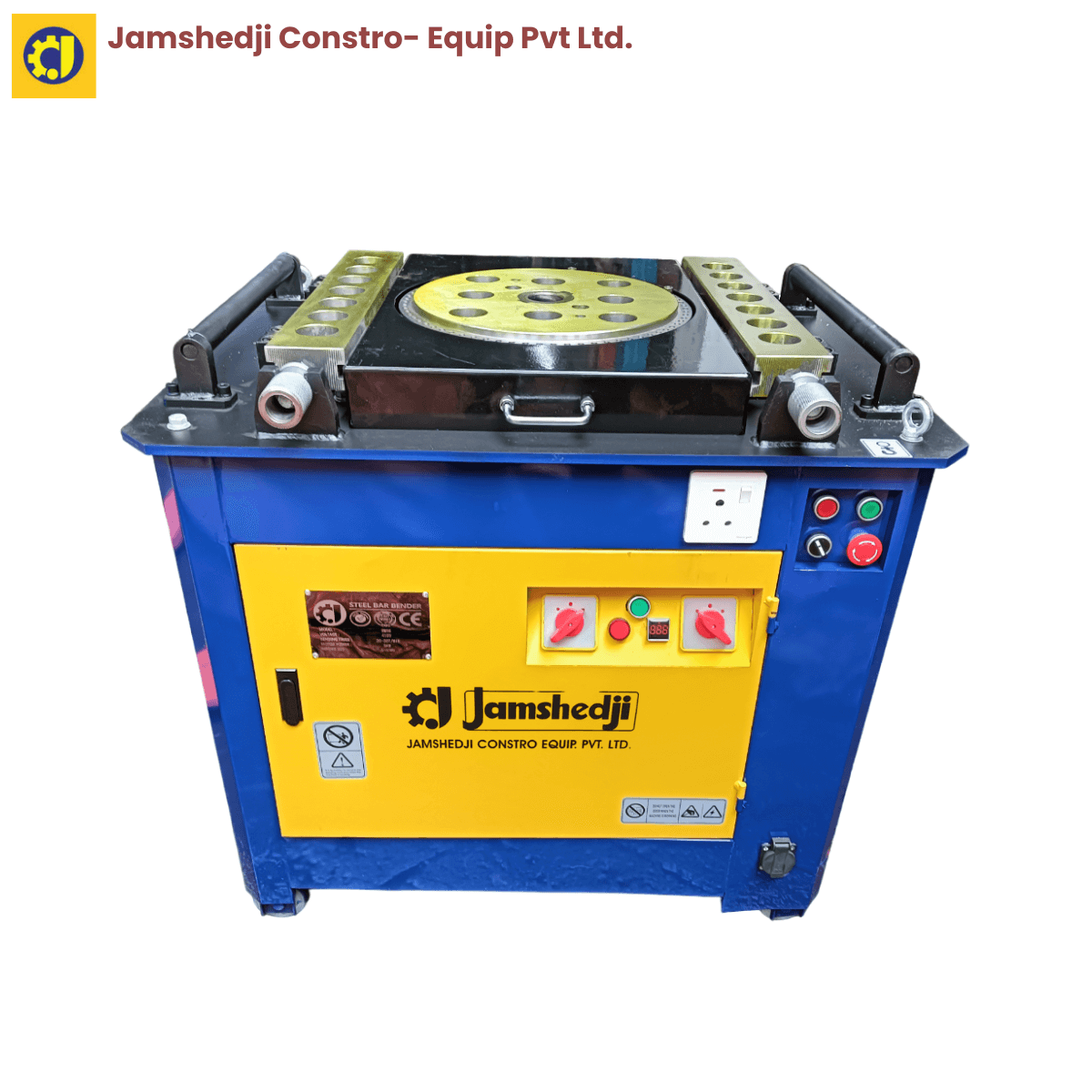

Unit price / perThe GW50 bar bending machine is a 415 V three-phase electric rebar bender that bends deformed TMT bars from 6 mm to 40 mm. It is the heavy-duty model in the Jamshedji Constro Equip range, built at MIDC Bhosari, Pune, and used on bridge decks, flyovers, industrial foundations and large RCC projects where bar diameters exceed the 32 mm limit of the GW42. Weight is 420 kg on a 900 × 800 × 800 mm footprint.
Key specifications at a glance
- Bar capacity: 6–40 mm deformed / TMT bar
- Motor: 5 kW (6.5 HP), 1440 rpm, three-phase
- Power supply: 415 V, 3-phase
- Weight: 420 kg
- Overall size: 900 × 800 × 800 mm
Key features
- Bends deformed TMT bar up to 40 mm — the full range used in heavy RCC work
- 5 kW / 6.5 HP three-phase motor rated for continuous-duty production
- Hardened gear train sized for repeated large-diameter bending without heat build-up
- Adjustable angle settings for consistent output across a bar bending schedule
- High-quality limit switch for accurate, repeatable stopping position
- Serviceable layout — pins, bushes and gears are field-replaceable from Pune stock
- Built for fabrication yards and infrastructure sites running daily production
Where the GW50 is used
The GW50 is specified where the bar bending schedule includes 36 mm and 40 mm bar — bridge and flyover decks, metro and viaduct piers, heavy industrial foundations, port and power-plant works, and high-capacity rebar fabrication yards. If your largest bar is 32 mm or below, the lighter and cheaper GW42 bar bending machine (6–32 mm) is the better buy. Pair the GW50 with a GQ50 bar cutting machine (up to 40 mm) for a matched cut-and-bend station.
Full specifications
| Model | GW50 |
| Type | Electric bar bending machine |
| Function | Bar bending |
| Deformed bar capacity | 6–40 mm |
| Motor power | 5 kW / 6.5 HP, 1440 rpm |
| Input voltage | 415 V, 3-phase |
| Weight | 420 kg |
| Overall dimensions | 900 × 800 × 800 mm |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
- After-sales support and spares available direct from the Bhosari works
Frequently asked questions
What is the maximum bar size the GW50 can bend?
40 mm deformed TMT bar. The working range is 6 mm to 40 mm.
What is the difference between the GW42 and the GW50?
Capacity and motor. The GW42 bends up to 32 mm on a 3 kW / 4 HP motor and weighs 350 kg. The GW50 bends up to 40 mm on a 5 kW / 6.5 HP motor and weighs 420 kg. Choose on the largest bar diameter in your bar bending schedule — there is no reason to pay for the GW50 if you never exceed 32 mm.
What power supply does the GW50 need?
415 V three-phase. The motor draws 5 kW (6.5 HP) at 1440 rpm, so confirm your site DG set or panel can carry the starting load before delivery.
How heavy is the GW50 and how is it moved?
420 kg, 900 × 800 × 800 mm overall. It is shifted with a chain pulley block, mini crane or hydraulic pallet truck and does not need a fixed foundation.
What is the price of a GW50 bar bending machine in India?
Send your site location and quantity on WhatsApp for a GST-inclusive quotation including freight. Pricing varies with delivery location and order size.
Do you deliver outside Maharashtra?
Yes. Machines are dispatched across India and exported to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Are spare parts available for the GW50?
Yes. Wear parts including pins, bushes, gears and limit switches are stocked and dispatched from the Bhosari works in Pune.
Get a GST-inclusive quotation for the GW50 — send your site location and the largest bar diameter you need to bend.
Available with delivery in: Pune, Mumbai, Hyderabad, Bangalore and other major cities. See all construction machinery across India or browse the full TMT bar machines range.
