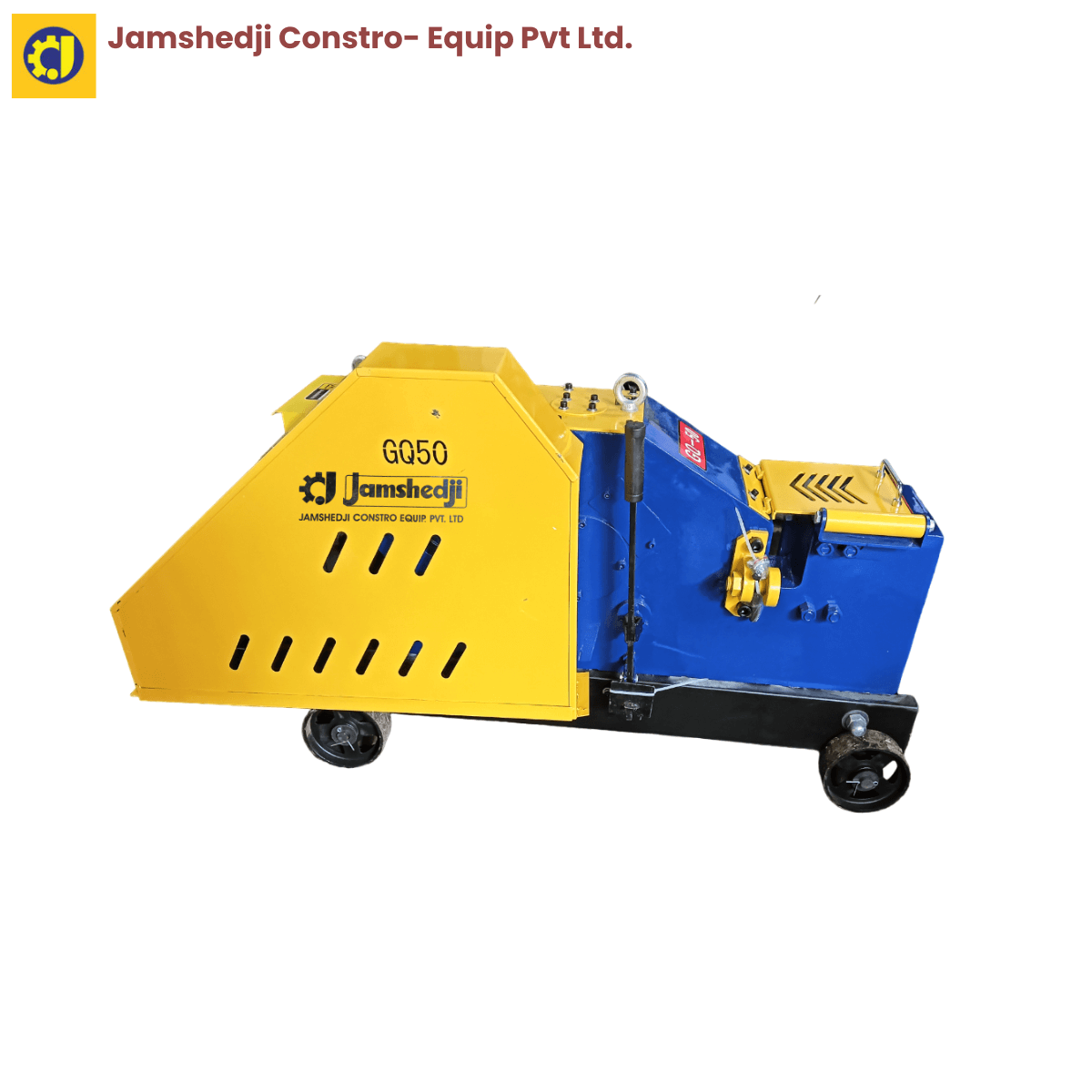

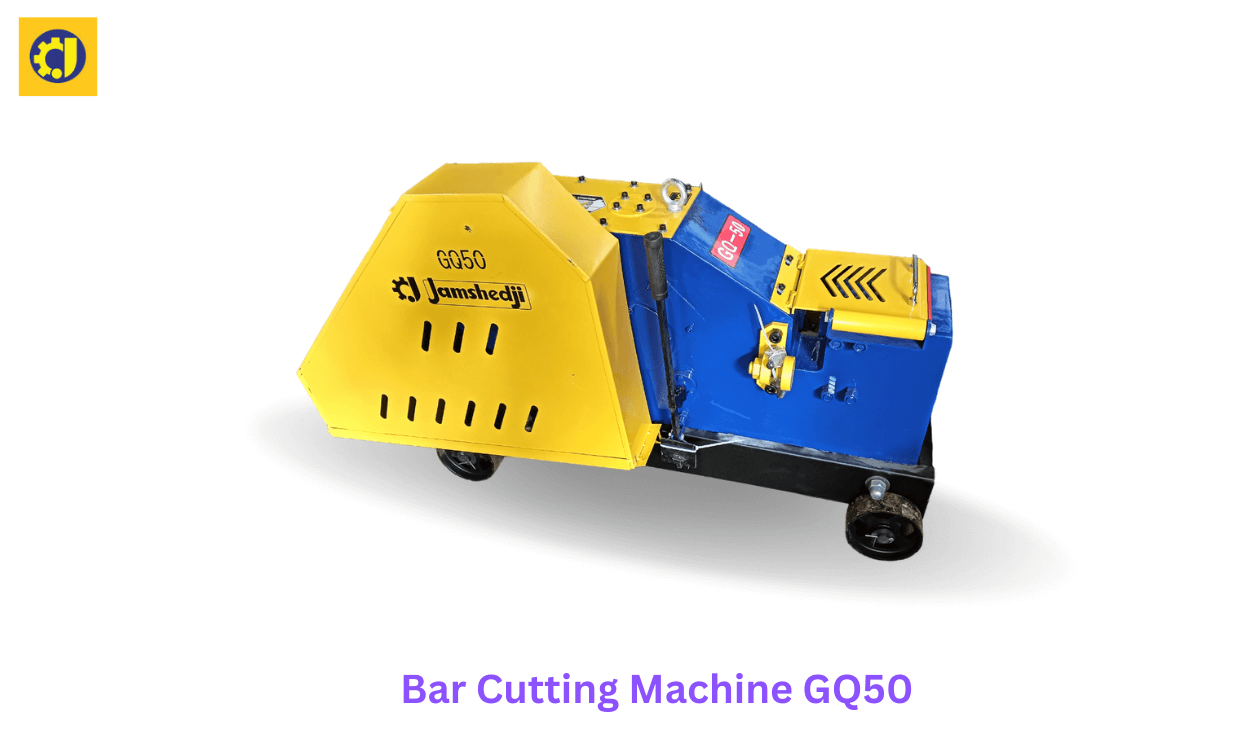

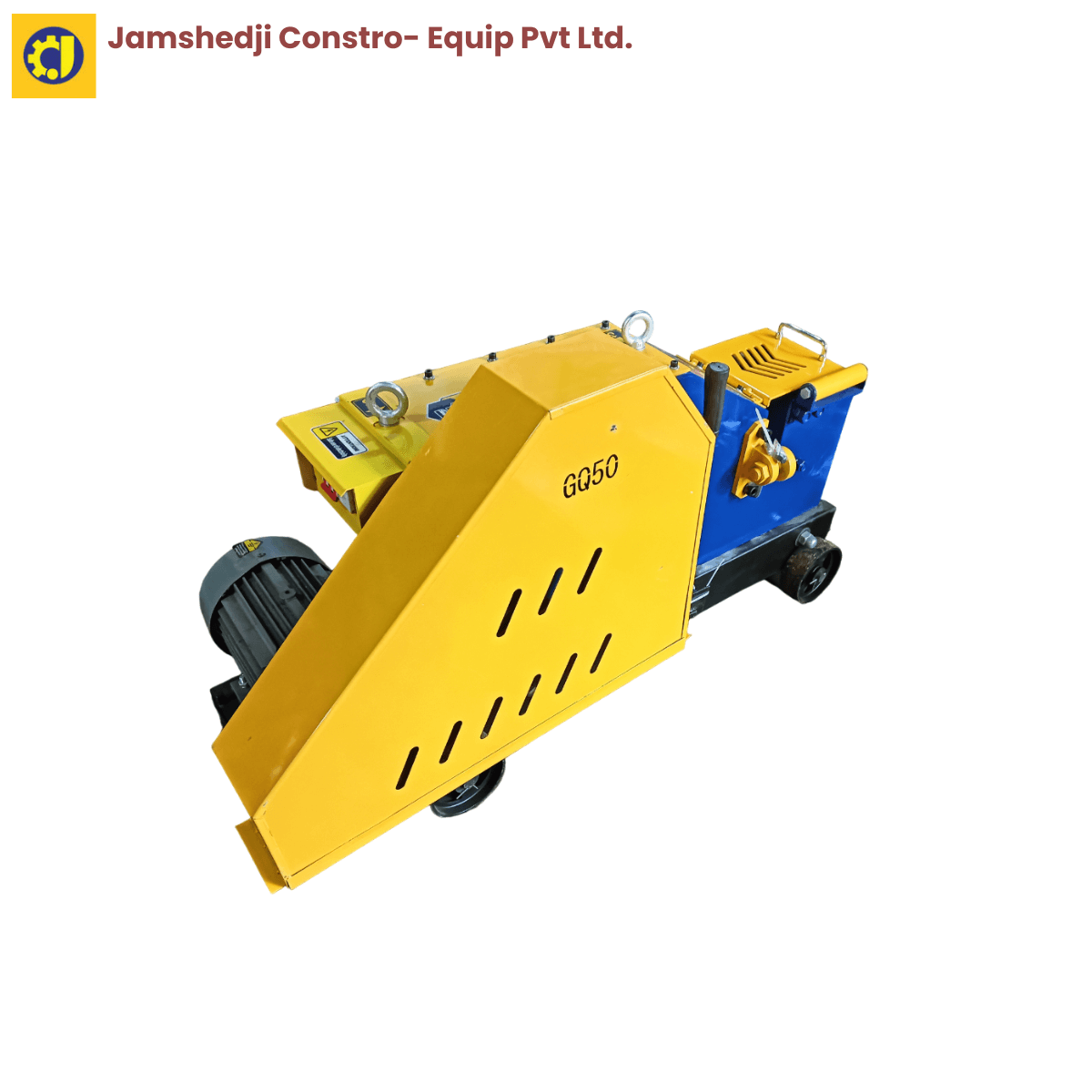

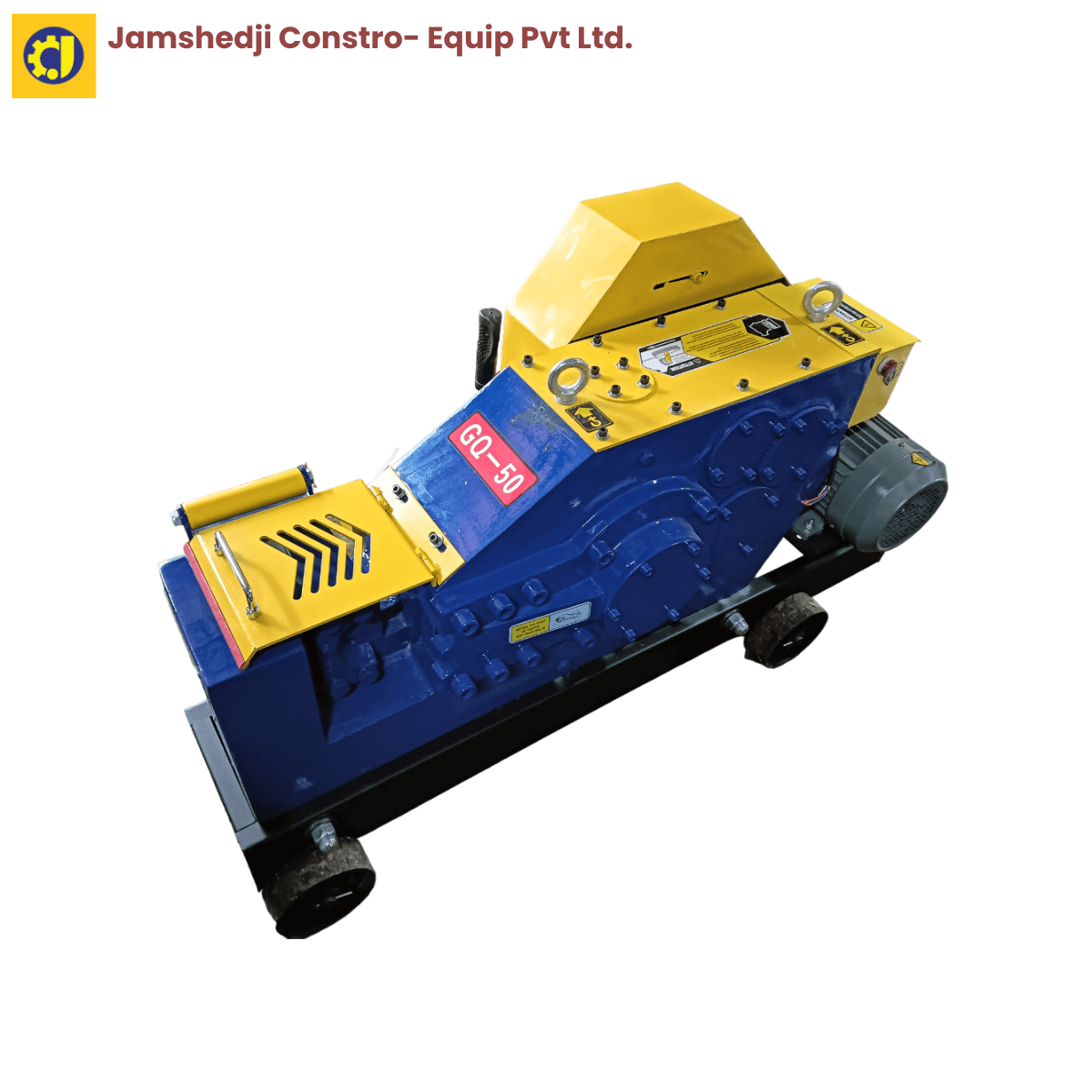

Bar Cutting Machine GQ50 – TMT Rebar Cutter 6 to 40mm
Bar Cutting Machine GQ50 – TMT Rebar Cutter 6 to 40mm
Contact us for pricing
Unit price / perThe GQ50 bar cutting machine is a 415 V electric rebar cutter that cuts deformed TMT bars from 6 mm to 40 mm. It is the heavy-duty cutter in the Jamshedji Constro Equip range, built at MIDC Bhosari, Pune, and specified where the bar bending schedule runs past the 32 mm ceiling of the GQ45. Weight is 470 kg on a 1380 × 500 × 800 mm frame.
Key specifications at a glance
- Bar capacity: 6–40 mm deformed / TMT bar
- Motor: 5.5 HP, 1440 rpm
- Power supply: 415 V
- Weight: 470 kg
- Overall size: 1380 × 500 × 800 mm
Key features
- Cuts deformed TMT bar up to 40 mm — the full heavy RCC range
- 5.5 HP motor at 1440 rpm for high-volume daily cutting
- Hardened blade system delivers clean, square cuts on large-diameter bar
- Heavy body and wide base frame absorb the shock of 40 mm cuts
- Built for continuous fabrication-yard duty, not occasional site use
- Blades, clutch plate and supporting plate replaceable from Pune stock
- Simple controls — minimal operator training required
Where the GQ50 is used
The GQ50 is the cutter for infrastructure-scale work: bridge and flyover decks, metro viaducts, heavy industrial foundations, port and power-plant projects, and high-throughput rebar fabrication yards. It pairs with the GW50 bar bending machine (6–40 mm) for a matched cut-and-bend station. If 32 mm is your largest bar, the GQ45 bar cutting machine is lighter and costs less.
Full specifications
| Model | GQ50 |
| Type | Electric bar cutting machine |
| Function | Bar cutting |
| Deformed bar capacity | 6–40 mm |
| Motor | 5.5 HP, 1440 rpm |
| Input voltage | 415 V |
| Weight | 470 kg |
| Overall dimensions | 1380 × 500 × 800 mm |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Spare parts for the GQ50
Wear parts are stocked and dispatched from Pune: GQ50 cutting blade (90 × 90 × 26 mm, HRC 50–55), GQ50 clutch plate and GQ50 supporting plate. GQ50 blades are 90 × 90 × 26 mm and do not fit the GQ45.
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
- After-sales support and spares available direct from the Bhosari works
Frequently asked questions
What is the maximum bar size the GQ50 can cut?
40 mm deformed TMT bar. The working range is 6 mm to 40 mm.
What is the difference between the GQ45 and the GQ50?
The GQ45 cuts up to 32 mm on a 4.5 HP motor and weighs 390 kg. The GQ50 cuts up to 40 mm on a 5.5 HP motor and weighs 470 kg. Blades differ too — 83 × 83 × 26 mm on the GQ45 versus 90 × 90 × 26 mm on the GQ50 — so they are not interchangeable.
What power supply does the GQ50 need?
415 V, driving a 5.5 HP motor at 1440 rpm. Check the site panel or DG set can carry the starting load before delivery.
How heavy is the GQ50 and how is it shifted?
470 kg, 1380 × 500 × 800 mm overall. Move it with a chain pulley block, mini crane or hydraulic pallet truck. No fixed foundation is needed.
Which blade does the GQ50 take?
A 90 × 90 × 26 mm hardened blade at HRC 50–55. Keep a spare set in the yard — blade changes are routine, not breakdowns.
What is the price of a GQ50 bar cutting machine in India?
Send your site location and quantity on WhatsApp for a GST-inclusive quotation including freight.
Do you deliver outside Maharashtra?
Yes. Machines are dispatched across India and exported to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Get a GST-inclusive quotation for the GQ50 — send your site location and the largest bar diameter you need to cut.
Available with delivery in: Pune, Mumbai, Hyderabad, Bangalore and other major cities. See all construction machinery across India or browse the full TMT bar machines range.
