Bar Bending Machine GW42 – TMT Rebar Bender 6 to 32mm
Bar Bending Machine GW42 – TMT Rebar Bender 6 to 32mm
Contact us for pricing

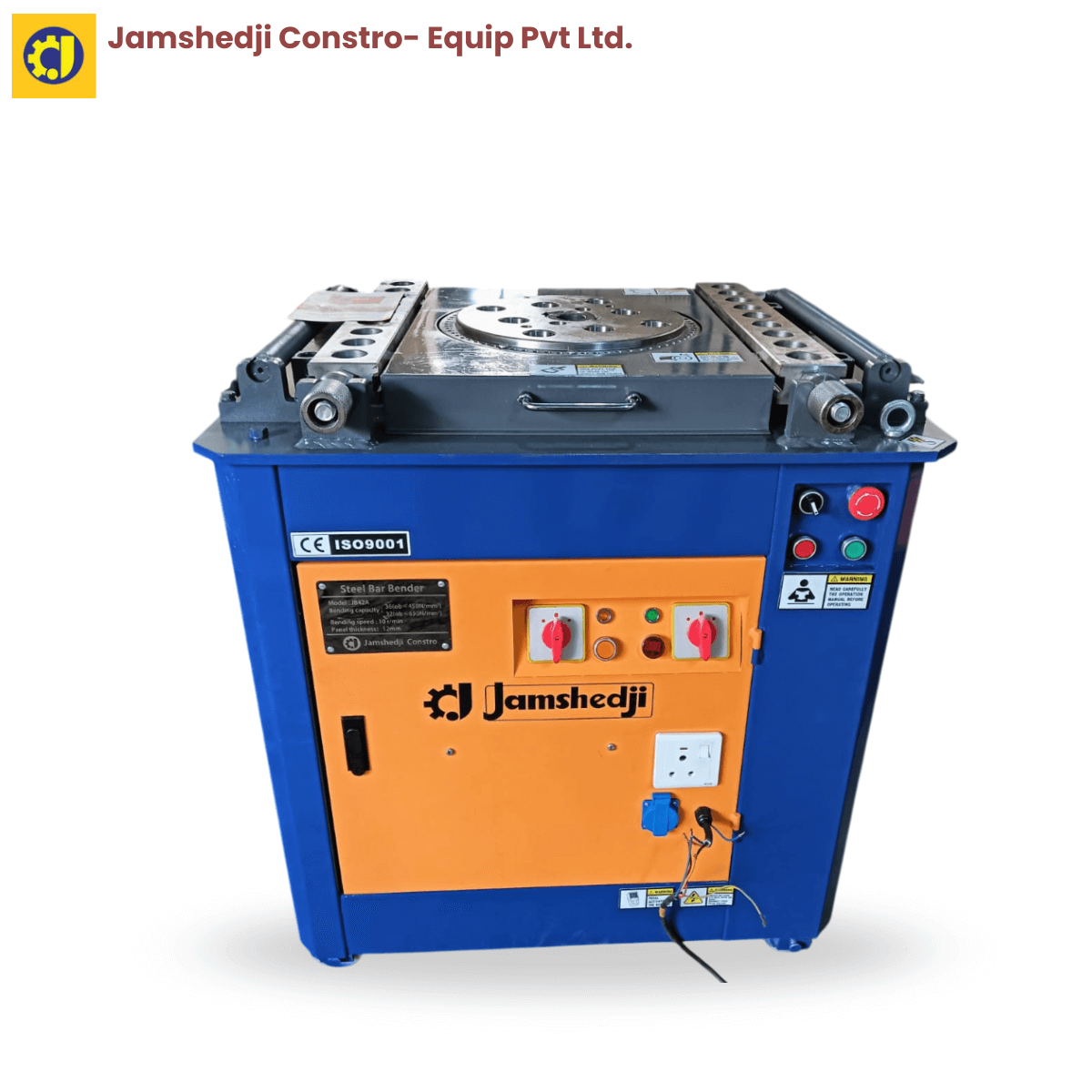

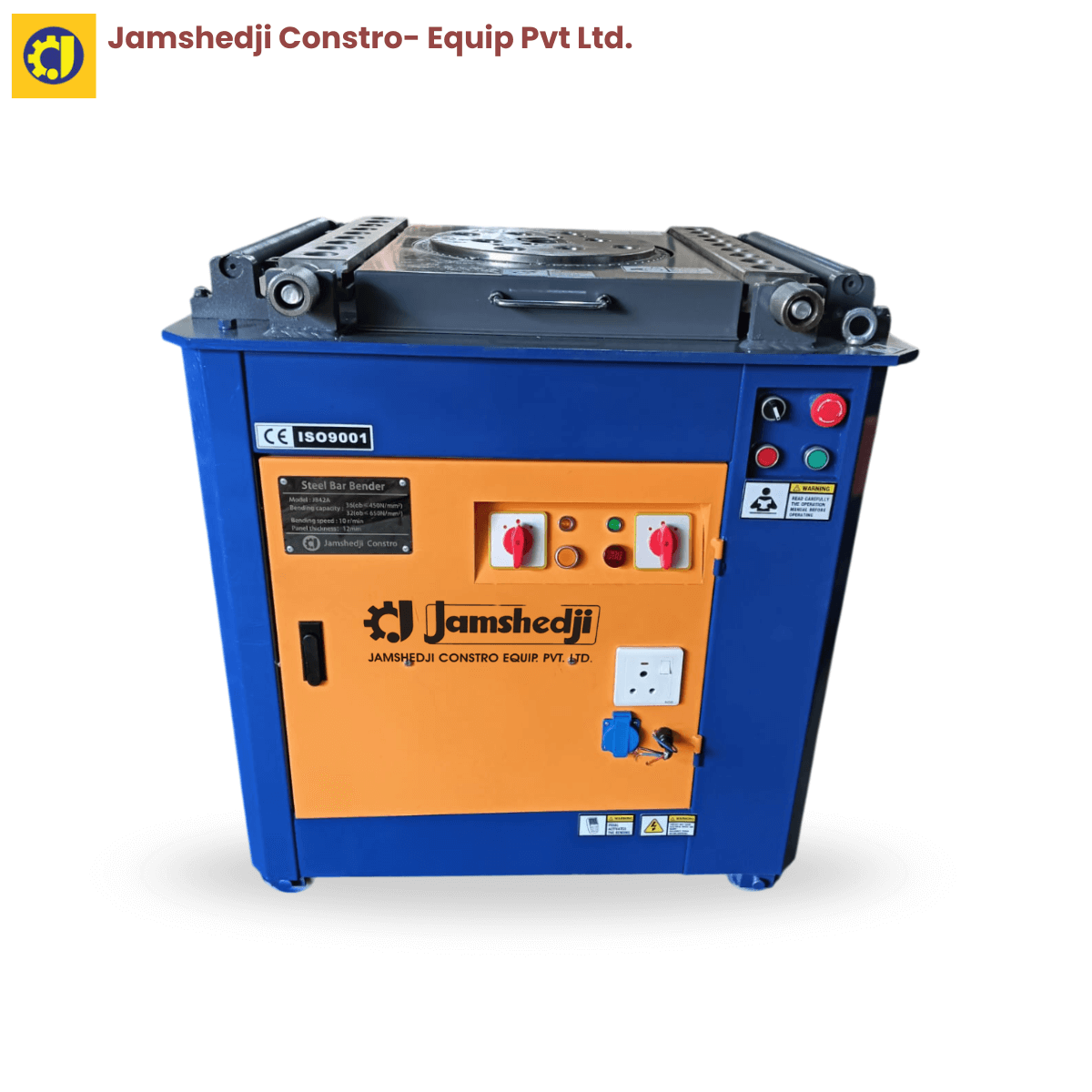

Unit price / perThe GW42 bar bending machine is a 415 V three-phase electric rebar bender that bends deformed TMT bars from 6 mm to 32 mm. It is built and supplied by Jamshedji Constro Equip Pvt. Ltd. from MIDC Bhosari, Pune, and is used on RCC building, bridge and infrastructure sites for cutting-list bending of stirrups, cranks, hooks and L-bends. Weight is 350 kg on a 850 × 790 × 900 mm footprint, so it sits on the slab or in the bar-bending yard and does not need a foundation.
Key specifications at a glance
- Bar capacity: 6–32 mm deformed / TMT bar
- Motor: 3 kW (4 HP), 1440 rpm, three-phase
- Power supply: 415 V, 3-phase
- Working plate thickness: 10 mm
- Weight: 350 kg
- Overall size: 850 × 790 × 900 mm
Key features
- Bends deformed TMT bar up to 32 mm diameter in a single pass
- 3 kW / 4 HP three-phase motor sized for continuous site duty
- Preset angle stops for repeatable bends across a full cutting list
- Heavy-gauge limit switch for accurate, repeatable stopping position
- Hardened gear train and 10 mm working plate for long service life
- Open, serviceable layout — gears, bushes and pins are field-replaceable
- Suitable for both contractor site use and fabrication-yard production
Where the GW42 is used
The GW42 is the standard mid-range bender on Indian RCC sites. It suits high-rise and residential tower reinforcement, bridge and flyover decks, industrial sheds and warehouse footings, water tanks and retaining walls, and precast or ready-to-fix rebar fabrication yards. For bar above 32 mm, the heavier GW50 bar bending machine (up to 40 mm) is the correct model. Pair it with a GQ45 bar cutting machine for a complete cut-and-bend station.
Full specifications
| Model | GW42 |
| Type | Electric bar bending machine |
| Function | Bar bending |
| Deformed bar capacity | 6–32 mm |
| Motor | 3-phase, 3 kW / 4 HP, 1440 rpm |
| Input voltage | 415 V |
| Round plate thickness | 10 mm |
| Limit switch | Big size limit switch |
| Socket | Single phase socket |
| Working height | 900 mm |
| Weight | 350 kg |
| Overall dimensions | 850 × 790 × 900 mm |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Spare parts for the GW42
Wear parts are stocked and dispatched from Pune: 25 mm centre pin for bar bending machine. Ask for the parts list when you place your enquiry.
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
- After-sales support and spares available direct from the Bhosari works
Frequently asked questions
What size bars can the GW42 bar bending machine bend?
The GW42 bends deformed TMT bar from 6 mm to 32 mm in diameter. For bar up to 40 mm, use the GW50 model instead.
What power supply does the GW42 need on site?
A 415 V three-phase supply. The motor is 3 kW (4 HP) running at 1440 rpm. Make sure the site DG set or panel can carry the starting load.
How much does the GW42 bar bending machine weigh?
350 kg, with overall dimensions of 850 × 790 × 900 mm. It is moved between floors or sites with a chain pulley, mini crane or hydraulic pallet truck — no fixed foundation is needed.
What is the price of a GW42 bar bending machine in India?
Pricing depends on delivery location, freight and quantity. Send your site location and requirement on WhatsApp and you will get a GST-inclusive quotation the same working day.
What is the difference between the GW42 and the GW50?
The GW42 handles bar up to 32 mm; the GW50 is the heavier machine and handles bar up to 40 mm. Choose based on the largest bar diameter in your bar bending schedule.
Do you deliver bar bending machines outside Maharashtra?
Yes. Machines are dispatched across India and exported to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Is a GST invoice provided?
Yes. Every machine ships with a GST invoice — CGST + SGST for buyers in Maharashtra, IGST for interstate buyers.
Get a GST-inclusive quotation for the GW42 — send your site location and the largest bar diameter you need to bend.
