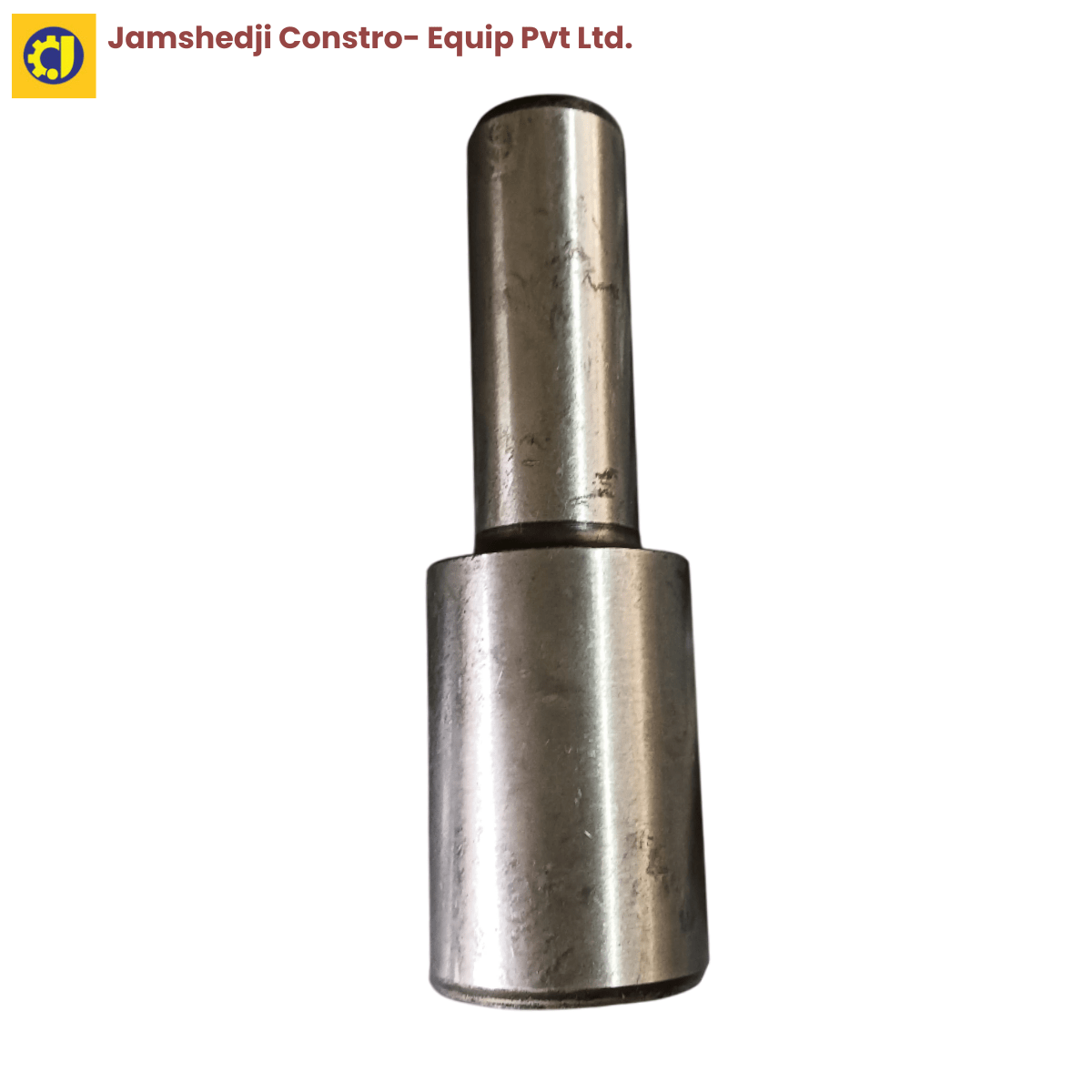

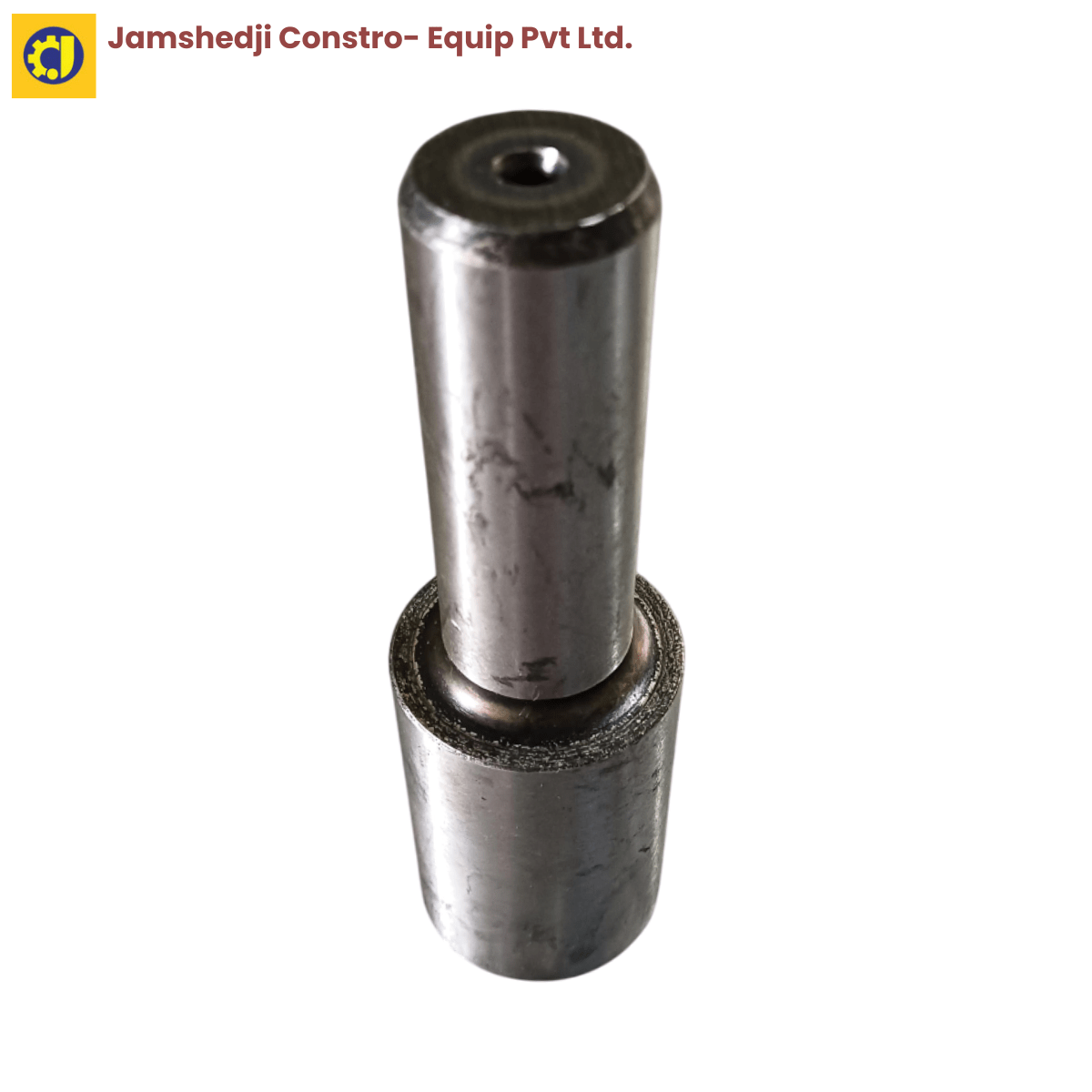

Centre Pin for Bar Bending Machine – 40mm Bottom, 25mm Top OD

This is the replacement centre pin for a bar bending machine — bottom outer diameter 40 mm, top outer diameter 25 mm, in high-strength alloy steel. The centre pin is the pivot the bar bends around, so it takes the full bending load on every cycle and is replaced as a wear part.

Fits

• Bar Bending Machine GW42 — 6–32 mm three-phase bench bender
• Bar Bending Machine JBB42A — 6–32 mm, auto + manual
• Bar Bending Machine GW50 — 6–40 mm heavy-duty bender

The 40 mm / 25 mm stepped diameter suits standard bar bending machine models. Check the pin currently fitted to your machine against these dimensions before ordering.

What it does and when to replace it

A bar bending machine works by rotating a bending pin around a fixed centre pin, with the bar held between them. The centre pin is the pivot the whole bend forms around — it holds the bar's position and takes the reaction force as the bar is pulled into its angle. Every bend loads it, so the pin gradually wears, scores or goes out of round.

Replace the centre pin when bend angles start coming out inconsistent, when you can see grooving, flat spots or scoring on the pin surface, or when there is visible play at the pivot. A worn centre pin loses bending accuracy first and puts uneven load on the machine's gearbox second, so replacing it on time is what keeps both the work and the machine right.

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India
• Supplied by a bar bending machine manufacturer — founded 1983, ISO 9001:2015, MSME/Udyam registered
