Bar Cutting Machine GQ45 – TMT Rebar Cutter 6 to 32mm
Bar Cutting Machine GQ45 – TMT Rebar Cutter 6 to 32mm
Contact us for pricing

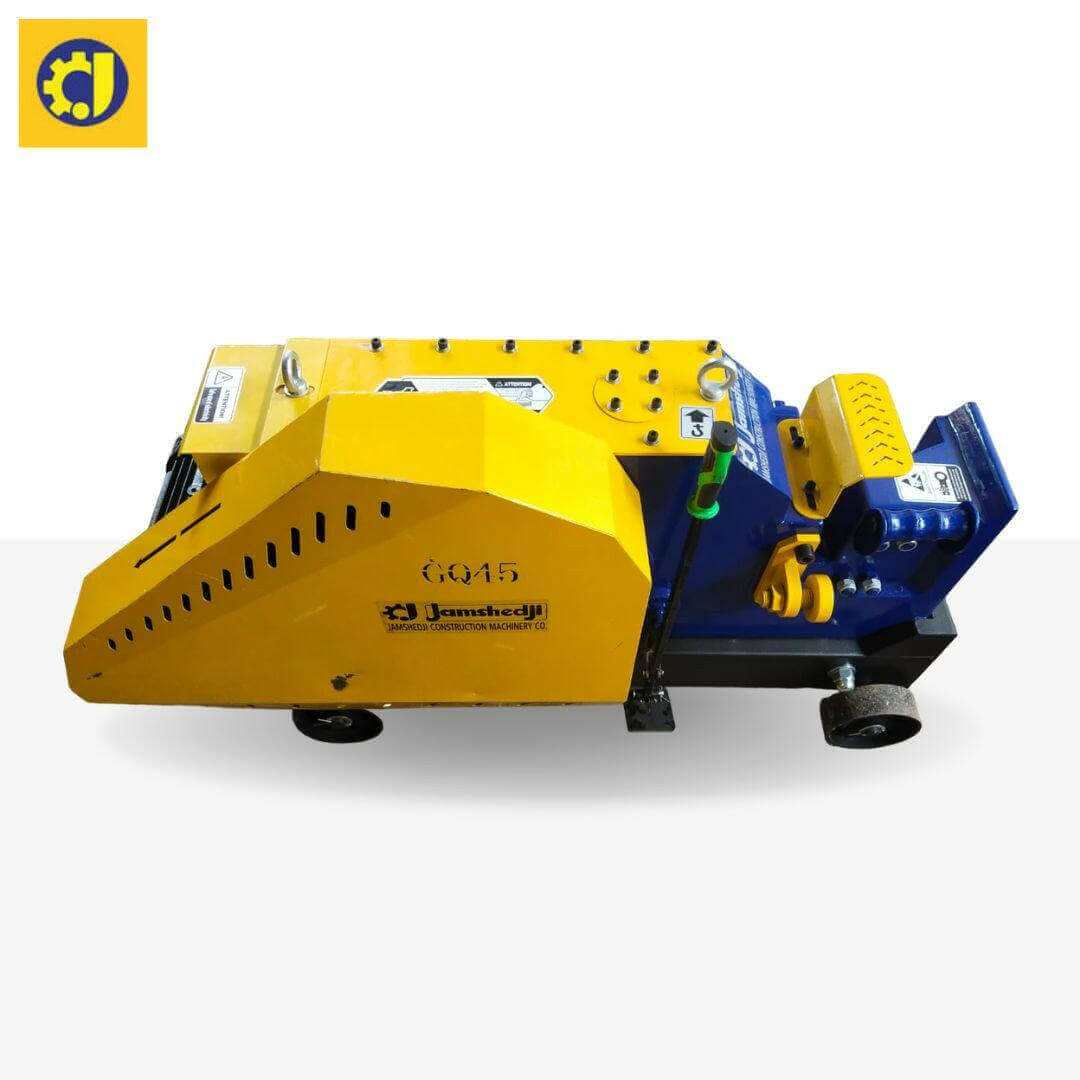

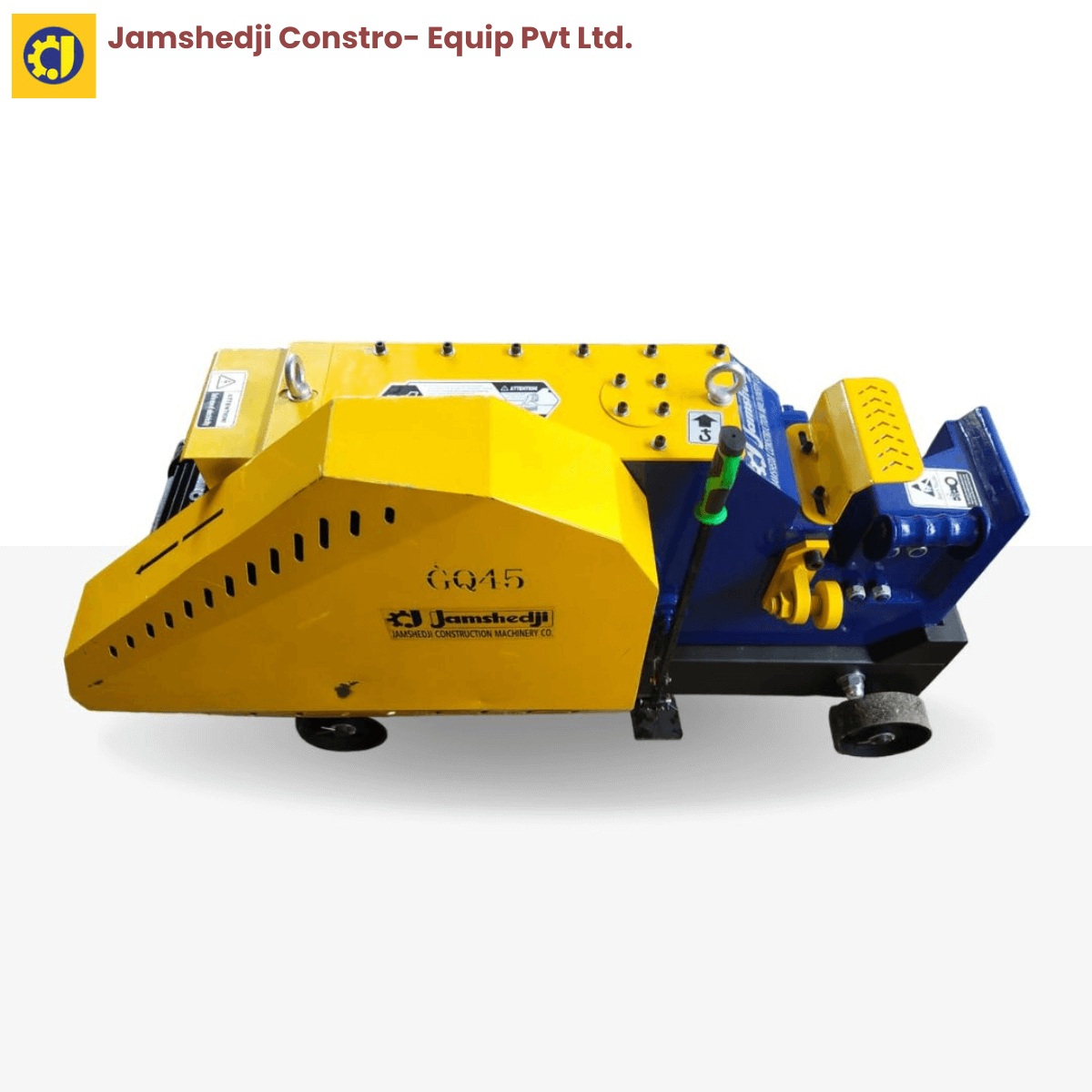

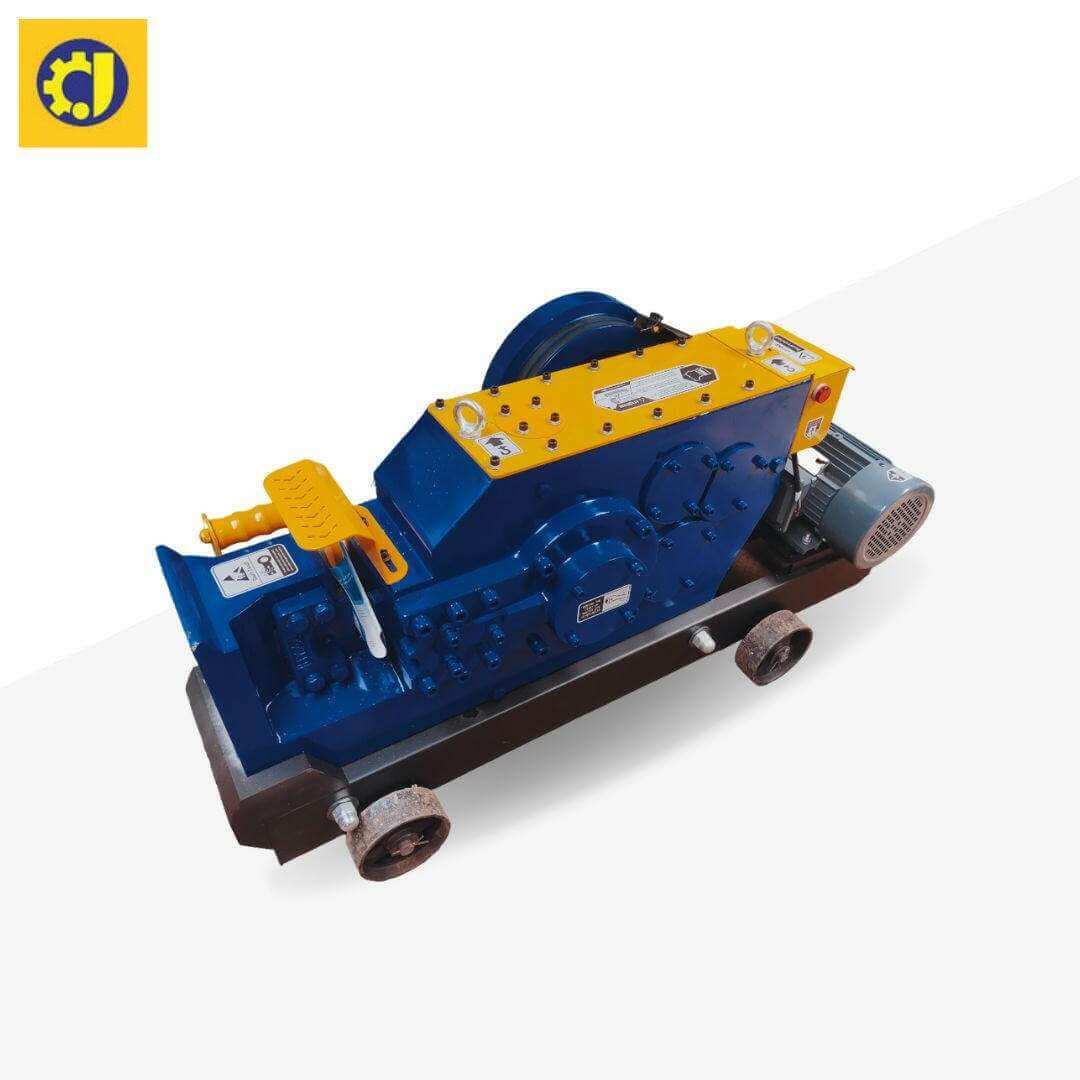

Unit price / perThe GQ45 bar cutting machine is a 415 V electric rebar cutter that cuts deformed TMT bars from 6 mm to 32 mm. Supplied by Jamshedji Constro Equip Pvt. Ltd. from MIDC Bhosari, Pune, it is the standard cutting station on RCC sites and rebar yards, working through a cutting list of stirrups, links and straight lengths at production speed. Weight is 390 kg on a 1300 × 440 × 780 mm frame.
Key specifications at a glance
- Bar capacity: 6–32 mm deformed / TMT bar
- Motor: 4.5 HP, 1440 rpm
- Power supply: 415 V
- Weight: 390 kg
- Overall size: 1300 × 440 × 780 mm

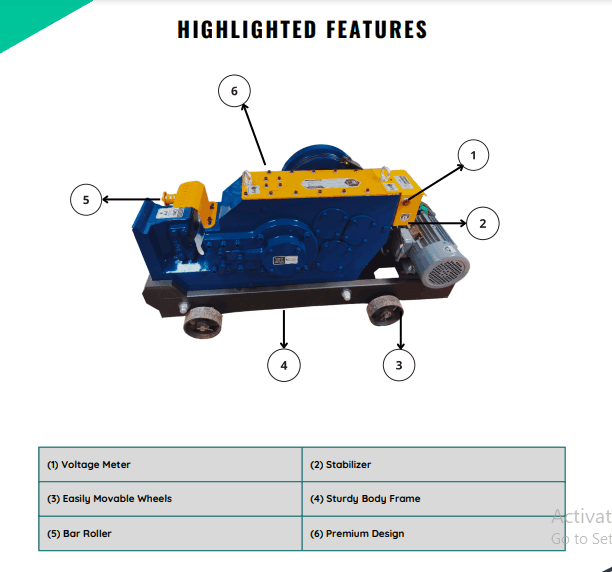

Key features
- Cuts deformed TMT bar up to 32 mm in a single stroke
- 4.5 HP motor at 1440 rpm for sustained cutting-list throughput
- Hardened steel blades give clean, square cuts without bar-end deformation
- Heavy stable base frame keeps the machine planted under load
- Simple mechanical action — few wear points, low maintenance
- Blades, clutch plate and supporting plate are replaceable from Pune stock
- Suited to contractor sites and fabrication yards running daily production
Where the GQ45 is used
The GQ45 pairs directly with the GW42 bar bending machine (6–32 mm) to form a matched cut-and-bend station on residential towers, commercial buildings, industrial sheds, water tanks and general RCC work. If your schedule includes 36 mm or 40 mm bar, step up to the GQ50 bar cutting machine (up to 40 mm). For light site work where the machine has to move floor to floor, see the portable bar cutting machine.
Full specifications
| Model | GQ45 |
| Type | Electric bar cutting machine |
| Function | Bar cutting |
| Deformed bar capacity | 6–32 mm |
| Motor | 4.5 HP, 1440 rpm |
| Input voltage | 415 V |
| Weight | 390 kg |
| Overall dimensions | 1300 × 440 × 780 mm |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Spare parts for the GQ45
Wear parts are stocked and dispatched from Pune: GQ45 cutting blade (83 × 83 × 26 mm), GQ45 clutch plate and GQ45 supporting plate. Blades are the routine consumable — keep a spare set on site.
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
- After-sales support and spares available direct from the Bhosari works
Frequently asked questions
What bar sizes can the GQ45 cut?
Deformed TMT bar from 6 mm to 32 mm. For bar up to 40 mm, use the GQ50 instead.
What is the difference between the GQ45 and the GQ50?
Cutting capacity. The GQ45 cuts up to 32 mm; the GQ50 cuts up to 40 mm and is the heavier machine. They also take different blades — 83 × 83 × 26 mm on the GQ45, 90 × 90 × 26 mm on the GQ50 — so the blades are not interchangeable.
What power supply does the GQ45 need?
415 V, driving a 4.5 HP motor at 1440 rpm. Confirm the site panel or DG set can carry the starting load.
How often do the cutting blades need replacing?
Blade life depends on bar grade, diameter and daily volume. Blades are a routine consumable rather than a breakdown item — most yards keep a spare set on hand and swap them when cut quality drops or the bar end starts deforming.
How much does the GQ45 weigh?
390 kg, 1300 × 440 × 780 mm overall. No fixed foundation is required — it sits on a level slab.
What is the price of a GQ45 bar cutting machine in India?
Send your site location and quantity on WhatsApp for a GST-inclusive quotation including freight.
Do you deliver outside Maharashtra?
Yes. Machines are dispatched across India and exported to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Get a GST-inclusive quotation for the GQ45 — send your site location and the largest bar diameter you need to cut.
Available with delivery in: Pune, Mumbai, Hyderabad, Bangalore and other major cities. See all construction machinery across India or browse the full TMT bar machines range.
