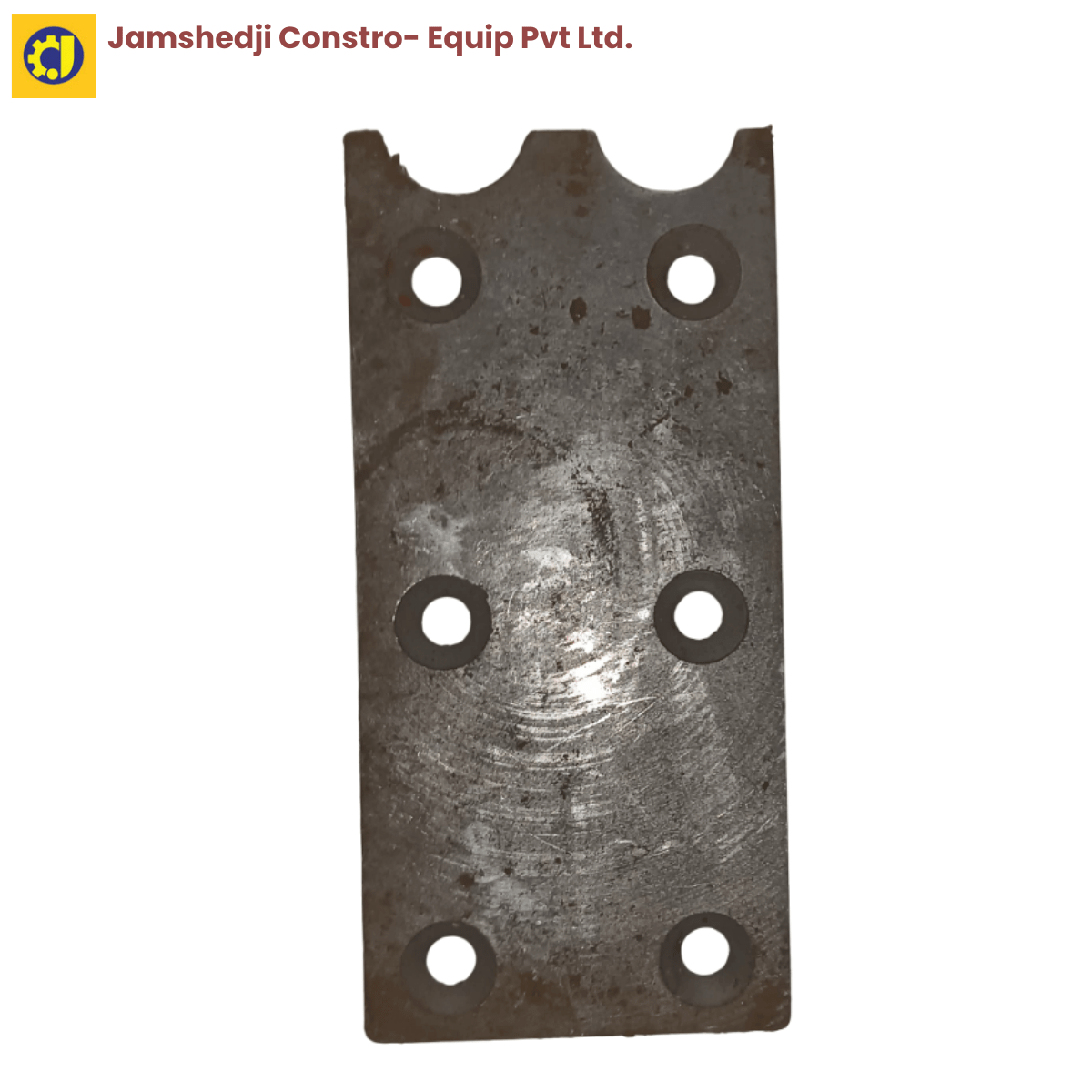

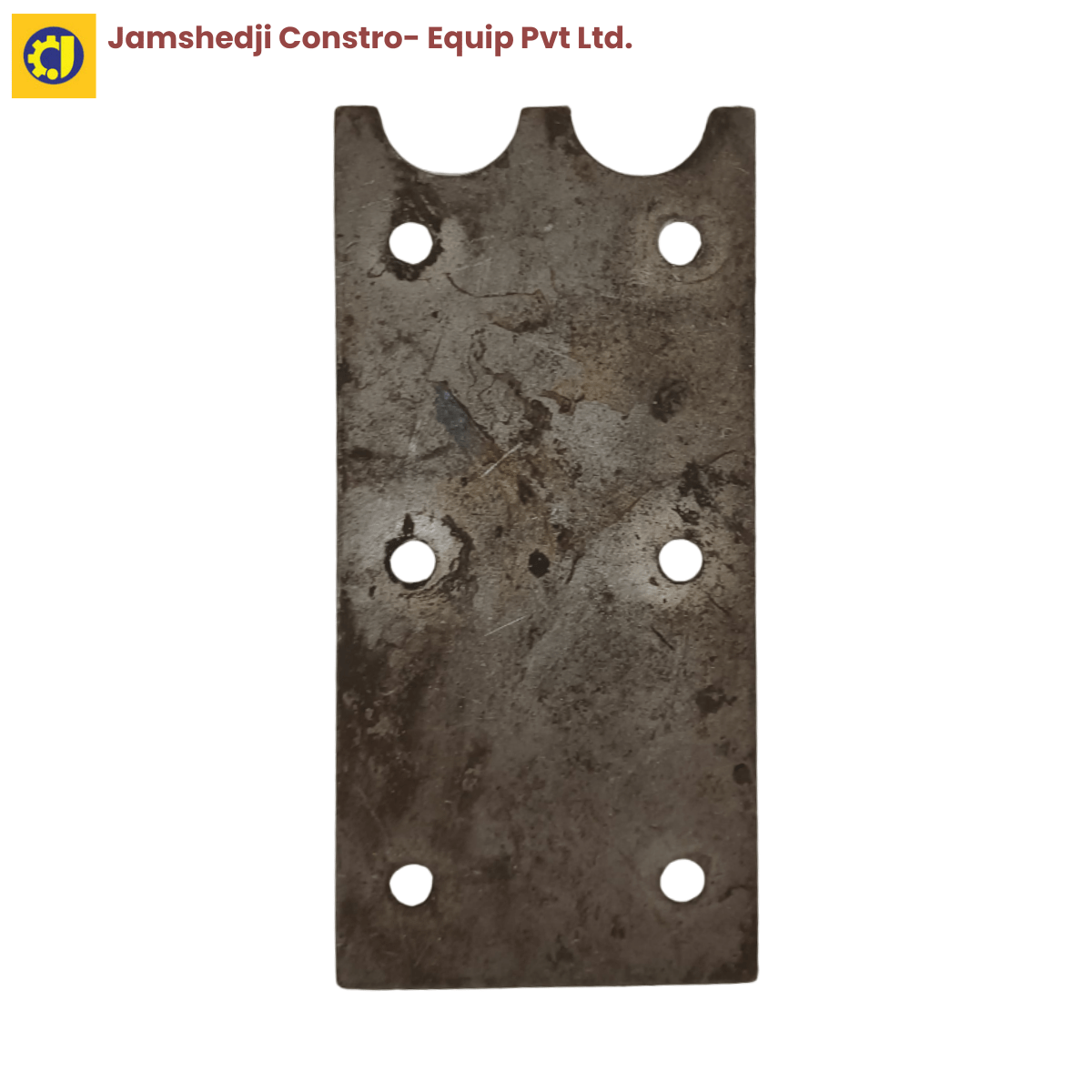

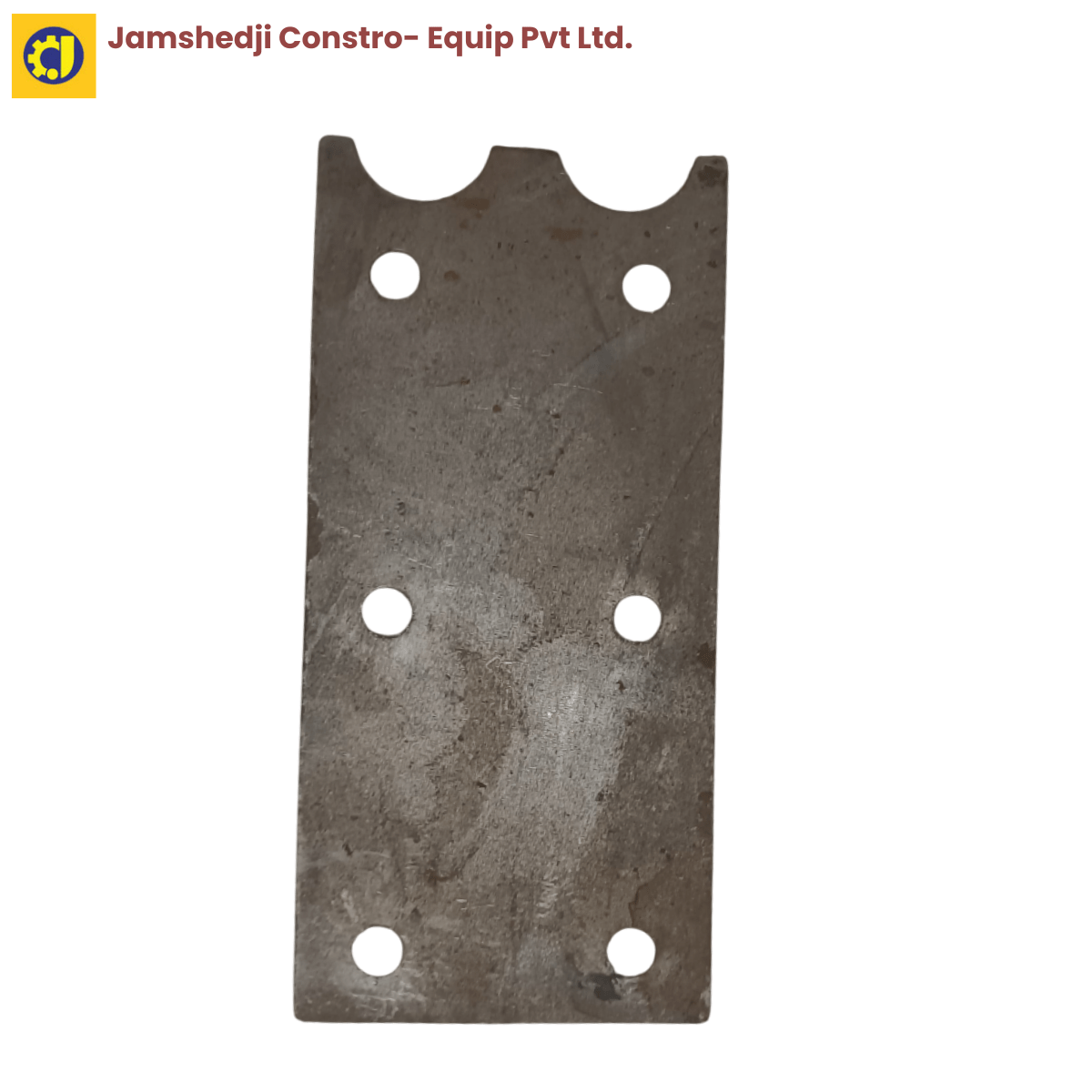

GQ50 Bar Cutting Machine Supporting Plate – Mild Steel Boom Plate

This is the replacement mild steel supporting plate for the GQ50 bar cutting machine — part of the boom plate assembly that holds the bar steady during the cut. It takes the reaction load every time a bar is sheared, so it is a structural wear part that is replaced when it distorts or wears.

Fits

• Bar Cutting Machine GQ50 — the heavy-duty 415 V bench cutter for 6–40 mm TMT bar

The GQ45 uses its own supporting plate — order the GQ45 supporting plate for that machine.

What it does and when to replace it

Shearing a 40 mm TMT bar puts a very large force through the machine, and that force has to be resisted somewhere. The supporting plate in the boom plate assembly braces the bar against the cutting stroke — it is what holds the work steady so the blade shears cleanly rather than bending or dragging the bar. Mild steel is used because it absorbs repeated impact loading without cracking.

Replace it when the plate is visibly bent, gouged or worn at the bar seat, or when bars start to shift during the cut and leave angled or deformed ends. A worn support also throws extra load onto the blades, so replacing it protects the consumables downstream.

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India
• Supplied by the manufacturer of the GQ50 machine — founded 1983, ISO 9001:2015, MSME/Udyam registered
