Portable Bar Bending Machine – Single Phase, TMT up to 32mm

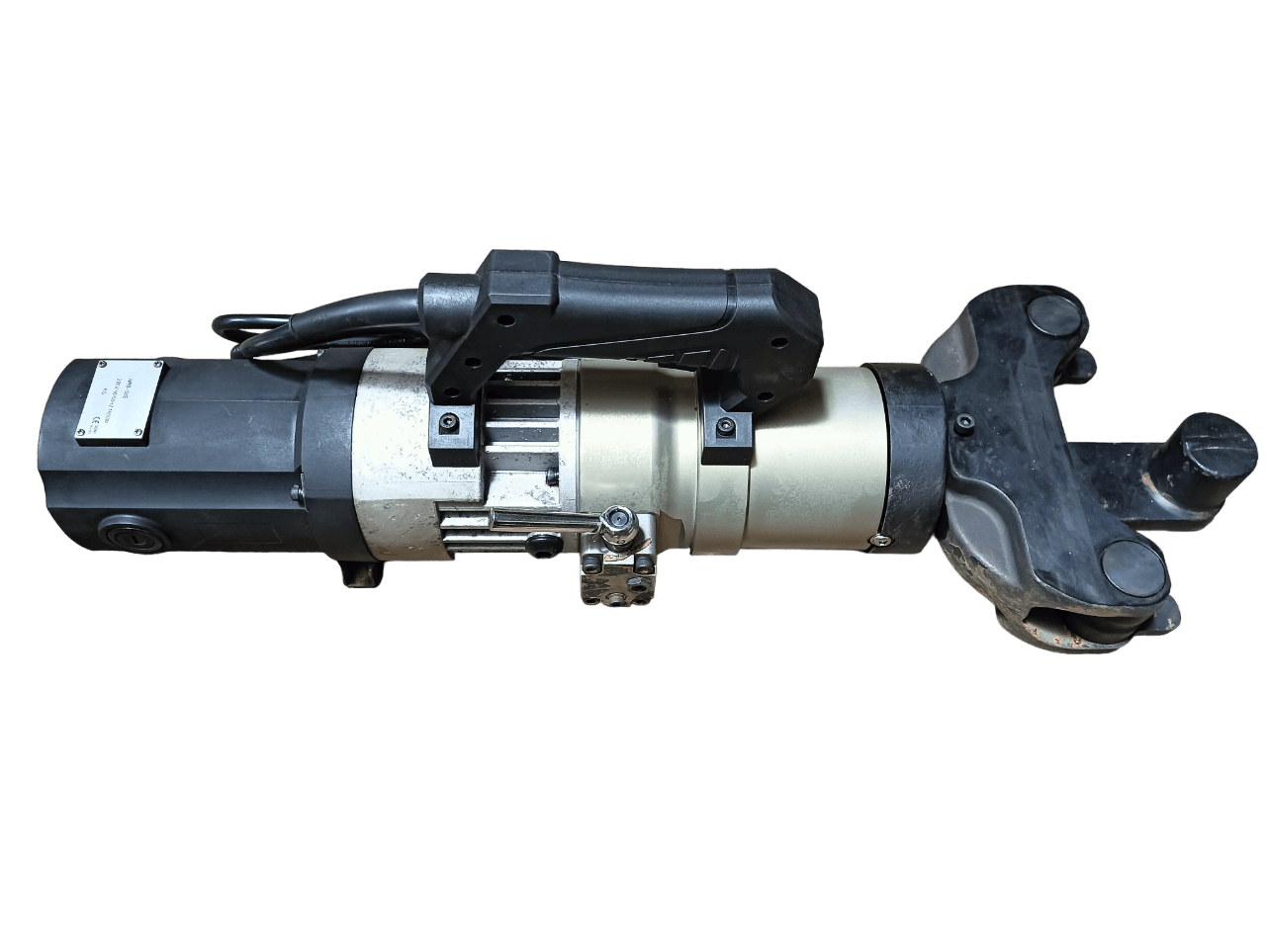

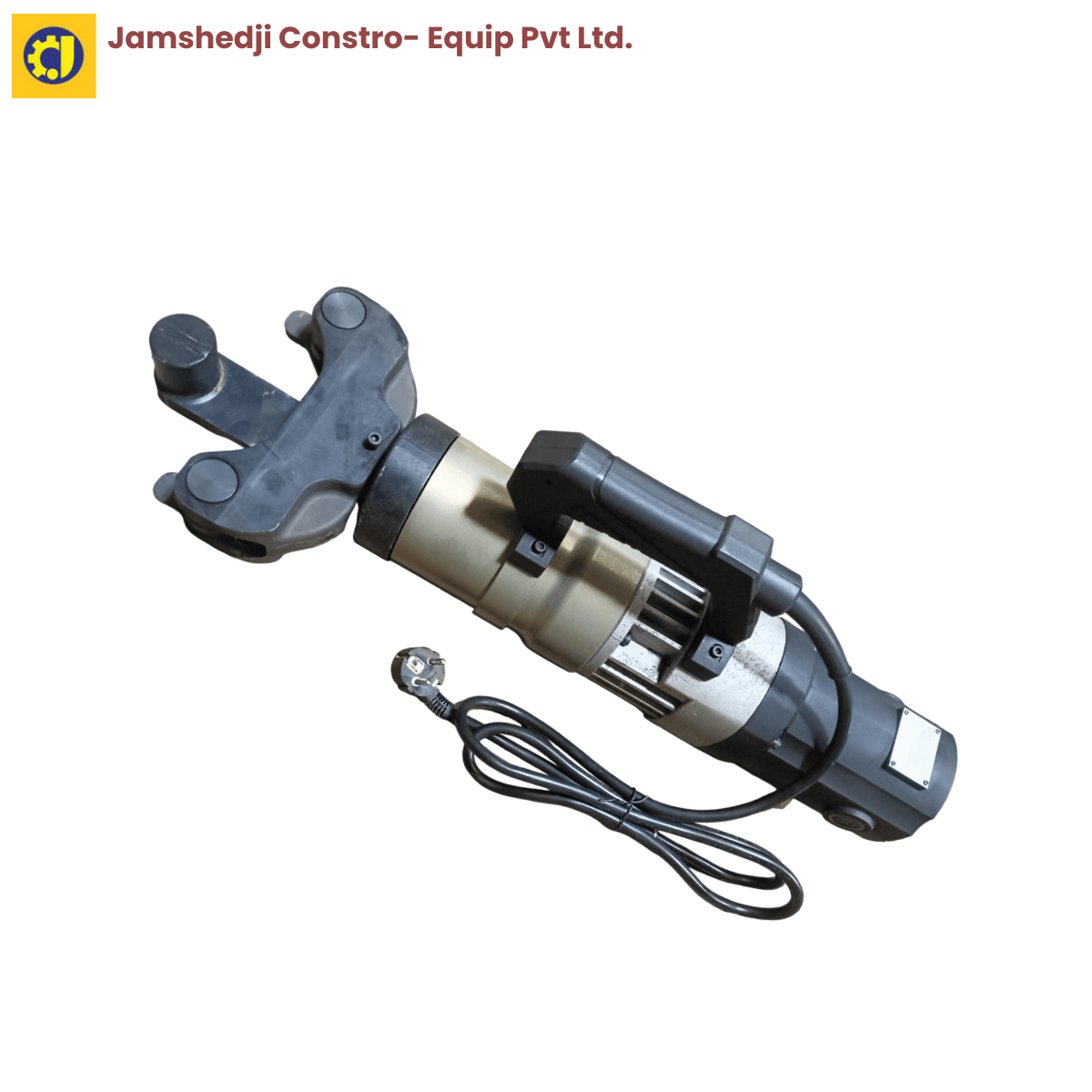

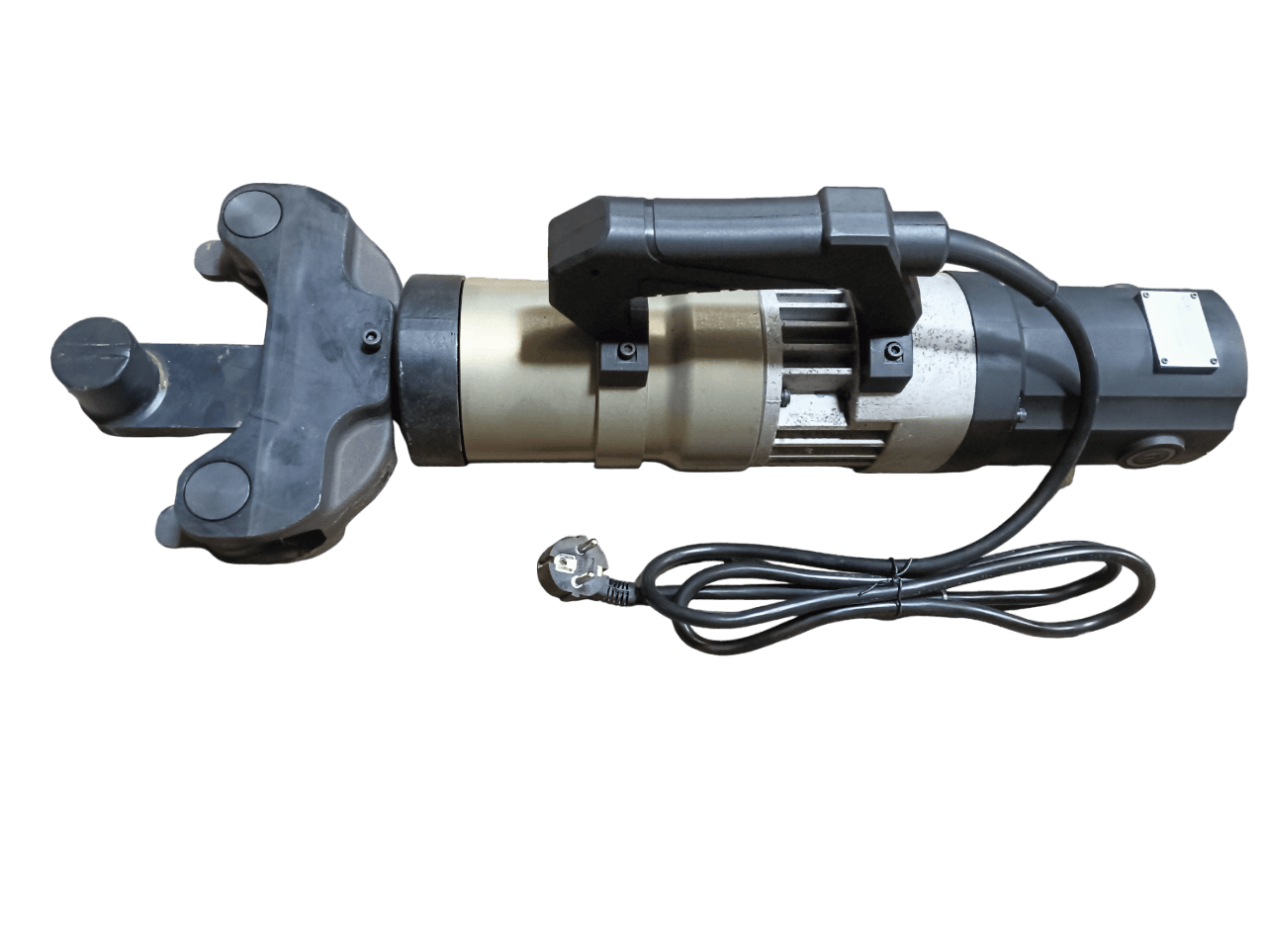

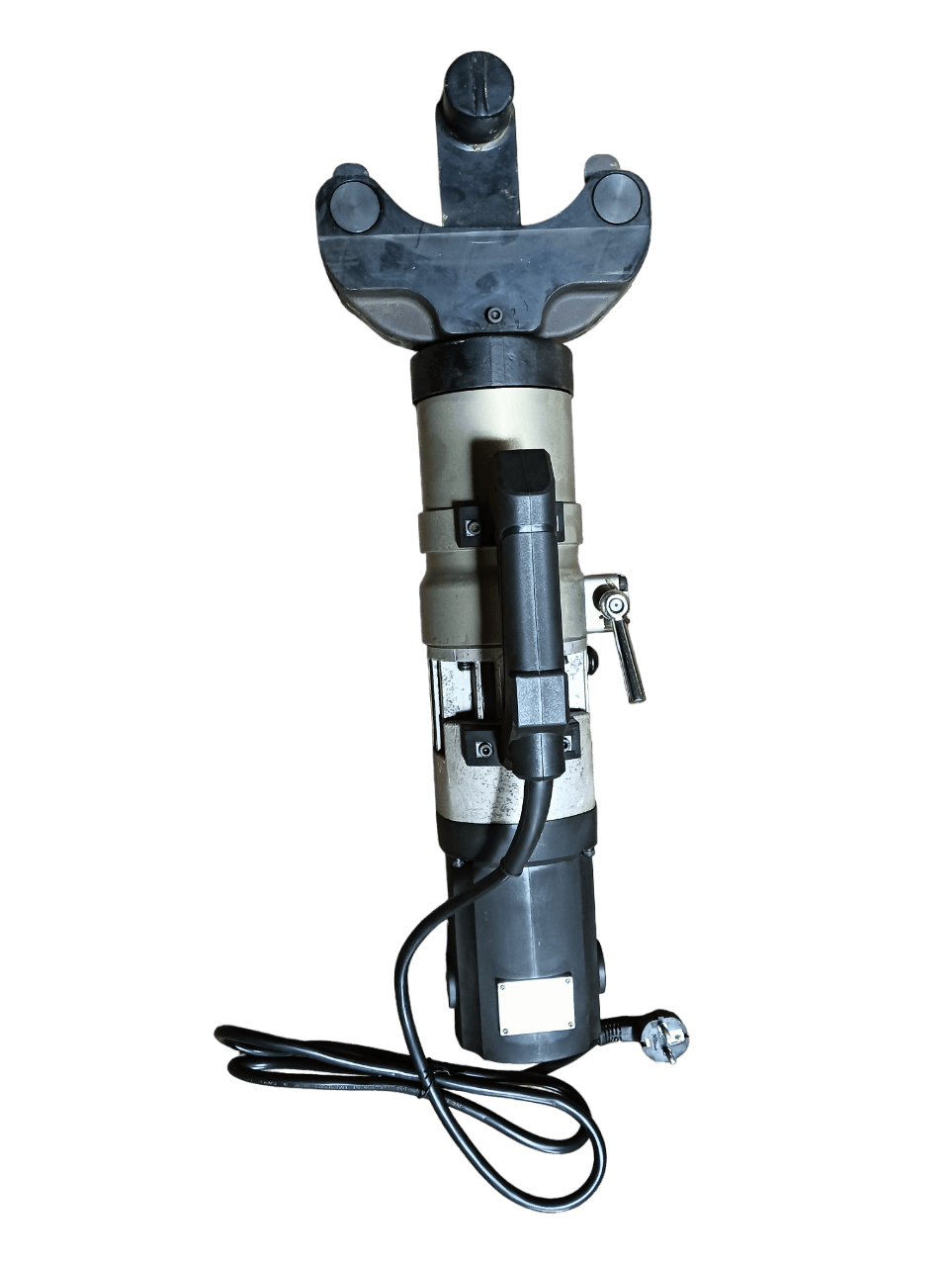

The Portable Bar Bending Machine is a lightweight, single-phase electric rebar bender that bends TMT bars from 6 mm to 32 mm and is carried to the work, rather than the work being carried to it. At 30 kg and running on ordinary single-phase power, it is built for redevelopment and increased-FSI projects and any site where a heavy three-phase bench bender cannot easily go. 2.2 HP motor.

Key specifications at a glance

• Bending capacity: 6–32 mm deformed TMT bar
• Motor: 2.2 HP
• Power supply: single-phase
• Weight: 30 kg
• Design: compact, portable, forward and reverse bending

Why portable, and where it fits

A full workshop bender like the JBB42A or GW42 is a heavy 415 V three-phase machine: it sits in a fabrication yard, needs a three-phase connection, and the bar is brought to it. That is the right tool when there is a fixed cutting-and-bending yard and three-phase power.

This portable bender answers a different problem. It is light enough for two people to move, and it runs on ordinary single-phase supply — the power you actually have on most floors and smaller sites. That makes it the tool of choice for redevelopment and increased-FSI projects, where bending has to happen floor by floor in an occupied or constrained building, on elevated slabs, and in confined spaces a bench machine and its three-phase supply cannot reach. You carry the bender to the steel instead of hauling steel down to a yard.

Which bender for the site

• This portable single-phase bender — carried to the work, runs on single-phase power; for redevelopment, FSI, elevated and confined sites, up to 32 mm.
• JBB42A bench bender (6–32 mm) — a fixed 415 V three-phase yard machine with automatic + manual bending and a heavy-duty control panel, for continuous high-volume fabrication.
• GW50 bench bender (6–40 mm) — the heavy-duty three-phase bender for larger-diameter bar.

Pair it on site with the Portable Bar Cutting Machine, which brings the same single-phase portability to cutting — together they let a site cut and bend rebar without a three-phase yard.

Applications

Redevelopment and increased-FSI construction, floor-by-floor bending in occupied or constrained buildings, RCC slab and beam work on elevated and confined sites, small to medium projects, and any site without a three-phase bending yard.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
