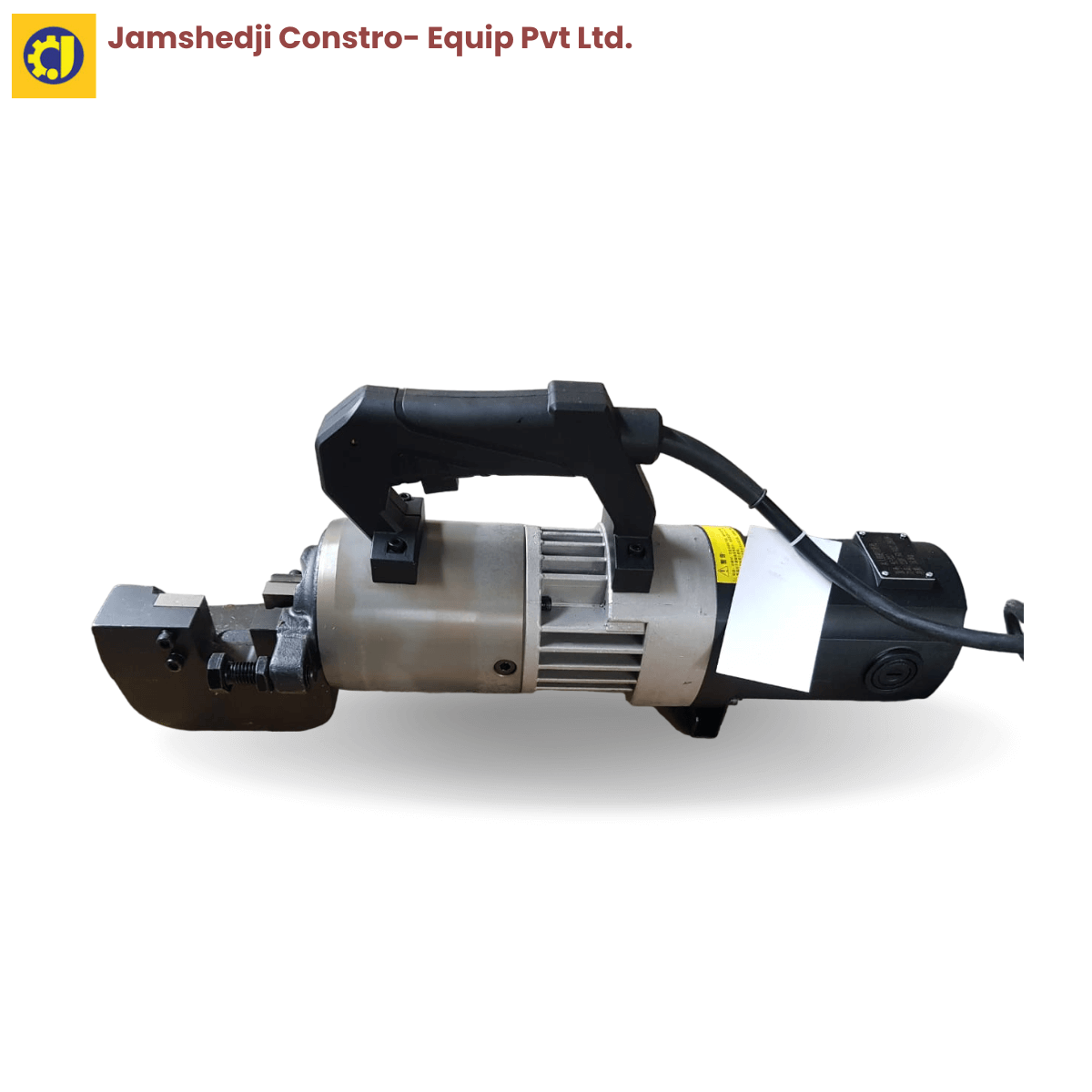

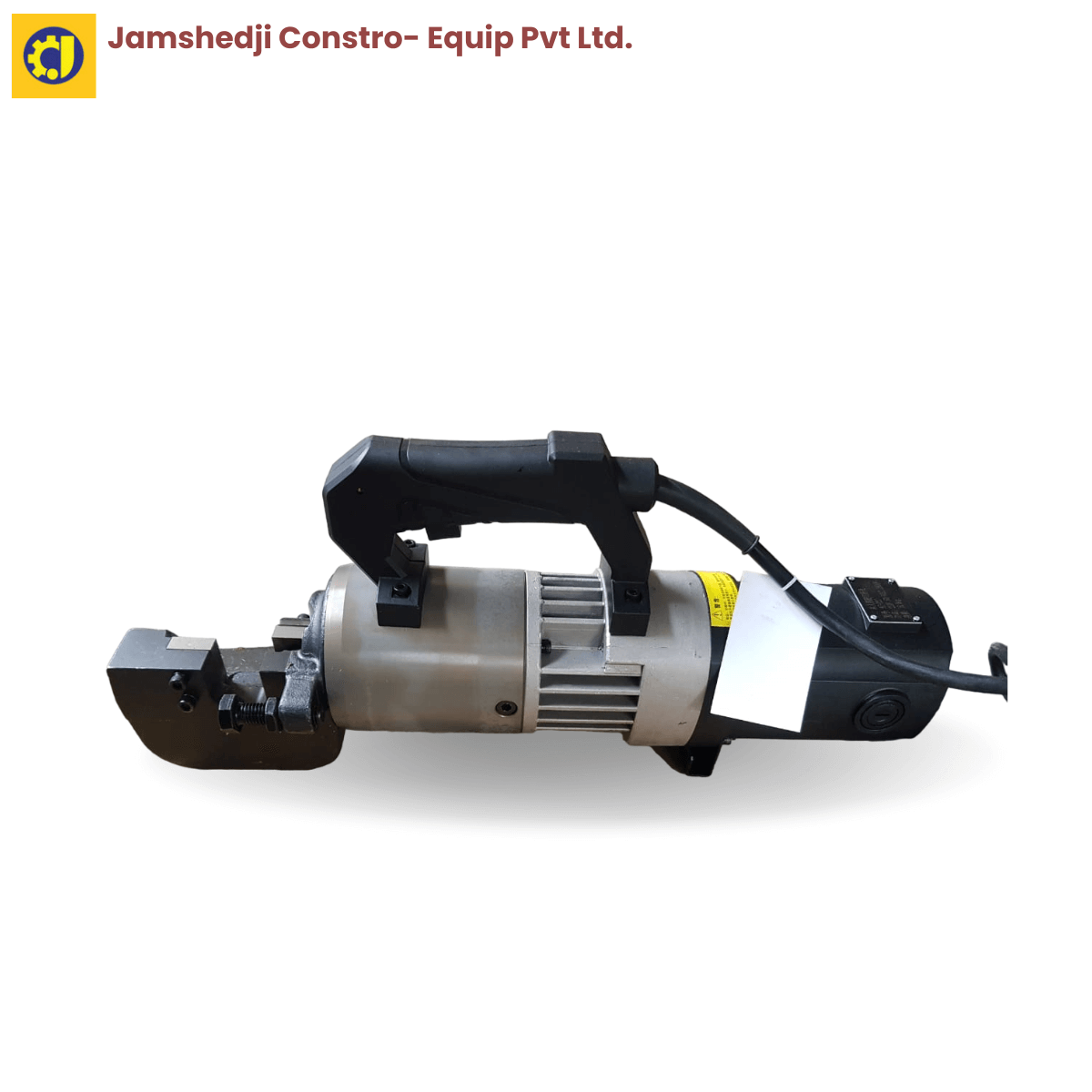

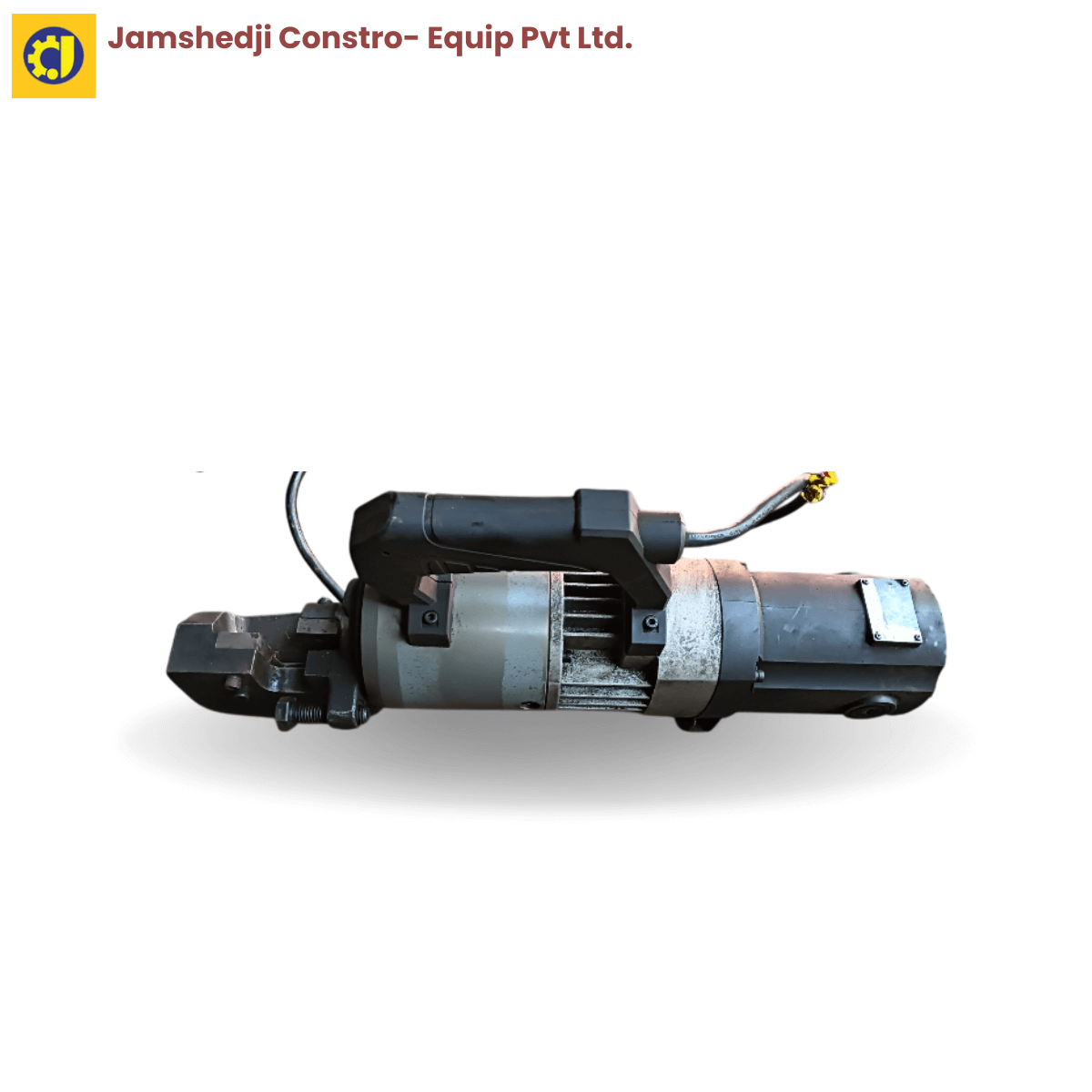

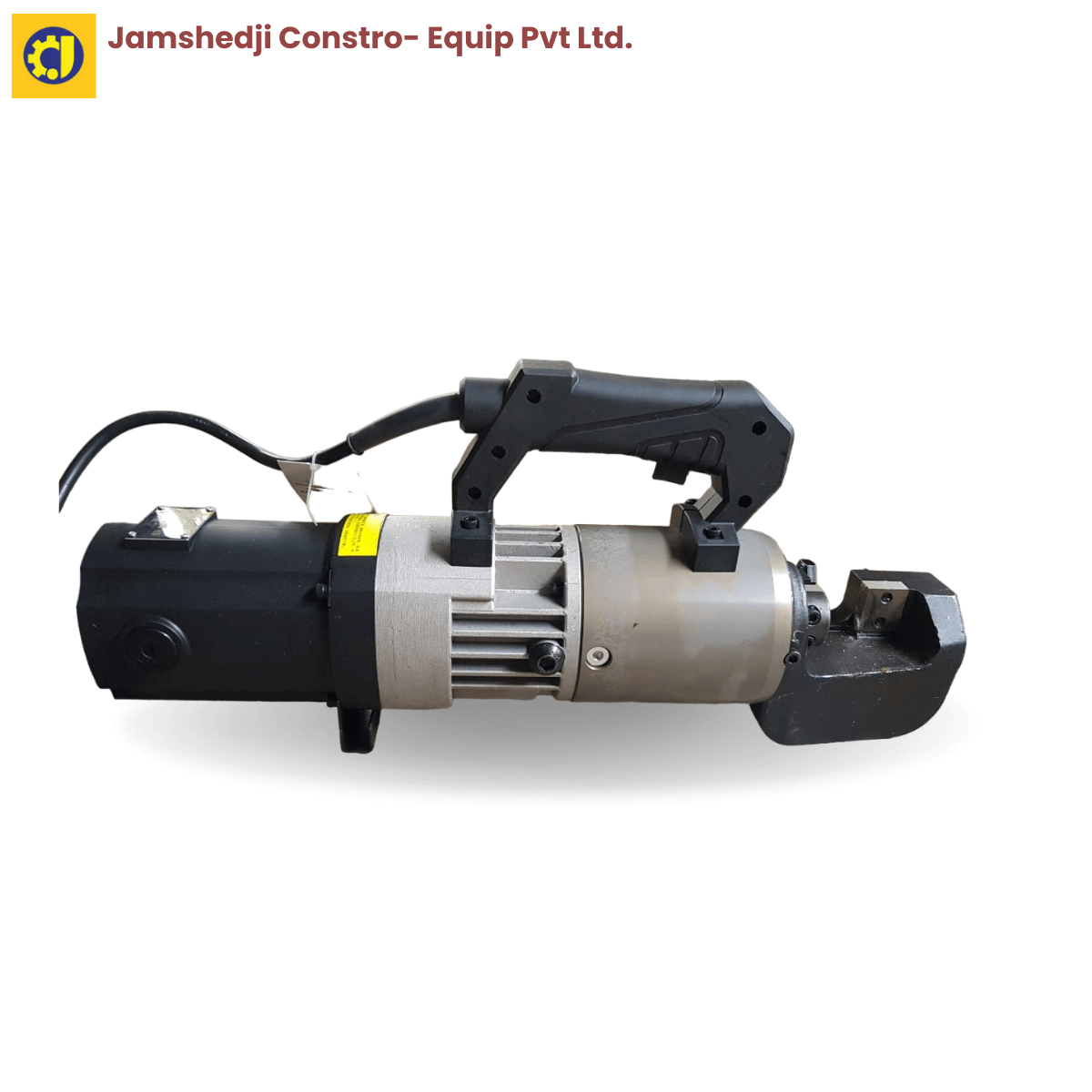

Portable Bar Cutting Machine – Single Phase, TMT up to 32mm

The Portable Bar Cutting Machine is a lightweight, single-phase electric rebar cutter that cuts TMT bars from 4 mm to 32 mm and is carried to the work, rather than the work being carried to it. At 30 kg and running on ordinary 220 V single-phase power, it is built for redevelopment and increased-FSI projects and any site where a heavy three-phase bench cutter cannot easily go. 2.2 HP motor, 1700 W.

Key specifications at a glance

• Cutting capacity: 4–32 mm deformed TMT bar
• Motor: 2.2 HP, 1700 W
• Power supply: 220 V single-phase, 50 Hz
• Weight: 30 kg
• Dimensions: 605 × 170 × 275 mm

Why portable, and where it fits

A full workshop cutter like the GQ45 is a heavy 415 V three-phase machine: it sits in a cutting yard, needs a three-phase connection, and the bar is brought to it. That is the right tool when there is a fixed fabrication area and three-phase power.

This portable cutter answers a different problem. It is light enough for two people to move, and it runs on ordinary single-phase supply — the power you actually have on most floors and smaller sites. That makes it the tool of choice for redevelopment and increased-FSI projects, where cutting has to happen floor by floor in an occupied or constrained building, on elevated slabs, and in confined spaces a bench machine and its three-phase supply cannot reach. You carry the cutter to the steel instead of hauling steel down to a yard.

Which cutter for the site

• This portable single-phase cutter — carried to the work, runs on single-phase power; for redevelopment, FSI, elevated and confined sites, up to 32 mm.
• GQ45 bench cutter (6–32 mm) — a fixed 415 V three-phase yard machine for continuous high-volume cutting where a fabrication area and three-phase supply exist.
• GQ50 bench cutter (6–40 mm) — the heavy-duty three-phase cutter for larger-diameter bar.

Pair it on site with the Portable Bar Bending Machine, which brings the same single-phase portability to bending.

Applications

Redevelopment and increased-FSI construction, floor-by-floor cutting in occupied or constrained buildings, elevated slab and confined-space work, small to medium RCC projects, and any site without a three-phase cutting yard.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
