Rebar Coupler vs Lap Splice: Steel Saving, Cost and When to Use Each
Quick answer
A lap splice joins two rebars by overlapping them so the concrete transfers the load from one bar to the other, while a rebar coupler joins them end to end with a threaded steel sleeve. Lapping costs nothing extra for small bars, but for 20 mm and above it uses a lot of extra steel. On Fe500 bars in M25 concrete a single lap on a 32 mm bar uses about 1.55 m of overlap, close to 10 kg of extra steel per joint. A coupler uses none of it.

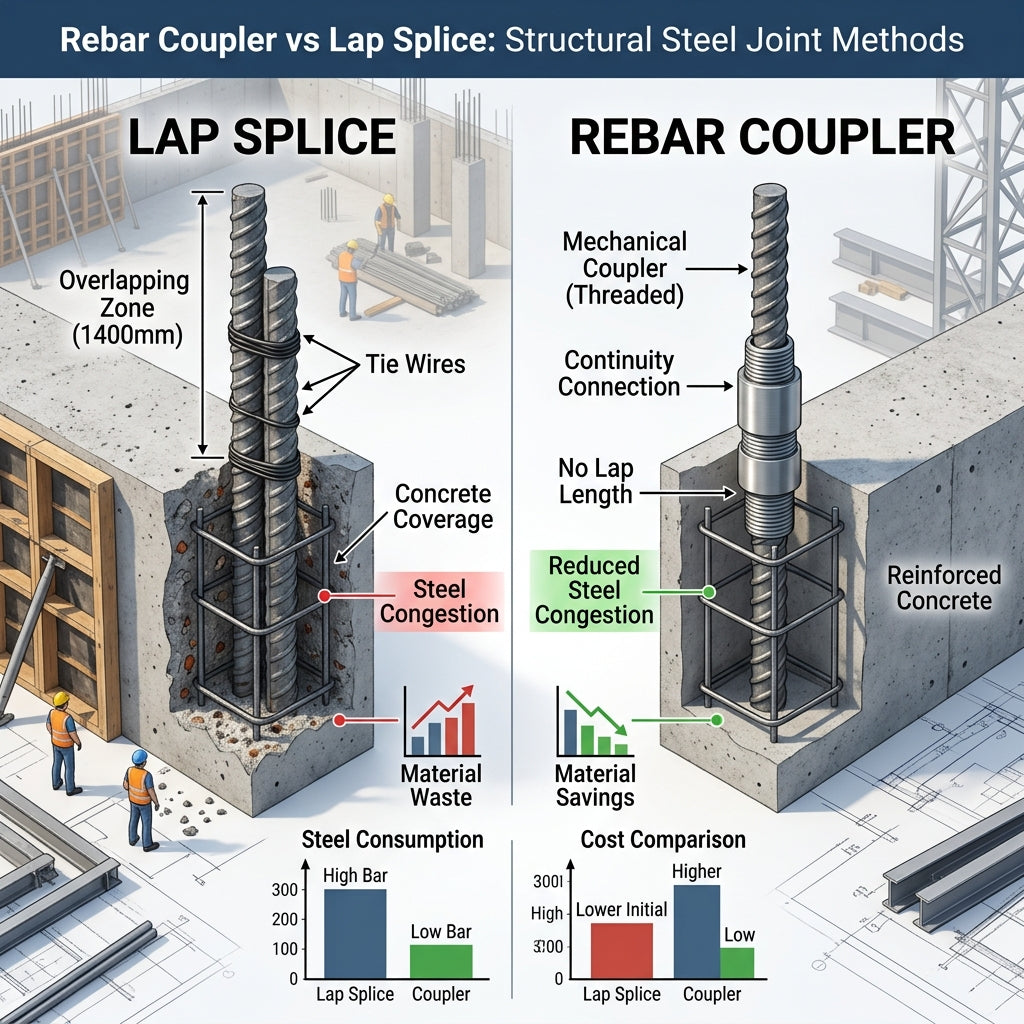

Threaded rebar coupler sleeves join bars end to end, with no overlap steel.
This guide compares the two methods on what decides the choice on an Indian site: what IS 456 requires, how much steel each lap actually uses, cost per joint, congestion, and when a coupler pays for itself. Every figure is worked out below so you can check it against your own drawings.
Rebar coupler vs lap splice at a glance
| Factor | Lap splice | Rebar coupler (threaded) |
|---|---|---|
| How load transfers | Through bond with the surrounding concrete | Directly steel to steel through the threaded sleeve |
| Extra steel per joint | One full lap length of bar (about 48 bar diameters for Fe500 in M25, flexural tension) | None. Only the sleeve itself |
| Bar size limit (IS 456) | Not to be used above 36 mm, except with additional spirals where welding is not practicable | Commonly 16 to 40 mm. No lap length limit |
| Congestion at the joint | Two bars side by side over the full lap length | One bar line. The sleeve is only slightly larger than the bar |
| Depends on concrete quality | Yes. Weak or honeycombed concrete weakens the lap | No. The joint is mechanical |
| Equipment needed | None | Bar cutter for a square end, threading machine, couplers |
| Usually cheaper for | 12 mm and 16 mm bars, slabs, low-rise work | 20 mm and above, columns, transfer beams, high-rise and heavy foundations |
| Testing standard | Designed to IS 456 lap length rules | Coupler performance to IS 16172 |
What is a lap splice?
A lap splice overlaps the end of one bar with the start of the next for a set length, called the lap length, and relies on the concrete around both bars to pass the force from one to the other. It needs no special equipment, which is why it is the default on most Indian sites.
The catch is the length. The two bars must overlap long enough for bond stress to develop the full strength of the bar. On a 25 mm or 32 mm bar that overlap runs well over a metre, and every centimetre of it is steel you buy, carry, place and pay for. That steel does no structural work beyond the joint.
What is a rebar coupler?
A rebar coupler is a steel sleeve with internal threads that screws onto threaded ends of two bars and joins them in a straight line. The force passes through the steel, not through the concrete, so the joint does not depend on bond.
The most common type on Indian sites is the parallel threaded coupler. The bar end is cut square, threaded on a bar threading machine, checked with a thread gauge, and screwed into the sleeve until the bar ends meet at the centre. Other types exist, including tapered thread, swaged and bolted couplers, but parallel threaded couplers are the usual choice for 16 to 40 mm TMT bar because the threading is fast and the joint is compact.
How long is a lap splice under IS 456?
Under IS 456:2000, the lap length for bars in flexural tension is the development length (Ld) or 30 times the bar diameter, whichever is greater. For direct tension it is 2 Ld or 30 times the bar diameter, whichever is greater. In compression it is the development length in compression, but not less than 24 times the bar diameter.
Development length is Ld = φ σs / (4 τbd), where φ is bar diameter, σs is the bar stress (0.87 fy, which is 435 N/mm² for Fe500) and τbd is the design bond stress, increased by 60% for deformed TMT bars. That gives, for Fe500 in flexural tension:
| Concrete grade | Design bond stress (deformed bar) | Lap length |
|---|---|---|
| M20 | 1.92 N/mm² | about 57 φ |
| M25 | 2.24 N/mm² | about 48 φ |
| M30 | 2.40 N/mm² | about 45 φ |
So the "40 to 60 times bar diameter" rule of thumb used on site is accurate for Fe500. Many structural drawings round up further, and seismic detailing often asks for more, so the lap length on your drawings may be longer than these minimums.
How much steel does each lap actually use?
Multiply the lap length by the weight of the bar per metre (d²/162 kg/m). For Fe500 bar in M25 concrete, flexural tension:
| Bar diameter | Weight per metre | Lap length (48 φ) | Extra steel per lap |
|---|---|---|---|
| 12 mm | 0.89 kg | about 0.58 m | about 0.5 kg |
| 16 mm | 1.58 kg | about 0.78 m | about 1.2 kg |
| 20 mm | 2.47 kg | about 0.97 m | about 2.4 kg |
| 25 mm | 3.86 kg | about 1.21 m | about 4.7 kg |
| 32 mm | 6.32 kg | about 1.55 m | about 9.8 kg |
Steel per lap grows with the cube of the bar diameter, because bar weight rises with the square of the diameter and lap length rises with the diameter itself. Going from 16 mm to 32 mm doubles the diameter but multiplies the steel per lap about eight times. That is why couplers make little sense on 12 mm slab bars and a lot of sense on 25 and 32 mm column bars.
Worked example: columns in a 12-storey building
Take a building with 40 columns per floor, each with 12 bars of 25 mm Fe500 in M25 concrete, spliced at every floor. That is 480 joints per floor at about 4.7 kg of lap steel each, or roughly 2.2 tonnes of lap steel per floor. Over 12 floors it comes to about 27 tonnes. At an illustrative ₹60 per kg, that is around ₹16 lakh of steel used only for overlap, before cutting, handling and fixing labour.
Couplers remove that steel. Against it you set the cost of the couplers and the threading. The comparison is simple to run on your own project:
Break-even formula
Saving per joint = (lap length × bar weight per metre × steel rate) − (coupler price + threading cost per joint)
If the result is positive, the coupler is cheaper than the lap at that bar size before you count any congestion, labour or concrete-quality benefit.
On most projects the break-even falls around 20 mm. Below that, lapping usually wins on cost. From 25 mm upward, couplers usually win clearly.
Why congestion matters as much as cost
At a lap, two bars sit side by side for the full lap length. In a column where every bar is lapped at the same level, the number of bars in that zone doubles. IS 456 requires the clear gap between bars to be at least the bar diameter and at least 5 mm more than the nominal maximum size of coarse aggregate. Heavily reinforced columns, beam-column joints and transfer girders often cannot meet that with laps.
When the gap is too tight, concrete cannot flow and compact properly around the bars. The result is honeycombing exactly where the lap needs good concrete to work. A coupler keeps one bar line through the joint, leaves room for the needle vibrator, and keeps cover and spacing as drawn.
IS 456 also says not more than half the bars should be spliced at one section, and that splices should be kept away from sections of maximum stress. Staggering laps to meet this spreads congestion over a longer zone. Couplers can be staggered too, but each one occupies only a short length of the member.
When should you use a lap splice?
Lapping is the right choice when bars are small and the steel cost of the overlap is low. Typical cases:
- ✔ Slabs and walls with 8 to 16 mm bars, where a lap uses a kilogram or less of extra steel
- ✔ Low-rise residential work with light reinforcement and plenty of space between bars
- ✔ Small quantities of joints, where buying or hiring threading equipment is not justified
- ✔ Stirrups, ties and distribution steel, which are not candidates for couplers anyway
When should you use a rebar coupler?
Couplers pay off where bars are large, joints are many, or space is tight. Typical cases:
- ✔ Columns and shear walls with 20 to 32 mm bars, especially in mid-rise and high-rise buildings where the same splice repeats on every floor
- ✔ Bars above 36 mm, where IS 456 does not allow ordinary laps
- ✔ Congested zones such as beam-column joints, transfer girders, raft foundations, pile caps and bridge piers
- ✔ Starter bars for future extension, where a short threaded stub with a capped coupler replaces long projecting bars that rust, bend and get in the way
- ✔ Diaphragm walls, precast work and phased construction, where long lap bars cannot project through formwork or between stages
- ✔ Reusing offcuts. Short lengths left over from 12 m bars can be threaded and joined instead of going to scrap
Are couplers as strong as the bar?
A properly made coupler joint is designed to develop the strength of the bar, and in India coupler performance is covered by IS 16172:2014, which sets requirements for tensile strength, slip and other properties of mechanical splices. The strength of the joint depends on correct threading and full engagement, so the bar end must be cut square, threads formed to the right length and pitch, checked with a gauge, and the coupler screwed home so the bar ends meet.
Ask your coupler supplier for IS 16172 test reports for each bar size, and run your own site splice tests on sample joints as your project specification requires. The structural designer decides where couplers are permitted and at what stagger; this guide does not replace that design.
How rebar coupling works on site
Threading can be done in the bar yard ahead of time, so coupling on the floor is quick. For a large project, owning a threading machine is usually cheaper than buying pre-threaded bar or hiring a threading crew.
Couplers and threading equipment from Jamshedji
CDRG45 bar threading machine, made at our Bhosari, Pune factory.
Jamshedji Constro Equip has manufactured construction machinery in Pune since 1983 and supplies the complete coupler setup from its MIDC Bhosari factory:
- ✔ TMT rebar coupler sleeves in 16, 20, 25 and 32 mm, made to IS 16172
- ✔ CDRG45 bar threading machine for 16 to 40 mm TMT bar
- ✔ Threading roller sets for 16 to 22 mm and 25 to 32 mm bar
- ✔ Bar cutting machines for square-cut bar ends: GQ45 and GQ50
GST is charged at 18% (CGST and SGST within Maharashtra, IGST for other states). We deliver across India and export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Frequently asked questions
Which is better, a rebar coupler or a lap splice?
Neither is better everywhere. Lap splices are cheaper and simpler for small bars up to about 16 mm. Rebar couplers are usually cheaper and better for 20 mm and larger bars, because they save the steel used in the overlap, reduce congestion and do not depend on concrete bond.
What is the lap length for Fe500 bars as per IS 456?
In flexural tension the lap length is the development length or 30 times the bar diameter, whichever is greater. For Fe500 deformed bars this works out to about 57 times the bar diameter in M20 concrete, 48 times in M25 and 45 times in M30. Direct tension requires twice the development length.
How much steel does a rebar coupler save?
A coupler saves one full lap length of bar per joint. For Fe500 in M25 concrete that is about 1.2 kg per joint on 16 mm bar, 4.7 kg on 25 mm bar and 9.8 kg on 32 mm bar.
Can lap splices be used for bars larger than 36 mm?
IS 456 says lap splices should not be used for bars larger than 36 mm. Such bars should be welded or mechanically joined, and lapping is only permitted where welding is not practicable, with additional spirals around the lapped bars.
Which Indian standard covers rebar couplers?
IS 16172:2014 is the Indian standard for reinforcement couplers used for mechanical splices of bars in concrete. Ask your supplier for IS 16172 test reports for each bar size.
From what bar size do couplers become cost effective?
On most projects the break-even is around 20 mm. Below that the lap uses little steel and lapping is cheaper. From 25 mm upward couplers usually cost less than the steel they save, before counting the benefit of less congestion.
What machine is needed to thread rebar for couplers?
You need a bar threading machine to form threads on the bar ends, plus a bar cutting machine to cut the ends square first. The Jamshedji CDRG45 threads TMT bar from 16 to 40 mm.
