TMT Rebar Coupler Sleeves – 16, 20, 25, 32mm, IS 16172

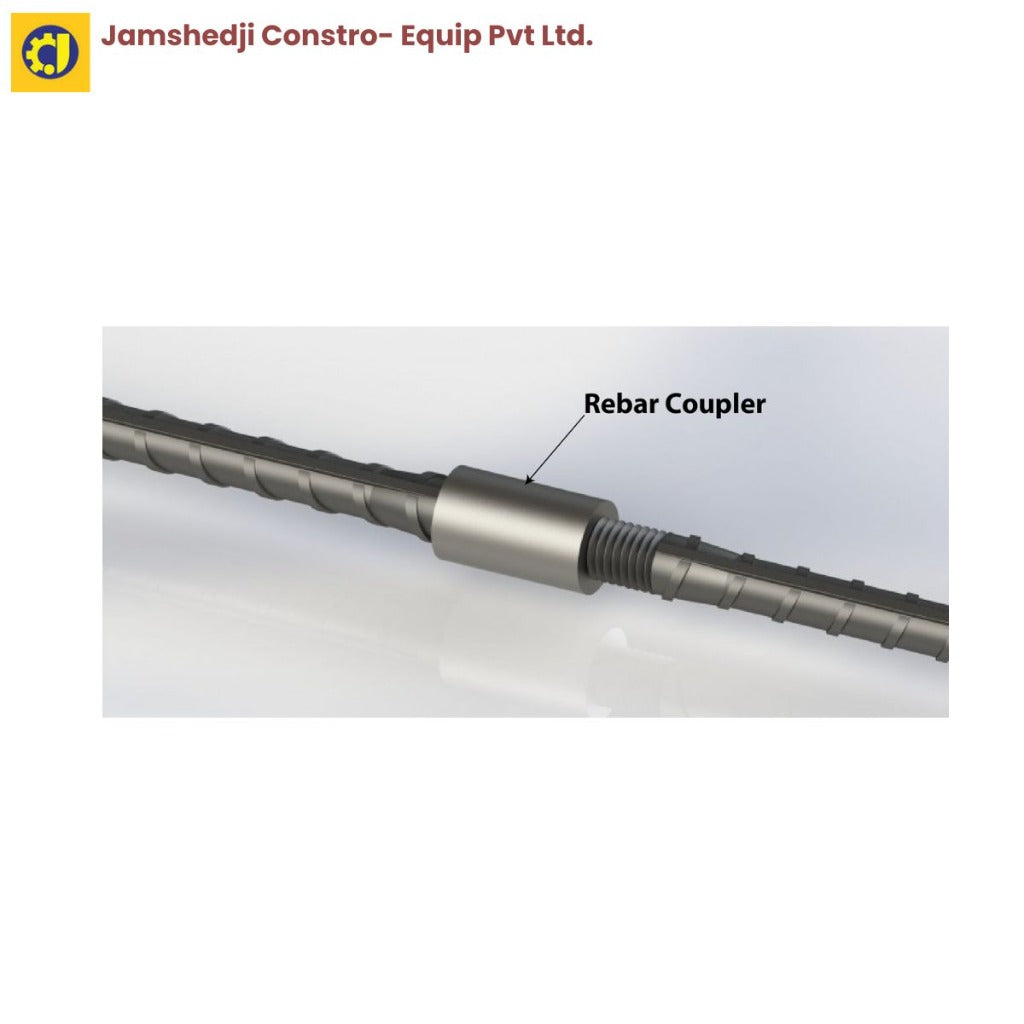

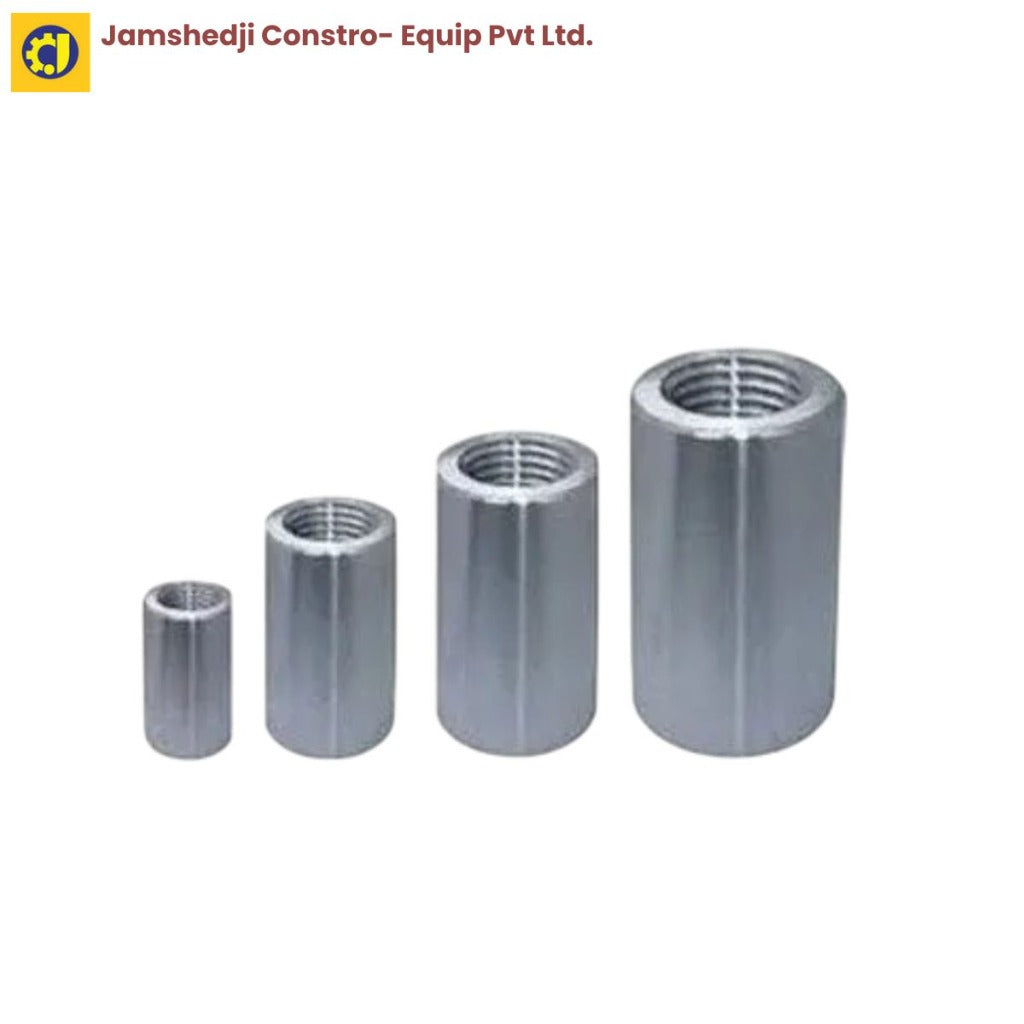

Jamshedji TMT rebar coupler sleeves are threaded mechanical splices that join reinforcement bars end to end, in 16, 20, 25 and 32 mm sizes. Manufactured from structural carbon steel to IS 16172:2014 and suitable for Fe500D, Fe550 and Fe600 rebar, they replace lap splices on high-rise columns, metro piers, flyovers and bridge structures. Supplied direct from MIDC Bhosari, Pune, with bulk rates and dispatch across India.

Why couplers instead of lap splices

A lapped joint ties two overlapping bars together and relies on the concrete to transfer load between them. That overlap runs 40 to 60 bar diameters — on a 32 mm bar, more than a metre of steel per joint that exists only to make the connection.

A threaded coupler makes a direct mechanical connection instead. The steel saved is typically 15–20% of reinforcement weight per column. Just as importantly, the joint profile is slim, so concrete flows properly through a congested column node instead of arching over a bundle of lapped bars and leaving voids.

Under IS 16172, a correctly made threaded connection develops bar-break performance — failure occurs in the parent rebar before the coupler connection gives way.

Specifications by size

Key advantages

• Saves reinforcement steel — eliminates lap length, typically 15–20% of steel weight per column
• Reduces congestion — slim joint profile lets concrete flow cleanly through heavily reinforced nodes
• Full tension and compression transfer — complies with IS 16172, delivering bar-break performance
• Simple to install — screwed up with a standard pipe wrench; parallel threading avoids cross-threading on site
• Manufactured to Indian Standards from structural carbon steel, with test certificates available

You will also need a threading machine

Couplers only work on threaded bar ends. Every bar has to be parallel-threaded before it can be coupled, which is done with the CDRG45 bar threading machine (16–40 mm capacity, 120 mm thread length). Threading rollers are matched to bar diameter — 16 / 18 / 20 / 22 mm and 25–32 mm sets are stocked in Pune.

Bar is normally cut to length before threading, on a GQ50 bar cutting machine for the larger diameters.

Where couplers are specified

High-rise column reinforcement, metro viaducts and piers, flyover and bridge structures, heavy raft and pile-cap foundations, precast connections, and any location where reinforcement congestion or steel quantity makes lapping impractical.

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Available in bulk at direct factory rates
• Test certificate documentation available on request
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
