Double Drum Walk Behind Roller – 10HP Diesel, 3 Ton Tandem Vibratory
Double Drum Walk Behind Roller – 10HP Diesel, 3 Ton Tandem Vibratory
Contact us for pricing

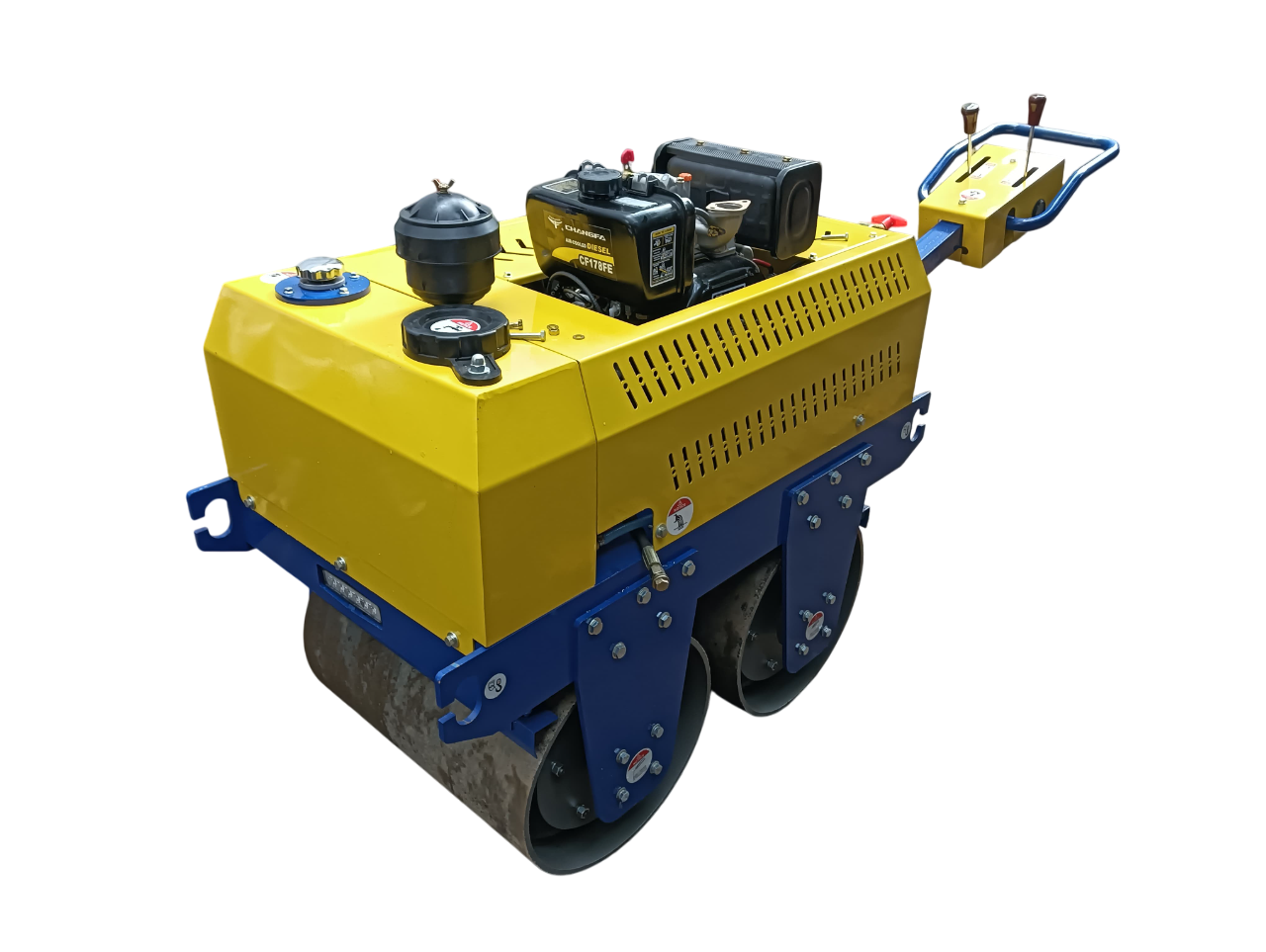

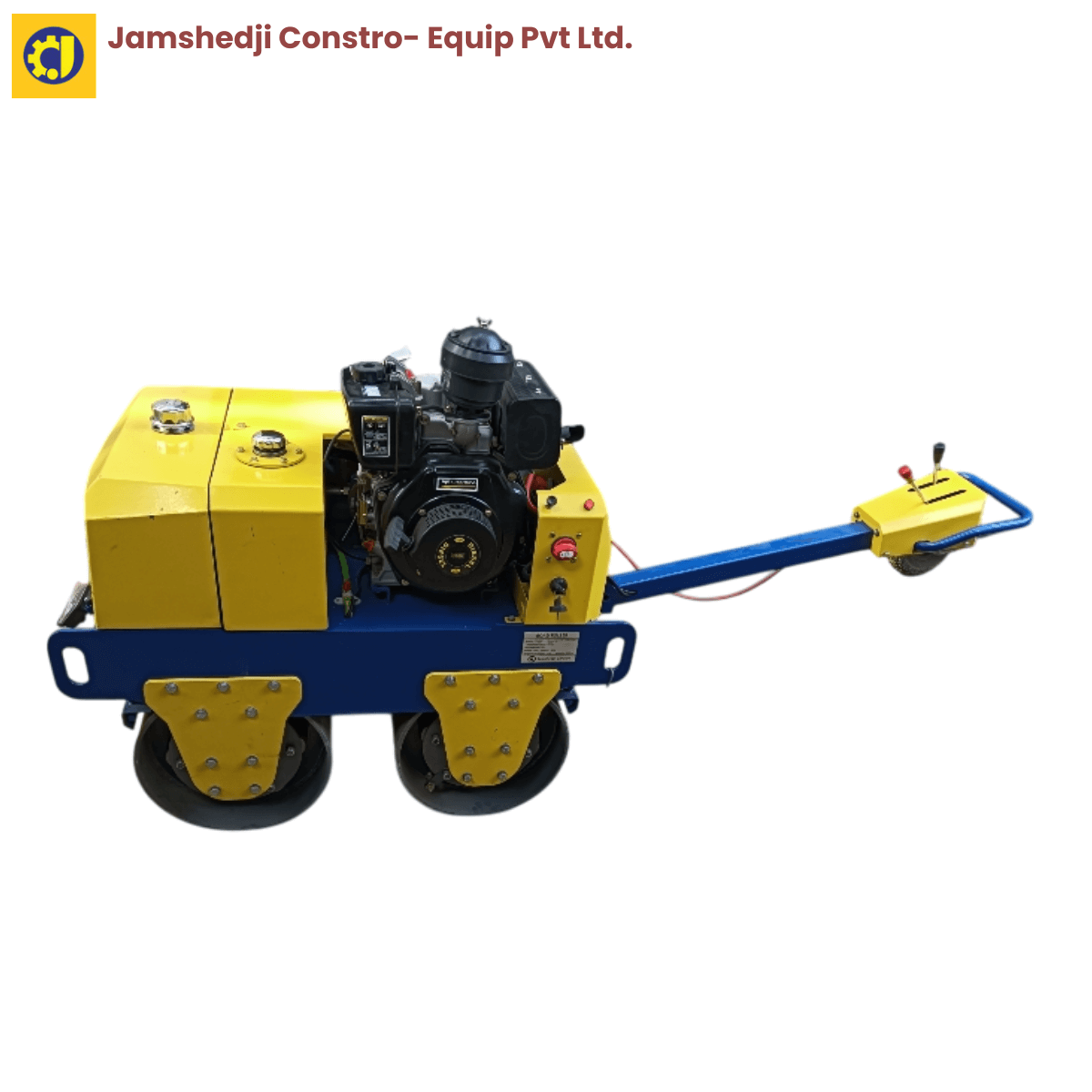

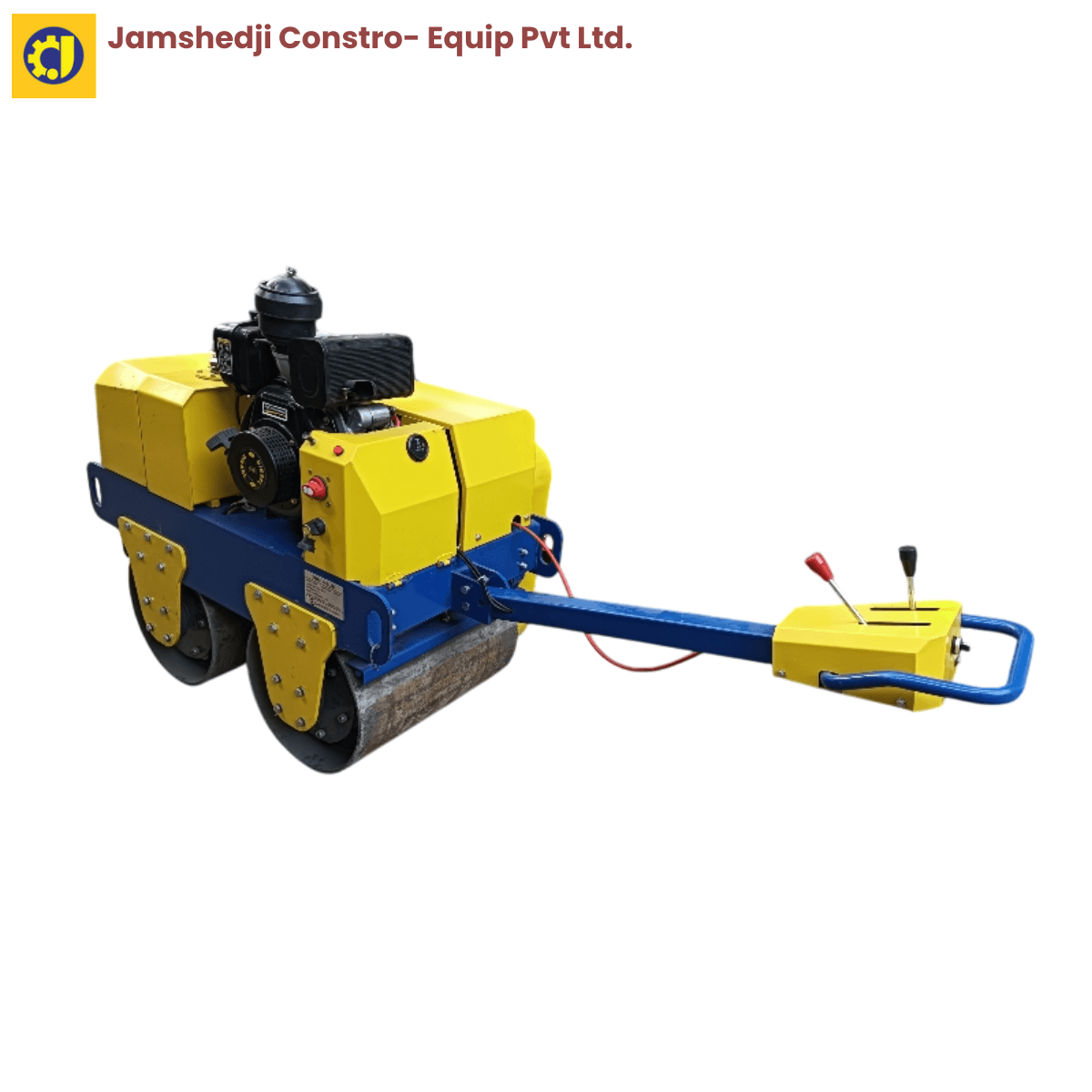

Unit price / perThe Jamshedji double drum walk behind roller is a tandem vibratory compaction roller with a 10 HP Changfa diesel engine, delivering 3 tonnes of compaction force across two 425 × 600 mm vibrating drums. It compacts soil, gravel and asphalt on small roads, footpaths, service trenches, parking areas and patch repairs — work that is too large for a plate compactor but too confined for a ride-on road roller. Travel is forward and reverse at up to 5 km/h. Weight is 680 kg.
Key specifications at a glance
- Engine: Changfa diesel, 10 HP
- Max roll weight: 3 tonnes
- Drums: two, 425 × 600 mm, both vibrating
- Travel: forward and reverse, up to 5 km/h
- Starting: electric start plus manual rope backup
- Weight: 680 kg
Why two vibrating drums
On a tandem roller both drums vibrate, so the machine compacts on the front pass and again on the rear — one travel pass does the work of two. That matters most on asphalt, where the material has a working window before it cools and stiffens: fewer passes means the mat gets closed while it is still hot.
Two drums also leave a flatter finished surface than a single drum does, because the machine is supported at both ends rather than pivoting on one roll. On footpaths, small roads and parking areas where the finished level is visible and walked on, that difference shows.
Where it fits between a plate compactor and a road roller
Below this machine, a diesel plate compactor handles sub-base and granular fill over open ground, and a tamping rammer handles trench backfill and confined strips. Above it, the ride on mini vibratory roller gives 5 tonnes with an operator seated, for larger road and car park work.

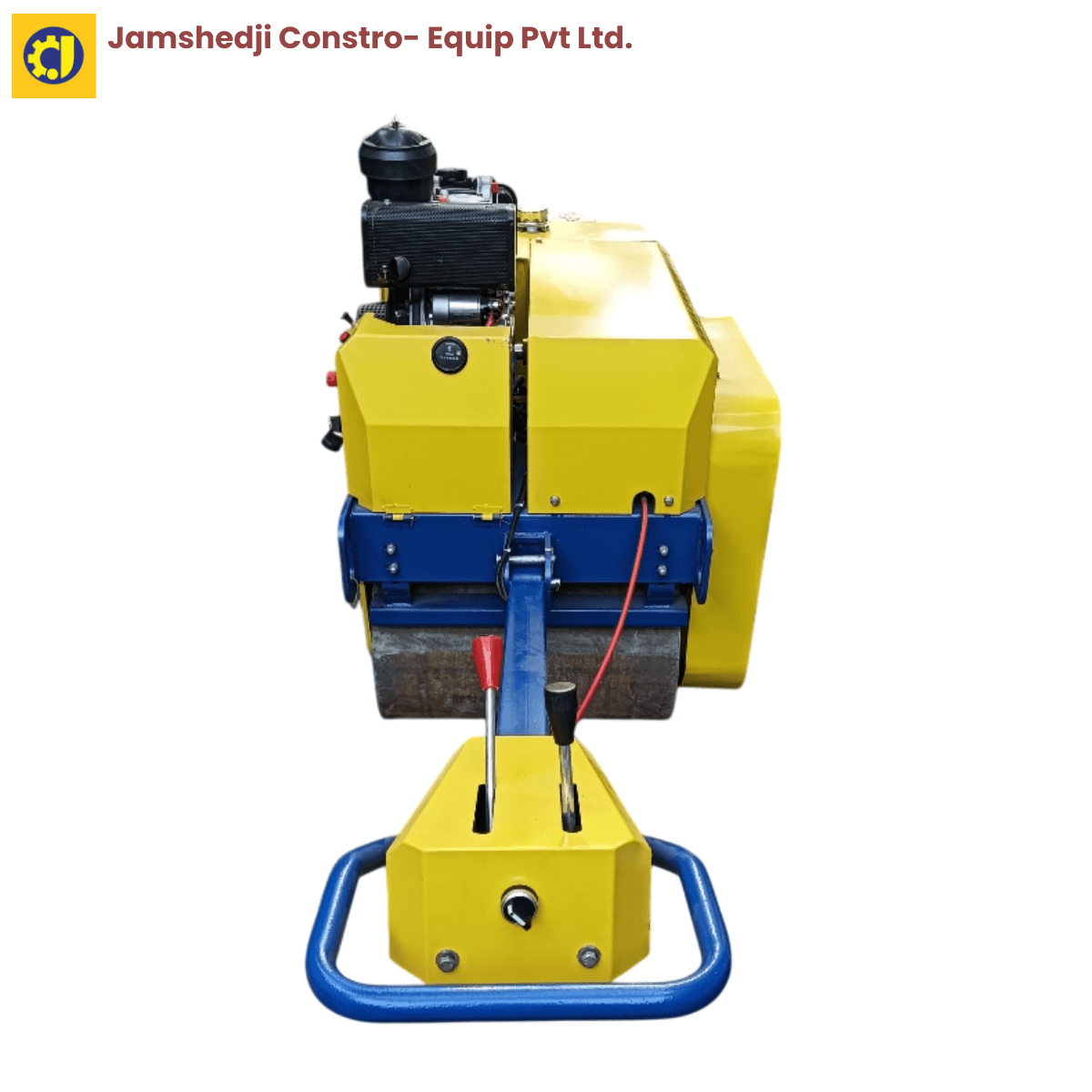

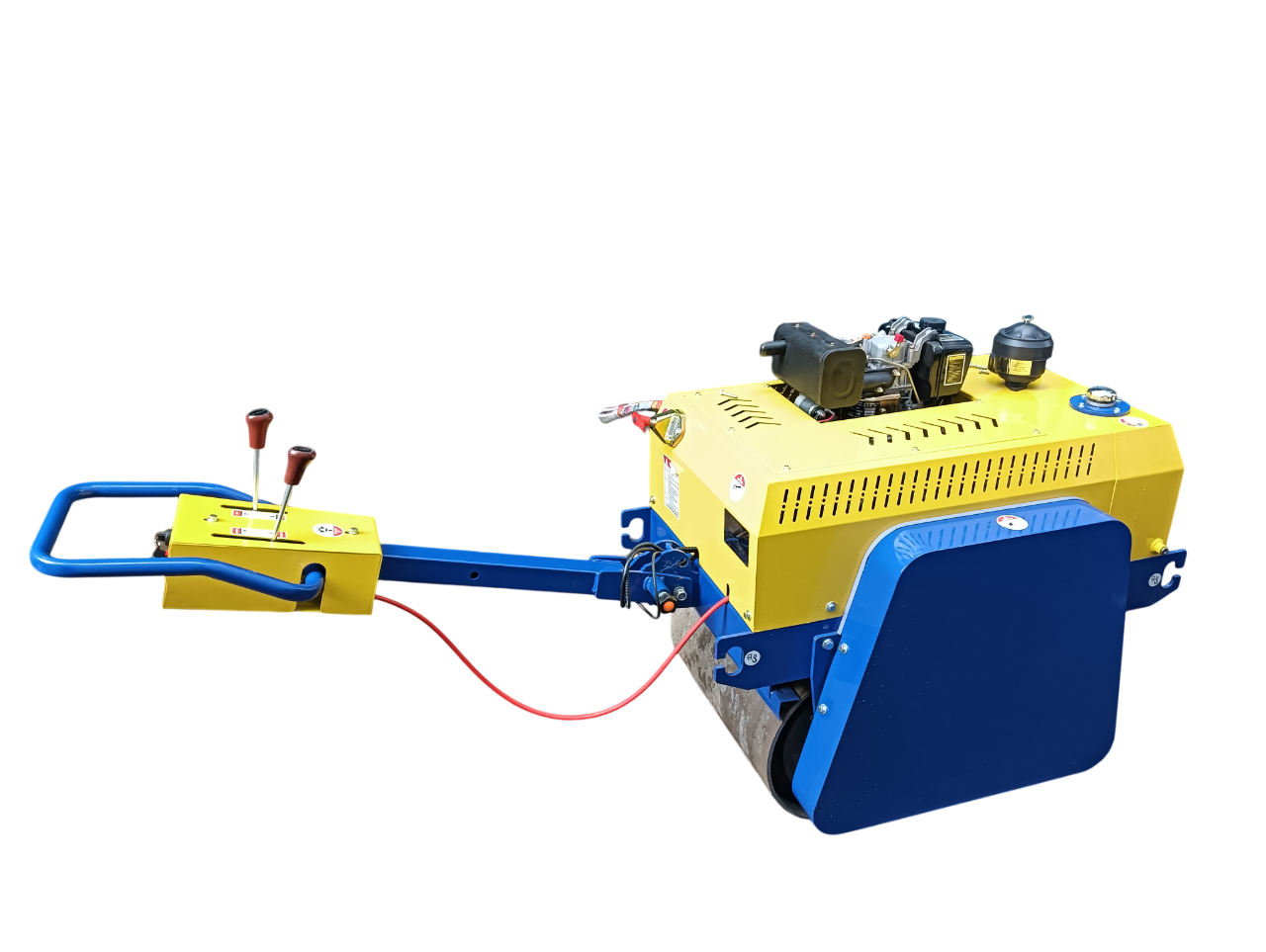

The single drum vibratory roller is the alternative walk-behind: one vibrating drum, lighter and narrower, better suited to trench work and tight access where a 2450 mm long tandem cannot turn.
Key features
- 10 HP Changfa diesel engine for sustained site duty
- 3 tonne compaction force across two vibrating drums
- Forward and reverse travel up to 5 km/h without turning the machine
- Electric start with manual rope backup — a cold morning does not stop work
- 425 × 600 mm drums leave a flat, even finished surface
- 2450 × 780 × 1050 mm — narrow enough for footpaths and service roads
- Suits soil, gravel and asphalt compaction alike
Where it is used
Small road construction and repair, footpaths and pavements, service trench reinstatement, parking areas and driveways, patch and pothole repair, industrial yard surfacing, and shoulder work alongside main carriageways.
Full specifications
| Type | Diesel double drum walk behind vibratory roller |
| Function | Compaction of soil, gravel and asphalt |
| Engine | Changfa diesel |
| Power | 10 HP |
| Max roll weight | 3 tonnes |
| Max working speed | 5 km/h |
| Drum size | 425 × 600 mm |
| Walking way | Forward and backward |
| Starting | Electric start + manual rope |
| Dimensions | 2450 × 780 × 1050 mm |
| Weight | 680 kg |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate)
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
- After-sales support and spares available direct from the Bhosari works
Frequently asked questions
What is the difference between a double drum and a single drum roller?
On a double drum both drums vibrate, so one travel pass compacts twice and the finished surface is flatter. A single drum roller is lighter and narrower, which suits trench work and tight access where a tandem machine cannot turn.
Can it compact asphalt as well as soil?
Yes. Asphalt is one of its main applications — small roads, footpaths, parking areas and patch repairs — alongside soil and gravel.
Should I use a roller or a plate compactor?
A plate compactor suits granular sub-base over open ground. A roller is the machine once you need a finished, trafficable surface — roads, footpaths and parking areas. For confined trench backfill, use a tamping rammer.
How is a 680 kg roller transported to site?
On a pickup or small truck with ramps. At 2450 × 780 mm it also passes through most site gates and along footpaths under its own power.
Does it have reverse?
Yes — forward and backward travel at up to 5 km/h, so the operator works along a strip without turning the machine at each end.
What if the electric start fails on site?
There is a manual rope start as backup, so a flat battery does not stop the day.
What is the price of a double drum walk behind roller in India?
Send your site location and quantity on WhatsApp for a GST-inclusive quotation including freight.
Get a GST-inclusive quotation — tell us the surface area and access conditions and we will confirm whether a double drum, single drum or ride-on roller suits the job.
