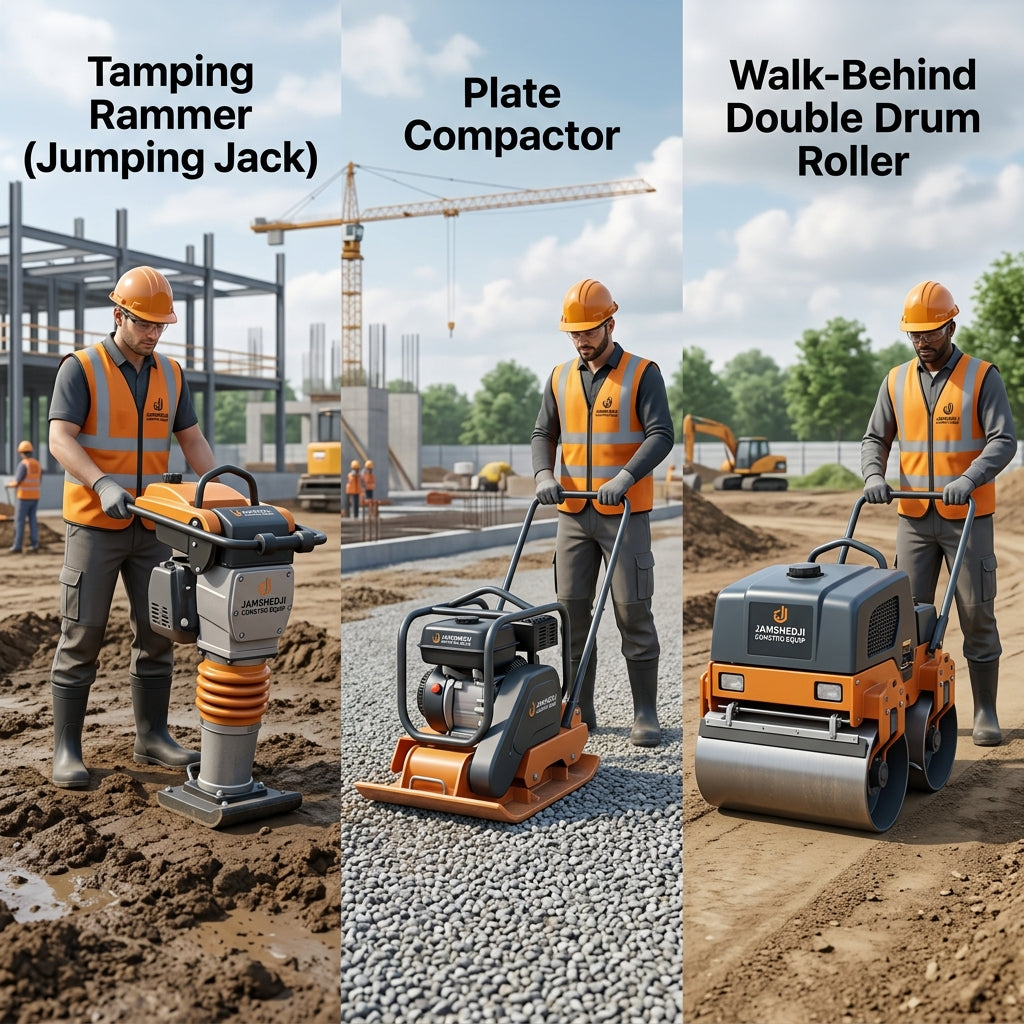

Tamping Rammer vs Plate Compactor vs Roller: Which Compactor for Which Soil
Quick answer
Use a tamping rammer for clay and cohesive soil in trenches and confined spaces, a plate compactor for sand, gravel and granular sub-base over open areas, and a vibratory roller once the area gets large. Soil type decides between impact and vibration: clay needs the hard downward blows of a rammer, while granular material settles best under vibration. Area then decides the size of machine, from rammer to plate compactor to walk-behind roller to ride-on roller.
Diesel tamping rammer: 5 t impact, 700 blows per minute, up to 300 mm depth.
This guide is a decision page for choosing soil compaction equipment on Indian sites. It covers which machine suits which soil, how thick a layer each can compact, how much area each covers, and where each machine sits on the ladder from a tamping rammer to a ride-on roller. Prices shown are current Jamshedji prices including GST.
Tamping rammer vs plate compactor vs roller at a glance
| Factor | Tamping rammer | Plate compactor | Vibratory roller |
|---|---|---|---|
| How it compacts | Impact: a narrow foot strikes the ground about 700 times a minute | Vibration through a wide flat plate | Vibration and weight through rolling drums |
| Best soil | Clay, silt, mixed and cohesive soils | Sand, gravel, crushed stone, GSB, WMM | Granular sub-base, mixed soils, asphalt |
| Typical lift | Up to about 300 mm | Thin to medium granular lifts | Up to 250 mm soil on the single drum walk-behind; deeper on heavier rollers |
| Best area | Trenches, pits, around footings, pipes and walls | Open areas from small patches to a few hundred sqm | Roads, yards, parking and large areas |
| Asphalt | Small patches only | Yes, patching and small areas | Yes, the main use for double drum and ride-on rollers |
| Jamshedji models | Honda petrol, diesel, electric | Diesel, 470 × 600 mm plate | Single drum and double drum walk-behind, ride-on |
| Price (incl. GST) | From ₹37,760 | ₹53,100 | ₹1,59,300 to ₹3,36,300 |
Step 1: Choose by soil type
Soil type decides whether you need impact or vibration, and getting this wrong is the most common compaction mistake on site.
Cohesive soils: clay, silt, black cotton soil
Cohesive soils have fine particles that stick together and hold water. Vibration does little to them, because the particles cannot slide past each other and settle. They need to be struck and kneaded, which is what a tamping rammer does. Its narrow foot hits the ground hard and drives the energy down in a column, forcing air out and pressing the particles together.
This applies to much of the black cotton soil found across Maharashtra, Madhya Pradesh and the Deccan plateau, where trench backfill and foundation filling are typically done with rammers.
Granular soils: sand, gravel, murum, GSB and WMM
Granular materials have coarse particles that do not stick together. Vibration makes them move, rearrange and lock into a denser structure. A plate compactor or vibratory roller does this efficiently over a wide area. A rammer can work them too, but it is slow over open areas and tends to disturb the surface of loose granular fill.
This covers granular sub-base (GSB), wet mix macadam (WMM), murum, sand bedding under paving and crushed stone layers.
Mixed soils and asphalt
Mixed soils with both fines and coarse material can be compacted by a rammer in confined spots and by a heavier plate compactor or roller in open areas. Asphalt is compacted with vibration: a plate compactor for patches and small areas, and double drum or ride-on rollers for roads and larger surfaces.
| Material | First choice | Also suitable |
|---|---|---|
| Clay, silt, black cotton soil | Tamping rammer | Heavy plate on thin lifts, with less effect |
| Trench backfill (any soil) | Tamping rammer | Single drum roller in wider trenches |
| Sand and sand bedding | Plate compactor | Walk-behind roller on larger areas |
| Gravel, murum, crushed stone | Plate compactor | Walk-behind or ride-on roller |
| GSB and WMM layers | Plate compactor (small areas), roller (larger areas) | Ride-on roller on roads and yards |
| Interlocking paver bedding | Plate compactor | None needed |
| Asphalt patches | Plate compactor | Single drum roller |
| Asphalt roads, parking, footpaths | Double drum or ride-on roller | Plate compactor at edges |
Step 2: Check the layer depth
Every compactor has a depth limit. Material is compacted in layers, called lifts, and each lift must be thin enough for the machine to compact it right through. If the lift is too thick, the top gets dense while the bottom stays loose, and the fill settles later.
- ✔ Tamping rammers compact up to about 300 mm, because the impact drives energy down in a narrow column. That depth is why they suit trench backfill and foundation filling
- ✔ Plate compactors work best on thinner granular lifts. Keep lifts to what the specification allows and compact each one fully before placing the next
- ✔ Single drum walk-behind roller: up to 250 mm of soil and 200 mm of asphalt
- ✔ Double drum and ride-on rollers add weight and two vibrating drums, giving deeper and faster compaction on larger areas
Your project specification usually sets the maximum lift thickness, often around 150 to 200 mm compacted for granular sub-base and road layers. Follow the specification first, then pick a machine that can compact that lift fully.
Step 3: Match the machine to the area
Once the soil and lift depth are settled, the area decides how big the machine should be. This is the compaction ladder from the smallest machine to the largest:
Most sites need more than one machine. A road or yard job typically uses a roller on the open area, a plate compactor along edges and around obstacles, and a rammer in the trenches for drains and utilities.
Tamping rammers: petrol, diesel or electric
All three Jamshedji rammers compact to about 300 mm at 700 blows per minute. Choose by power and duty:
| Model | Power | Impact force | Weight | Price (incl. GST) | Best for |
|---|---|---|---|---|---|
| Honda petrol rammer | Honda GX160, 5.5 HP | 3 to 3.5 t | 85 kg | ₹37,760 | General trench and foundation work, easy service anywhere in India |
| Diesel rammer | Koop diesel, 5.5 HP | 5 t | 130 kg | ₹56,640 | All-day earthwork on road, infrastructure and large foundation jobs |
| Electric rammer HCD110 | 4 HP, 220 V single phase | 3 to 3.5 t | 84 kg | On request | Basements, indoor sites and enclosed trenches with no exhaust allowed |
Plate compactor: the open-area workhorse
Diesel plate compactor with 470 × 600 mm base plate.
The Jamshedji diesel plate compactor has a 5.5 HP Changfa diesel engine, 3 to 3.5 tonnes of impact force at 5,500 rpm, a 470 × 600 mm base plate, a walking speed of 20 to 30 m per minute and a weight of 150 kg. It is priced at ₹53,100 including GST.
Use it for sand bedding under interlocking pavers, granular sub-base on footpaths and driveways, murum and gravel fill in yards, and asphalt patching. The wide plate covers ground quickly and leaves a flat surface. It is the wrong machine for clay or for deep trench backfill, where a rammer does the job properly.
Rollers: single drum, double drum and ride-on
Double drum walk-behind roller: both drums vibrate, 3 t roll weight.
| Model | Engine | Drums | Compaction | Weight | Price (incl. GST) |
|---|---|---|---|---|---|
| Single drum walk-behind | 5.5 HP Changfa diesel | One, 425 × 600 mm | 16 kN at 70 Hz; 250 mm soil, 200 mm asphalt | 330 kg | ₹1,59,300 |
| Double drum walk-behind | 10 HP Changfa diesel | Two, 425 × 600 mm, both vibrating | 3 t roll weight, up to 5 km/h | 680 kg | ₹2,30,100 |
| Ride-on mini roller | 11 HP Changfa diesel | Front 560 × 700 mm, rear 426 × 500 mm | 5 t roll weight, up to 5 km/h, 25 L water tank | 790 kg | ₹3,36,300 |
The single drum roller turns tightly and works close to edges, so it suits patch work, trenches and footpaths. The double drum roller vibrates both drums, so one travel pass compacts twice and leaves a flatter surface, which is important on asphalt before the mat cools. The ride-on roller takes over on large areas where walking pace limits output, and its water tank keeps asphalt from sticking to the drums.
How to check compaction is done
Compaction is specified as a percentage of the soil's maximum dry density (MDD), found in the lab by the Proctor test: IS 2720 (Part 7) for light compaction and IS 2720 (Part 8) for heavy compaction. On site, field density is checked by the sand replacement method, IS 2720 (Part 28), or the core cutter method, IS 2720 (Part 29). Many specifications ask for 95% of MDD or higher, depending on the layer.
Three site rules matter as much as the machine:
- ✔ Compact at the right moisture. Soil compacts best near its optimum moisture content (OMC). Too dry and it will not densify; too wet and it pumps and weaves under the machine
- ✔ Keep lifts within the machine's depth and compact every lift fully before placing the next
- ✔ Overlap passes and make enough passes that the density test passes, not just until the surface looks firm
Which compactor should you buy?
| Your work | Recommended machine |
|---|---|
| Trench backfill, foundations, plinth filling in clay or mixed soil | Honda petrol rammer or diesel rammer |
| Basements and enclosed areas | Electric rammer |
| Paver bedding, footpaths, driveways, granular fill | Diesel plate compactor |
| Patch repairs, wide trenches, narrow paths | Single drum roller |
| Small roads, parking, asphalt work | Double drum roller |
| Car parks, internal roads, industrial yards above about 1,000 sqm | Ride-on roller |
| Road or infrastructure contractor doing all of the above | Diesel rammer, plate compactor and a roller sized to typical job area |
Jamshedji Constro Equip has manufactured construction machinery in Pune since 1983. The full range is in our soil compaction collection, with spare parts such as rammer bellows, base plates, clutches and pads available from stock. GST is charged at 18% (CGST and SGST within Maharashtra, IGST for other states). We deliver across India and export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Frequently asked questions
What is the difference between a tamping rammer and a plate compactor?
A tamping rammer compacts by impact, striking the ground with a narrow foot about 700 times a minute, and suits clay and cohesive soils in trenches and confined spaces. A plate compactor compacts by vibration through a wide flat plate and suits sand, gravel and granular sub-base over open areas.
Which compactor is best for clay soil?
A tamping rammer. Clay and other cohesive soils do not respond well to vibration because the fine particles stick together. They need the impact and kneading action of a rammer, compacted in lifts of up to about 300 mm at the right moisture content.
Which compactor is best for sand and gravel?
A plate compactor for small to medium open areas, and a vibratory roller for larger areas. Granular materials settle and lock together under vibration, which these machines deliver efficiently over a wide area.
When should I use a roller instead of a plate compactor?
Move to a roller when the area is too large to cover efficiently with a plate compactor, typically from a few hundred sqm upward, or for asphalt roads and parking areas. Use a walk-behind roller for small roads and patches, and a ride-on roller for areas above about 1,000 sqm.
How deep can a tamping rammer compact?
Jamshedji tamping rammers compact to a depth of up to about 300 mm. Keep each lift within that depth and compact it fully before placing the next, so the bottom of the layer is as dense as the top.
Can a tamping rammer be used on asphalt?
Only for small patches in confined spots. For asphalt, a plate compactor handles patches and small areas, and double drum or ride-on rollers handle roads and parking, because vibration compacts the hot mix evenly before it cools.
How is soil compaction tested in India?
The maximum dry density is found in the lab by the Proctor test under IS 2720 (Part 7 or Part 8). Field density on site is checked by the sand replacement method, IS 2720 (Part 28), or the core cutter method, IS 2720 (Part 29). Many specifications require 95% of maximum dry density or more.
Not sure which compactor fits your soil?
Tell us the soil type, layer depth and area, and we will recommend the right machine.
