Diesel Plate Compactor – Changfa 5.5HP, 3-3.5T Impact, 470x600mm

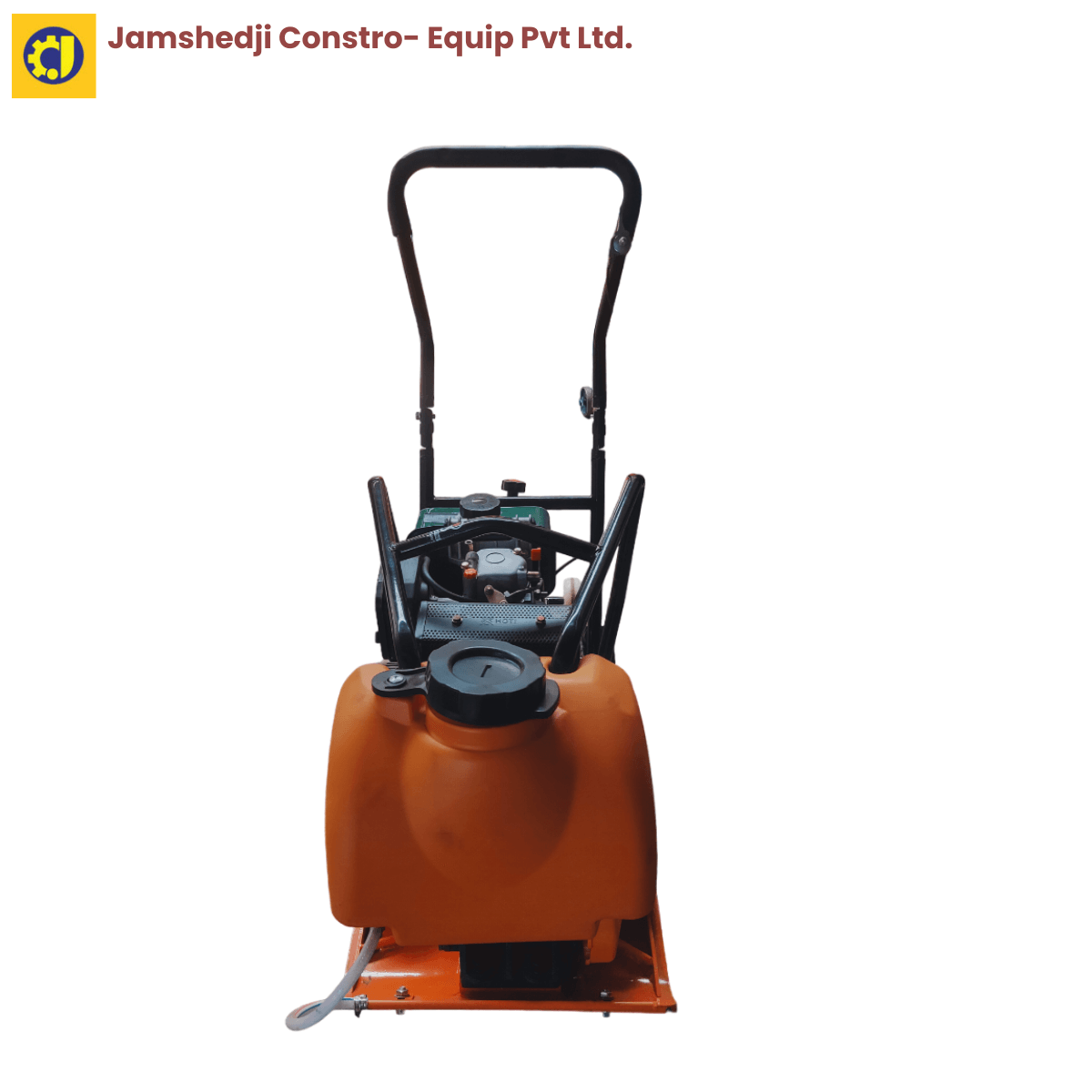

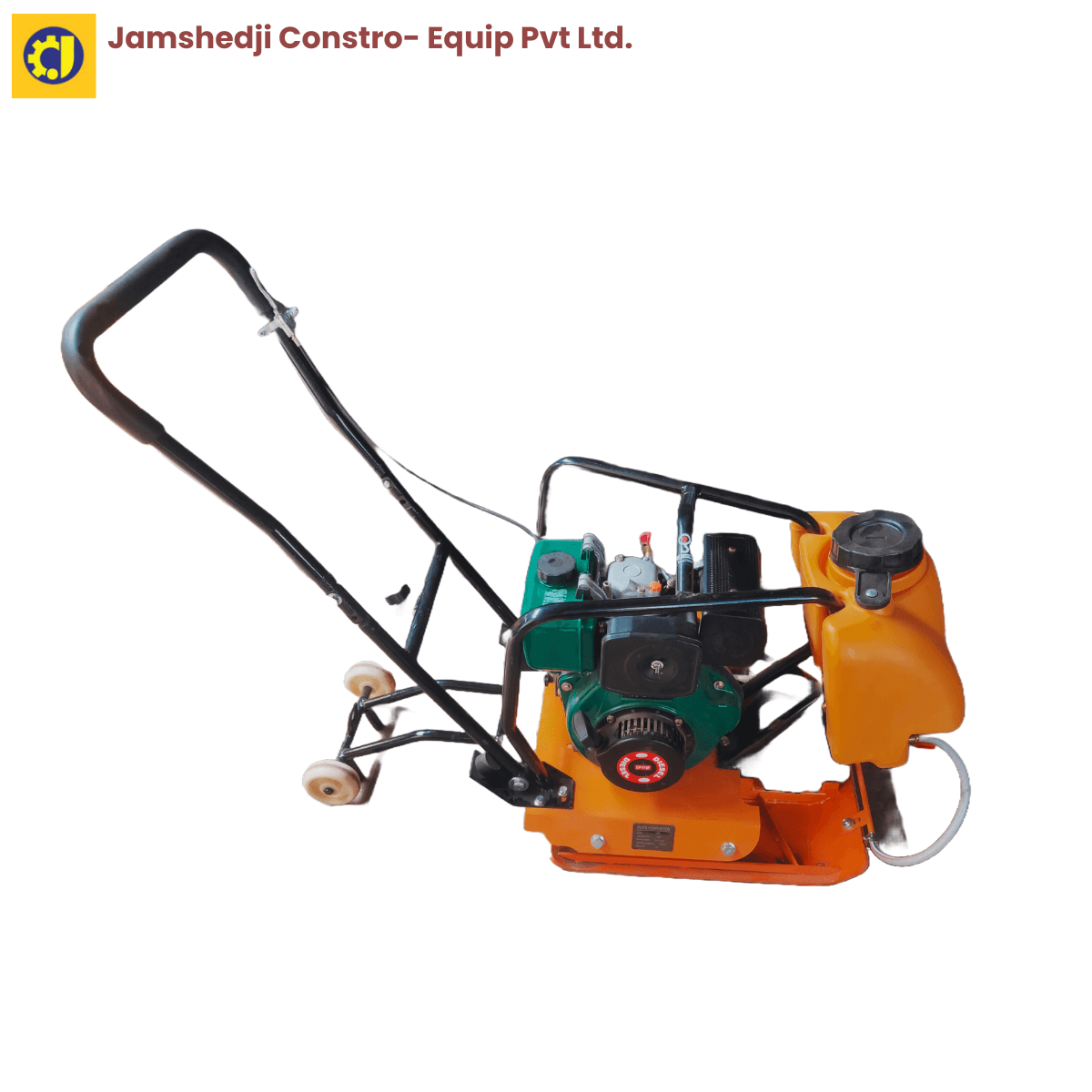

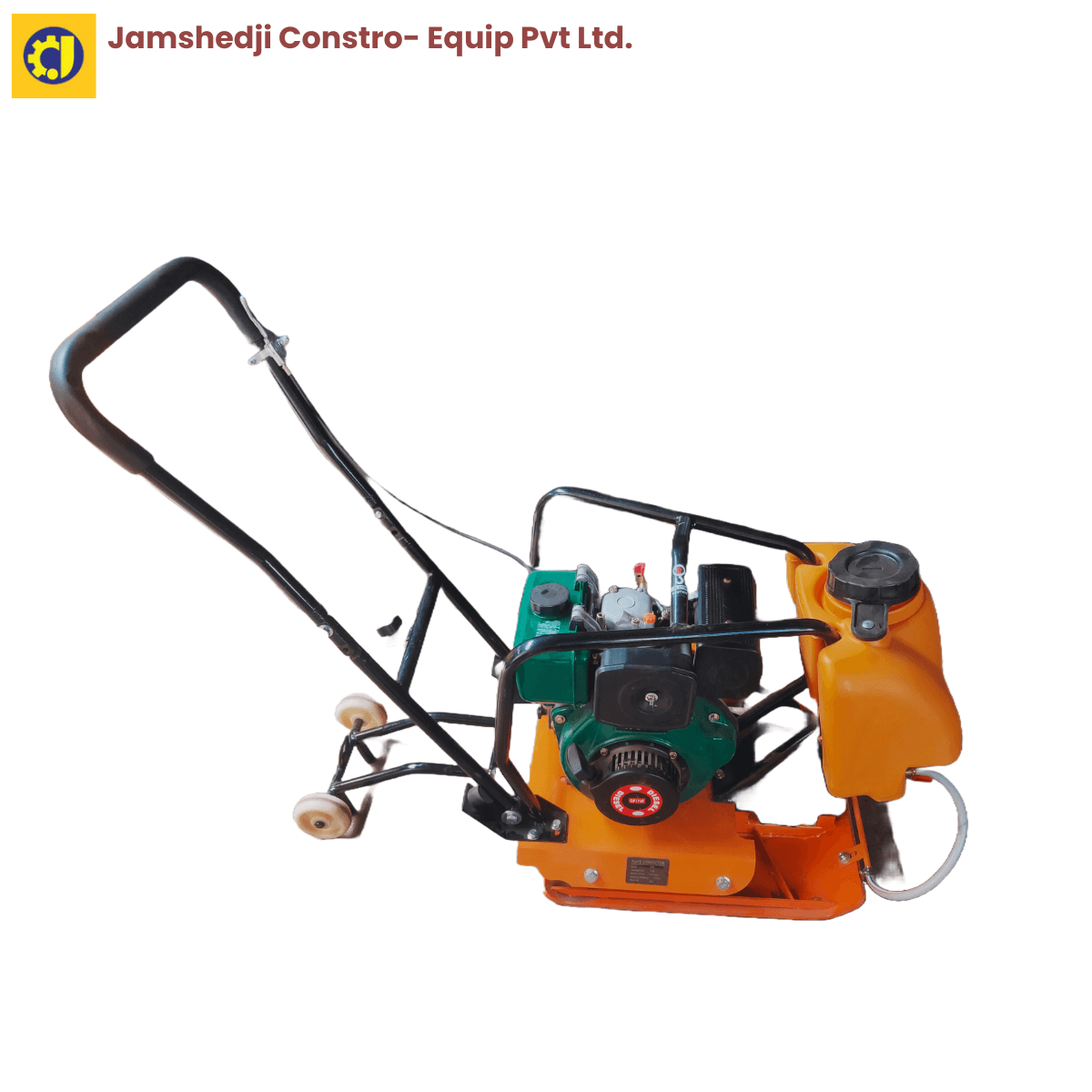

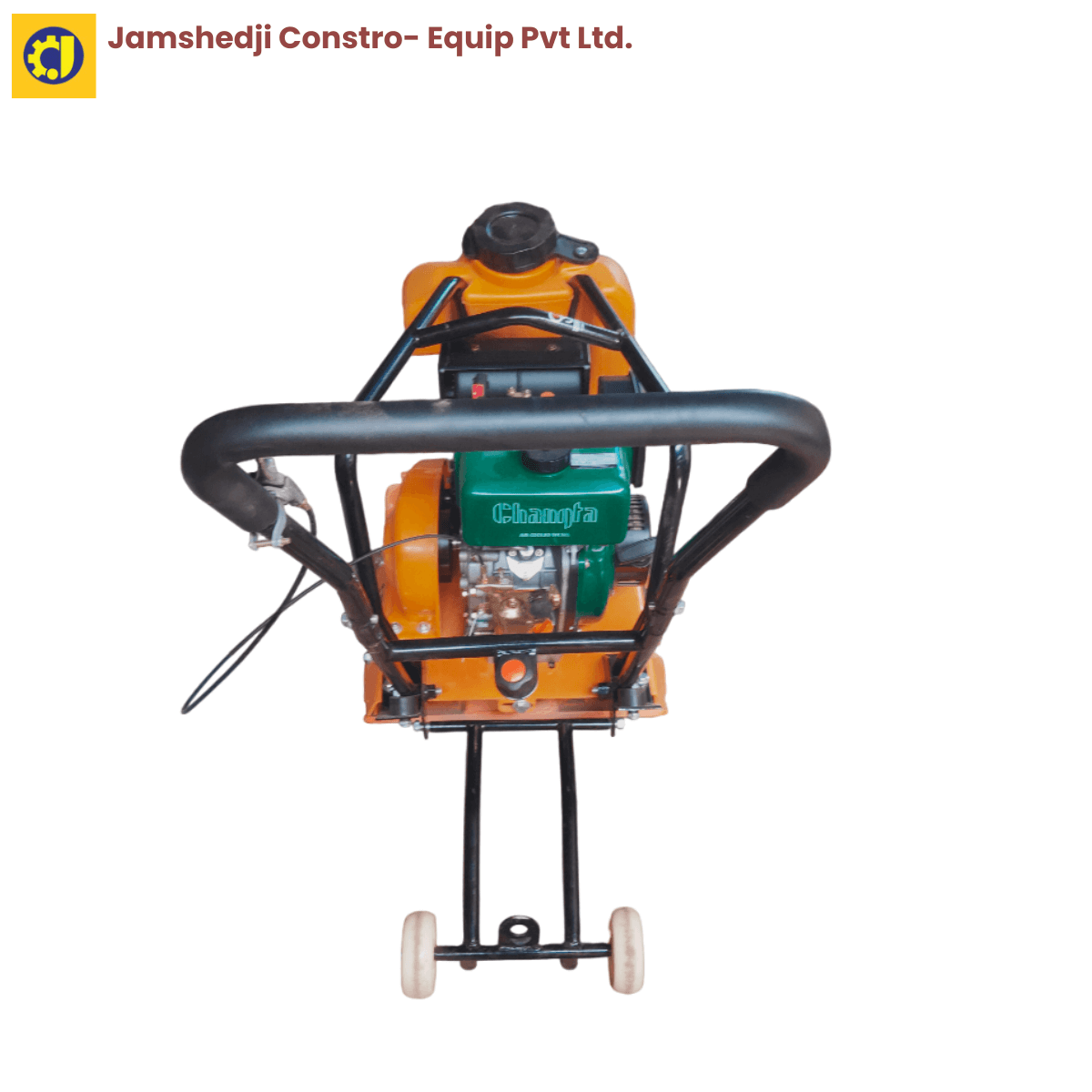

The Jamshedji diesel plate compactor is a walk-behind vibratory compactor with a 5.5 HP Changfa diesel engine, delivering 3–3.5 tonnes of impact force at 5,500 rpm through a 470 × 600 mm base plate. It compacts soil, sand, gravel and asphalt across open ground where a wide plate covers area fast — sub-base under paving, road formation layers, footpaths, driveways and industrial yards. Walking speed 20–30 m/min. Weight 150 kg.

Key specifications at a glance

• Engine: Changfa diesel, 5.5 HP
• Impact force: 3–3.5 tonnes
• Vibration frequency: 5,500 rpm
• Plate size: 470 × 600 mm, 14 mm thick
• Walking speed: 20–30 m/min
• Weight: 150 kg

When a plate compactor is the right machine

Compaction equipment splits by how the energy is applied to the ground. A rammer drives a small footprint downward at low frequency — narrow, deep, right for cohesive soils and confined trenches. A plate compactor does the opposite: it holds a wide plate against the ground at high frequency, so the energy spreads across the surface and moves granular material into a dense, level bed.

That is exactly what sub-base needs. Under a road, a footpath, a driveway or an industrial floor, the compacted sub-base is what stops the finished surface from settling later. A rammer would give you deep compaction in small footprints, but you would be there for a week; a plate compactor at 20–30 metres per minute covers a working strip in one pass.

The 5,500 rpm vibration frequency matters as much as the impact force. High frequency across a wide plate is what liquefies granular material momentarily and lets it settle into position, which is why sub-base and asphalt jobs specify plate compaction rather than ramming.

Key features

• 5.5 HP Changfa diesel engine sized for continuous site duty
• 3–3.5 tonne impact force at 5,500 rpm covers granular and mixed material
• 470 × 600 mm plate at 14 mm thickness — wide enough to be productive, narrow enough to steer
• 20–30 m/min walking speed for real productivity on open ground
• Diesel fuel is already stocked on most infrastructure sites for the plant fleet
• 150 kg — heavy enough for effective compaction, light enough for two men to lift onto a pickup
• Made in Pune with after-sales support and spares

Where it fits in the compaction ladder

Different jobs need different machines, and the compaction ladder is straightforward.

• Tamping rammer — trench backfill, cohesive soils, confined strips. See the Honda petrol rammer (3–3.5 T, 85 kg), the diesel rammer (5 T, 130 kg) or the electric HCD110 for indoor work.
• This plate compactor — open ground, granular sub-base, footpaths, small driveways.
• Walk-behind roller — small roads, service trench reinstatement, larger footpath and yard surfacing. See the double drum walk behind roller.
• Ride-on roller — car parks, roads, large formation layers. See the ride on mini vibratory roller.

Where it is used

Sub-base compaction under paving and industrial floors, road formation layers, footpath and pavement work, driveways and parking bays, service trench reinstatement in granular fill, asphalt patching, and shoulder work alongside carriageways.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
• After-sales support and spares available direct from the Bhosari works
