Tamping Rammer Clutch – RM 80, 19mm Engine Shaft, Hard Iron

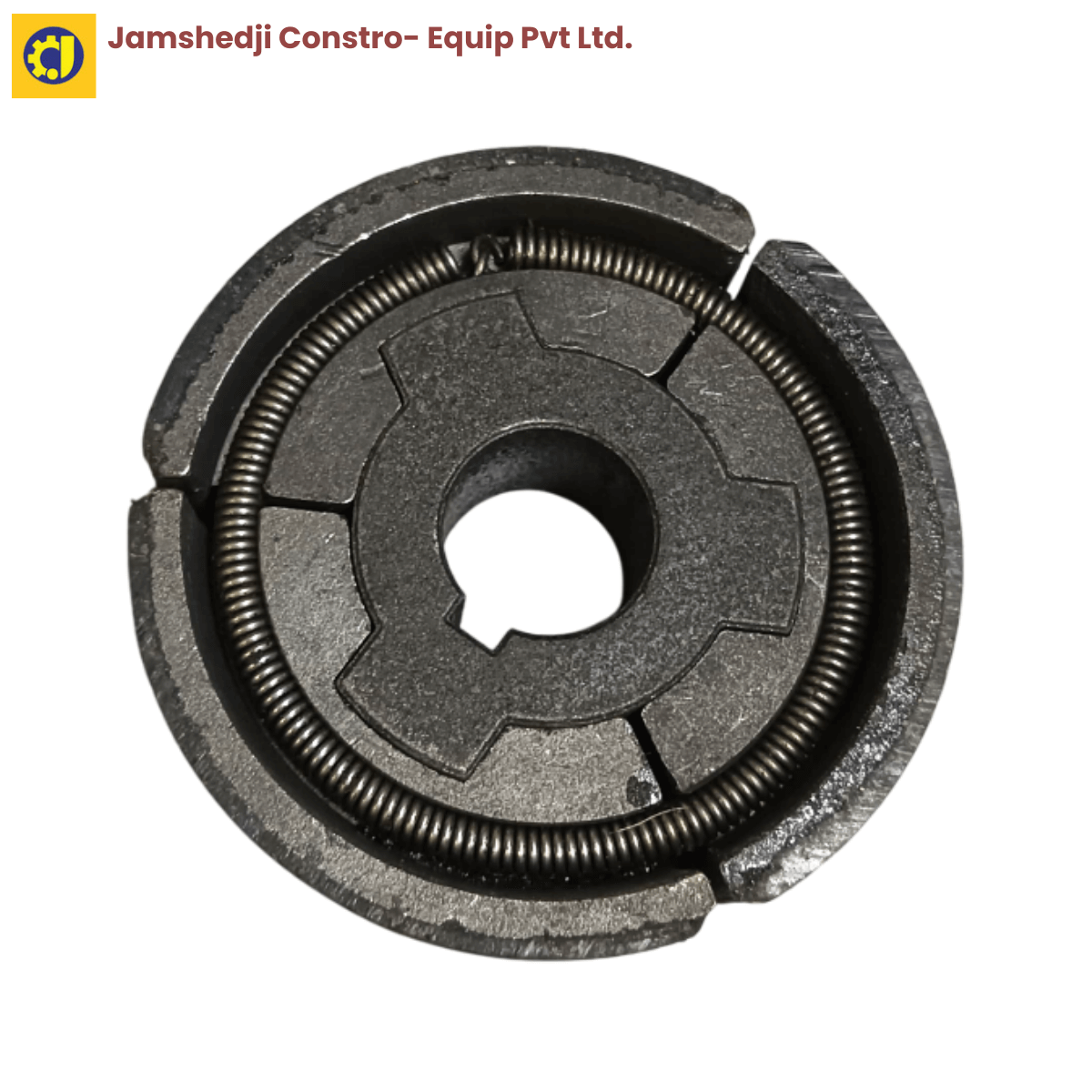

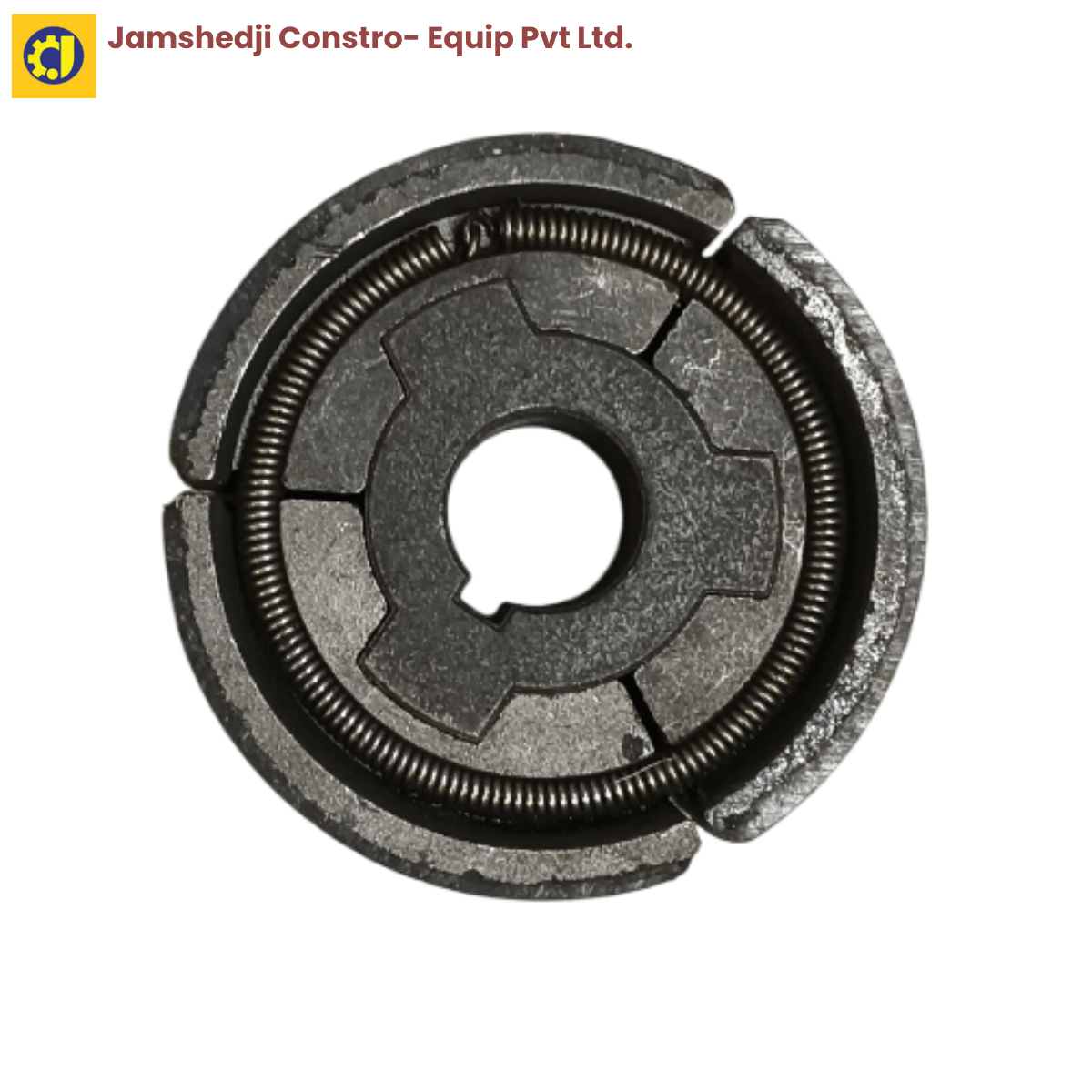

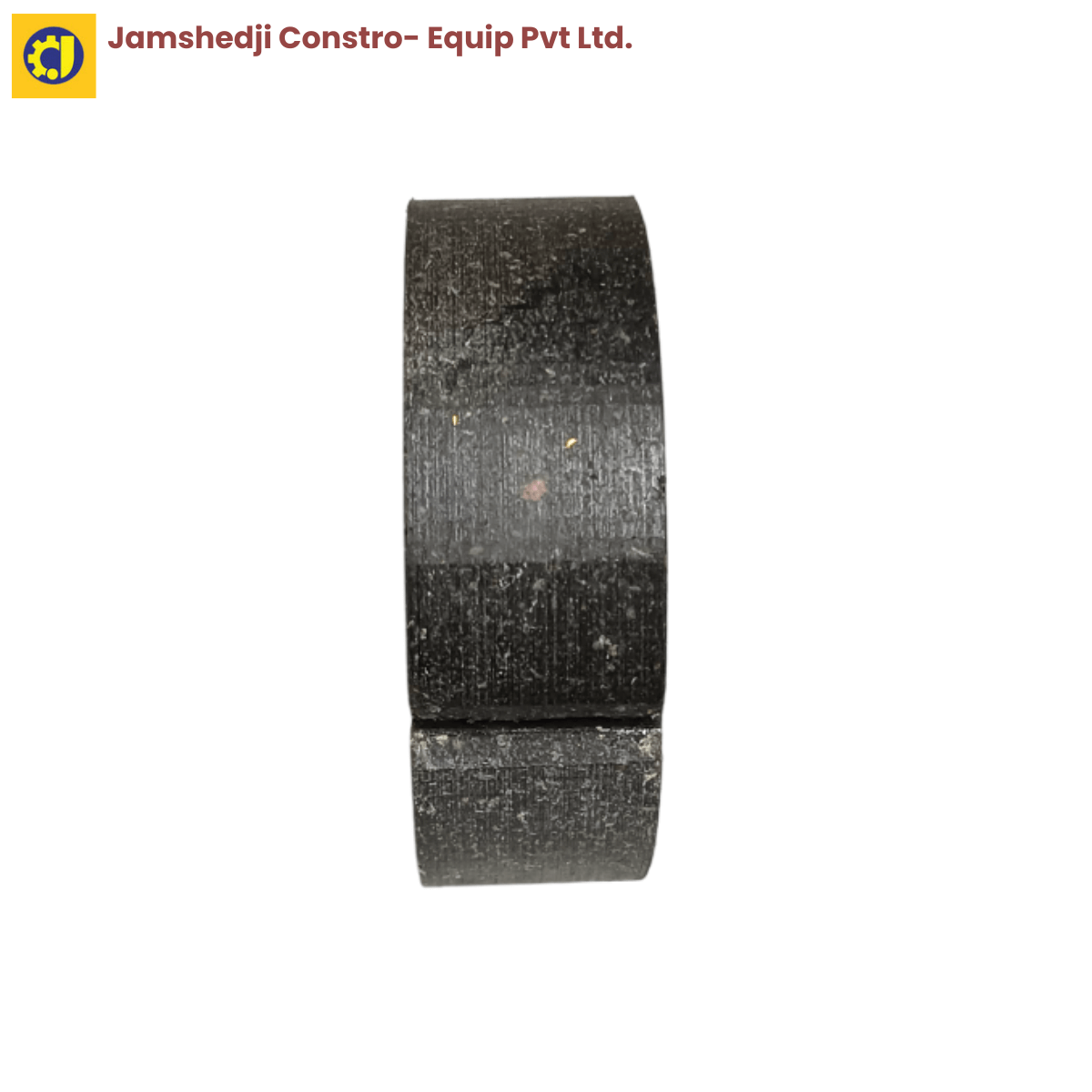

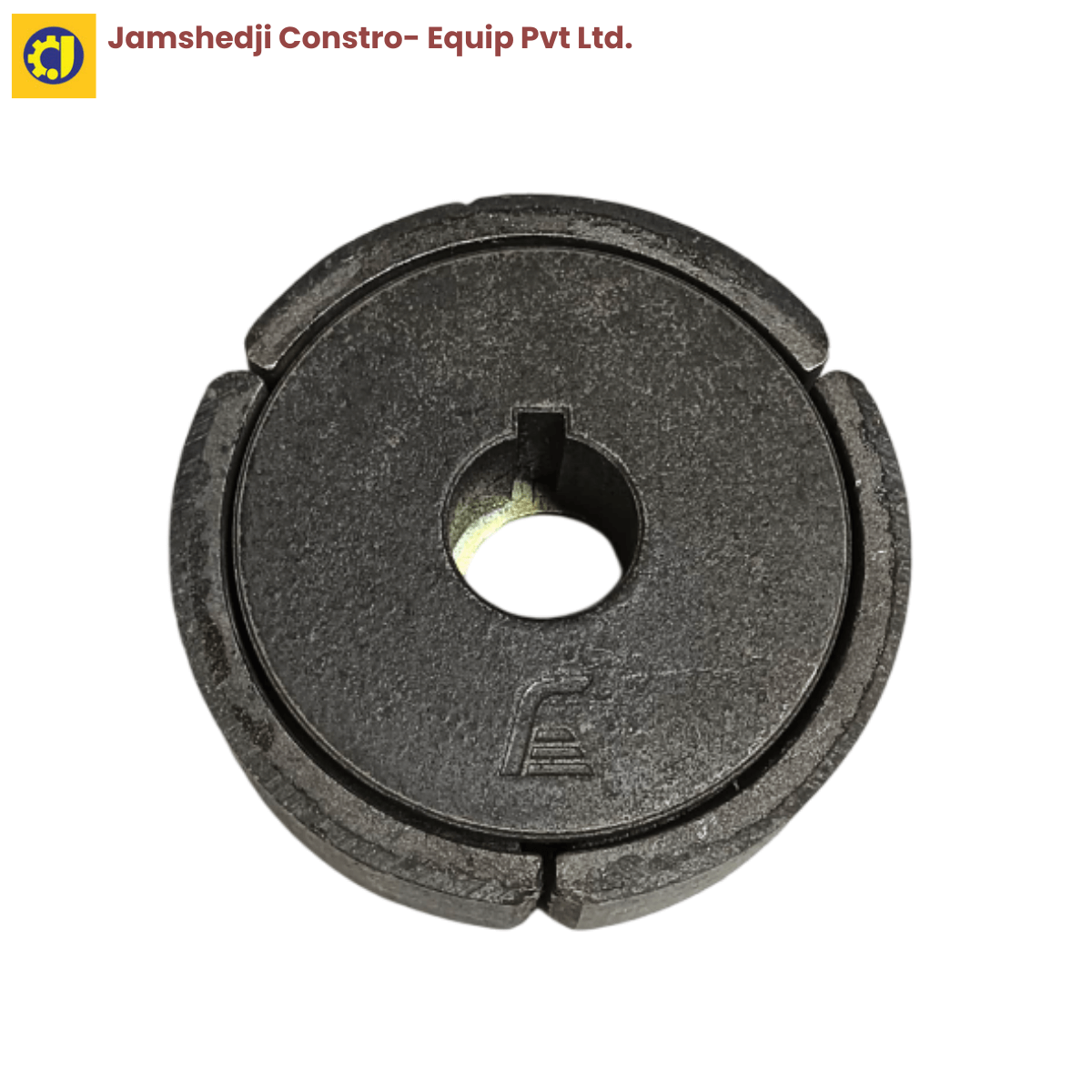

This is the replacement clutch for the RM 80 tamping rammer, made from hard iron and fitting a 19 mm engine shaft. The clutch is what connects the running engine to the rammer's percussion mechanism, so it wears with use and is replaced as a service part.

Fits

• RM 80 tamping rammers — engine shaft size 19 mm
• Tamping Rammer Honda GX160 — petrol jumping jack
• Diesel Tamping Rammer — Koop 5.5 HP

Check your engine shaft size against 19 mm before ordering. Other RM 80 service parts: rubber bellow, base plate, rubber pads and accelerator cable.

What it does and when to replace it

A tamping rammer works by driving a spring-loaded ram up and down, striking the ground several hundred times a minute. The engine runs continuously, but that percussion only happens when the operator opens the throttle — the clutch is what makes that connection. Below engagement speed it stays disengaged, so the engine can idle without the rammer jumping; open the throttle and the clutch grips, transmitting drive to the percussion mechanism.

That means the clutch engages and releases constantly through a working day, and its friction surfaces wear. Replace it when the rammer is slow or reluctant to start jumping as you open the throttle, when percussion is inconsistent, when the rammer creeps at idle, or when you notice burning smell or glazing. Hard iron is used for the wear resistance this duty cycle demands.

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India
• Supplied by a tamping rammer manufacturer — founded 1983, ISO 9001:2015, MSME/Udyam registered

Frequently asked questions
