Concrete Vibrator Needle 50mm x 6m – General Slabs and Beams
Concrete Vibrator Needle 50mm x 6m – General Slabs and Beams

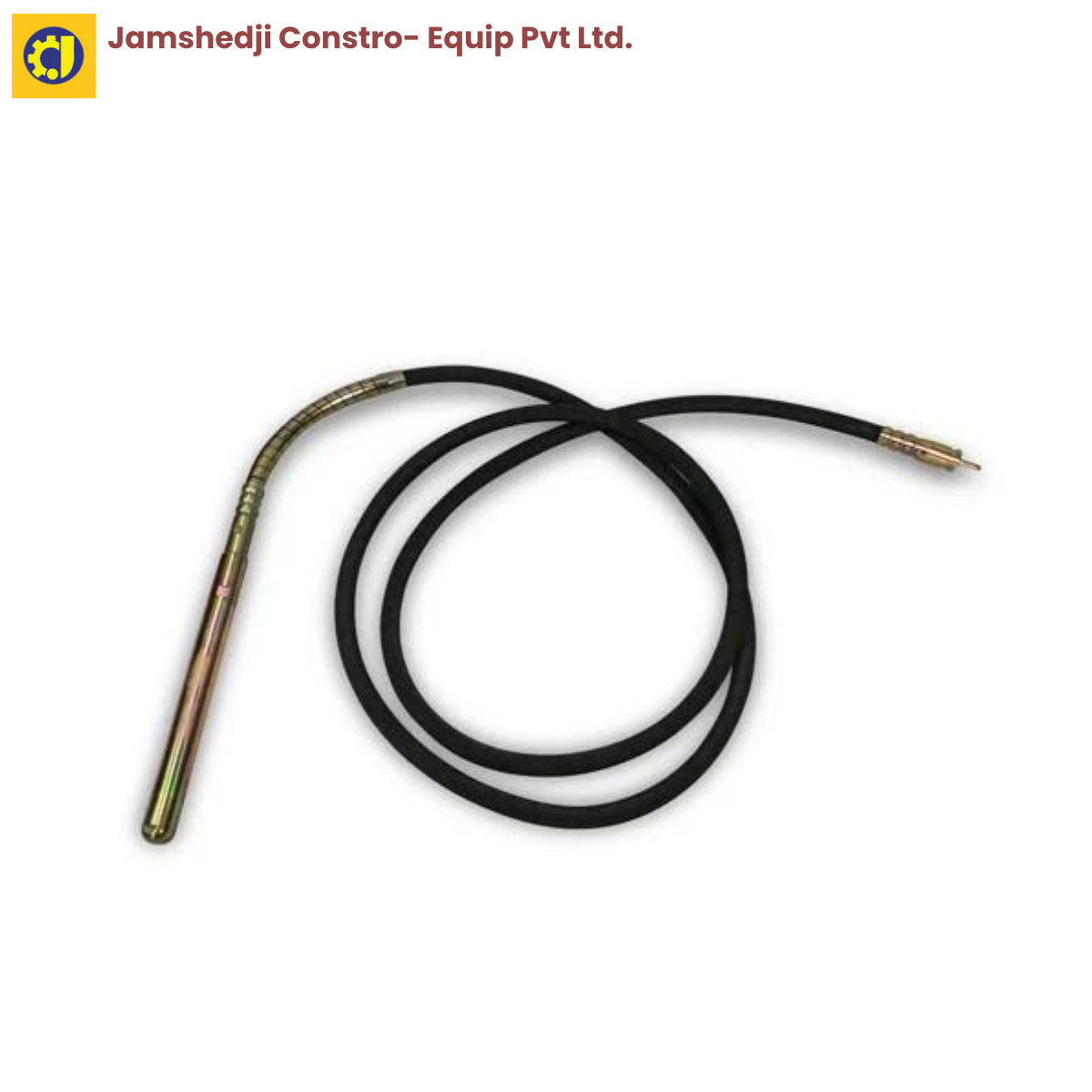

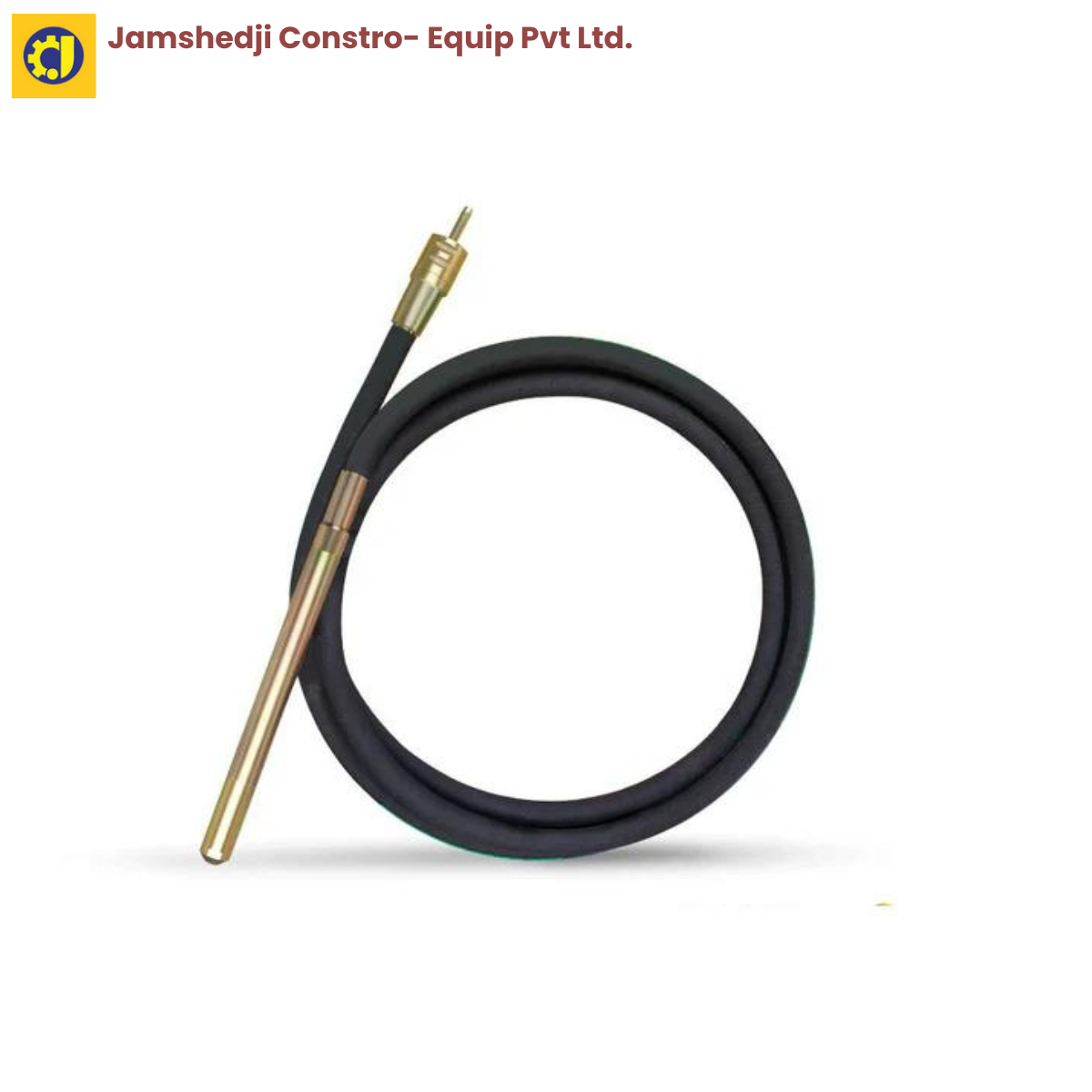

This is the 50 mm × 6 m needle for a concrete vibrator — the poker head and 6 metre flexible shaft that attaches to a needle vibrator drive and goes into the wet concrete. At 50 mm it is the mid-range, general-purpose needle: enough diameter to consolidate a useful radius quickly on everyday slabs and beams, with a 6 m shaft for reach into deeper pours.
Fits
This needle attaches to the Jamshedji needle vibrator drives — the 7.5 HP petrol, 6 HP petrol and 3 HP single-phase electric drives, all of which accept 50 mm dies. The portable 950 W and 1300 W units have their own integrated needle and do not take a separate one. Send your drive model on WhatsApp if you need the coupling confirmed.
What it does and which pour it suits
The needle is the working end of a vibrator system: the drive spins it, and its high-frequency vibration liquefies the surrounding concrete so trapped air rises out and the mix flows tight around the bars. The needle is a wear part — head and shaft abrade in wet concrete and are replaced when the head wears or the shaft stiffens or fails.
The 50 mm diameter is the workhorse size for general concreting: standard slabs, beams and foundations where the reinforcement is not so congested that you need a slim 35 mm head, but the pour is not so massive that a 60–70 mm head is worth it. It covers a wider radius per insertion than the 35 mm, so it consolidates open concrete faster. The 6 m shaft length suits deeper sections and columns; a 4 m version is available for shallower work.
Needle sizes in the range
- 35 mm × 6 m — congested rebar, narrow sections, thin walls
- 50 mm × 4 m and 50 mm × 6 m (this needle) — general slabs and beams
- 60 mm × 4 m and 60 mm × 6 m — heavier mass concrete
- 70 mm × 6 m — the largest pours
Specifications
| Part | Concrete vibrator needle (poker head + flexible shaft) |
| Diameter | 50 mm |
| Length | 6 m |
| Best for | General slabs, beams and foundations |
| Fits | Jamshedji 7.5 HP / 6 HP petrol and 3 HP electric needle vibrator drives |
| Brand | Jamshedji |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Genuine part from Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune — manufacturer of the drives it fits
Frequently asked questions
Which drive does this needle fit?
The Jamshedji 7.5 HP and 6 HP petrol drives and the 3 HP single-phase electric drive, all of which take 50 mm dies. The portable 950 W and 1300 W units have their own built-in needle.
When should I use a 50 mm needle?
For general slabs, beams and foundations — it is the everyday workhorse size. Step down to 35 mm for congested rebar, or up to 60–70 mm for heavy mass concrete.
Should I choose the 4 m or 6 m length?
The 6 m shaft reaches deeper sections and columns; the 4 m version is easier to handle on shallower slab work. Match the length to how deep you need to reach.
Is the needle a wear part?
Yes. Head and flexible shaft abrade in wet concrete over time — replace when the head is worn or the shaft stiffens or fails.
What is the price of a 50 mm × 6 m vibrator needle?
Send your drive model on WhatsApp for current pricing and freight.
Need this needle? Tell us your drive model and pour and we will confirm the needle and price.
Dispatched across India — see the 7.5 HP petrol, 6 HP petrol and 3 HP electric drives, or browse the full cement and concrete machines range.
