Concrete Vibrator Needle 60mm x 6m – Mass Concrete

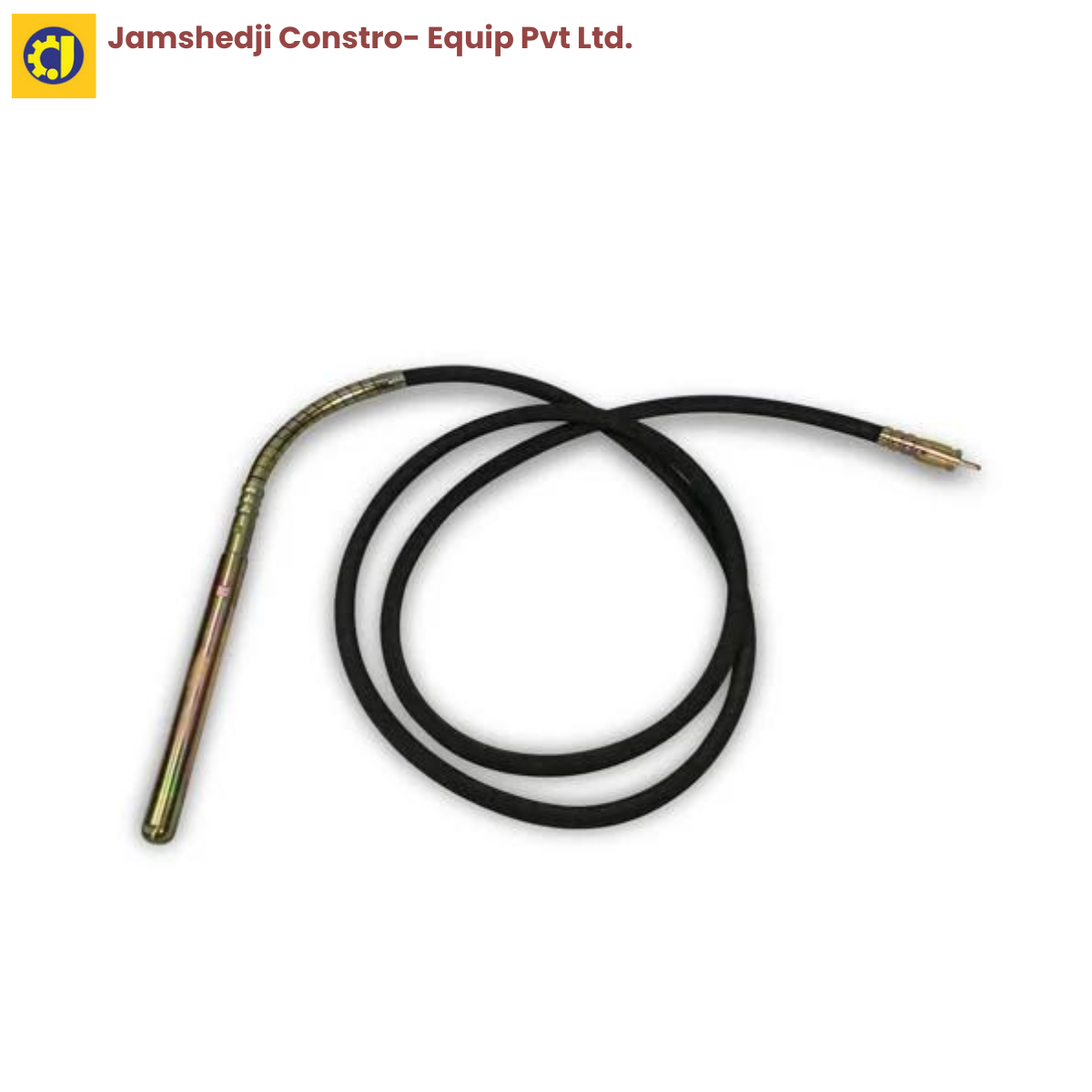

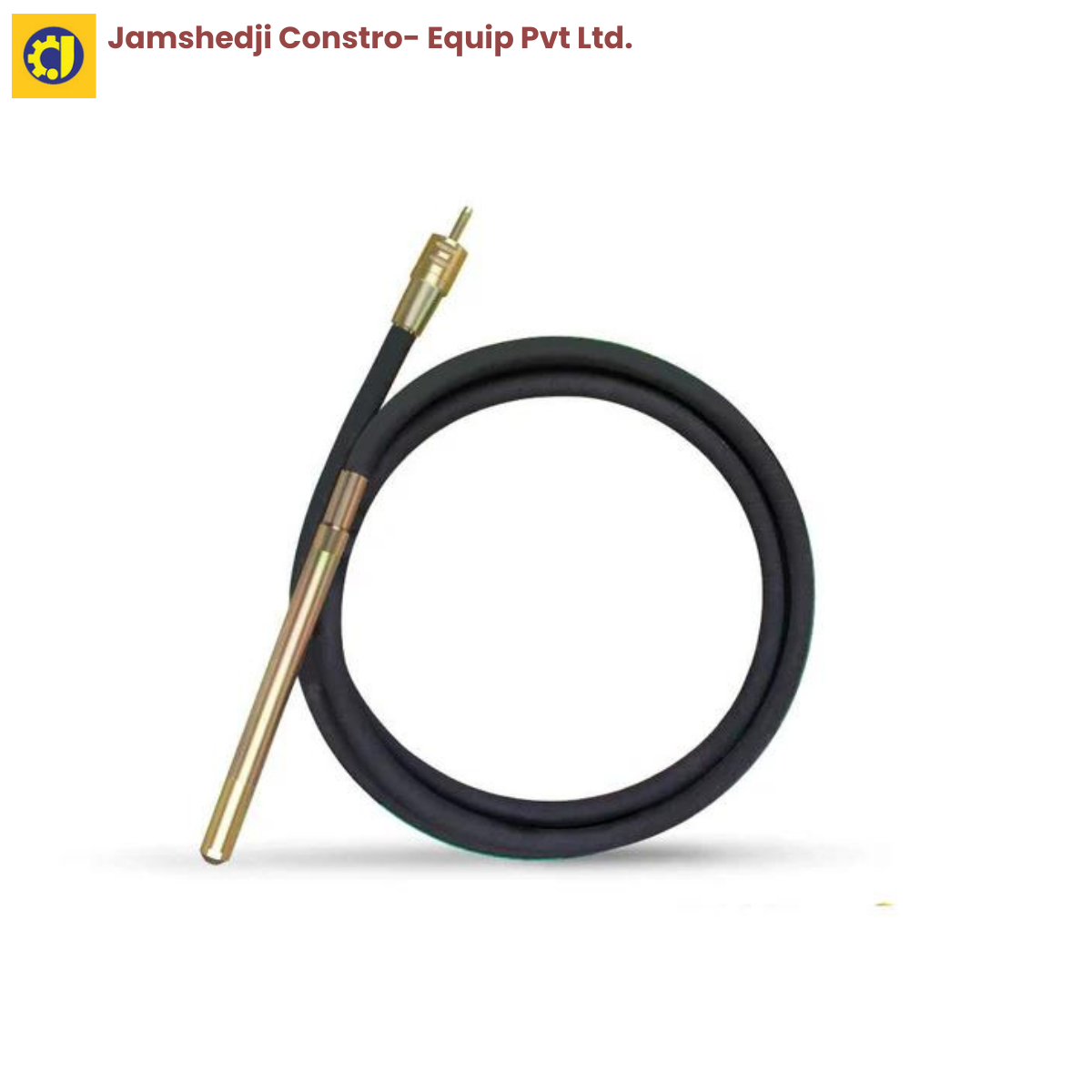

This is the 60 mm × 6 m needle for a concrete vibrator — the poker head and 6 metre flexible shaft that attaches to a needle vibrator drive and goes into the wet concrete. At 60 mm it is a heavy-duty needle: the large head consolidates a wide radius per insertion, so it works fast through mass concrete, big foundations and deep pours. The 6 m shaft gives full reach into deep sections.

Fits

This needle attaches to the Jamshedji needle vibrator drives — the 7.5 HP petrol, 6 HP petrol and 3 HP single-phase electric drives, all of which accept 60 mm dies. A larger needle asks more of the drive, so the more powerful petrol drives are the better match for continuous heavy work. The portable 950 W and 1300 W units take only their own built-in 35 mm needle. Send your drive model on WhatsApp if you need the pairing confirmed.

What it does and which pour it suits

The needle is the working end of a vibrator system: the drive spins it, and its high-frequency vibration liquefies the surrounding concrete so trapped air rises out and the mix flows tight around the bars. It is a wear part — head and shaft abrade in wet concrete and are replaced when the head wears or the shaft stiffens or fails.

The 60 mm diameter is for mass concrete: large foundations, thick rafts, big columns and heavy pours where the reinforcement is open enough to take a large head. The wide head means each insertion consolidates a bigger radius, so a big pour is finished in fewer insertions and less time. On congested steel a 60 mm head will not pass between the bars, and there a 35 mm is the tool; the 60 mm earns its place on open, high-volume concrete.

Needle sizes in the range

• 35 mm × 6 m — congested rebar, narrow sections, thin walls
• 50 mm × 4 m and 50 mm × 6 m — general slabs and beams
• 60 mm × 4 m and 60 mm × 6 m (this needle) — heavier mass concrete
• 70 mm × 6 m — the largest pours

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Genuine part from Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune — manufacturer of the drives it fits
