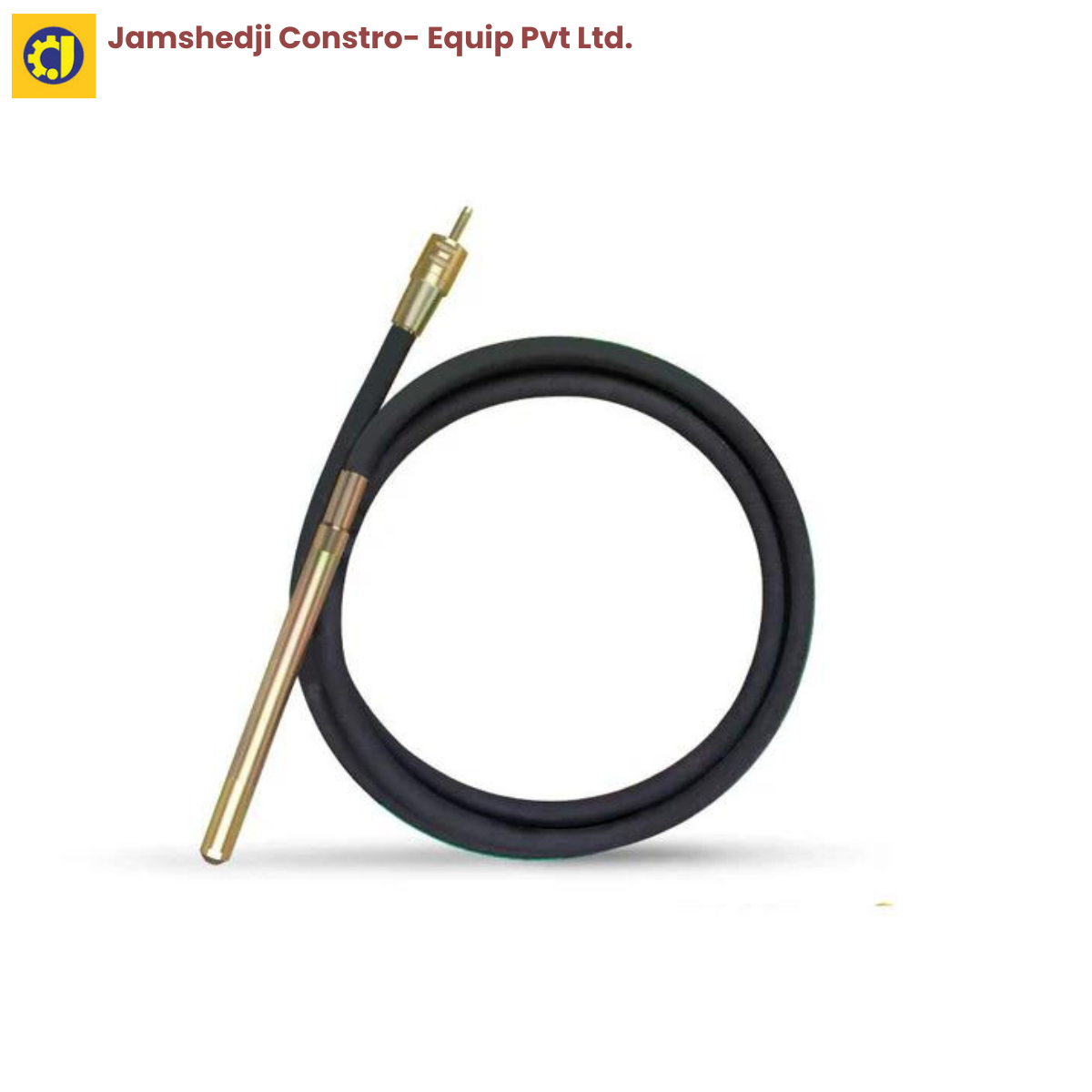

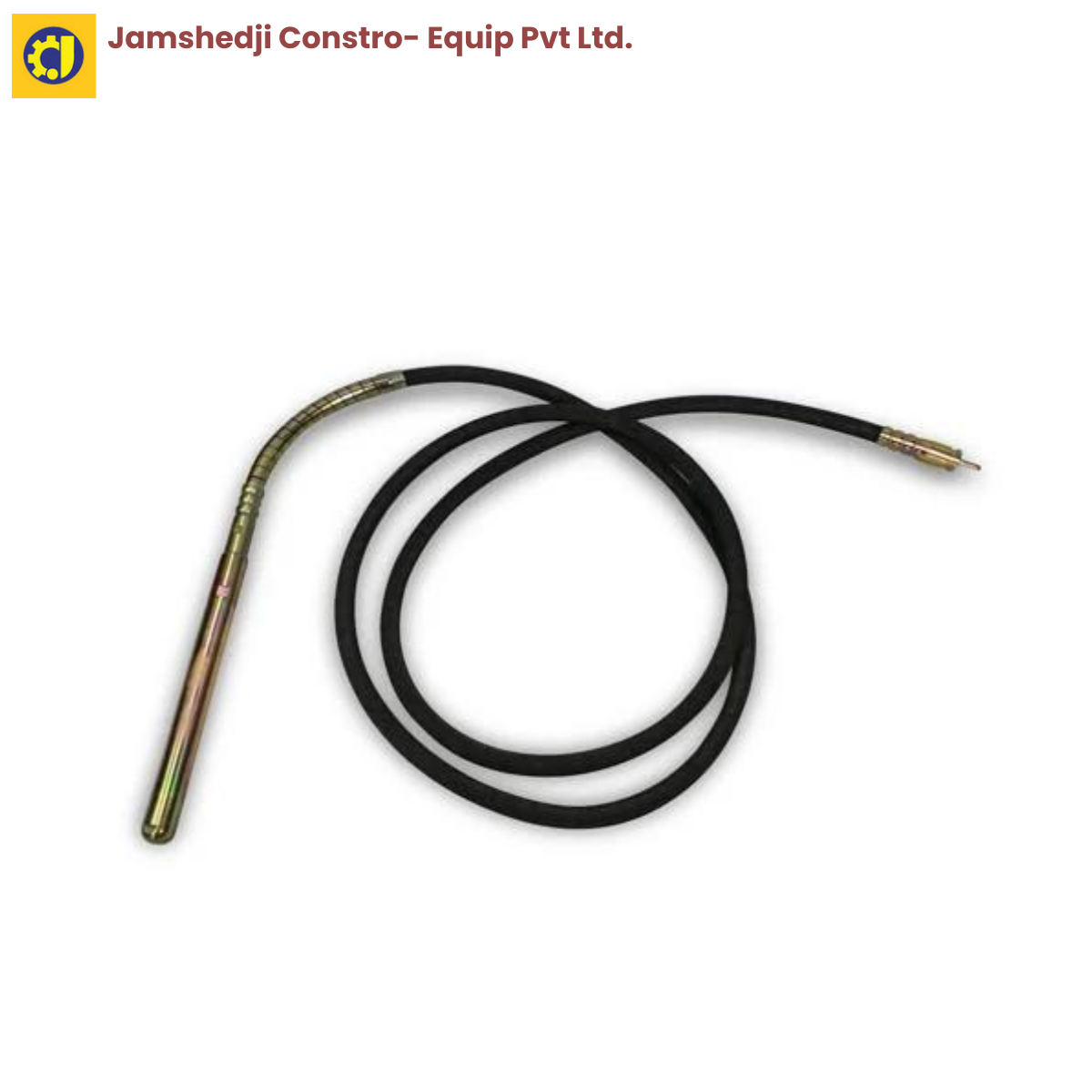

Concrete Vibrator Needle 70mm x 6m – Largest Pours

This is the 70 mm × 6 m needle for a concrete vibrator — the largest poker head in the range, on a 6 metre flexible shaft, for the biggest, most open concrete pours. At 70 mm the head consolidates the widest radius per insertion, so it clears air from high-volume mass concrete faster than any other needle here. The 6 m shaft gives full reach into deep sections.

Fits

The 70 mm needle is the top of the range and needs a drive that takes a 70 mm die — on the Jamshedji range that is the 6 HP petrol drive, which is rated for 35–70 mm needles. A large head at full power is demanding work, so a petrol drive is the right partner. Confirm your drive accepts a 70 mm die before ordering — send your drive model on WhatsApp and we will check the coupling and rating for you.

What it does and which pour it suits

The needle is the working end of a vibrator system: the drive spins it, and its high-frequency vibration liquefies the surrounding concrete so trapped air rises out and the mix flows tight around the bars. It is a wear part — head and shaft abrade in wet concrete and are replaced when the head wears or the shaft stiffens or fails.

The 70 mm head is for the largest pours: big raft foundations, dam and infrastructure work, thick industrial slabs and any high-volume concrete with open reinforcement. Its wide radius per insertion means fewer insertions and faster consolidation across a big pour — which is exactly what matters when a large volume of concrete has a limited working time before it stiffens. It only fits where the steel is open enough to admit a 70 mm head; on congested rebar, step right down to the 35 mm.

Needle sizes in the range

• 35 mm × 6 m — congested rebar, narrow sections, thin walls
• 50 mm × 4 m and 50 mm × 6 m — general slabs and beams
• 60 mm × 4 m and 60 mm × 6 m — heavier mass concrete
• 70 mm × 6 m (this needle) — the largest pours

Specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Genuine part from Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune — manufacturer of the drives it fits

Frequently asked questions
