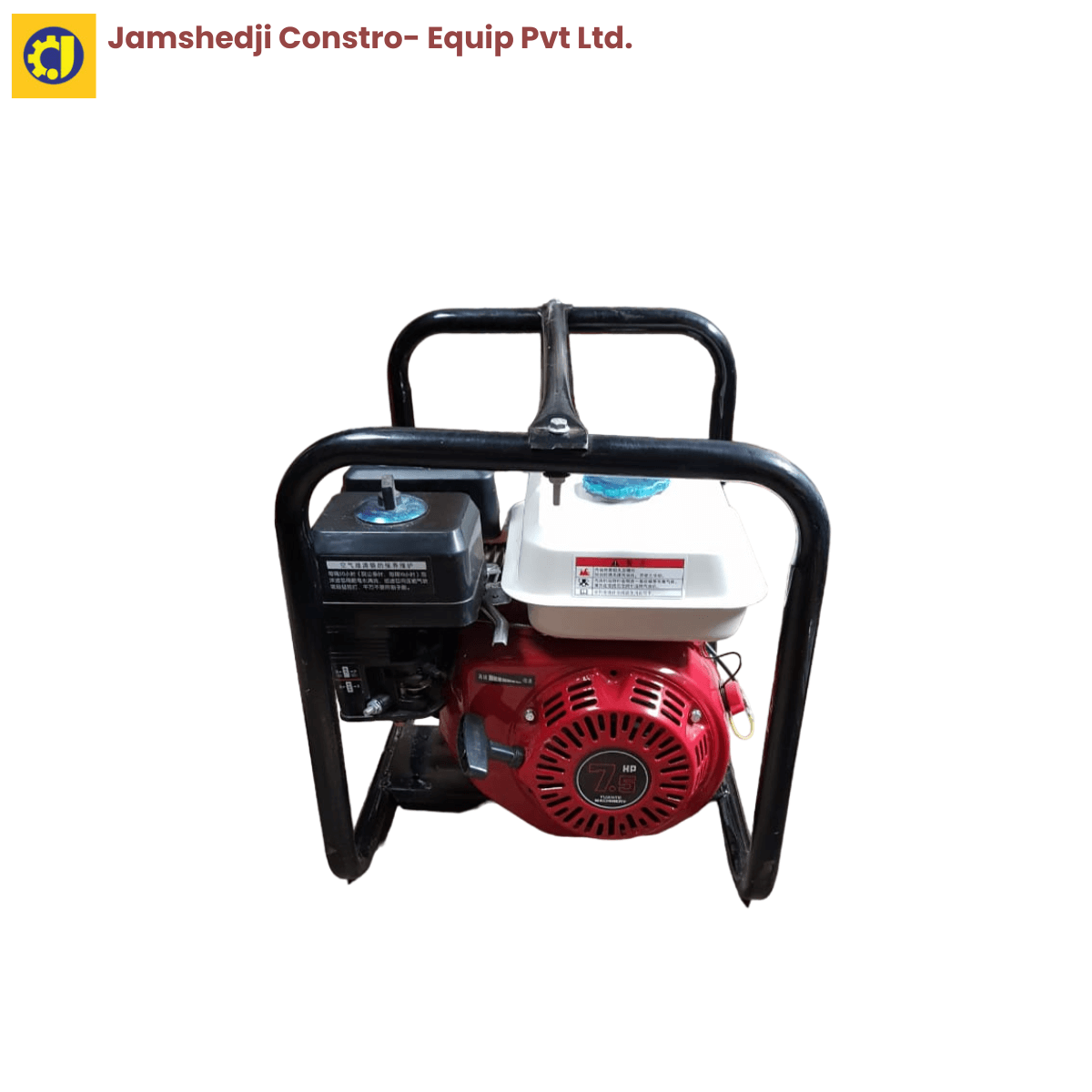

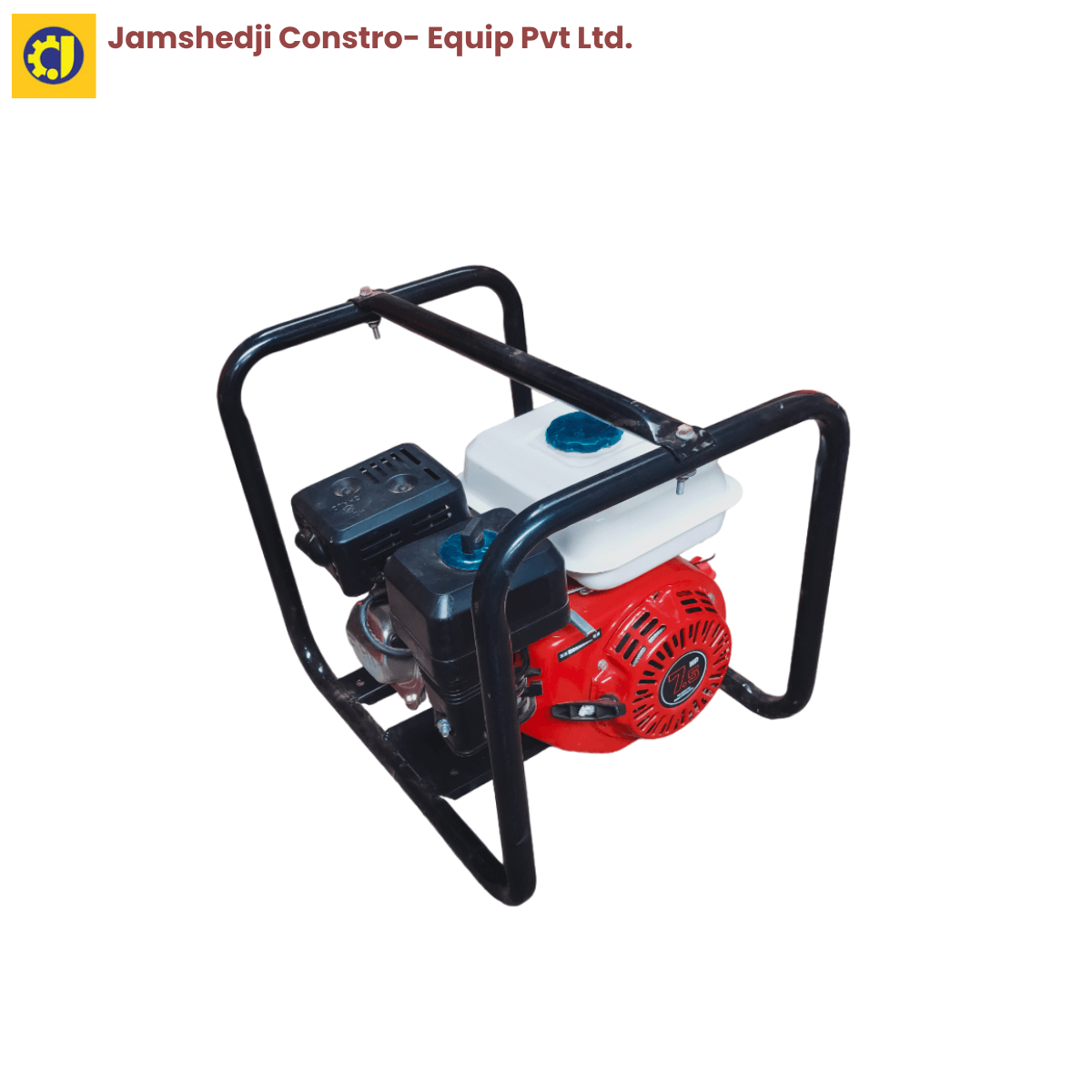

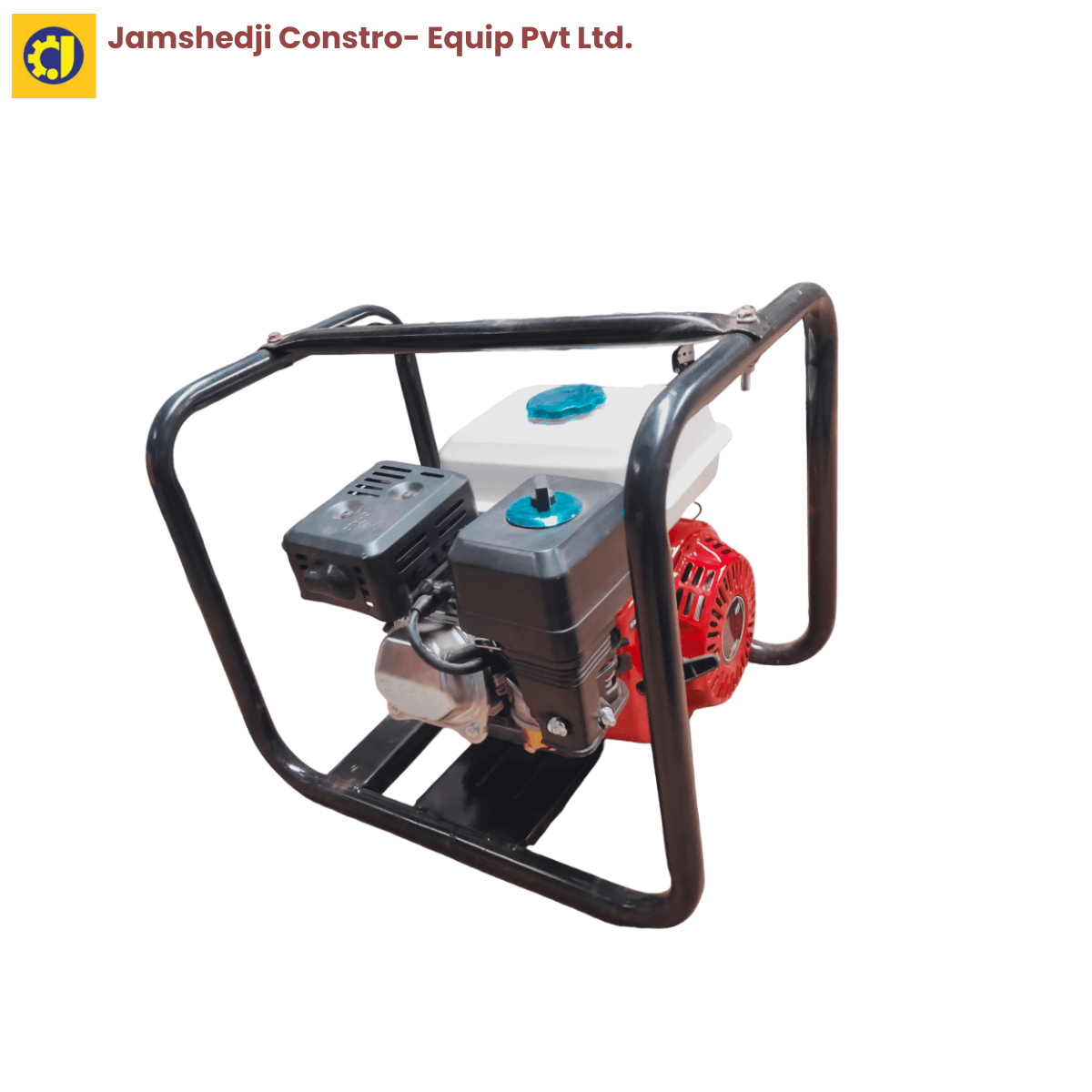

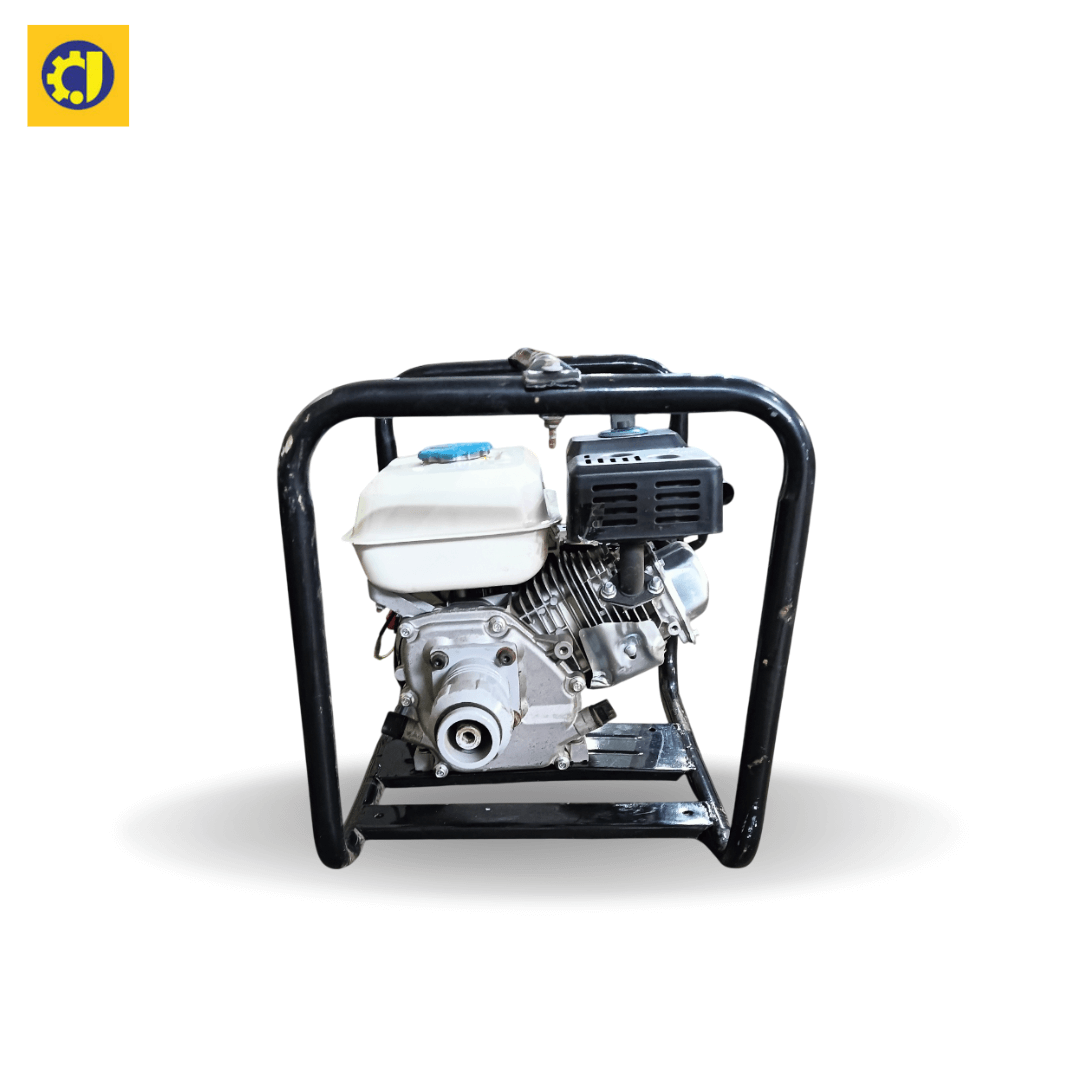

Needle Vibrator Petrol – 7.5HP Drive, Takes 35 to 60mm Needles

The Jamshedji 7.5 HP petrol needle vibrator is the most powerful drive in the range — a petrol-engined concrete vibrator that spins a flexible-shaft poker needle to drive trapped air out of freshly poured concrete. It runs anywhere without a power supply and takes needle dies from 35 mm to 60 mm, so one drive covers everything from walls to mass foundations. Weight 20 kg, 3 litre tank, roughly 75 minutes running per litre.

Key specifications at a glance

• Engine: 7.5 HP petrol
• Needle dies accepted: 35, 40, 50, 60 mm
• Fuel tank: 3 litres
• Runtime: up to ~75 min per litre
• Engine oil: 750 ml
• Weight: 20 kg

Why concrete has to be vibrated

Freshly poured concrete is full of trapped air. Left in place, those voids become honeycombing and weak points that cut the strength of the finished pour and expose the reinforcement to corrosion. A needle vibrator is dropped into the wet concrete and its high-frequency vibration liquefies the mix momentarily, letting the air rise out and the concrete flow tight around the bars and into the corners of the formwork. Proper vibration is the difference between concrete that reaches its design strength and concrete that does not.

Drive and needle — how the system works

A needle vibrator is two parts: the drive (the engine or motor that generates the power) and the needle (the poker on a flexible shaft that goes into the concrete). The drive and needle are chosen separately — you pick the drive for the power and portability the site needs, and the needle diameter for the pour.

This 7.5 HP petrol unit is the top drive. Petrol means it runs anywhere — no mains supply, no cable — which suits large, remote and industrial pours; and 7.5 HP is the most power in the range, enough to drive the biggest needles through stiff, heavily reinforced mixes without bogging down.

Which drive for the site

Choose the drive by power supply and the scale of the pour.

• This 7.5 HP petrol drive — the most powerful, for large slabs, RCC beams, columns and mass foundations on sites without power.
• 6 HP petrol drive — the same cable-free freedom with slightly less power, for general site work.
• 3 HP single-phase electric drive — where a mains supply exists and no exhaust is wanted, such as enclosed or indoor pours.
• 950 W and 1300 W portable vibrators — light, hand-carried units for columns, small pours and confined spaces.

Matching the needle to the pour

This drive accepts needle dies from 35 mm to 60 mm. As a rule, a bigger needle drives more energy over a wider radius for mass concrete, while a smaller needle fits between congested reinforcement and into narrow sections. Needles are sold separately so you can match the diameter and hose length to the job:

• 35 mm × 6 m — narrow sections and congested rebar
• 50 mm × 4 m and 50 mm × 6 m — general slabs and beams
• 60 mm × 4 m and 60 mm × 6 m — heavier mass concrete
• 70 mm × 6 m — the largest pours

Applications

Large slab casting, RCC beams and columns, raft and mass foundations, industrial and infrastructure pours, and any large-scale concrete work on sites without a reliable power supply.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Needles sold separately — tell us your pour and we will recommend the diameter and length
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
