Concrete Vibrator Needle 60mm x 4m – Mass Concrete
Concrete Vibrator Needle 60mm x 4m – Mass Concrete

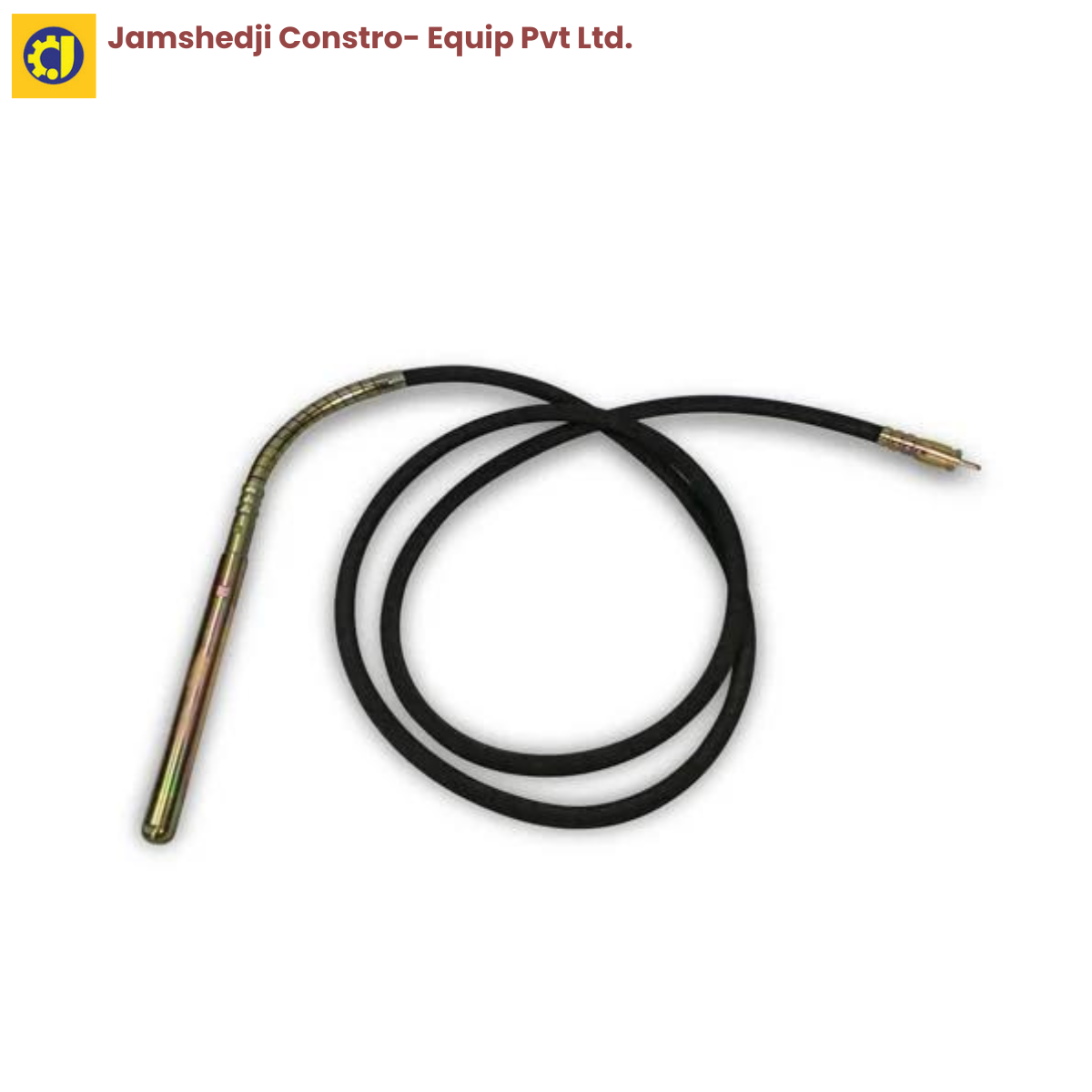

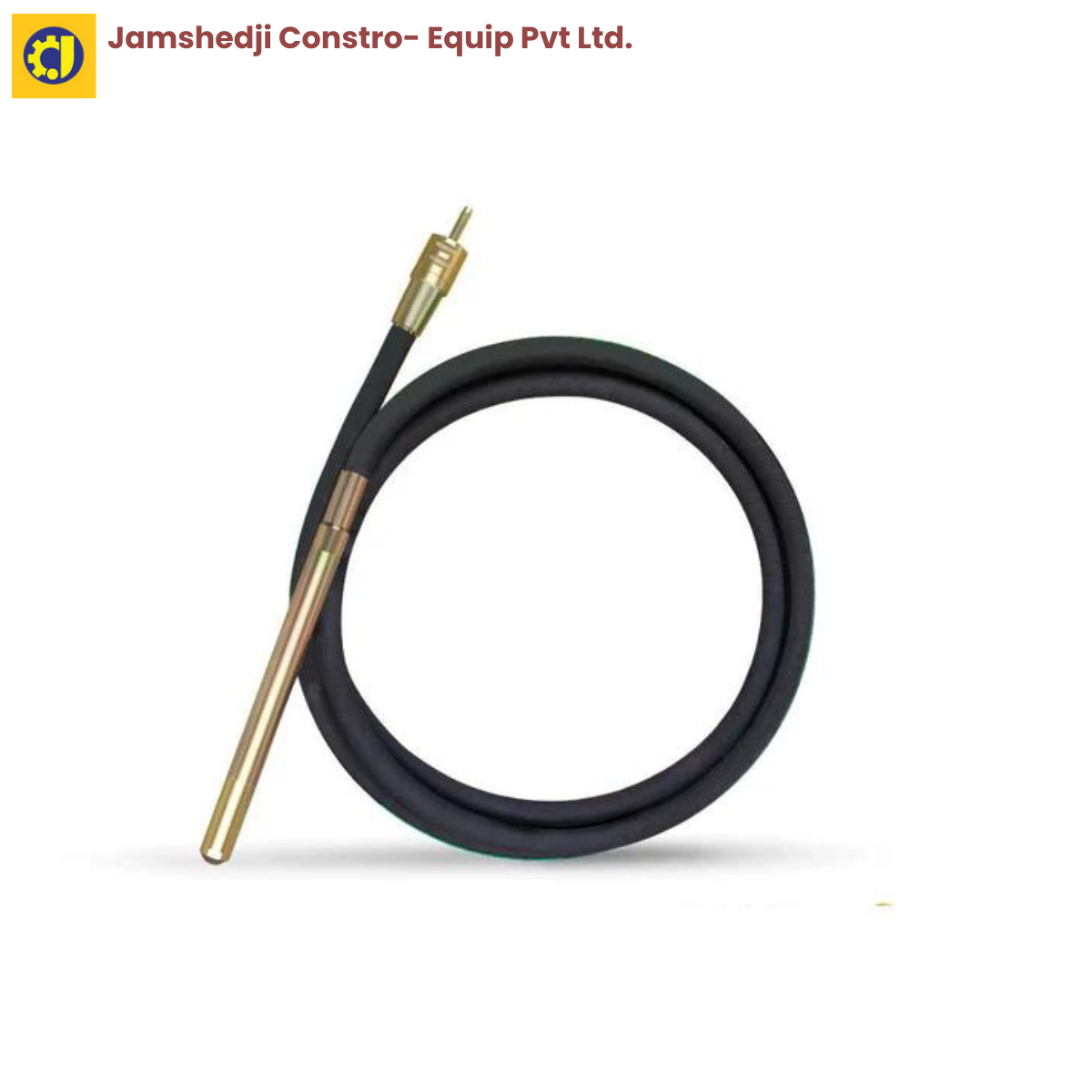

This is the 60 mm × 4 m needle for a concrete vibrator — the poker head and 4 metre flexible shaft that attaches to a needle vibrator drive and goes into the wet concrete. It is the same heavy-duty 60 mm diameter as the 6 m needle, but with a shorter 4 m shaft that is lighter and easier to handle on shallower mass-concrete work where full depth reach is not needed.
Fits
This needle attaches to the Jamshedji needle vibrator drives — the 7.5 HP petrol, 6 HP petrol and 3 HP single-phase electric drives, all of which accept 60 mm dies. A larger needle asks more of the drive, so the more powerful petrol drives are the better match for continuous heavy work. The portable 950 W and 1300 W units take only their own built-in 35 mm needle. Send your drive model on WhatsApp if you need the pairing confirmed.
What it does and which pour it suits
The needle is the working end of a vibrator system: the drive spins it, and its high-frequency vibration liquefies the surrounding concrete so trapped air rises out and the mix flows tight around the bars. It is a wear part — head and shaft abrade in wet concrete and are replaced when the head wears or the shaft stiffens or fails.
The 60 mm head is for mass concrete: large foundations, thick rafts and high-volume pours with open reinforcement, where its wide radius per insertion finishes the pour faster. This 4 m shaft is the length to choose for shallower mass slabs and sections — lighter and easier to work than the 6 m, which is reserved for deep pours and columns. Same head, so the same consolidation; you are matching reach to depth. On congested steel, step down to the 35 mm needle.
Needle sizes in the range
- 35 mm × 6 m — congested rebar, narrow sections, thin walls
- 50 mm × 4 m and 50 mm × 6 m — general slabs and beams
- 60 mm × 4 m (this needle) and 60 mm × 6 m — heavier mass concrete
- 70 mm × 6 m — the largest pours
Specifications
| Part | Concrete vibrator needle (poker head + flexible shaft) |
| Diameter | 60 mm |
| Length | 4 m |
| Best for | Mass concrete, shallower foundations and slabs |
| Fits | Jamshedji 7.5 HP / 6 HP petrol and 3 HP electric needle vibrator drives |
| Brand | Jamshedji |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Genuine part from Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune — manufacturer of the drives it fits
Frequently asked questions
Which drive does this needle fit?
The Jamshedji 7.5 HP and 6 HP petrol drives and the 3 HP single-phase electric drive, all of which take 60 mm dies. A large needle asks more of the drive, so the petrol units suit continuous heavy work best.
4 m or 6 m — which 60 mm needle do I need?
The 4 m is lighter and easier to handle on shallower mass slabs and sections; the 6 m reaches deep pours and columns. Same 60 mm head — choose by how deep you need to reach.
When should I use a 60 mm needle?
For mass concrete with open reinforcement — large foundations, thick rafts and high-volume pours. For congested rebar, use the 35 mm instead.
Is the needle a wear part?
Yes. Head and flexible shaft abrade in wet concrete over time — replace when the head is worn or the shaft stiffens or fails.
What is the price of a 60 mm × 4 m vibrator needle?
Send your drive model on WhatsApp for current pricing and freight.
Need this needle? Tell us your drive model and pour and we will confirm the needle and price.
Dispatched across India — see the 7.5 HP petrol, 6 HP petrol and 3 HP electric drives, or browse the full cement and concrete machines range.
