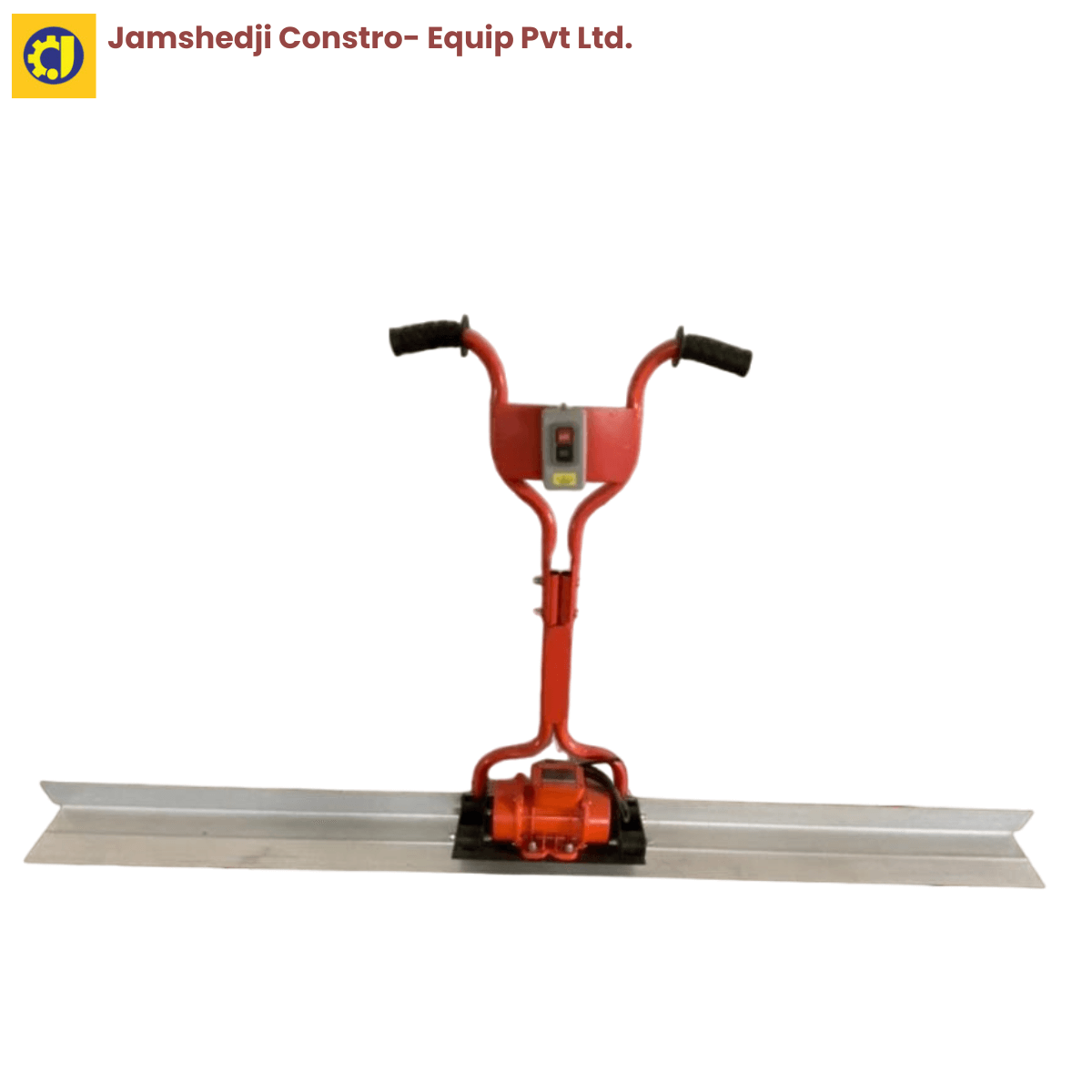

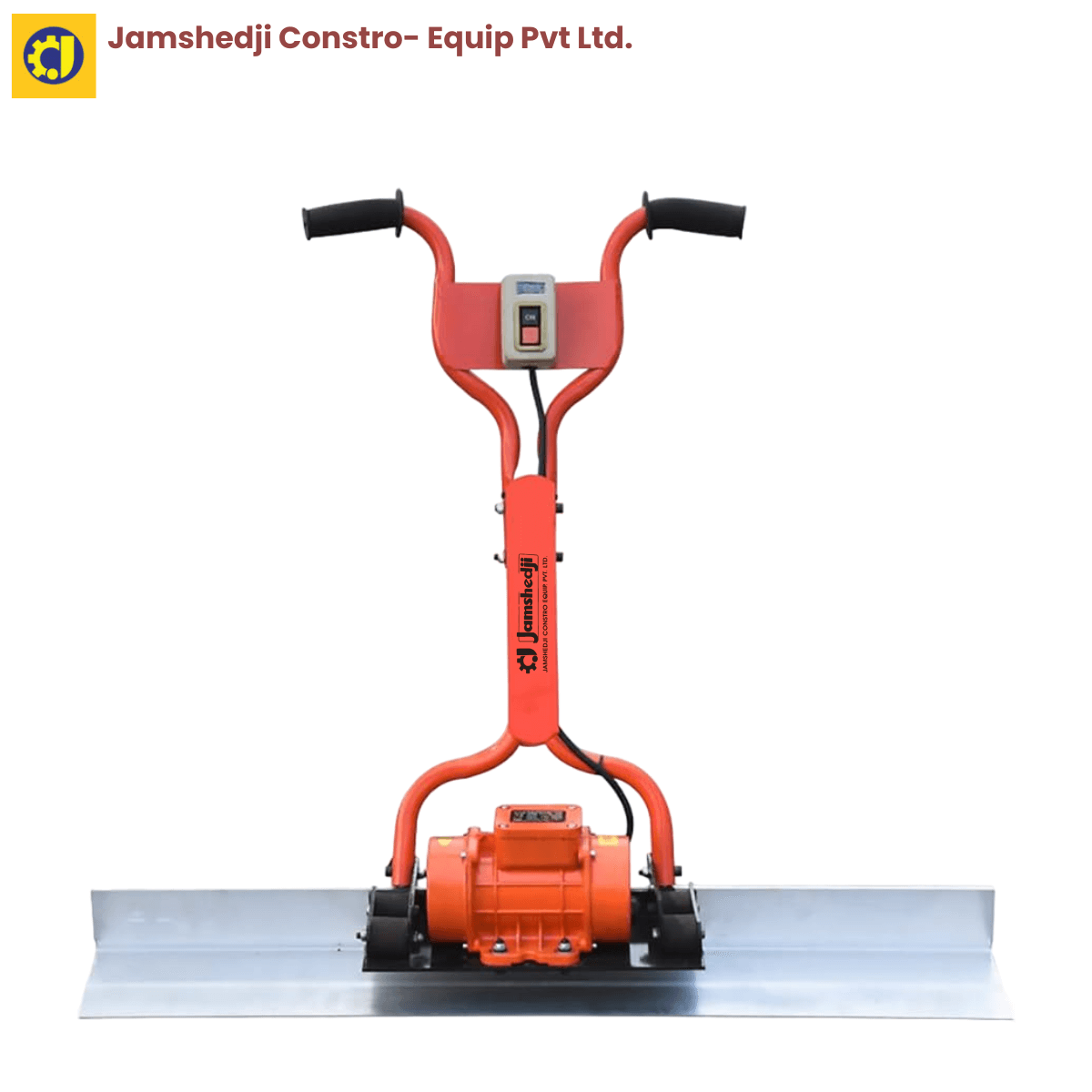

Electric Screed Board Vibrator – 3m Blade, 1.5HP Single Phase

The Jamshedji electric screed board vibrator is a 3 metre single-beam vibrating screed with a 1.5 HP 220 V single-phase motor, delivering 1.8 kN vibration force at 2,800 rpm. It levels, compacts and finishes concrete slabs — floors, footpaths, ramps, driveways and industrial bays — by being dragged across the wet pour. Weight 13 kg. Made in Pune.

Key specifications at a glance

• Blade length: 3 metres
• Motor: 1.5 HP, 220 V single phase
• Speed: 2,800 rpm
• Vibration force: 1.8 kN (exciting force 2.2 kN)
• Motor unit: 410 × 410 × 240 mm
• Weight: 13 kg

What a screed board vibrator actually does

Fresh concrete looks levelled once it has been struck off, but it is not. Air voids sit under the surface, and aggregate is unevenly distributed. Left alone, both show up later as a rough finish, low density near the top, and eventually surface flaking.

A vibrating screed does two jobs in one pass. Vibration drives entrapped air upward and out, so the surface densifies as you go. The straight-edge blade being dragged across the pour then holds a level — you get a flat, dense, ready-to-trowel slab in a single working stroke.

Electric works quietly and cleanly on any site that has ordinary 220 V mains. No exhaust, no fuel handling, no engine noise on residential or refurbishment sites, and no waiting for a fuel top-up mid-pour.

Key features

• 3 metre blade covers slab widths that hand-screeding cannot in one pull
• 1.5 HP single-phase motor runs on ordinary site mains — no three-phase panel
• 2,800 rpm delivering 1.8 kN of vibration force through the blade
• No exhaust — safe indoors and on refurbishment sites
• 13 kg total — light enough for one operator to lift and reposition
• Removes air pockets AND levels in a single pass

Which screed vibrator for the slab

All three Jamshedji screed vibrators do the same underlying job — the choice is about slab size and site conditions.

• This electric single beam (3 m) — small to mid-sized slabs where 220 V mains are on site.
• Petrol single beam (3 m) — same 3 m blade, Honda GX35 petrol engine, for remote and greenfield sites with no power supply.
• Double beam (4.2 m) — wider slabs and higher-quality finishes: twin beams strike the surface twice per pass and cover 4.2 m in one pull.

For large industrial floors and warehouse slabs where flatness specifications matter, move up to the walk behind laser screed or the ride on laser screed, which level without screed rails.

Applications

Residential and commercial slab casting, industrial floors, road and pavement finishing, driveways and garage floors, ramps, footpaths, precast production, and any slab where the pour finishes with a wet screed pass before troweling.

Full specifications

Buying, GST and delivery

• Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
• Sold outright — Jamshedji Constro Equip does not rent or hire equipment
• Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
• Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
