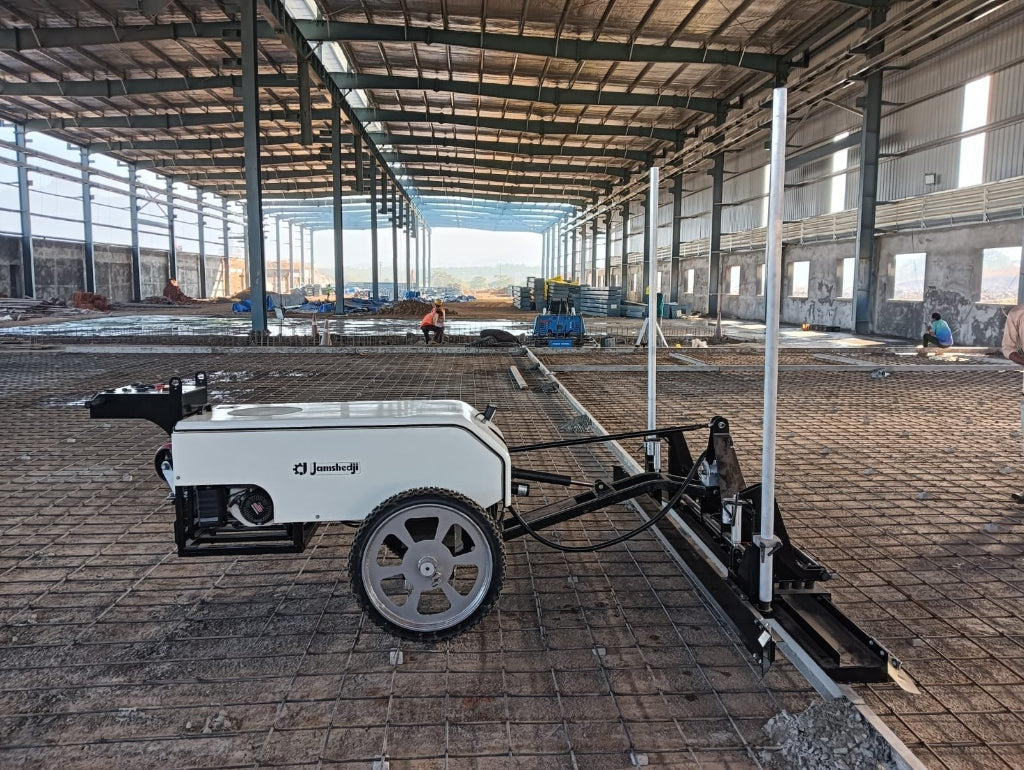

Walk Behind Laser Screed Machine – 2600mm Honda Petrol

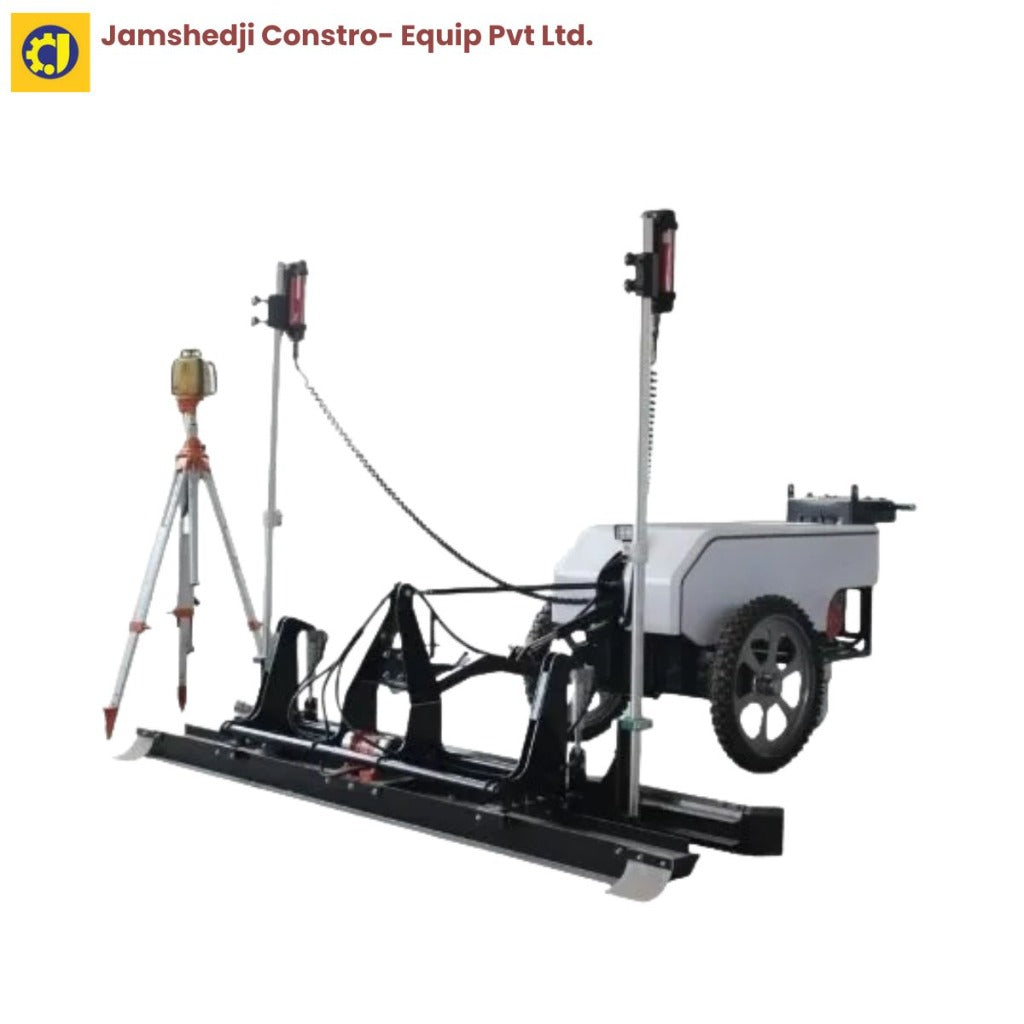

The Jamshedji walk behind laser screed machine is a Honda petrol powered laser-guided concrete levelling machine with a 2,600 mm vibration width, handling slabs up to 150 mm thick at 325 kg. A rotating laser transmitter broadcasts a level reference plane across the pour and the screed head corrects to it continuously, delivering the flatness and levelness industrial floors are specified to — in bays a ride-on machine cannot enter. At the recommended 5 m per minute it covers roughly 1,800 sqm in an eight-hour shift.

Key specifications at a glance

• Vibration width: 2,600 mm
• Engine: Honda petrol
• Max slab thickness: 150 mm
• Output: approx. 1,800 sqm per 8-hour shift
• Drive: servo system automatic walking, two-wheel automatic drive
• Weight: 325 kg

Laser flatness where a ride-on cannot go

Not every industrial floor is an open deck. Mezzanine slabs, plant rooms, column-crowded corners, upper-floor pours and repair sections all need the same specified flatness as the main hall — but an 880 kg ride-on machine cannot be craned onto a mezzanine or turned inside a tight column grid.

At 325 kg this machine can. It is light enough to lift between floors and narrow enough to work into confined bays, while still running the same microelectronic laser scanning control, with flat, slope and double-slope capability. So the awkward areas get laser-levelled rather than falling back on hand screeding and a visible difference in the finished floor.

Frequency-conversion proportional control on the vibration plate means the machine adjusts consolidation to the concrete rather than running flat out, which matters on thinner slabs where over-vibration causes segregation.

Key features

• 2,600 mm vibration width with frequency-conversion proportional control
• Honda petrol engine; 17 L tank, 1.2–1.4 L per hour consumption
• Microelectronic laser scanning — flat, slope and double-slope finishes
• Servo-system automatic walking with two-wheel automatic drive
• Maximum slab thickness 150 mm; approximately 1,800 sqm per 8-hour shift
• 4,000 vibrations per minute at 600 N
• 325 kg — light enough to lift between floors and onto mezzanines

Walk-behind or ride-on

Choose by bay size and access, not by budget. This walk-behind covers 2,600 mm, handles slabs to 150 mm and weighs 325 kg — the machine for mezzanines, plant rooms, confined bays, upper floors and repair pours.

The ride on laser screed machine covers 3,000 mm, handles slabs to 300 mm and works at 300–500 sqm per hour on four-wheel drive — the machine for large open warehouse and logistics decks. Both are Honda petrol powered, and many flooring contractors run the two together: the ride-on takes the open field, the walk-behind takes everything it cannot reach.

Once the slab is levelled, finishing follows with a ride on trowel or a dual speed power trowel, with a 600 mm edger for the perimeter.

Full specifications

Supply terms

• 50% advance with purchase order, 50% against proforma before dispatch
• GST 18% extra
• Delivery within 5 days of purchase order, by road, F.O.R. Pune
• Warranted 12 months from delivery against manufacturing defects; rubber, electrical and wear parts excluded
• First-time installation and operator familiarisation by our trained staff at no charge; travel and lodging at actuals
