Petrol Screed Board Vibrator – Honda GX35, 3m Blade
Petrol Screed Board Vibrator – Honda GX35, 3m Blade

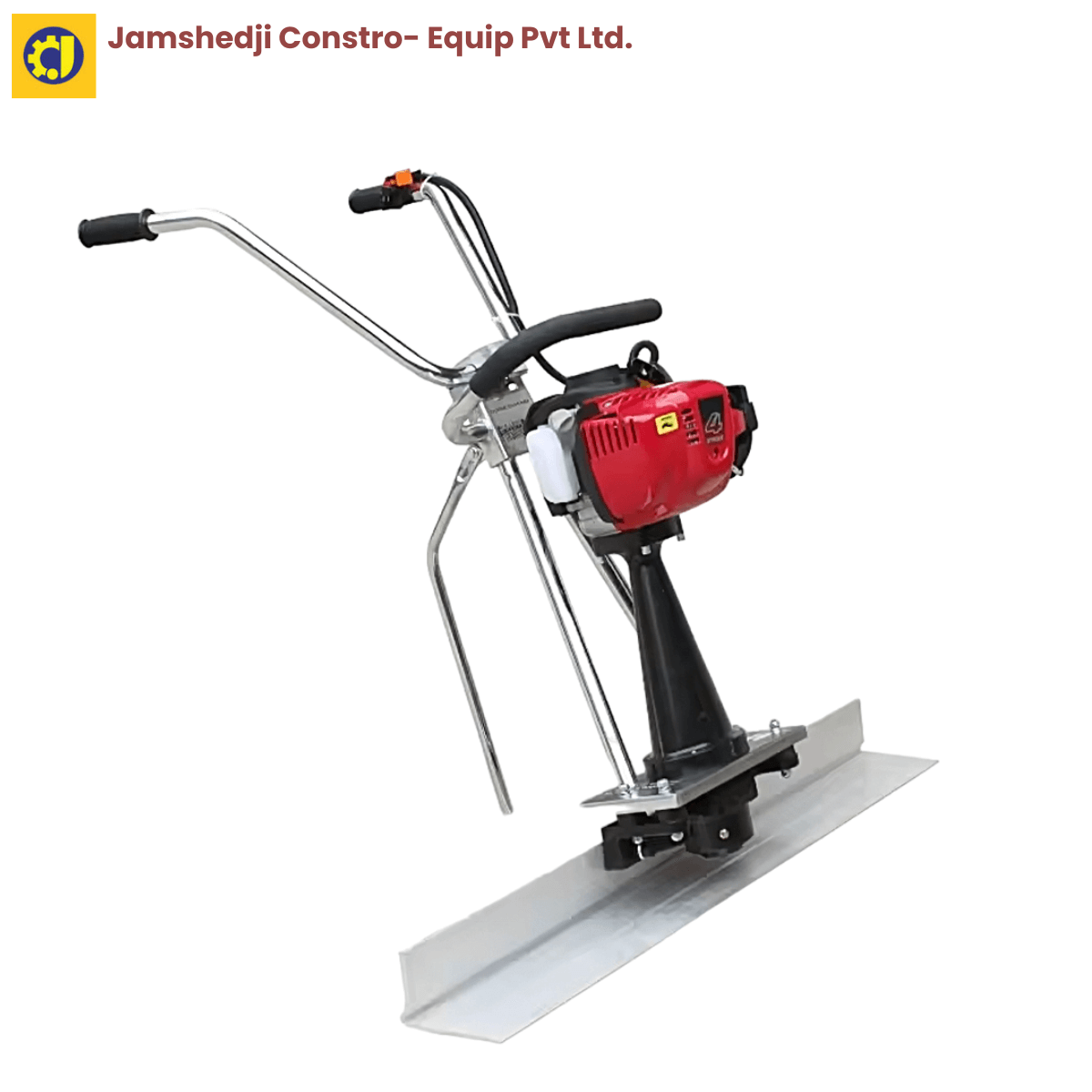

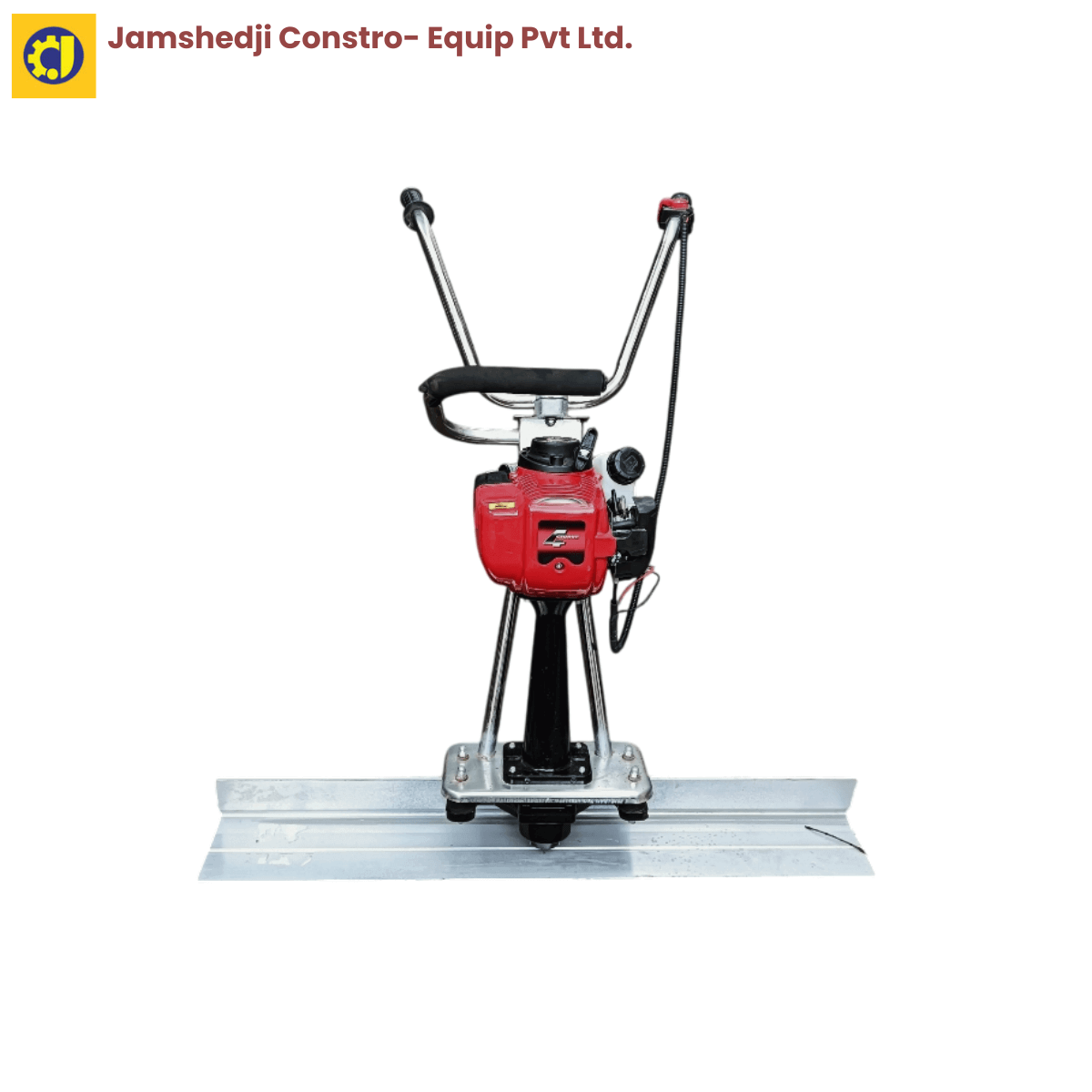

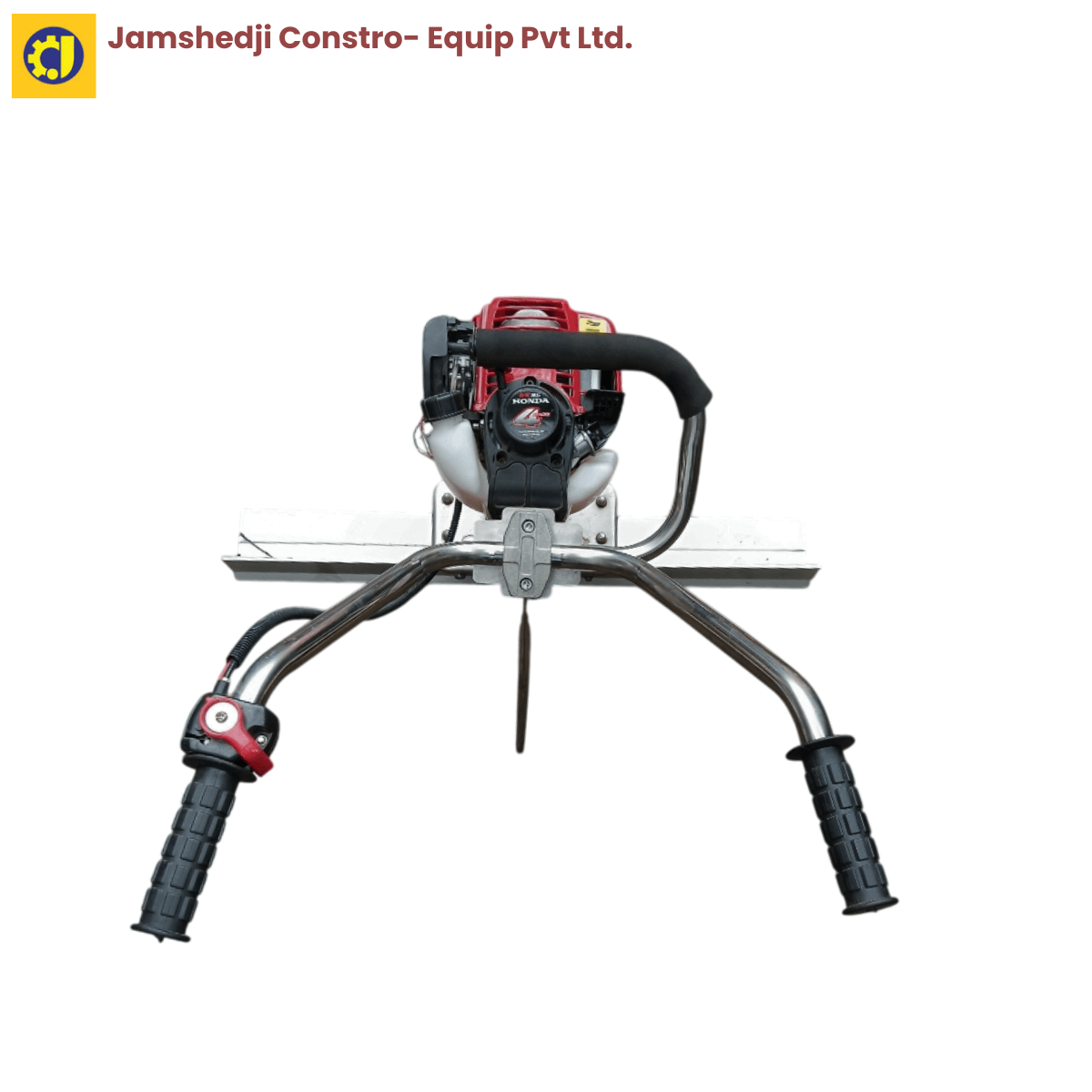

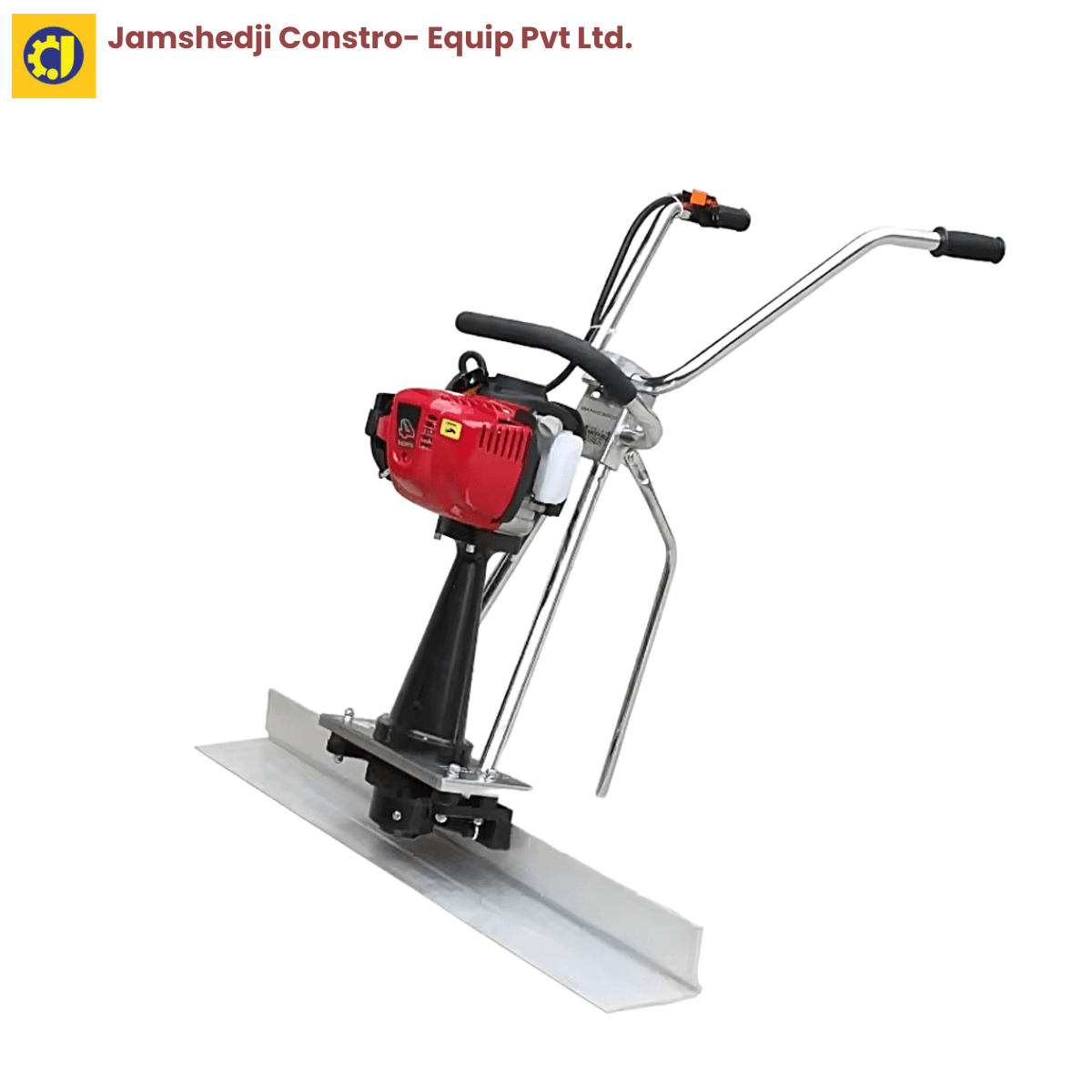

The Jamshedji petrol screed board vibrator is a 3 metre single-beam vibrating screed powered by a Honda GX35 4-stroke petrol engine (2 HP), running at up to 5,200 rpm. It levels, compacts and finishes concrete slabs on sites with no mains supply — roads, greenfield plots, highway repair work and remote industrial projects. Fuel capacity 0.65 L, weight 25 kg.
Key specifications at a glance
- Blade length: 3 metres
- Engine: Honda GX35, 2 HP
- Max speed: 5,200 rpm
- Fuel capacity: 0.65 litre
- Unit dimensions: 730 × 400 × 400 mm
- Weight: 25 kg
What a screed board vibrator does — and why petrol on some sites
Fresh concrete looks levelled once it has been struck off, but it is not. Air voids sit under the surface and aggregate is unevenly distributed. Left alone, both show up later as a rough finish and low density near the top.
A vibrating screed does two jobs in one pass. Vibration drives entrapped air upward and out, so the surface densifies as you go. The straight-edge blade being dragged across the pour then holds a level — you get a flat, dense, ready-to-trowel slab in a single working stroke.
Petrol is the choice when there is no mains supply — roads, greenfield plots, remote sites, temporary works, and the routine highway repair where a generator would cost more to haul out than the machine itself. The Honda GX35 is a proven 4-stroke chosen deliberately for its reliability and long service life; parts and service are available across India.
Key features
- Honda GX35 4-stroke petrol engine — reliable, low-emission, easy to start
- 3 metre blade covers slab widths that hand-screeding cannot in one pull
- Up to 5,200 rpm for aggressive concrete compaction
- 0.65 L fuel capacity — enough for continuous work between refuels
- No power supply required — works on any site with fuel
- 25 kg — carried and repositioned by one operator
- Removes air pockets AND levels in a single pass
Which screed vibrator for the slab
All three Jamshedji screed vibrators do the same underlying job — the choice is about slab size and site conditions.
- Electric single beam (3 m) — small to mid-sized slabs where 220 V mains are on site. Cheaper to run and safe indoors.
- This petrol single beam (3 m) — same 3 m blade, for remote and greenfield sites with no power supply.
- Double beam (4.2 m) — wider slabs and higher-quality finishes: twin beams strike the surface twice per pass and cover 4.2 m in one pull.
For large industrial floors and warehouse slabs where flatness specifications matter, move up to the walk behind laser screed or the ride on laser screed, which level without screed rails.
Applications
Road and highway slab casting and repair, greenfield residential plots before the electricity connection is live, remote industrial projects, precast production yards without three-phase supply, driveways and pavements, and any slab where mains power is not available or not practical.
Full specifications
| Type | Petrol single-beam screed board vibrator |
| Function | Slab levelling, compaction and finishing |
| Engine | Honda GX35 4-stroke |
| Power | 2 HP |
| Max speed | 5,200 rpm |
| Fuel capacity | 0.65 litre |
| Blade length | 3 metres |
| Unit dimensions | 730 × 400 × 400 mm |
| Weight | 25 kg |
| Brand | Jamshedji |
| Manufactured / supplied by | Jamshedji Constro Equip Pvt. Ltd., MIDC Bhosari, Pune |
Buying, GST and delivery
- Supplied with a GST invoice (18% GST — CGST + SGST within Maharashtra, IGST interstate), ITC eligible
- Sold outright — Jamshedji Constro Equip does not rent or hire equipment
- Dispatched F.O.R. Pune to sites across India, plus export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal
- Backed by a manufacturer founded in 1983, ISO 9001:2015 and MSME/Udyam registered, with 5,000+ clients
Frequently asked questions
What does a screed board vibrator do?
It levels the freshly poured slab and drives air out of the top layer at the same time — vibration densifies the surface while the straight-edge blade holds it flat, in one working pass across the pour.
Petrol or electric — how do I choose?
Same 3 m blade on both. Petrol for remote and greenfield sites where there is no power supply. Electric where the site has 220 V mains — cheaper to run and no exhaust.
Why Honda GX35?
The GX35 is a proven 4-stroke that starts reliably in the field and has parts and service available throughout India. That matters more on a remote site than any headline spec.
Can it be used indoors?
Not in enclosed spaces — it produces engine exhaust. For enclosed floors and refurbishment sites use the electric machine.
When should I go up to the double beam?
When slab width exceeds a comfortable 3 m single pull, or when the slab needs a higher-quality finish — the double beam covers 4.2 m in one pass and strikes the surface twice per pass.
Do I still need a power trowel afterwards?
Usually yes. The screed vibrator gets you a flat, dense slab; the power trowel then floats and finishes the surface as it starts to set.
What is the price of a petrol screed board vibrator in India?
Send your slab width and site location on WhatsApp for a GST-inclusive quotation including freight.
Get a GST-inclusive quotation — tell us your slab width and site conditions and we will confirm whether the petrol, electric or double-beam machine fits.
