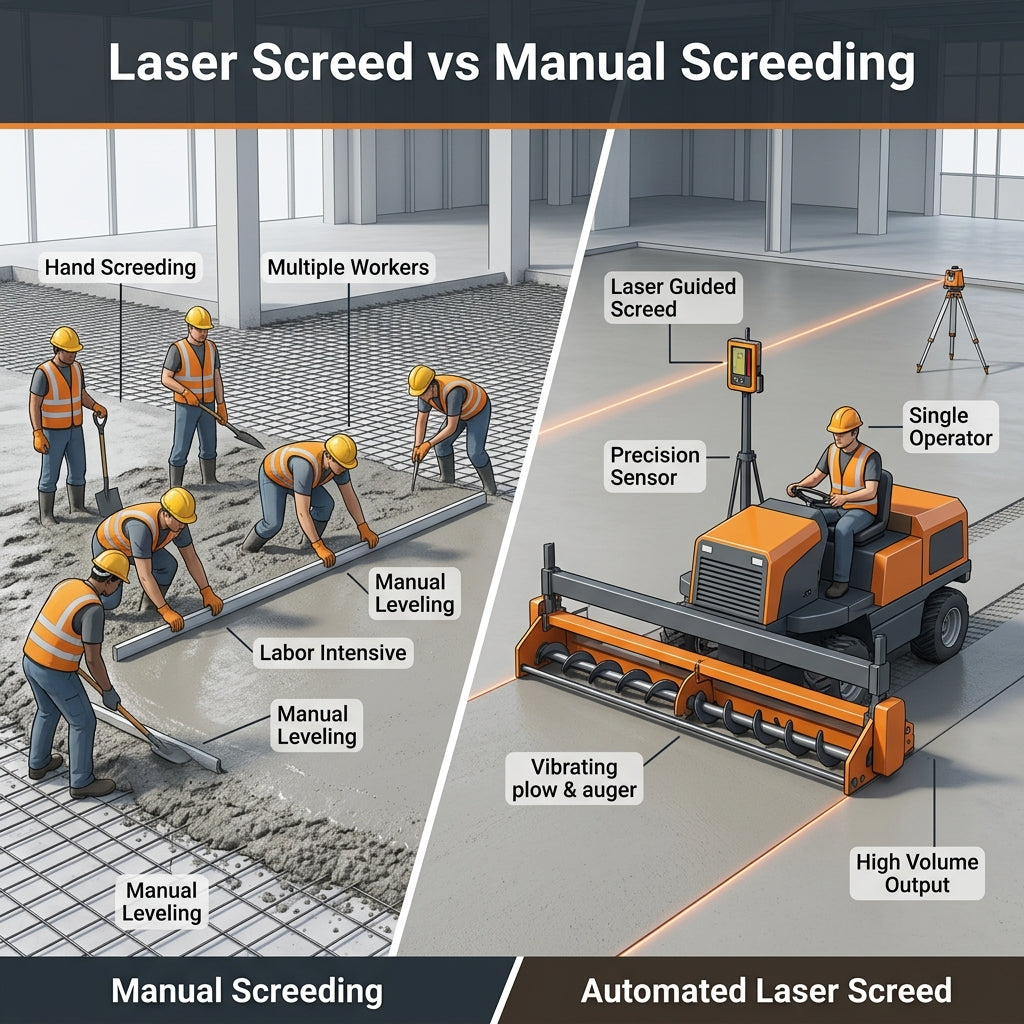

Laser Screed vs Manual Screeding: Floor Flatness, Speed and Crew Size
Quick answer
A laser screed levels concrete to a rotating laser reference plane, so it holds grade across a whole bay without screed rails, while manual screeding strikes off concrete to rails or forms set by hand. On industrial and warehouse floors the laser screed typically delivers much higher flatness (FF 35 to 50 and above, against roughly 20 to 25 for manual rail screeding), places 1,800 to 4,000 sqm in a shift instead of a few hundred, and needs a placing crew of about 4 to 6 instead of 10 to 15.
Ride-on laser screed: 3,000 mm width, 24 HP Honda, 300–500 sqm per hour.
This guide compares the two methods on the points that decide an industrial floor in India: the FF and FL numbers your client will specify, area covered per day, the size of the crew, joints, and where manual screeding is still the sensible choice. It also lays out the full slab workflow for each method, from pour to final trowel pass.
Laser screed vs manual screeding at a glance
| Factor | Manual screeding (rails + screed vibrator) | Laser screed |
|---|---|---|
| Level reference | Screed rails or forms set by hand with a level | Rotating laser plane, read continuously by the screed head |
| Typical flatness (FF) | About 20 to 25 | About 35 to 50+, with good finishing |
| Typical levelness (FL) | About 15 to 20 | About 25 to 40 |
| Output | Typically 300 to 800 sqm per day per gang | About 1,800 sqm per shift (walk-behind) to 300–500 sqm per hour (ride-on) |
| Placing crew | Typically 10 to 15 people including rail setting | Typically 4 to 6 people including the operator |
| Bay width | Limited by beam length, usually 3 to 4.2 m strips | Wide open bays, no rails |
| Construction joints | Many, one at every strip or alternate bay | Far fewer |
| Equipment cost | Low | High, recovered through output and labour saving |
| Best suited to | Small pours, residential, floors with no flatness specification | Warehouses, logistics parks, factories, cold stores, large commercial floors |
The flatness, output and crew figures are typical ranges seen on Indian sites. Actual results depend on the concrete supply, the finishing crew and the site, and are discussed in detail below.
What is manual screeding?
Manual screeding is the conventional way to level a concrete floor. Screed rails, steel channels or forms are set to level along each side of a strip, concrete is poured between them, and a vibrating screed board is pulled along the rails to compact the concrete and strike it off at rail height.
On Indian industrial floors this is the first stage of the familiar Trimix or VDF process: rails, pour, needle vibrator, screed board vibrator, vacuum dewatering, then power floating and troweling. The floor is laid in long strips or alternate bays, each as wide as the screed beam, typically 3 m for a single-beam screed and up to 4.2 m for a double-beam screed.
The weak point is the reference. The finished floor can only be as flat as the rails were set, as rigid as they stayed during the pour, and as consistent as the crew was in pulling the screed. Every rail line also becomes a construction joint.
What is a laser screed?
A laser screed replaces the rails with a laser. A transmitter set up on a tripod beside the pour spins a level beam across the whole area. Receivers on the screed head read that beam and the machine's hydraulic or servo control adjusts the head height many times a second, so the strike-off follows the laser plane rather than a hand-set rail.
In one pass the machine spreads, vibrates and strikes off the concrete. Because the reference is a beam of light instead of a steel rail, there is nothing to set, pull or patch, and the bay can be as wide as the pour sequence and concrete supply allow.
Laser screeds come in two main forms. A ride-on laser screed drives through the fresh concrete on the ground and covers the largest areas fastest. A walk-behind laser screed is lighter and narrower, so it can be lifted onto upper floors and mezzanines and worked into tight column grids.
What do FF and FL mean?
FF (floor flatness) and FL (floor levelness) are F-numbers used to specify and measure industrial floors, defined in ACI 117 and measured to ASTM E1155. They are widely used on Indian warehouse and logistics projects, alongside the UK TR34 classification.
- ✔ FF, flatness, measures how bumpy the surface is over short distances, based on readings every 300 mm. It is what a forklift wheel and its load feel as they roll
- ✔ FL, levelness, measures how far the floor drifts from the design level over 3 m distances. It is what makes racking lean and drains collect water
Higher numbers mean a better floor, and the scale is roughly linear: an FF 50 floor has about half the surface variation of an FF 25 floor. Typical classes used in specifications are:
| Floor class | Typical FF / FL | Typical use | Usual method |
|---|---|---|---|
| Conventional | FF 20 / FL 15 | Basements, parking, residential slabs | Manual screeding |
| Moderately flat | FF 25 / FL 20 | Light commercial and general industrial floors | Careful manual screeding with extra straightedging |
| Flat | FF 35 / FL 25 | Warehouses, factories, retail with pallet trucks | Laser screed |
| Very flat | FF 45 / FL 35 | High-bay warehouses, cold stores, automated handling | Laser screed with controlled finishing |
| Super flat | FF 50+ / FL 50+ | Very narrow aisle racking, defined traffic floors | Laser screed plus specialist finishing and grinding |
Manual screeding to rails regularly lands in the conventional to moderately flat range. Once a client specifies FF 35 or above, which is now common for warehouses and logistics parks, a laser screed is the practical way to meet it consistently across the whole floor. Flatness is also affected by the finishing passes after the screed, so a good laser screed still needs a good trowel crew.
How many sqm per day can each method lay?
Output is where the gap is largest. A manual crew has to set and check rails before each strip, pour one strip at a time, and wait for alternate bays before infilling. A laser screed works straight across an open bay.
| Method | Typical output | What limits it |
|---|---|---|
| Manual screeding with rails | About 300 to 800 sqm per day per gang | Rail setting, strip width, alternate-bay sequence, crew stamina |
| Walk-behind laser screed (2,600 mm width) | About 1,800 sqm per 8-hour shift at 5 m per minute | Walking pace, concrete supply |
| Ride-on laser screed (3,000 mm width) | 300 to 500 sqm per hour | Almost always concrete supply and the finishing crew |
On a ride-on laser screed job the machine is rarely the bottleneck. The real limits become how many transit mixers per hour your RMC plant can send and whether the troweling crew can finish everything that was placed before it sets. Plan the concrete supply and the number of trowels around the screed's output, not the other way round.
How big a crew does each method need?
Crew sizes vary by contractor, but a typical placing and levelling crew looks like this:
| Task | Manual screeding | Laser screed |
|---|---|---|
| Rail setting and levelling | 2 to 3 | None. One person sets up the laser transmitter |
| Spreading and raking concrete | 4 to 6 | 2 to 3 |
| Needle vibrator | 1 to 2 | 0 to 1, as the screed head vibrates |
| Screed board or machine operator | 2 | 1 |
| Straightedge and bull float | 2 | 1 |
| Typical total | 10 to 15 | 4 to 6 |
Taken together with output, the difference per square metre is large. A manual gang of around 12 laying 500 sqm a day is about 42 sqm per person. A laser screed crew of around 5 laying 2,000 sqm a day is about 400 sqm per person, close to ten times the productivity. The troweling and finishing crew is needed with either method.
Why fewer joints matter on a warehouse floor
On a manual floor, every strip edge becomes a construction joint. A warehouse laid in 4 m strips has a joint every 4 m across its width, in addition to the sawn contraction joints. Joints are where industrial floors usually fail first: edges spall under forklift wheels, and the joint line shows up as a bump that reduces flatness right where traffic crosses it.
A laser screed places wide bays in a single pour, so there are far fewer construction joints to maintain. Contraction joints are still sawn with a concrete groove cutter at the spacing the floor designer specifies, but the number of formed joints drops sharply.
The full slab workflow for each method
Manual and Trimix (VDF) workflow
Vacuum dewatering pump used in the Trimix (VDF) process.
Laser screed workflow
Vacuum dewatering is mainly part of the rail-based Trimix route. On laser-screeded floors the mix is usually designed for the placing method, and contractors decide on dewatering according to the floor specification.
Choosing the right trowel for the finishing passes
Ride-on trowel with twin 940 mm rotors for large pours.
Whichever screeding method you use, the finishing window is limited, so the trowels have to keep up with the area placed. Choose by power supply and pour size:
- ✔ Ride-on trowel (twin 940 mm rotors, 24 HP) for large open pours, typically above about 1,000 sqm, where walk-behind machines cannot finish the whole area in time
- ✔ Dual speed power trowel (three phase) for running floating and finishing at separate speeds on indoor slabs
- ✔ Heavy-duty petrol trowel (100 kg) and petrol power trowel (75 kg) for open sites with no power supply
- ✔ Single phase power trowel for indoor slabs, basements and upper floors with only single-phase supply
- ✔ 600 mm edger for the perimeter band along walls, columns and kerbs that a 1,000 mm machine cannot reach
When should you use manual screeding?
Manual screeding remains the sensible choice where the floor has no demanding flatness specification or the pour is too small to justify a laser screed:
- ✔ Residential slabs, basements and parking floors where conventional flatness is acceptable
- ✔ Small pours, typically a few hundred sqm, where rail setting is a small part of the work
- ✔ Narrow strips, ramps, drains and sloped areas formed to edges
- ✔ Repair and patch work inside an existing floor
- ✔ Trimix floors where the client specifies the VDF process and conventional tolerances
When should you use a laser screed?
A laser screed pays for itself where flatness is specified, the area is large or the work repeats across many pours:
- ✔ Warehouses and logistics parks specified at FF 35 or above, or to TR34 classes
- ✔ Factories and manufacturing floors with forklift and pallet traffic
- ✔ Cold stores and high-bay racking, where levelness affects rack plumb and safety
- ✔ Large commercial floors such as malls, showrooms and data centres
- ✔ Flooring contractors who lay floors continuously, where the output gain is earned on every job
Ride-on or walk-behind laser screed?
Walk-behind laser screed: 2,600 mm width, 325 kg, for upper floors and confined bays.
| Specification | Ride-on laser screed | Walk-behind laser screed |
|---|---|---|
| Levelling width | 3,000 mm | 2,600 mm |
| Engine | Honda 24 HP petrol, four-wheel-drive hydraulic | Honda petrol, servo automatic walking drive |
| Slab thickness | 30 to 300 mm | Up to 150 mm |
| Output | 300 to 500 sqm per hour | About 1,800 sqm per 8-hour shift |
| Weight | 880 kg | 325 kg |
| Best for | Large ground-bearing warehouse and factory slabs | Upper floors, mezzanines, column-dense and confined bays |
Many flooring contractors run both: the ride-on on the main hall and the walk-behind on mezzanines, plant rooms and areas the ride-on cannot reach, so the whole building gets laser-levelled.
Laser screeds and flooring equipment from Jamshedji
Jamshedji Constro Equip has manufactured construction machinery in Pune since 1983 and supplies the complete industrial flooring line from its MIDC Bhosari factory: ride-on and walk-behind laser screeds, screed board vibrators, vacuum dewatering pumps, power trowels, ride-on trowels and edgers. See the full Trimix and flooring range.
GST is charged at 18% (CGST and SGST within Maharashtra, IGST for other states). We deliver across India and export to Bangladesh, UAE, Kenya, Tanzania, Sri Lanka and Nepal.
Frequently asked questions
Is a laser screed better than manual screeding?
For large industrial and warehouse floors, yes. A laser screed typically achieves much higher flatness, lays several times more area per day and needs a smaller crew, with fewer construction joints. For small pours and floors without a flatness specification, manual screeding is cheaper and perfectly adequate.
What FF and FL can a laser screed achieve?
With good finishing, laser-screeded floors typically achieve FF 35 to 50 and above and FL 25 to 40, compared with roughly FF 20 to 25 and FL 15 to 20 for manual rail screeding. The final numbers also depend on the floating and troweling passes.
How many sqm per day can a laser screed lay?
A ride-on laser screed places 300 to 500 sqm per hour and a walk-behind machine about 1,800 sqm per 8-hour shift. In practice daily output is usually limited by concrete supply and the finishing crew rather than the machine.
How many workers does a laser screed save?
A laser screed placing crew is typically 4 to 6 people, against 10 to 15 for manual screeding with rails. Because it also lays far more area per day, output per worker is often close to ten times higher.
Can a laser screed be used with Trimix or vacuum dewatering?
Vacuum dewatering is mainly part of the rail-based Trimix process. On laser-screeded floors the concrete mix is usually designed for the placing method, and whether to dewater is decided by the floor specification.
Can a laser screed be used on upper floors?
Use a walk-behind laser screed. At 325 kg it can be lifted between floors and onto mezzanines and worked in confined bays. The 880 kg ride-on machine is meant for large ground-bearing slabs.
What is the difference between FF and FL?
FF (floor flatness) measures short-distance bumpiness from readings every 300 mm, which is what forklift wheels feel. FL (floor levelness) measures how far the floor drifts from design level over 3 m, which affects racking and drainage. Higher numbers mean a better floor.
